Track & Sliding Systems

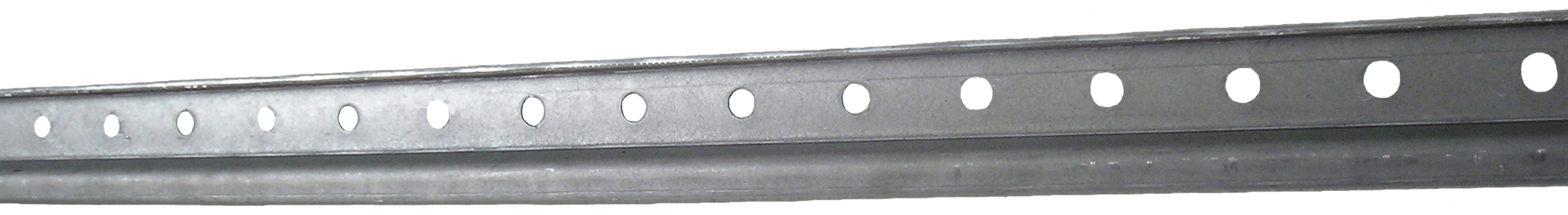

Suspension Rail
Suspension Bracket
Steel
286 lbs carrying capacity per wall cabinet
200 pieces per box

Left Hand Part Number: GR499825401215
Right Hand Part Number: GR499825401115
8' length
Steel
25 pieces per bundle

Part Number: 73J693524031

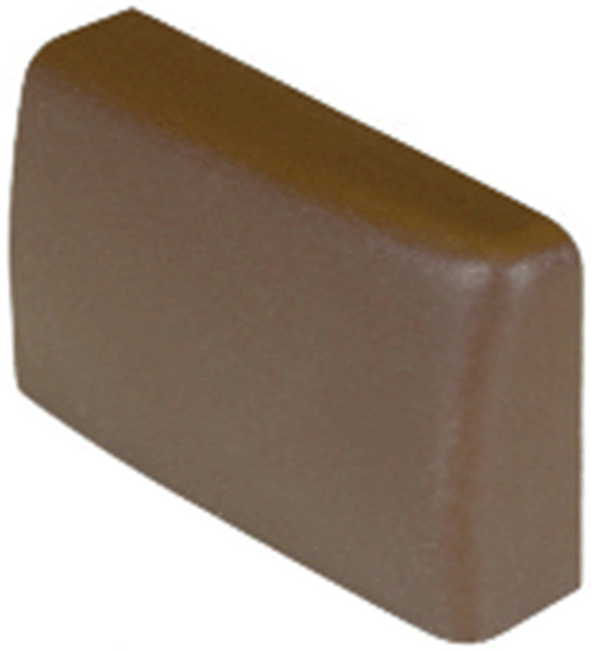

Suspension Bracket Cover
Suspension Rail Cover
8' Length
Paintable
Stocked in White Only
75 pieces per box

Part Number: 73JSRCWH
Part Number
Hand
Color
Box Quantity
GR514825401253
Left
Almond
200
GR514825401262
Left
Black
200
GR514825401258
Left
Brown
200
GR514825401274
Left
White
200

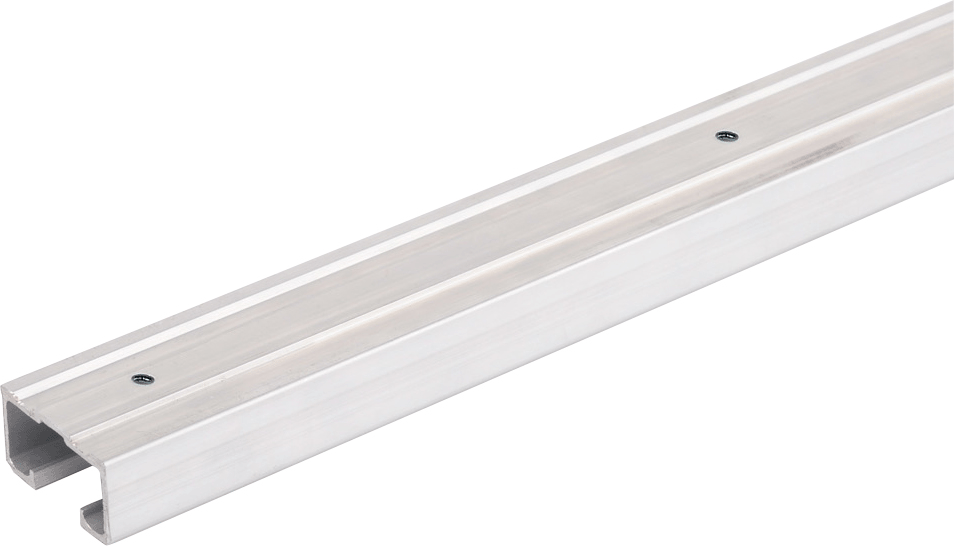

12 1/2' Aluminum Sliding Track
12 1/2' track.
Packed 10 per box.

Part Number: 73AV800
Part Number
Hand
Color
Box Quantity
GR514825401153
Right
Almond
200
GR514825401162
Right
Black
200
GR514825401158
Right
Brown
200
GR514825401174
Right
White
200

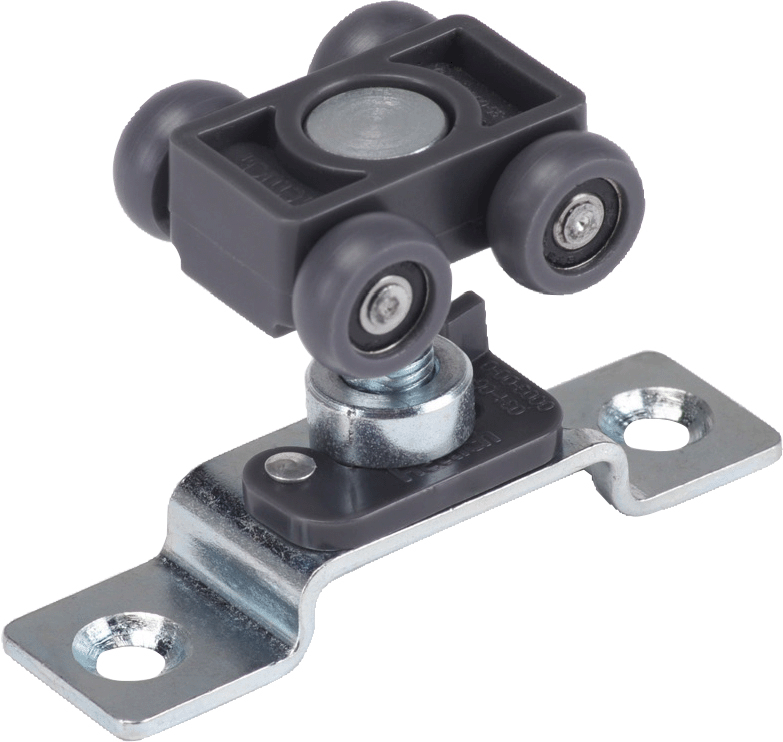

Roller with ball bearing.
Packed 20 per box.

Part Number: 73AV802
Sliding Panel Track 3/4" - Plastic - Epco
Top
Bottom
High impact extruded polystyrene plastic track.
Stocked in light grey.
12' lengths.
Packed 30 per box.

Top Part Number: EP2234GY
Bottom Part Number: EP234GY
Salice Concertina
The Salice system for concertina doors has been designed to open both doors on one side only, giving good access to the interior of the cabinet.
Space taken up by the door in the maximum open position is reduces to minimum (approximately 80mm).
* Sliding system
* Length: 1180mm
* Screw in
* Packed 5 per box		 Black Part Number: 65F1GFA31180

White Part Number: 65F1GFAG1180W
Elements of the System - Sold Separately
Hinge for sliding block

Part Number: 65F1C169		 Central hinge

Part Number: 65F1CXE9		 Sliding block

Part Number: 65F1PXAY
Salice Bortoluzzi
Please contact U.S. Industrial Fasteners for more information on the New Salice Bortoluzzi.
Mover System
* Vertical sliding system for a wall (upper) cabinet only.
* Door Height Options = 480mm (18 inches) or 600mm (23 inches) only.
* Door Width Options based on Door Width (LA) = 900mm (35 inches). 1200mm (47 inches), 1800mm (70 inches), 2400mm (94 inches) only.
* Maximum Door Weight = 13 pounds - 50 pounds
Slider M50+ System
* Sliding system for a floor cabinet.
* Maximum Door Height for tracks up to 1500mm = 2200mm (86 inches)
* Maximum Door Height for tracks 1600mm-4000mm = 3000mm (118 inches)
* Door Width = Min. 60mm (23 5/8 inches) Max. 2000mm (78 3/4 inches)
* Maximum Door Thickness with Handle = 45mm (1.7 inches)
* Maximum Door Weight = 50kg (110 lbs)
* Doors can be made of wood, glass (aluminum frame), or clipper doors. The minimum profile width for aluminum doors = 2 inches.
* The clipper doors are only available on track lengths of 1600mm-3000mm.
* Width of the track is based on the internal dimension of the cabinet.
* There is more flexibility in building your cabinet with this system. On the smaller sizes (1200-1500), the tracks are in increments of 100, so you can fall anywhere between. On the larger sizes (1600-4000), the tracks are in increments of 200, so you can have a custom size cabinet but you do not need a custom length track.
Slider L70 System
* Sliding system for a floor cabinet available for 2 door or 3 door units Type 33.
* Maximum Door Height = 3000mm (118 inches).
* Door Width = Min. 800mm (31 inches) Max. 2000mm (78 inches).
* Maximum Door Thickness with Handle = 45mm (1.7 inches).
* Maximum Door Width = 70kg (154 pounds).
* Doors can be made of wood, glass (aluminum frame), or clipper doors. The minimum profile width for aluminum doors = 2 1/2 inches.
* The clipper doors can be used as long as you are within the weight parameters. Max door size is 1500mm x 2650mm.
* Width of the track is based on the internal dimension of the cabinet.
* There is more flexibility in building your cabinet with this system. The tracks are in increments of 200, so you can have a custom size cabinet but you do not need a custom length track.
Slider S
* Sliding system for two-door wall units with decelerated opening and closing.
* Maximum Door Height: 47 1/4 inches
* Minimum Door Thickness: 1 3/4 inches
* Maximum Thickness of the Door with Handle: 1 49/64 inches
* Maximum Door Load: 48 1/2 pounds
* Door Width = Min. 23 5/8 inches Max. 59 inches
* Vertical Door Adjustment: +/- 3/64 inch
* Horizontal Door Adjustment: +/- 1/8 inch
* Upper load-bearing track fitted to the top panel of wall unit.
* Lower track recessed into the base panel of the wall unit.

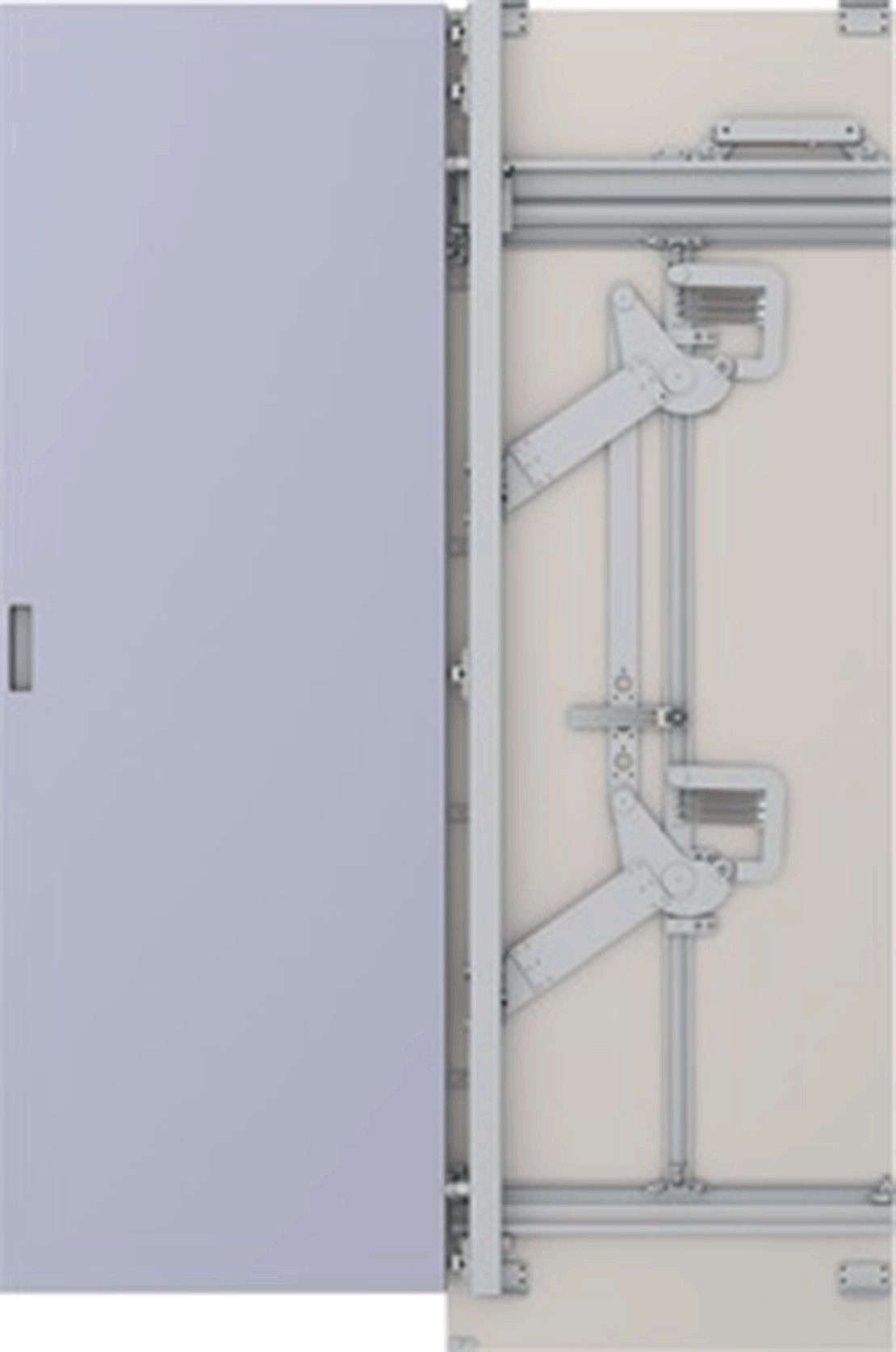

Salice Pocket Door System Gravity
Pocket Door System Exedra is available by special order, please contact U.S. Industrial for more information.
Gravity allows smooth lateral assisted positive openeing and cushioned soft-close movements, which are controlled by a safety device. Gravity gives a smooth, uniform and noiseless movement, regardless of the speed of door insertion.
Tech features:
* Maximum weight for each door: up to 88 lbs (40 Kg) (with 5 hinges allowed and only with a 700 mm max door width)
* Thickness: - min 19 mm (3/4") max 30 mm (1-3/16")
* Width: - min 370mm (14-9/16") max 900mm (35-7/16")
* Height: **-min 1303mm (51-5/16") min 1359 mm (53-1/2") with roller kit - max 2800mm (110-1/4")
Salice Pocket Door System Exedra 2
Pocket Door System Exedra 2 is available by special order, please contact U.S. Industrial for more information.
Exedra2 Star and Exedra2 Smart are evolutions of the Exedra system, which, thanks to an innovatively-engineered mechanism, enable the simultaneous movement of two linked doors.
Technical Information
DOUBLE pocket door system with cam-assisted door extraction and cushioned door insertion.
Door characteristics:
* Maxiumum weight for single door: 55 lbs (25Kg)
* Doors thickness: min 18mm (3/4") - max 25mm (1")
* Width of single door - Exedra2 Star: min 450 mm (17-11/16") - max 750 mm (29-1/2")
* Doors height: min 1800 mm (70-7/8") - max 2600 mm (102-3/8")
