Lid Supports
Lid Supports - Self Balancing
Spring Loaded - Carlson Mfg.
To find inch pounds, multiply 1/2 the distance from front to back times the weight of the lid.
Spring Color
Low Limit
High Limit
White
110 lbs
140 lbs
Orange
95 lbs
125 lbs
Yellow
65 lbs
95 lbs
Black
55 lbs
65 lbs
Maroon
45 lbs
55 lbs
Green
40 lbs
45 lbs
Blue
35 lbs
40 lbs
Gray
20 lbs
35 lbs

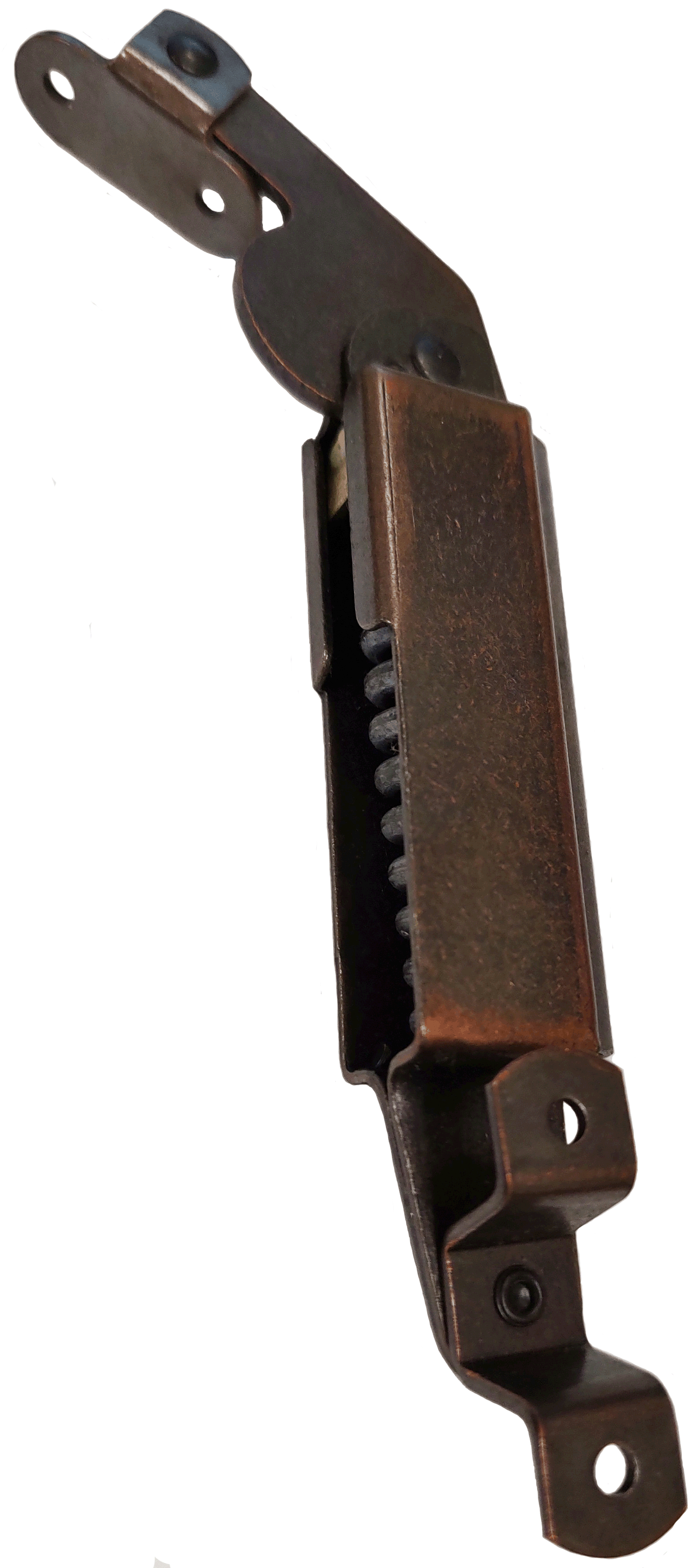

702 Series
703 Series

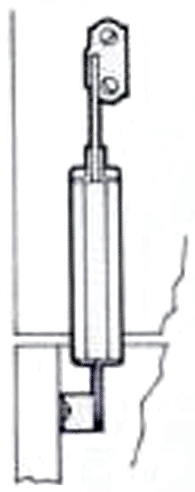

Inside mount support holds lid in any position.
Series 702 can be ordered left or right mount.
Stocked in statutory bronze with these springs:

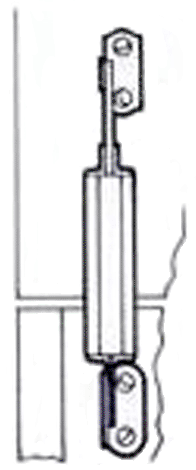

Series 703 mounts to rear of unit (non-handed).
Stocked in statutory bronze with these springs:
Color
Side
Part Number
Blue
Left
7153702BLL
Blue
Right
7153702BLR
Green
Left
7153702GL
Green
Right
7153702GR
Maroon
Left
7153702ML
Maroon
Right
7153702MR
Yellow
Left
7153702YL
Yellow
Right
7153702YR
White
Left
 7153702WL
White
Right
 7153702WR
Color
Part Number
Blue
7153703BL
Orange
7153703O
Ferrari - Klok Flip Up Lid Stay
Klok Flip Up Lid Stay
Packed individually.

Part Number: FRLE1GCOOK276

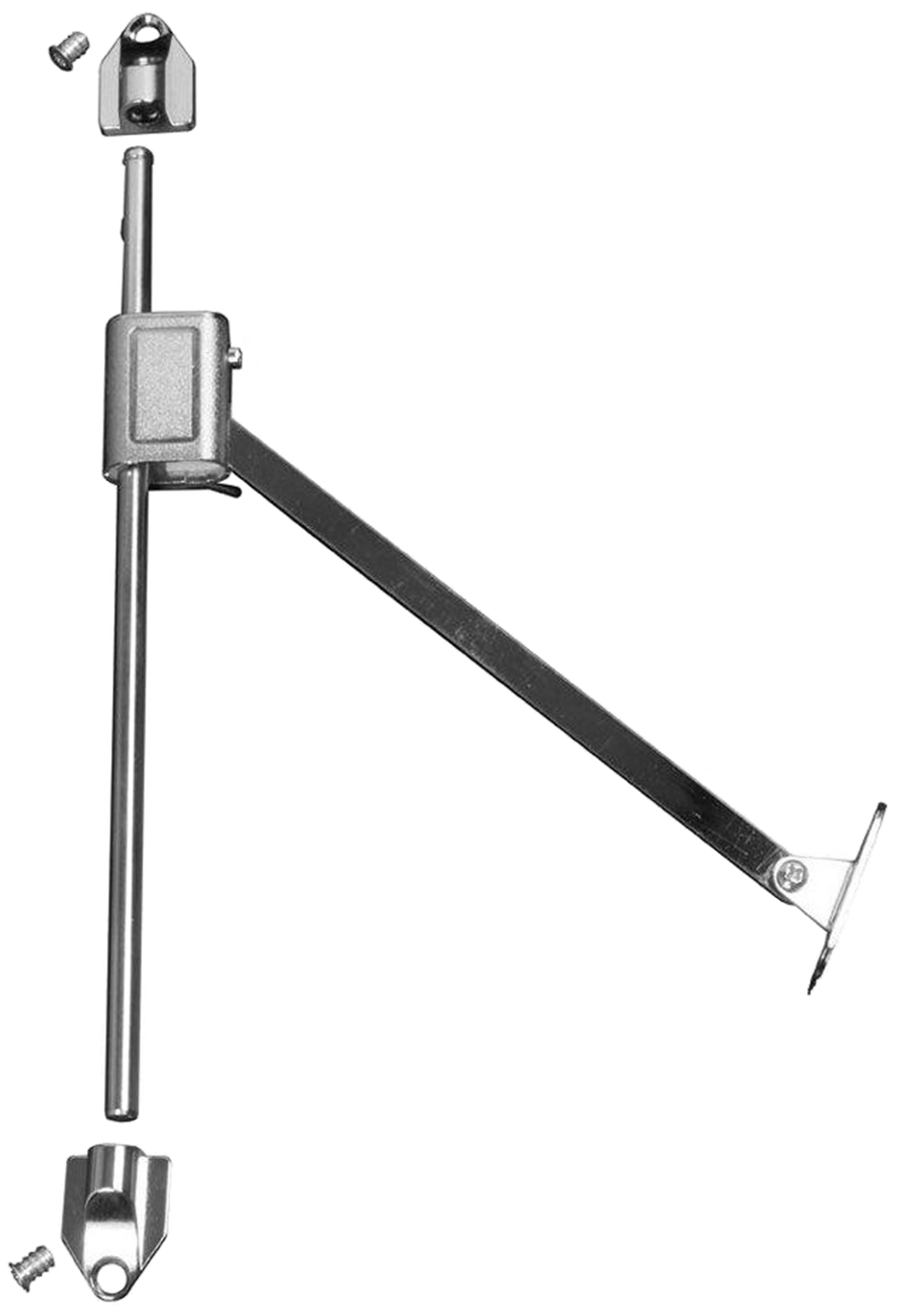

Flap Stay
Flap Stay Nickel
Sold Individually.

Part Number: 7104SX8519METAL

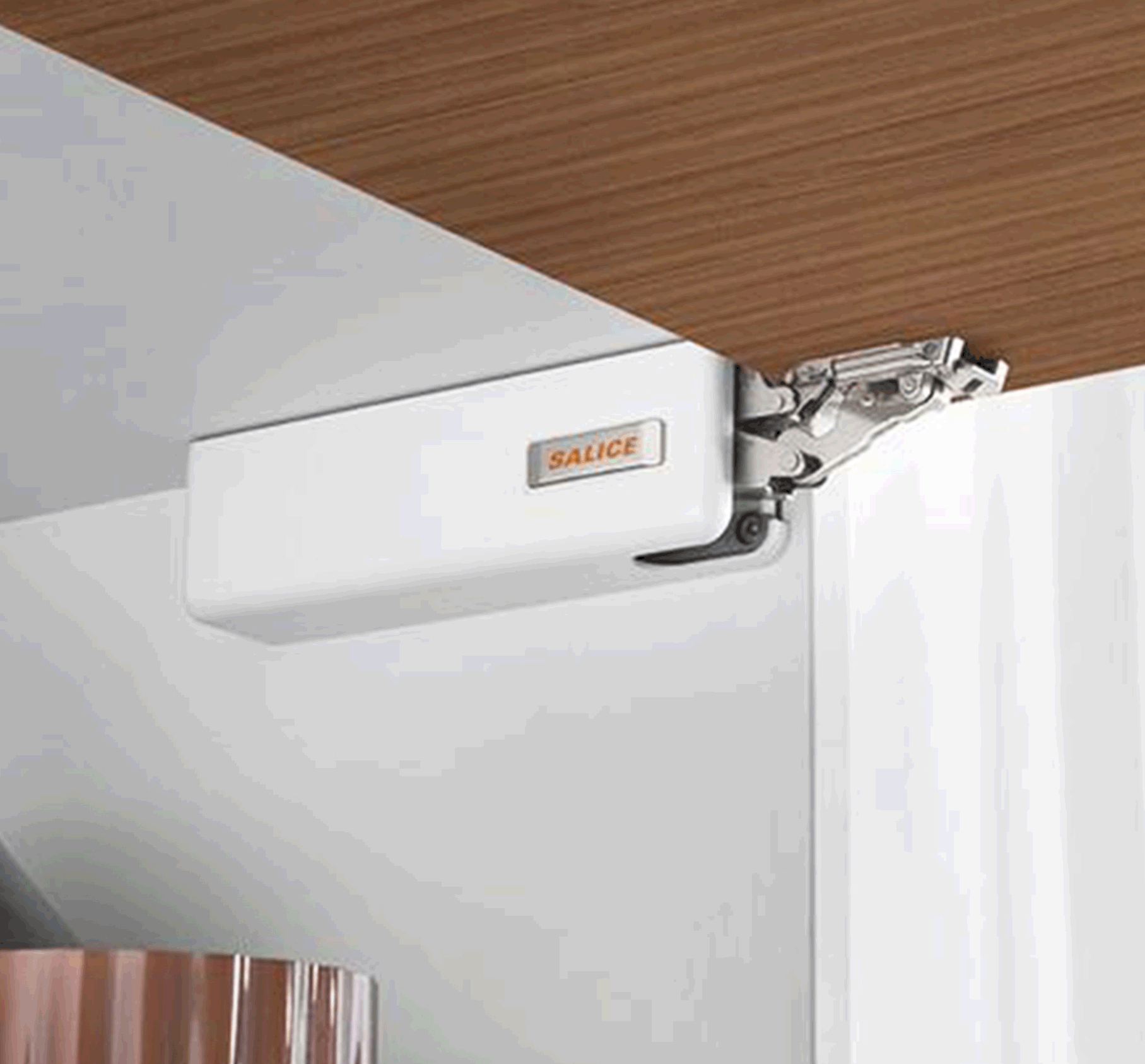

Salice Wind Soft Close Lifts
New Wind soft close lift systems from Salice.
Spring
Minimums
Maximums
W Spring
Min Door Weight: 1.75 lbs
Min Door Height: 8 5/8"
Max Door Weight: 11.5 lbs
Max Door Height: 12 9/16"
D Spring
Min Door Weight: 4 lbs
Min Door Height: 8 5/8"
Max Door Weight: 17 lbs
Max Door Height: 24"
I Spring
Min Door Weight: 10.5 lbs
Min Door Height: 12 9/16"
Max Door Weight: 21 lbs
Max Door Height: 24"
F Spring
Min Door Weight: 18.5 lbs
Min Door Height: 12 9/16"
Max Door Weight: 32 lbs
Max Door Height: 24"
S Spring
Min Door Weight: 26 lbs
Min Door Height: 12 9/16"
Max Door Weight: 41 lbs
Max Door Height: 24"
Part Number
Spring
Box Quantity
65FRAKFEXWSN9
W
1 set
65FRAKFEXDSN9
D
1 set
65FRAKFEXISN9
I
1 set
65FRAKFEXFSN9
F
1 set
65FRAKFEXSSN9
S
1 set
Cover Sets
Part Number
Color
Box Quantity
65SRXA78AMSNXXF
Gray
1 set
65SRXA78A1SNXXF
White
1 set
65SRXA78AiSNXXF
Steel
1 set
Kinvaro

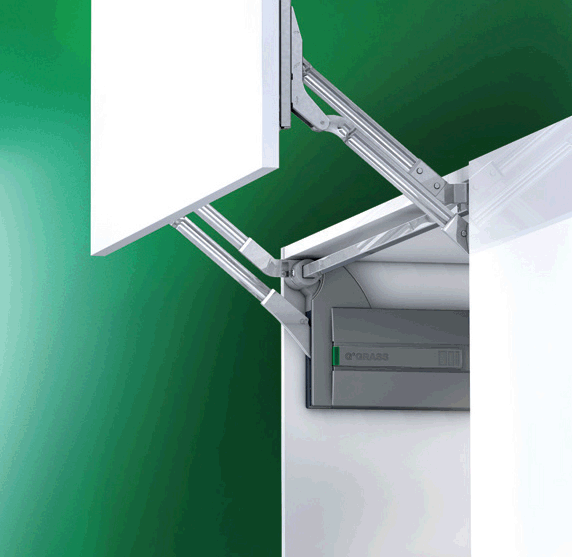

Grass Kinvaro L-80 Parallel Lifter
Set includes: left hand and right hand lifter door mounting brackets and gray cover caps, 1 set of spring tensions and 1 cross bar.
Part Number
For Cabinet Height
Spring
Flap Weight (lbs)
GRF152147441201
390mm - 409mm
A
4.6 - 12.1
GRF152147442201
410mm - 429mm
A
4.2 - 11
GRF152147443201
430mm - 600mm
A
4.4 - 9.9

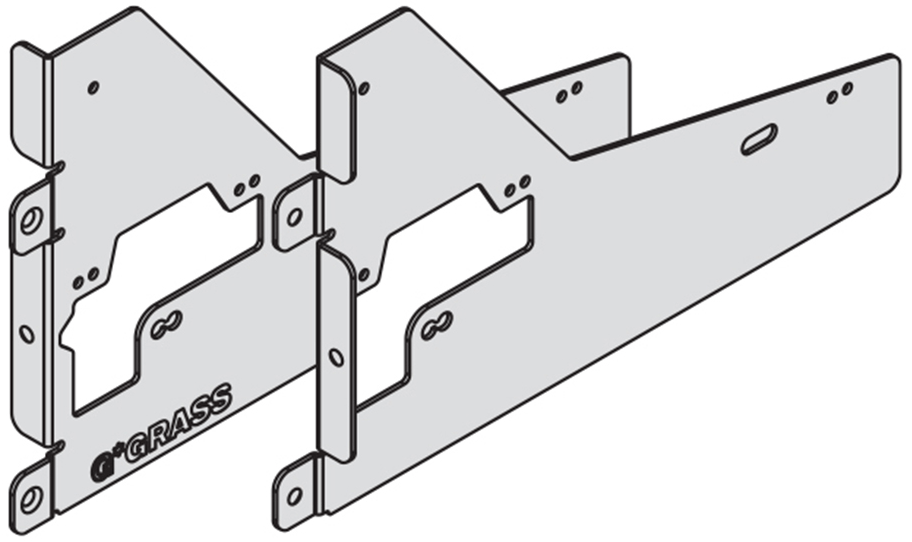

Face Frame Adapter for L-80
Right and Left with Screws
GRF151135906201

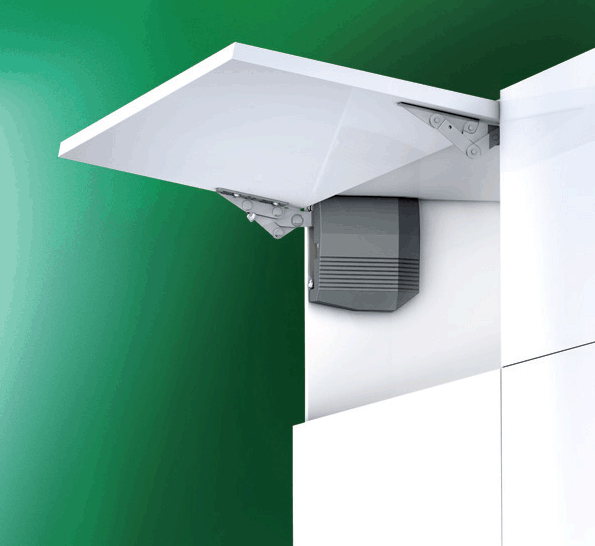

Grass Kinvaro T-65 Lift Up Flap Fitting
Set includes: left hand and right hand Lifter with door mounting brackets and gray cover caps, 1 set of balance springs pre-installed, and 1 extra set of coded springs for alternate weight ranges.
Part Number
Overlay
For
Door Weight (lbs)
Door Width
Door Height
GRF151147682201
Variable
Wood
1.5 - 16.3
up to 47 1/4"
9 27/32" - 23 5/8"

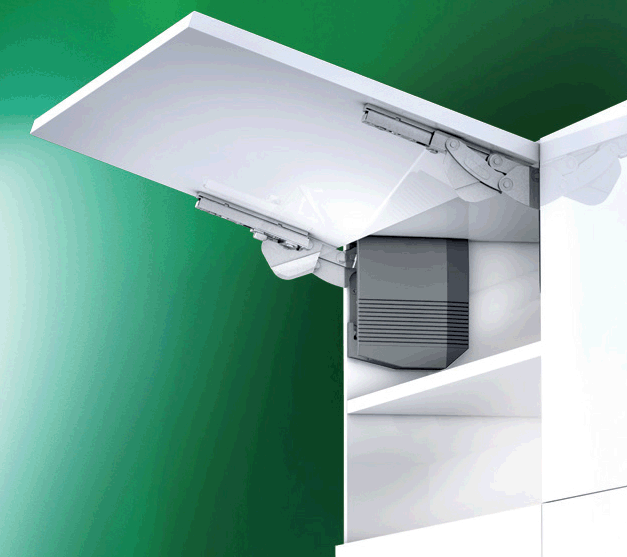

Grass Kinvaro T-71 Lift Up Fitting
Set includes: left hand and right hand Lifter with door mounting brackets and gray cover caps, 1 set of balance springs pre-installed, and 1 extra set of coded springs for alternate weight ranges.
Part Number
Overlay
For
Door Weight (lbs)
Door Width
Door Height
GRF151147696201
Variable
Wood
3.1 - 18.7
up to 47 1/4"
11 13/16" - 23 5/8"

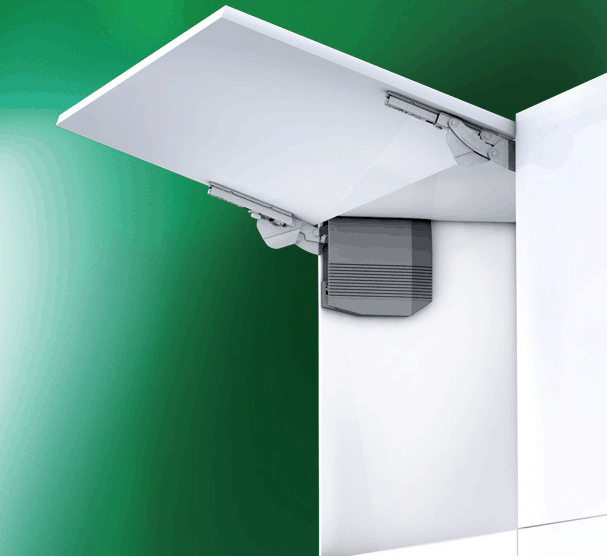

Grass Kinvaro T-76 Lift Up Fitting
Set includes: left hand and right hand Lifter with door mounting brackets and gray cover caps and 1 set of balance springs pre-installed.
Part Number
Overlay
For
Door Weight (lbs)
Door Width
Door Height
GRF151147706201
Variable
Wood
11.5 - 24.25
up to 47 1/4"
15 3/4" - 23 5/8"
Kinvaro Installation Templates

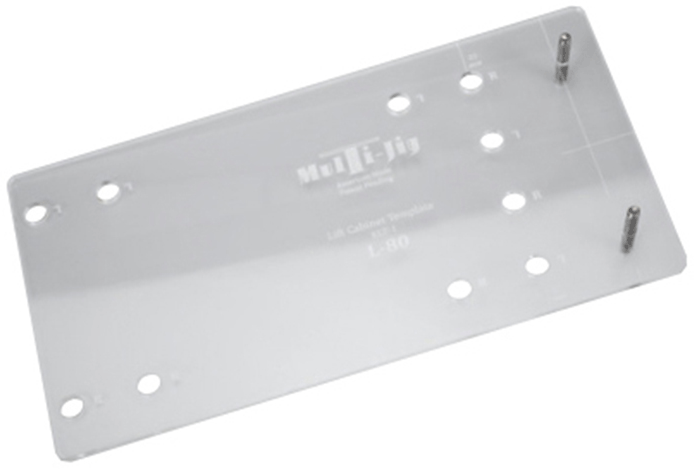

L-80 Drilling Jig
GR0049001

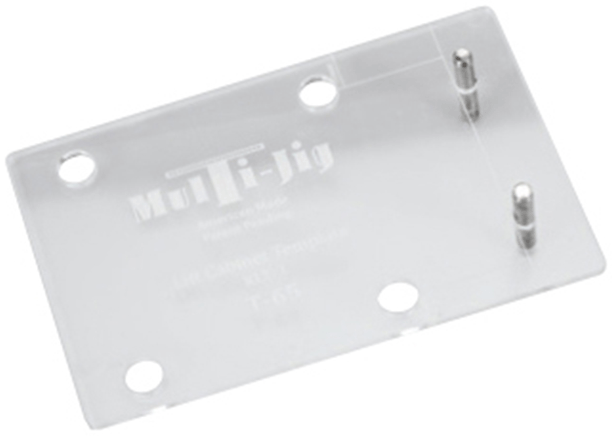

T-65 Drilling Jig
GR0049201

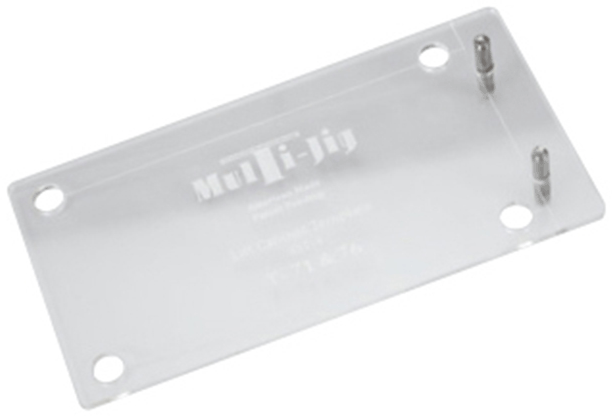

T-71 & T-76 Drilling Jig
GR00493001

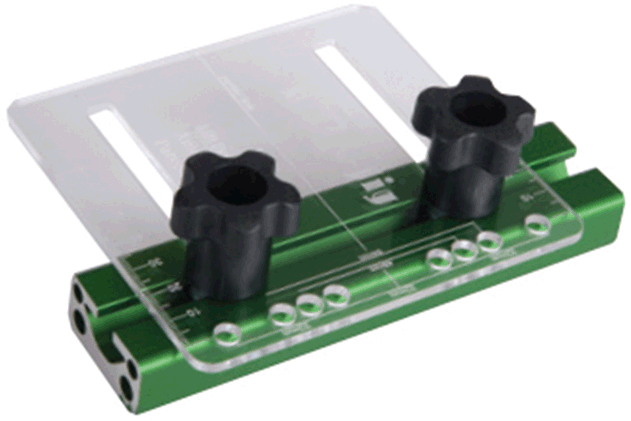

Door Template Drilling Jig
GR0049501
5mm Drill Bit
GR0049601
