Touch to Open Full Extension Slides - Repon
1/2" side spacing.
Load rating 100 lbs based on 18" slides.
|
Part Number
|
Slide Length Inches
|
Slide Travel Inches
|
Finish
|
Slides per Box
|
| FU1202012 |
12"
|
8 1/2"
|
Zinc
|
10 pair
|
| FU1202014 |
14"
|
11 3/8"
|
Zinc
|
10 pair
|
| FU1202016 |
16"
|
14 3/8"
|
Zinc
|
10 pair
|
| FU1202018 |
18"
|
17 5/16"
|
Zinc
|
10 pair
|
| FU1202020 |
20"
|
19 11/16"
|
Zinc
|
10 pair
|
| FU1202022 |
22"
|
21 11/16"
|
Zinc
|
10 pair
|
Rear Mounting Bracket for the above Slides
Part Number: PR46BRACKET
Soft Closing Full Extension Slides - Repon
1/2" side spacing.
Load rating 100 lbs based on 18" slides.
|
Part Number
|
Slide Travel Inches
|
Slide Travel Inches
|
Finish
|
Slides per Box
|
| FU1201012 |
12"
|
8 1/2"
|
Zinc
|
10 pair
|
| FU1201014 |
14"
|
11 3/8"
|
Zinc
|
10 pair
|
| FU1201016 |
16"
|
14 3/8"
|
Zinc
|
10 pair
|
| FU1201018 |
18"
|
17 5/16"
|
Zinc
|
10 pair
|
| FU1201020 |
20"
|
19 11/16"
|
Zinc
|
10 pair
|
| FU1201022 |
22"
|
21 11/16"
|
Zinc
|
10 pair
|
| FU1201024 |
24"
|
23 5/8"
|
Zinc
|
10 pair
|
| FU1201026 |
26"
|
25 9/16"
|
Zinc
|
10 pair
|
| FU1201028 |
28"
|
27 9/16"
|
Zinc
|
10 pair
|
Rear Mounting Bracket for the above Slides
Part Number: PR46BRACKET
Soft Closing Full Extension Economy Slides
Full extension.
Unhanded trigger release.
1/2" side spacing.
Load rating 100 lbs based on 18" Slides.
|
Part Number
|
Slide Length Inches
|
Slide Travel Inches
|
Finish
|
Slides Per Box
|
| PR490310 |
10"
|
6.449"
|
Zinc
|
10 pair
|
| PR490312 |
12"
|
10.386"
|
Zinc
|
10 pair
|
| PR490314 |
14"
|
13.201"
|
Zinc
|
10 pair
|
| PR490316 |
16"
|
15.787"
|
Zinc
|
10 pair
|
| PR490318 |
18"
|
17.756"
|
Zinc
|
10 pair
|
| PR490320 |
20"
|
19.724"
|
Zinc
|
10 pair
|
| PR490322 |
22"
|
21.692"
|
Zinc
|
10 pair
|

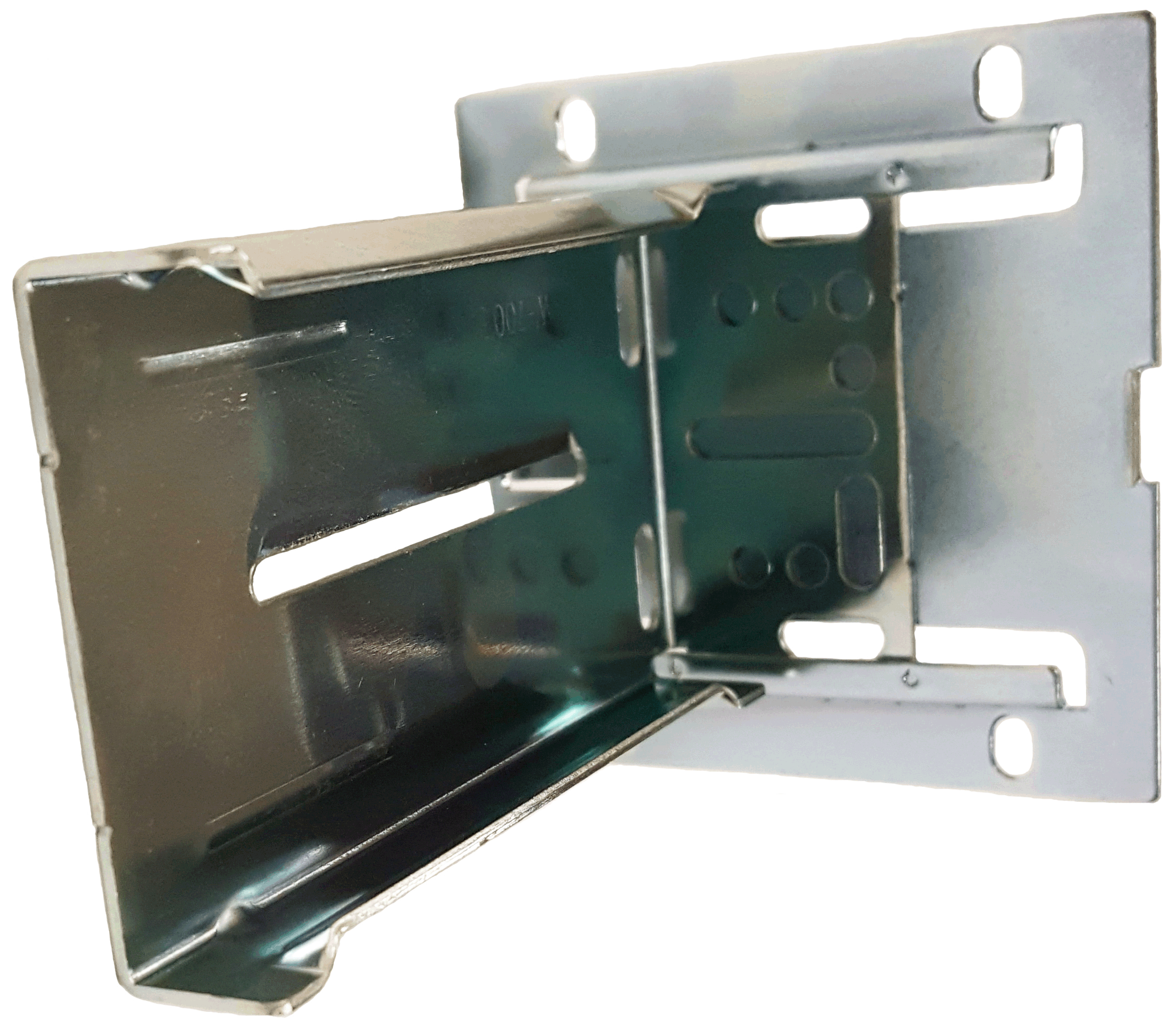

Rear Socket for the above slides.
Screw on.
Packed 100 per box.
Part Number: PR4903BRKTSO

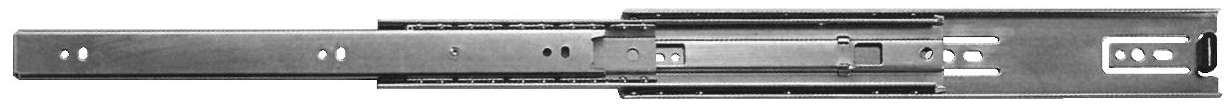

Ball Bearing Slides - Dynaslide
Full Extension Non Progressive
Hold-in detent.
1/2" side spacing.
1" over travel.
Front mounting hole for face frame applications.
|
Part Number
|
Slide Length Inches
|
Slide Travel Inches
|
Load Rating lbs/pr
|
Finish
|
Slides per Box
|
| DS463410 |
9 21/32"
|
10"
|
120
|
Zinc
|
20 pair
|
| DS463412 |
11 13/16"
|
12"
|
115
|
Zinc
|
20 pair
|
| DS4634BR14 |
13 25/32"
|
14"
|
110
|
Zinc
|
20 pair
|
| DS4634BR16 |
15 3/4"
|
16"
|
105
|
Zinc
|
20 pair
|
| DS4634BR18 |
17 23/32"
|
18"
|
100
|
Zinc
|
10 pair
|
| DS4634BR20 |
19 11/16"
|
20"
|
95
|
Zinc
|
10 pair
|
| DS4634BR22 |
21 21/32"
|
22"
|
90
|
Zinc
|
10 pair
|
| DS4634BR24 |
23 5/8"
|
24"
|
85
|
Zinc
|
10 pair
|
*Some Sizes of Slides are Available in Stainless Steel. Please contact U.S. Industrial for more information.
Uses 4mm Machine Screws to mount slide.
Part Number: 7101BMB
Kit Part Number: 7109UBMB
(Kit includes 4 - 7101BMB and 8 - 4mm x 8mm Phillips Flat Machine Screws)
Rear Mounting Bracket for Face Frames
Drawer Slide Screws
Stocked in steel zinc plating.
Part Number: DS46BRACKET
|
Size
|
Thread Type
|
Part Number
|
Weight Pounds/M
|
Carton Quantity
|
| 8 x 7/16 |
Coarse
|
01660807xx |
4.20
|
20,000
|
| 8 x 1/2 |
Coarse
|
01660808xx |
4.20
|
14,000
|
Full Extension Non-Progressive - Economy Slide - Fulterer
Hold-in detent.
1/2" side spacing.
1" overtravel.
32mm screw mount system compatible.
Face frame hole.
Load rating 100 lbs based on 18" slides.
|
Part Number
|
Slide Length Inches
|
Slide Travel Inches
|
Finish
|
Slides per Box
|
| KV8400B8 |
8"
|
8"
|
Zinc
|
10 pair
|
| FL5045250 |
10"
|
11"
|
Zinc
|
15 pair
|
| FL5045300 |
12"
|
13"
|
Zinc
|
15 pair
|
| FL5045350 |
14"
|
15"
|
Zinc
|
15 pair
|
| FL5045400 |
16"
|
17"
|
Zinc
|
15 pair
|
| FL5045450 |
18"
|
19"
|
Zinc
|
15 pair
|
| FL5045500 |
20"
|
21"
|
Zinc
|
15 pair
|
| FL5045550 |
22"
|
23"
|
Zinc
|
15 pair
|
| FL5045600 |
24"
|
25"
|
Zinc
|
15 pair
|
| FL5045650 |
26"
|
27"
|
Zinc
|
15 pair
|
| FL5045700 |
28"
|
29"
|
Zinc
|
15 pair
|
Rear Mounting Bracket for above Slides
Part Number: FL5045BRKT
Square Profile Economy Slides
Hold-in detent.
1/2" side spacing.
32mm screw mount system compatible.
Face frame hole.
Load rating 100 lbs based on 18" slides.
|
Part Number
|
Slide Length Inches
|
Slide Travel Inches
|
Finish
|
Slides Per Box
|
| JP313212 |
12"
|
13"
|
Zinc
|
10 pair
|
| PR460012BK |
12"
|
13"
|
Black
|
10 pair
|
| JP313214 |
14"
|
15"
|
Zinc
|
10 pair
|
| PR460014BK |
14"
|
15"
|
Black
|
10 pair
|
| JP313216 |
16"
|
17"
|
Zinc
|
10 pair
|
| PR460016BK |
16"
|
17"
|
Black
|
10 pair
|
| JP313218 |
18"
|
19"
|
Zinc
|
10 pair
|
| PR460018BK |
18"
|
19"
|
Black
|
10 pair
|
| JP313220 |
20"
|
21"
|
Zinc
|
10 pair
|
| PR460020BK |
20"
|
21"
|
Black
|
10 pair
|
| JP313222 |
22"
|
23"
|
Zinc
|
10 pair
|
Rear Mounting Bracket for above Slides
Part Number: PR46BRACKET
Metal type
Part Number: JP3132BR
Full Extension Progressive
1/2" side spacing.
Detent-in closed position.
Hold-in detent.
With over-travel.
Load rating 150 lbs based on 18" Slides
|
Part Number
|
Slide Length Inches
|
Slide Travel Inches
|
Finish
|
Slides per Box
|
| PR500012 |
12"
|
13.386"
|
Zinc
|
10 pair
|
| PR500014 |
14"
|
15.394"
|
Zinc
|
10 pair
|
| PR500016 |
16"
|
17.362"
|
Zinc
|
10 pair
|
| PR500018 |
18"
|
19.37"
|
Zinc
|
10 pair
|
| PR500020 |
20"
|
21.378"
|
Zinc
|
10 pair
|
| PR500022 |
22"
|
23.386"
|
Zinc
|
10 pair
|
| PR500024 |
24"
|
25.394"
|
Zinc
|
10 pair
|
| PR500026 |
26"
|
27.362"
|
Zinc
|
10 pair
|
| PR500028 |
28"
|
29.37"
|
Zinc
|
10 pair
|
Low Profile Full Extension Slides
|
Part Number
|
Slide Length Inches
|
Finish
|
Slides per Box
|
| PR350012 |
12"
|
Zinc
|
10 pair
|
| PR350014 |
14"
|
Zinc
|
10 pair
|
| PR350016 |
16"
|
Zinc
|
10 pair
|
| PR350018 |
18"
|
Zinc
|
10 pair
|
| PR350020 |
20"
|
Zinc
|
10 pair
|
| PR350022 |
22"
|
Zinc
|
10 pair
|
Side mounted
Lever disconnect
Detent-in closed position
Hold-in detent
Trigger release disconnect
85 lb load capacity at 18" length
Rear Mounting Bracket for the above Slides
Part Number: PR46BRACKET

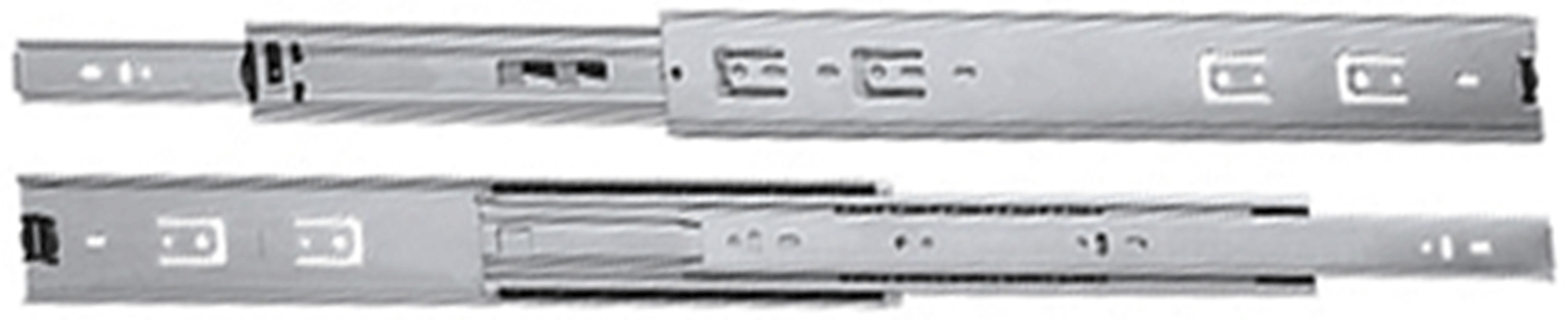

Heavy Duty Full Extension Slides - Repon
Trigger release disconnect
Breather tab self adjustment to accommodate variation in side clearance
Anti-rebound
Non-handed
Detent-in closed position
Easy access window to reach hole in cabinet member in closed position
Load rating 200 lbs based on 24" slides.
|
Part Number
|
Slide Length Inches
|
Finish
|
Slides per Box
|
| FUNJ81A0214 |
14"
|
Zinc
|
10 pair
|
| FUNJ81A0216 |
16"
|
Zinc
|
10 pair
|
| FUNJ81A0218 |
18"
|
Zinc
|
10 pair
|
| FUNJ81A0220 |
20"
|
Zinc
|
10 pair
|
| FUNJ81A0222 |
22"
|
Zinc
|
10 pair
|
| FUNJ81A0224 |
24"
|
Zinc
|
10 pair
|
Heavy Duty Full Extension Slides
Two stage detent function.
Positive detent in.
Detachable.
Non-handed.
With 1" over travel.
Load rating 250 lbs based on 18" slides.
|
Part Number
|
Slide Length Inches
|
Slide Travel Inches
|
Finish
|
Slides per Box
|
| PR589012 |
12"
|
13"
|
Zinc
|
10 pair
|
| PR589014 |
14"
|
15"
|
Zinc
|
10 pair
|
| PR589016 |
16"
|
17"
|
Zinc
|
10 pair
|
| PR589018 |
18"
|
19"
|
Zinc
|
10 pair
|
| PR589020 |
20"
|
21"
|
Zinc
|
10 pair
|
| PR589022 |
22"
|
23"
|
Zinc
|
10 pair
|
| PR589024 |
24"
|
25"
|
Zinc
|
10 pair
|
| PR589026 |
26"
|
27"
|
Zinc
|
10 pair
|
| PR589028 |
28"
|
29"
|
Zinc
|
10 pair
|
| PR589030 |
30"
|
31"
|
Zinc
|
10 pair
|
| PR589032 |
32"
|
33"
|
Zinc
|
10 pair
|
| PR589034 |
34"
|
35"
|
Zinc
|
10 pair
|
| PR589036 |
36"
|
37"
|
Zinc
|
10 pair
|
Heavy Duty Full Extension Vertical Pantry Pull-Out Slide System - Fulterer
|
Part Number
|
Type
|
Slide Length MM
|
Slide Travel MM
|
Finish
|
Slides per Box
|

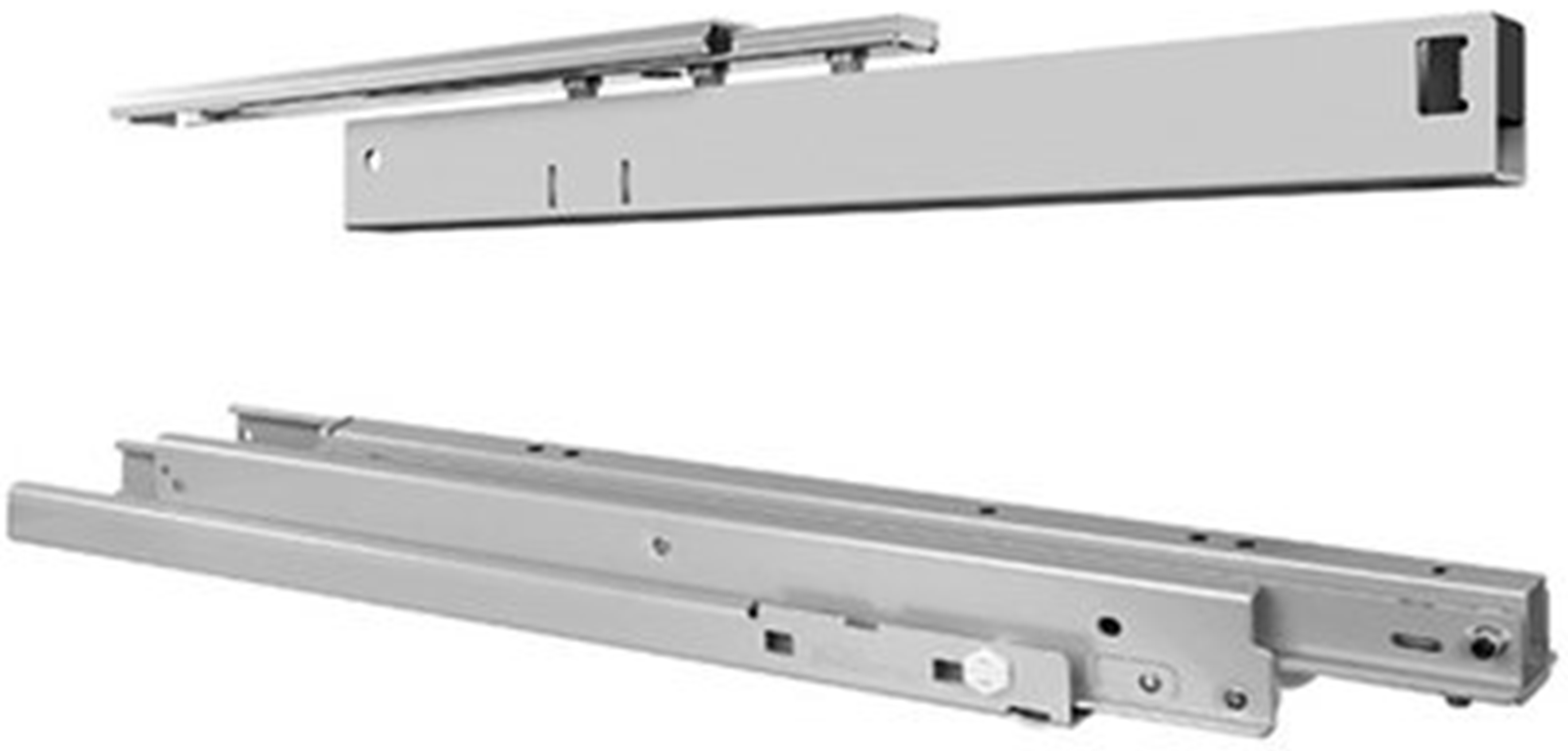

| FL83573 | FR 771A with Easy Close Device |
575mm
|
559mm
|
White
|
1 set
|
|
Part Number
|
Type
|
Slide Length MM
|
Slide Travel MM
|
Finish
|
Slides per Box
|

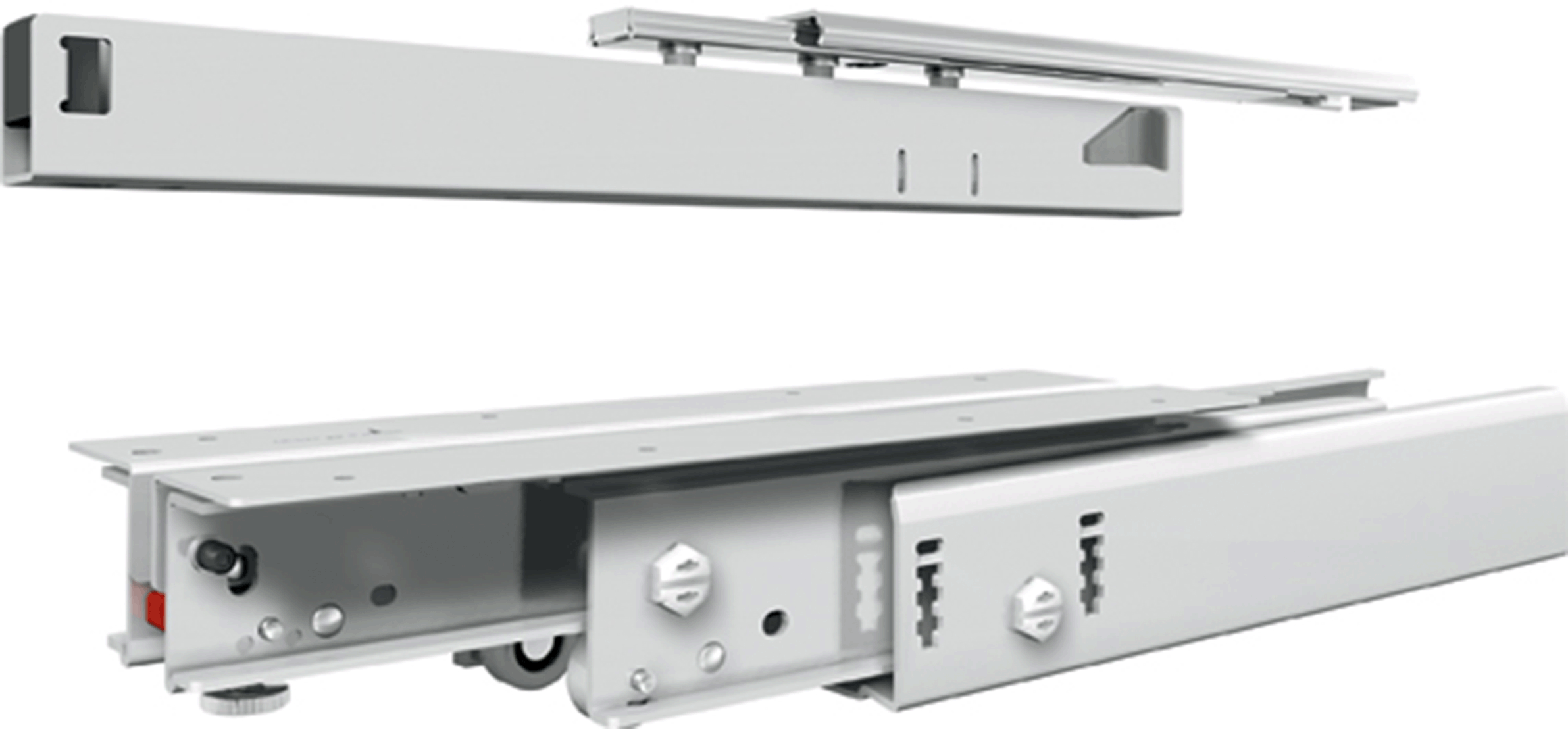

| FL7703 |
FR 777A
|
550mm
|
534mm
|
White
|
1 set
|
Full Extension Hold-Out Precision Drawer Slide
Lever disconnect for easy drawer removal.
Hold-out feature allows slide to be held in place when drawer is open.
Telescopic movement on ball bearings.
|
Part Number
|
Slide Length Inches
|
Load Rating lbs/pr
|
Finish
|
Slides per Box
|
| KV8414B14 |
14"
|
100
|
Zinc
|
10 pair
|

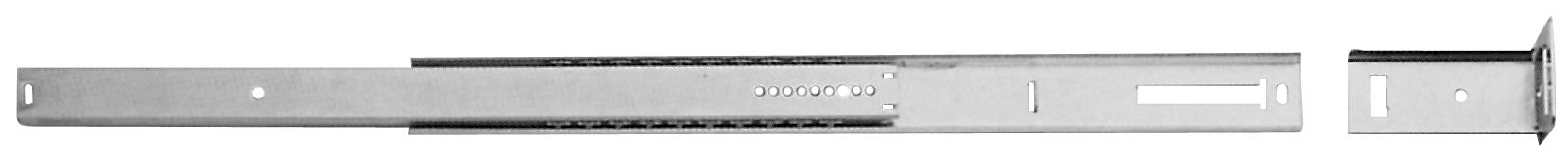

Center Mount 3/4 Extension With Adjustable Rear Bracket - Dynaslide
Friction disconnect.
Rear mounting bracket to adjust to cabinet depth.
Slide concealed under drawer.
Load rating 35 lbs/pr.
|
Part Number
|
Slide Length Inches
|
Fit Drawer Length
Inches |
Fit Cabinet Depth Inches
|
Slide Travel Inches
|
Finish
|
Slides per Box
|
| DS350818 |
18 3/4"
|
16 3/5" - 18 1/2"
|
19" - 20 1/2"
|
12 9/16"
|
Zinc
|
10 pair
|
| DS350820 |
20 3/4"
|
18 3/5" - 20 1/2"
|
20 24/25" - 22 1/2"
|
15 31/64"
|
Zinc
|
10 pair
|
