Closet Hardware
Table Legs
Closet Rod & Fittings
Round Closet Rod

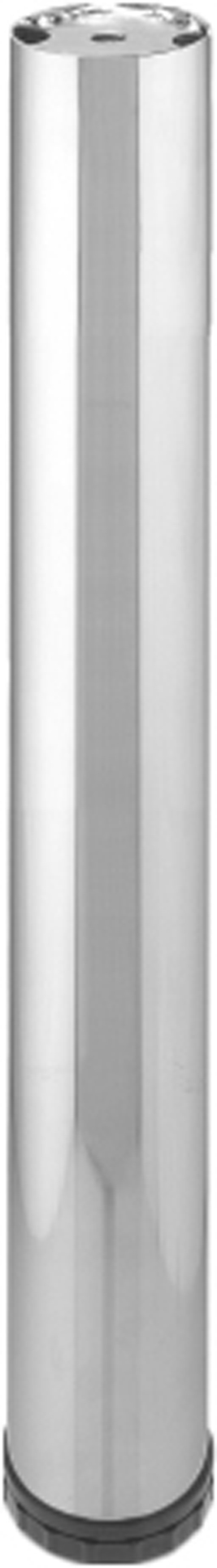

80mm diameter x 710mm length, 30mm plus adjustment in foot.
6 legs per box.

Black Part Number: 7104T110BK
Part Number
Diameter
Length
Finish
Box Quantity
FURO1116CP8
1 1/16"
8'
Chrome
10
FURO1116CP12
1 1/16"
12'
Chrome
10
FURO1516CP6
1 5/16"
6'
Chrome
10
FURO1516CP8
1 5/16"
8'
Chrome
10
FURO1516DC8
1 5/16"
8'
Brushed Chrome
10
FURO1516OB8
1 5/16"
8'
Oil Rubbed Bronze
20

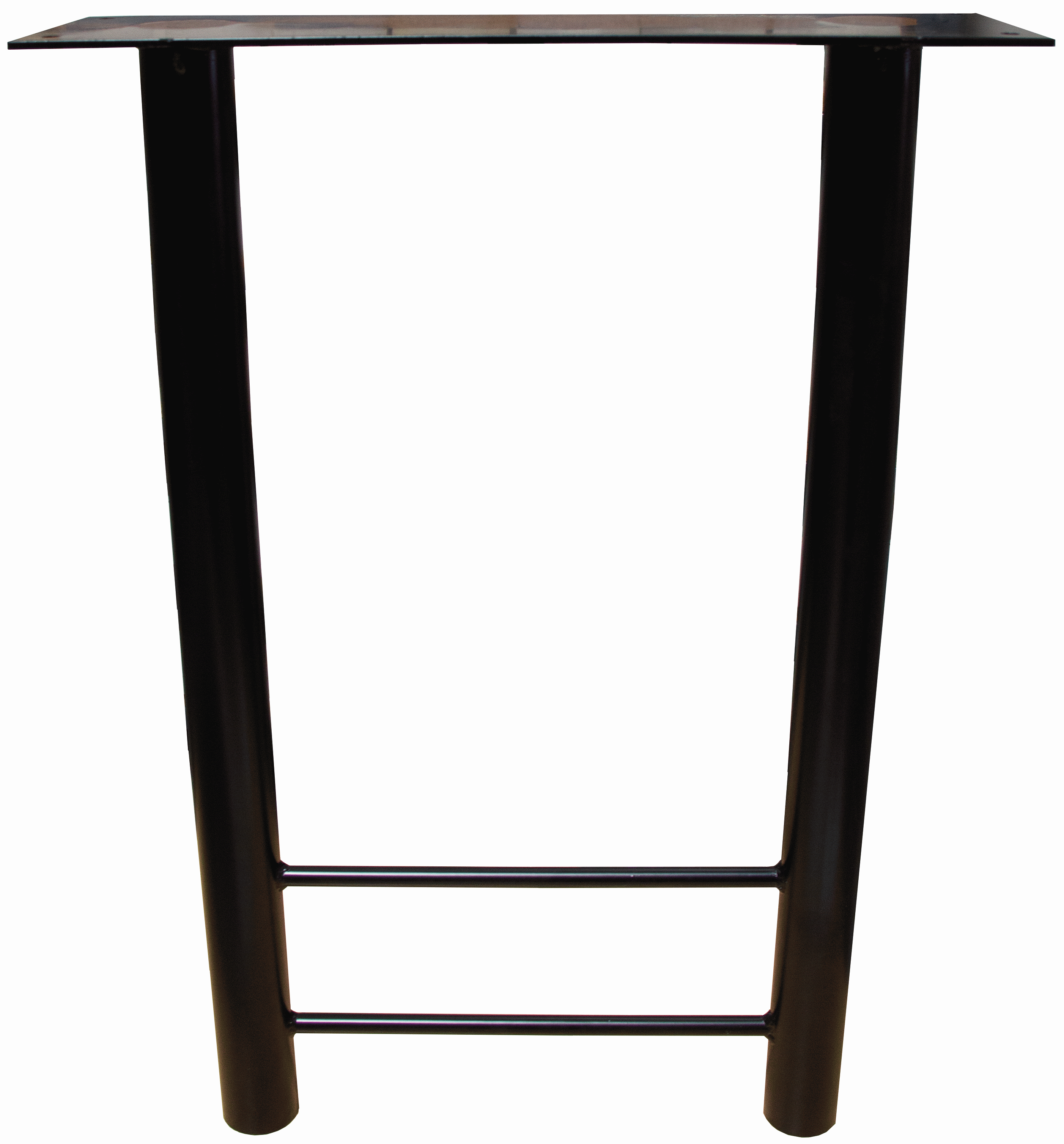

"H" Table Legs
27 1/2" total length.
Black.
4 per box.

Part Number: 7104TH30BK

*1/4-20 Leveler Sold Separately
Oval Closet Rod
30mm
Table Legs
15mm
Part Number
Length
Finish
Box Quantity
631011466
2400mm
Chrome
10
63101146612
3600mm
Chrome
10
631011466DB
2400mm
Dull Brass
10
631011466DC
2400mm
Brushed Chrome
10
631011466BLK
2400mm
Matte Black
20
631011466ORB
2400mm
Oil Rubbed Bronze
20

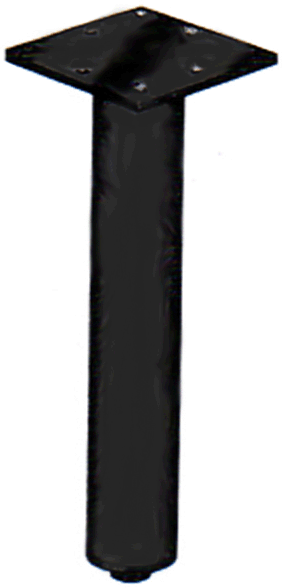

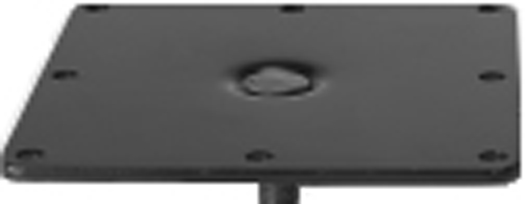

Leg screws into steel square mounting plate.
Static load rating: approximately 220 lbs per leg.
Adjustment range +25mm.
Plastic levelers are pressed in, they can be removed and pounded back in if legs need to be cut.
Set includes 4 legs, 4 mounting plates and screws #9 x 1".
Mounting plate color: black.

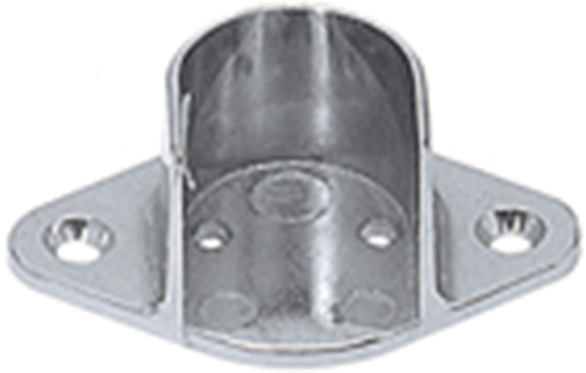

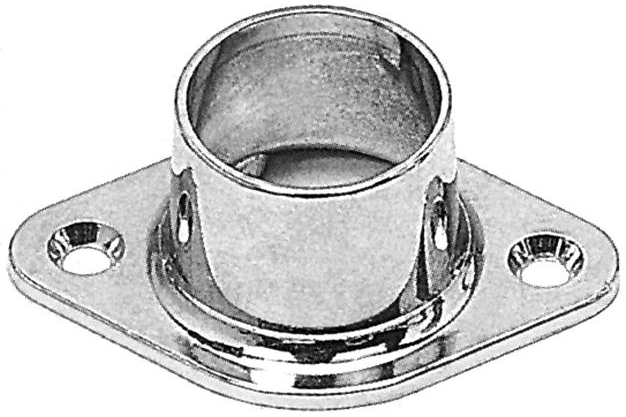

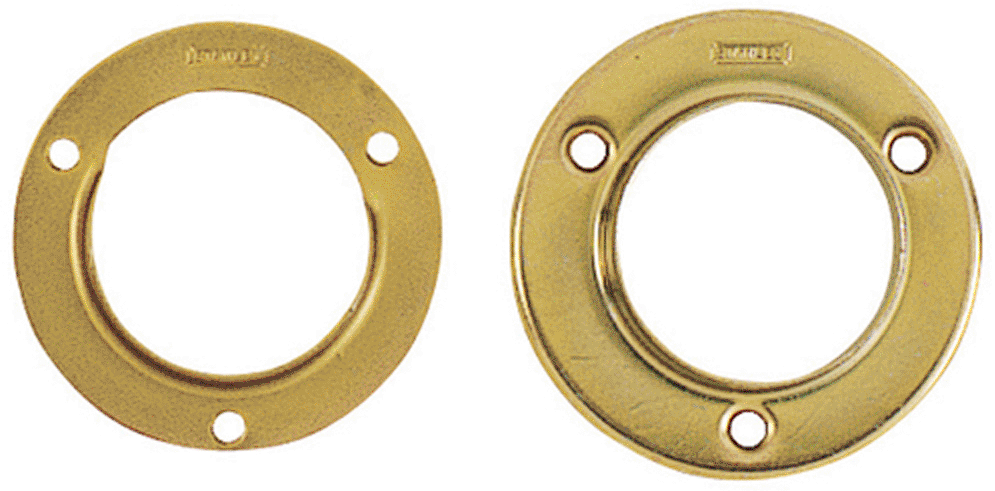

Round Closet Rod Fittings
Part Number
Width
Length
Leg Color
Box Quantity
7363561377
60mm
710mm
Black
1 set
7363561475
60mm
710mm
Brushed Steel
1 set
7363553372
76mm
710mm
Black
1 set
7363553471
76mm
710mm
Brushed Steel
1 set
Part Number
Diameter
Type
Finish
Box Quantity
FU83320CP
1 1/16"
Closed Screw On
Chrome
50
FU83340CP
1 1/16"
Open Screw On
Chrome
50
FU83345CP
1 1/16"
Open Dowel
Chrome
50
FU83310PC
1 5/16"
Closed Screw On
Chrome
50
FU83310DC
1 5/16"
Closed Screw On
Brushed Chrome
100
FU83311CP
1 5/16"
Open Dowel
Chrome
100
FU83311DC
1 5/16"
Closed Dowel
Brushed Chrome
20
FU83311ORB
1 5/16"
Closed Dowel
Oil Rubbed Bronze
100
FU83350PC
1 5/16"
Open Screw In
Chrome
50
FU83350DC
1 5/16"
Open Screw In
Brushed Chrome
100
FU83351CP
1 5/16"
Closed Dowel
Chrome
100
FU83351DC
1 5/16"
Open Dowel
Brushed Chrome
20
FU83351ORB
1 5/16"
Open Dowel
Oil Rubbed Bronze
100

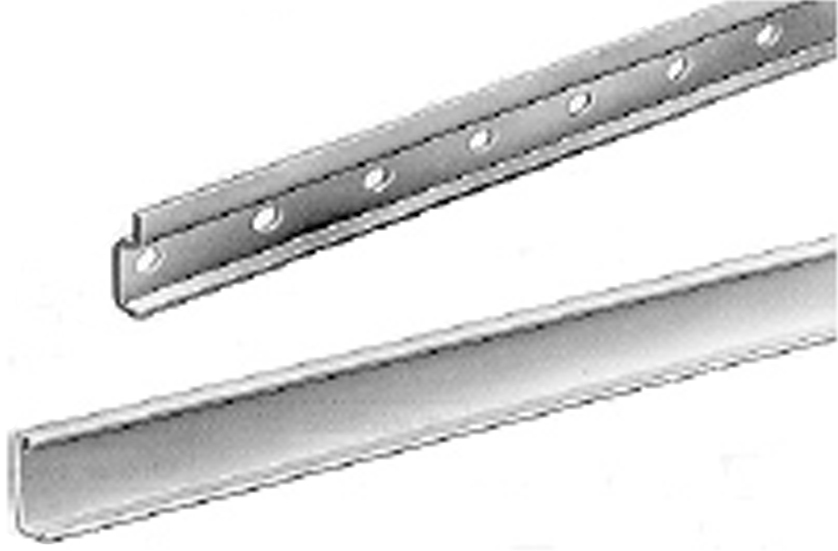

Suspension Rail
8' length
Steel
25 pieces per bundle

Part Number: 73J693524031

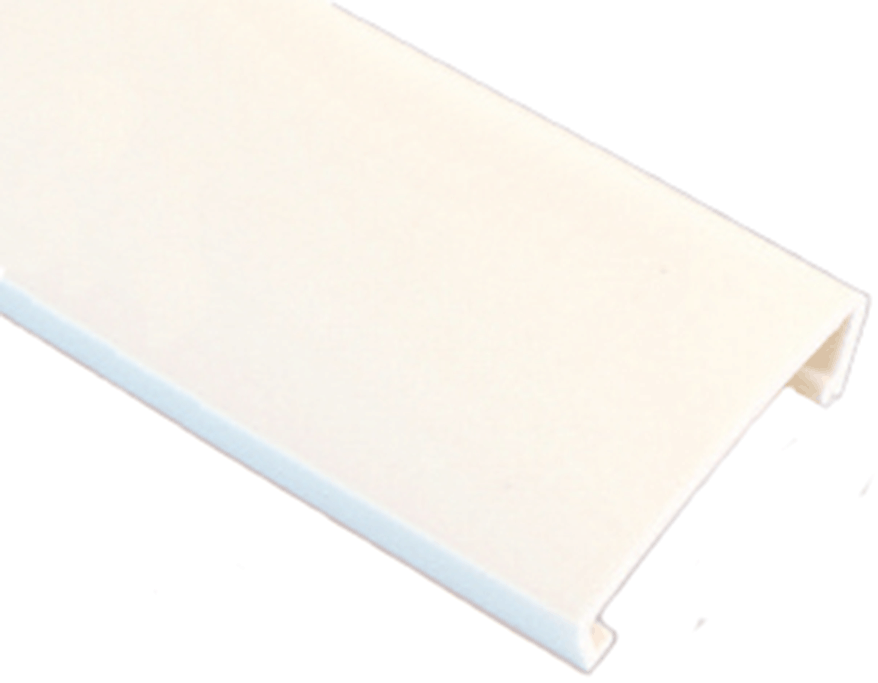

Suspension Rail Cover
Oval Closet Rod Fittings
8' Length
Paintable
Stocked in White Only
75 pieces per box

Part Number: 73JSRCWH
Screw On
Dowel

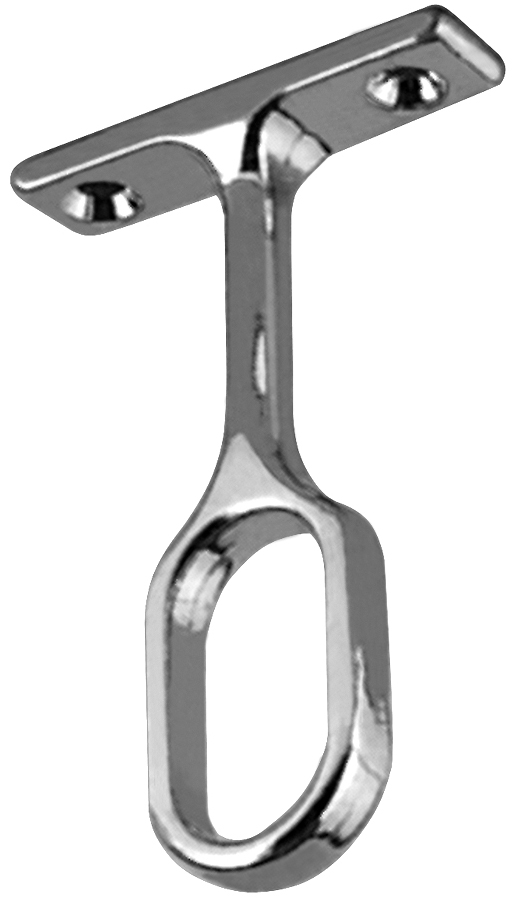

Center Mount

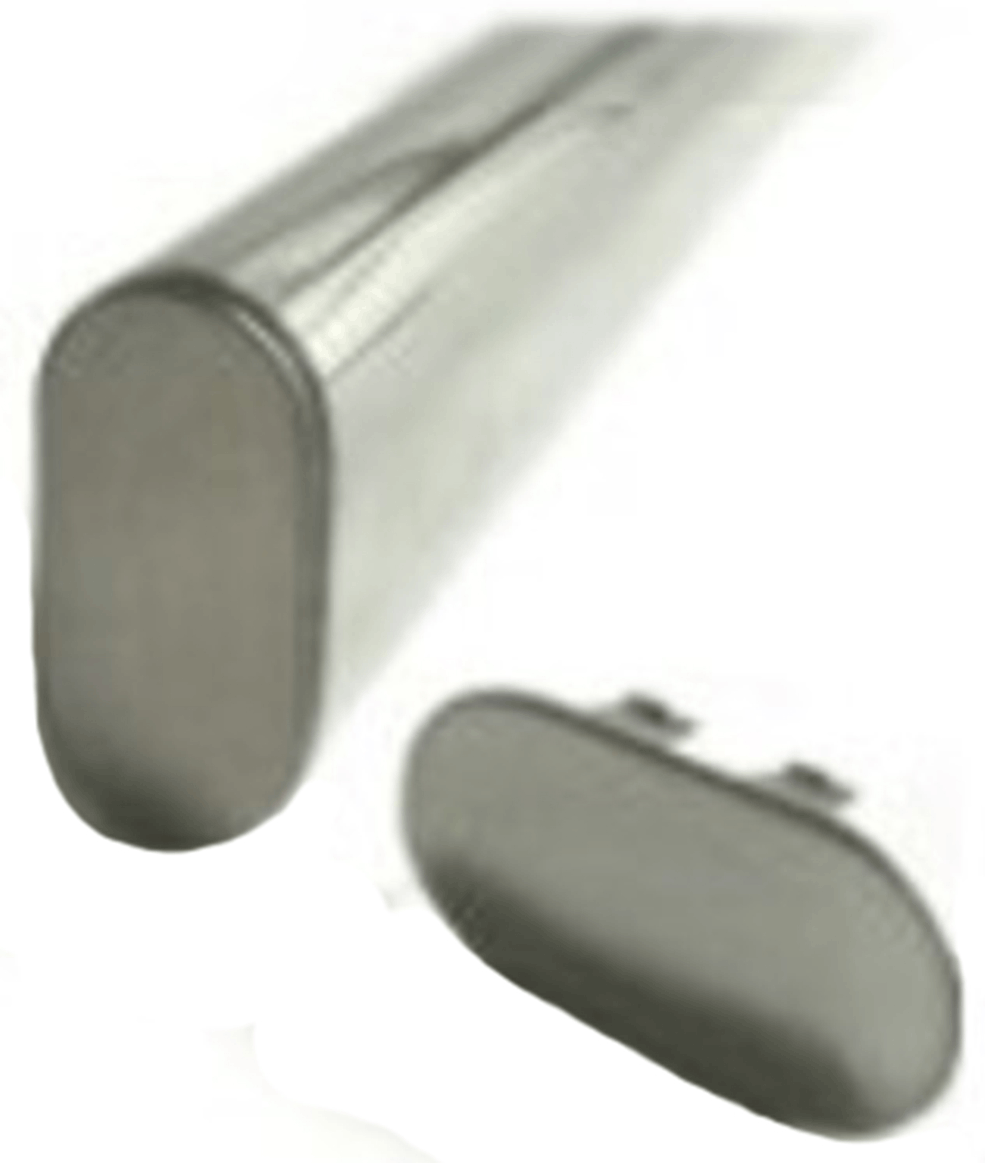

End Cap

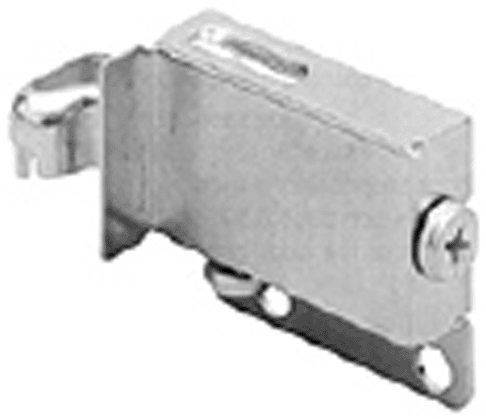

Suspension Bracket
Part Number
Type
Finish
Box Quantity
631005791
Screw On
Chrome
100
631005792
Dowel
Chrome
100
631005791DB
Screw On
Dull Brass
100
631005792DB
Dowel
Dull Brass
100
631005791BLK
Screw On
Matte Black
100
631005792BLK
Dowel
Matte Black
100
631005791DC
Screw On
Brushed Chrome
100
631005792DC
Dowel
Brushed Chrome
100
631005791ORB
Screw On
Oil Rubbed Bronze
100
631005792ORB
Dowel
Oil Rubbed Bronze
100
7380203201
Center Mount
Chrome
100
7380203201MB
Center Mount
Matte Black
100
7380203201ORB
Center Mount
Oil Rubbed Bronze
100
EP831PC
End Cap
Polished Chrome
100
Steel
286 lbs carrying capacity per wall cabinet
200 pieces per box

Left Hand Part Number: GR499825401215
Right Hand Part Number: GR499825401115
Suspension Bracket Cover
**Closet Rod and Sockets are also available for special order in Dull Brass, Nickel, and Matte Black.**
Part Number
Hand
Color
Box Quantity
GR514825401253
Left
Almond
200
GR514825401262
Left
Black
200
GR514825401258
Left
Brown
200
GR514825401274
Left
White
200

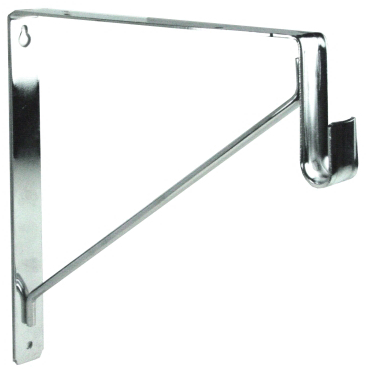

Oval Shelf & Rod Bracket
For oval 15mm 30mm rod.
11" L x 10 3/4" H
Steel construction.
Polished Chrome.
Packed 20 per box.

Part Number: EP848PC

Imported from U.S. Futaba Inc
Part Number
Hand
Color
Box Quantity
GR514825401153
Right
Almond
200
GR514825401162
Right
Black
200
GR514825401158
Right
Brown
200
GR514825401174
Right
White
200

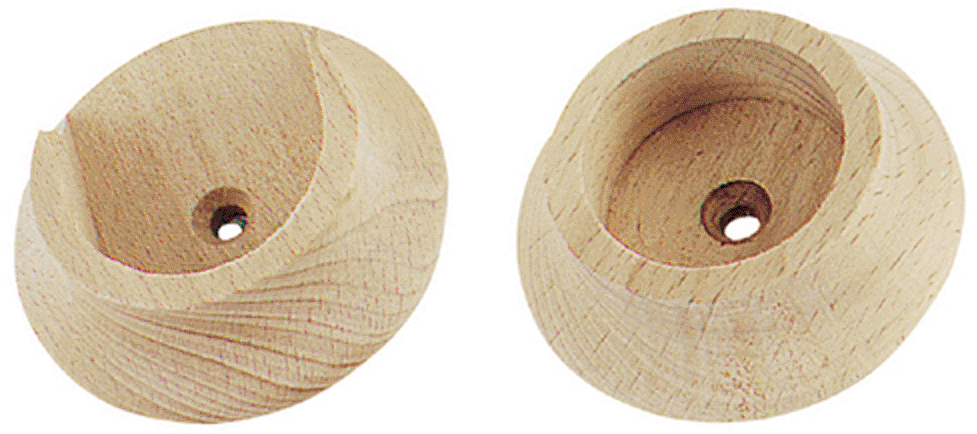

Closet Sockets
Hardwood closet sockets
For 1 3/8" rod.
Packed 50 pairs per box.

Part Number: 71536019

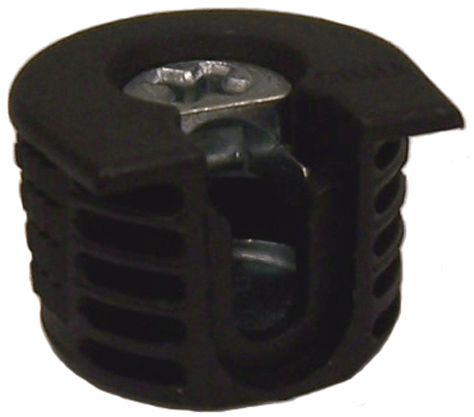

19mm Camfix Non-Outrigger
2,500 pieces per box
Black Part Number: 6706387LA
Brown Part Number: 6706387CL
White Part Number: 6706387WA

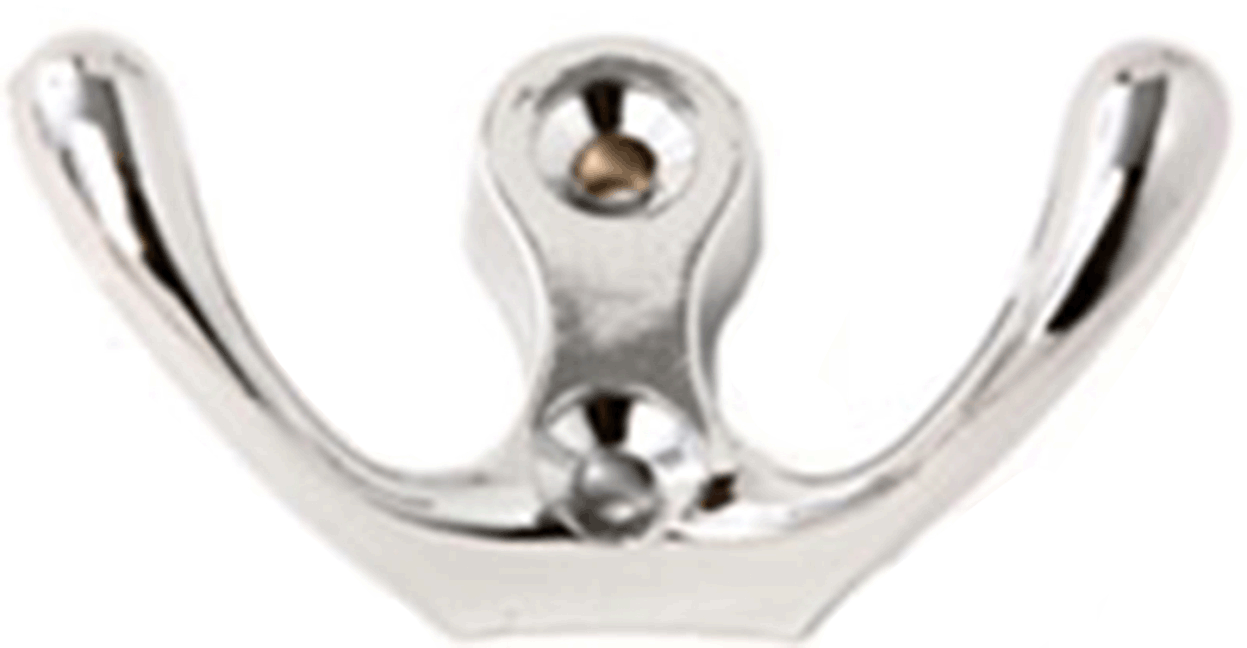

Coat Hook
Double Coat Hook
Polished Chrome
Packed 50 per box.

Part Number: PRCH8363PC
16mm Camfix Non-Outrigger
2,500 pieces per box.
Black Part Number: 6706383LA
Brown Part Number: 6706383CL
White Part Number: 6706383WA
Double Coat Hook
Packed 50 per box

Matte Black
Part Number: PRCH81160MB

Polished Chrome
Part Number: PRCH81160PC
Quickfit Dowel
5mm x 12mm
Packed 5,000 pieces per box.
Part Number: 6706408YA

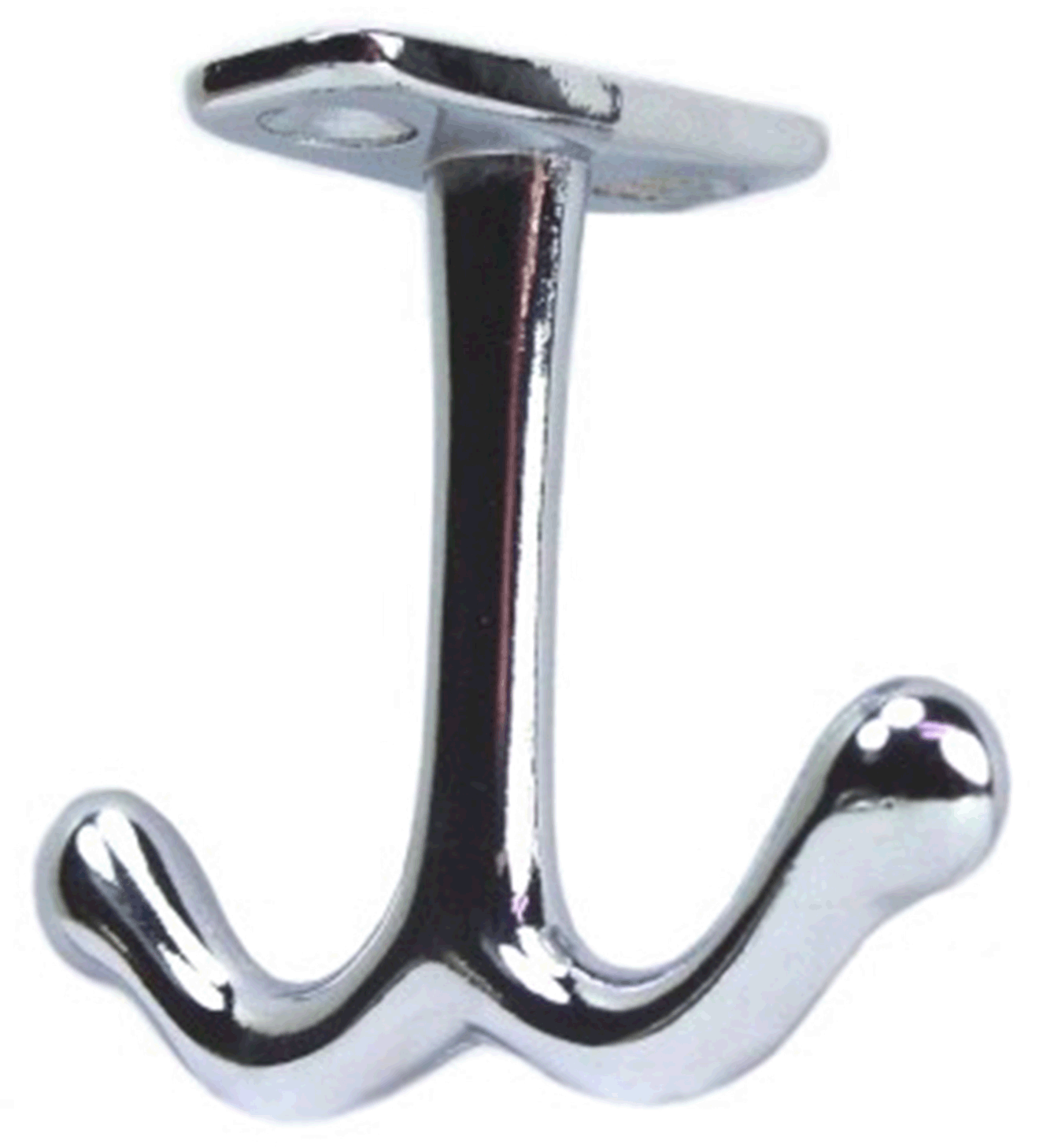

Double Coat Hook
Polished Chrome
Packed 100 per box.

Part Number: EPCH301ZC

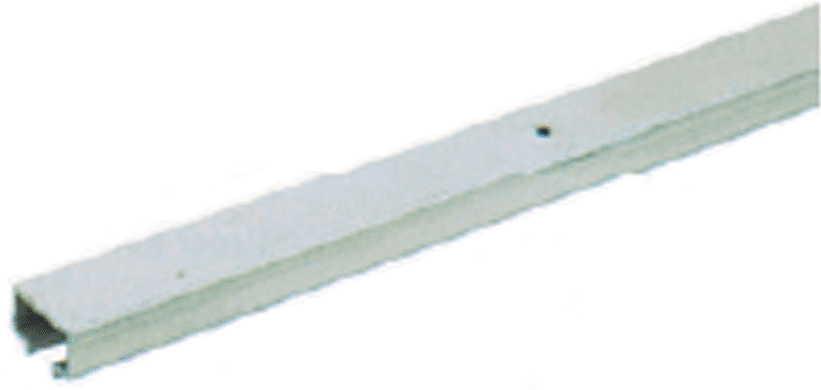

Sliding Panel Track 3/4" - Plastic - Epco
Top

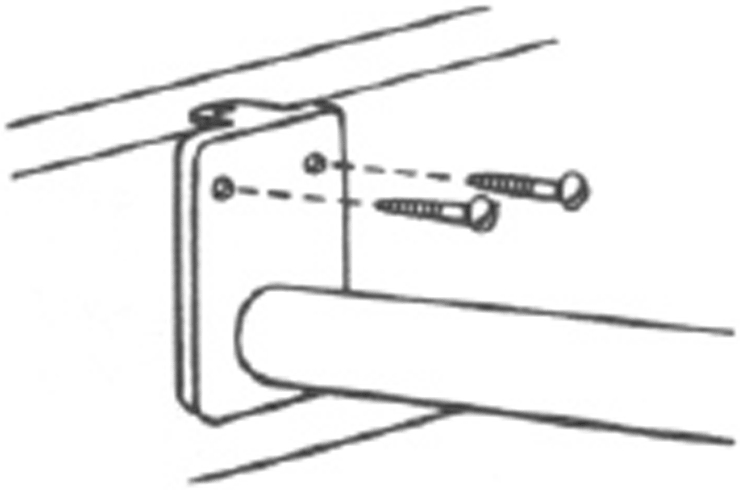

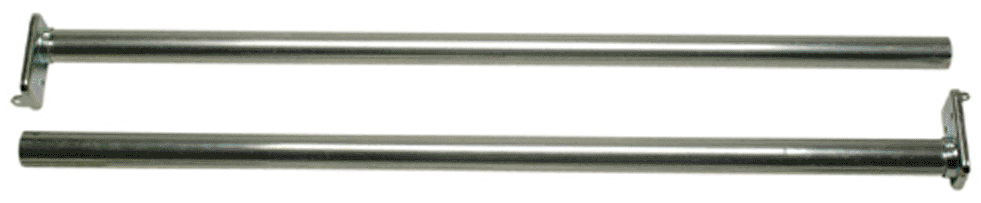

Adjustable Closet Rod
Bottom
An ideal, sturdy, adjustable closet rod for closets. Exceed ANSI/BHMA A156.16 deflection standards when installed with center support(s). Escutcheons are swagged and staked to tubes to provide double pull away protection. Comes with screws for installation.
High impact extruded polystyrene plastic track.
Stocked in light grey.
12' lengths.
Packed 30 per box.

Top Part Number: EP2234GY
Bottom Part Number: EP234GY
Part Number
Width
Box Quantity
KVKV2BPZC18
18" to 30"
10
KVKV2BPZC30
30" to 48"
10
Shelf Bracket

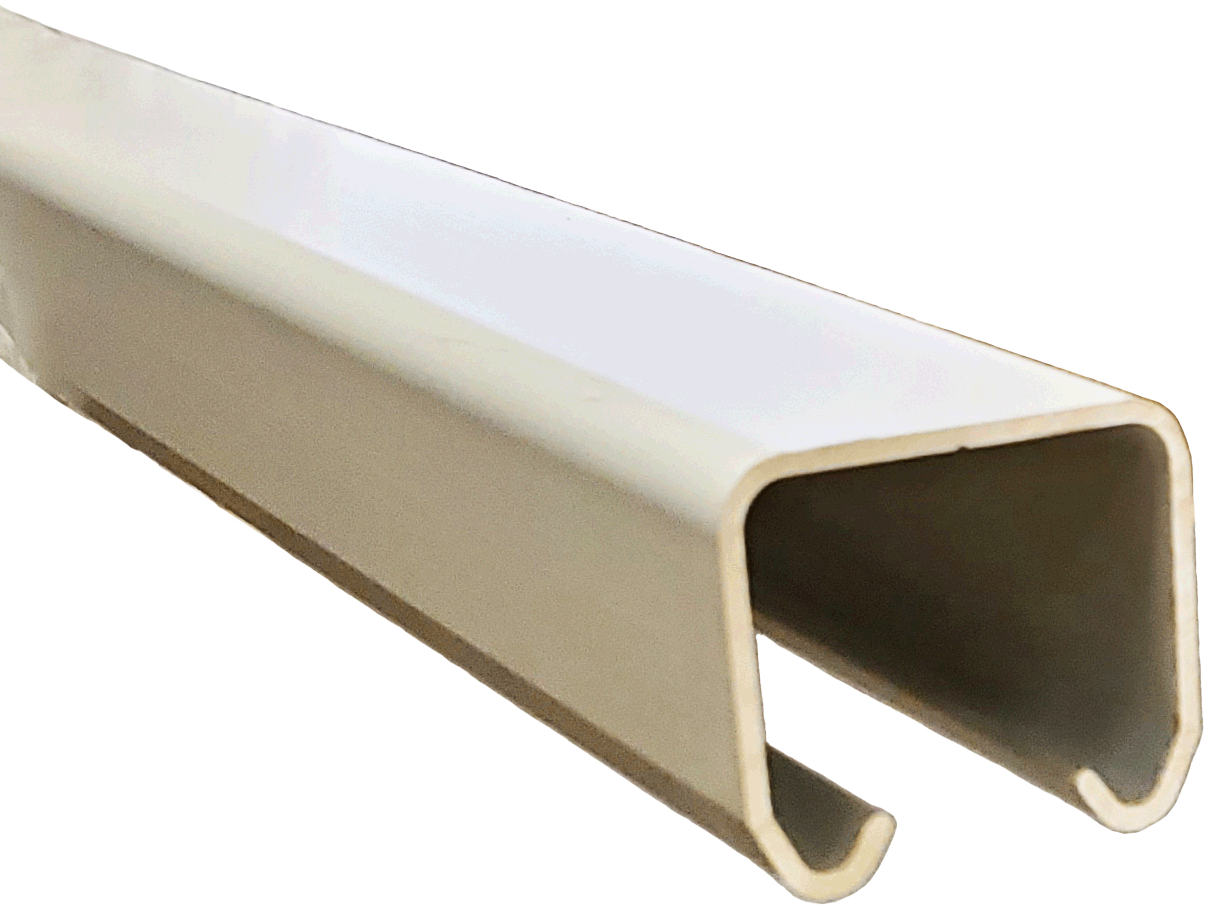

12 1/2' Aluminum Sliding Track
12 1/2 track.
Packed 10 per box.

Part Number: 73AV800
Heavy duty L bracket supports up to 1,000 lbs per pair. Perfect for work-
benches, countertops, or shelving applications in stores and warehouses.
Stocked in white, available in black.
Size
Part Number
Color
Box Quantity
12" KV208BLK300
Black
10
12" KV208WH300
White
10
16" KV208WH400
White
10
20" KV208BLK500
Black
10
20" KV208WH500
White
10
22" KV208WH550
White
10

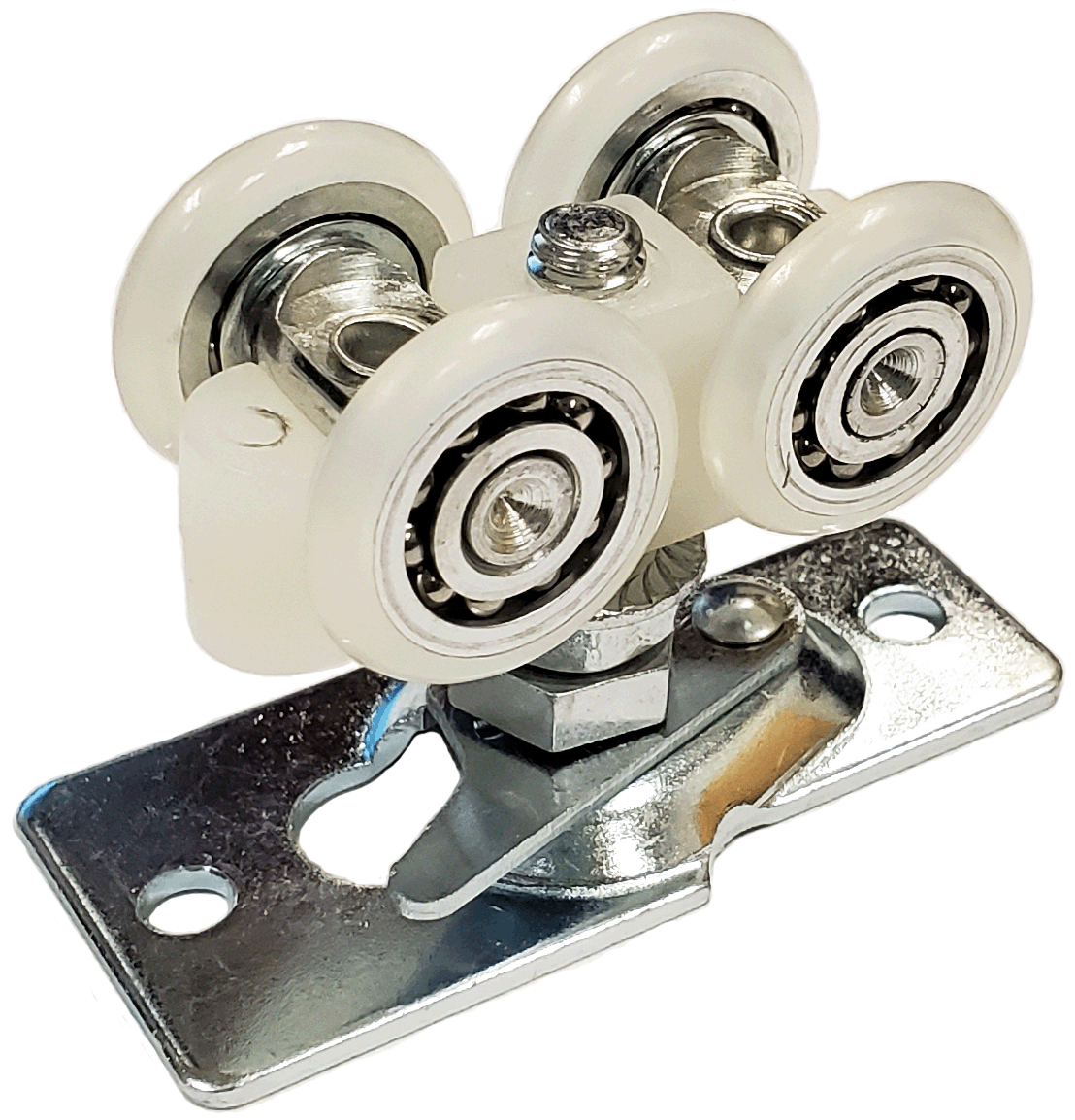

Roller with ball bearing.
Packed 20 per box.

Part Number: 73AV802
Barn Door Hardware is Available
Please click here to view

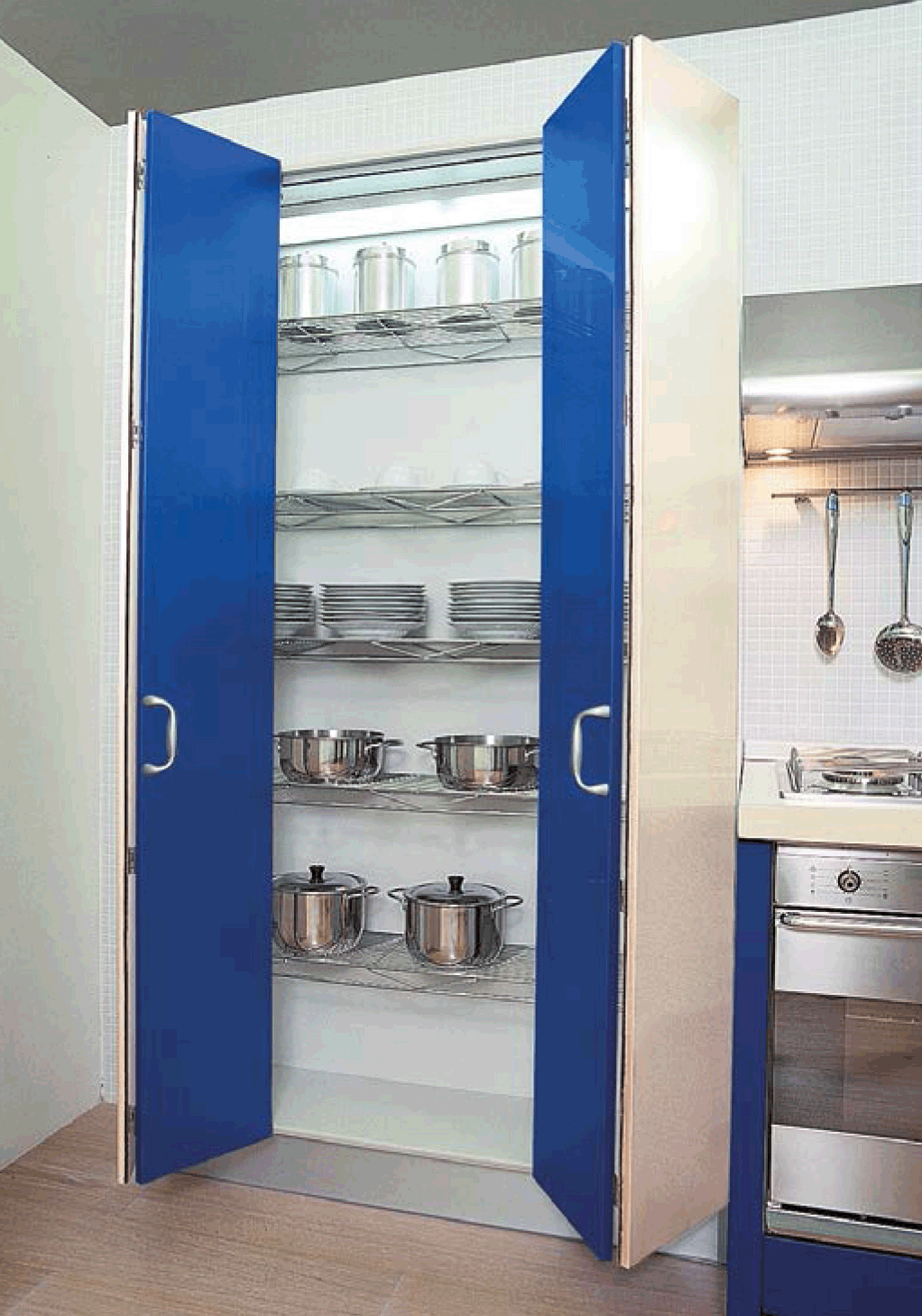

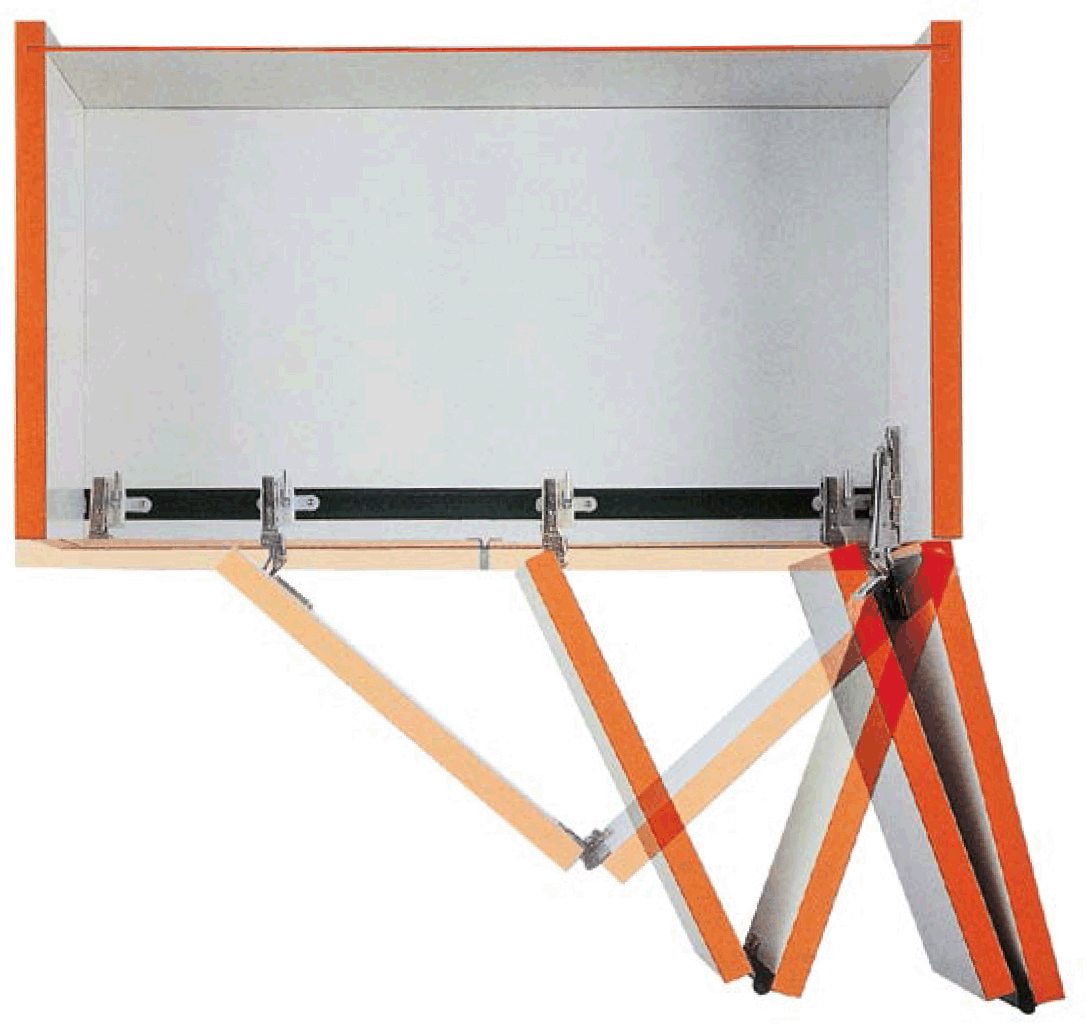

Salice Concertina
The Salice system for concertina doors has been designed to open both doors on one side only, giving good access to the interior of the cabinet.
Space taken up by the door in the maximum open position is reduces to minimum (approximately 80mm).
* Sliding system
* Length: 1180mm
* Screw in
* Packed 5 per box		 Black Part Number: 65F1GFA31180

White Part Number: 65F1GFAG1180W
Elements of the System - Sold Separately

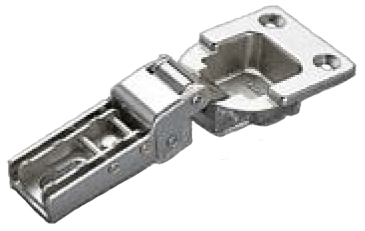

Hinge for sliding block

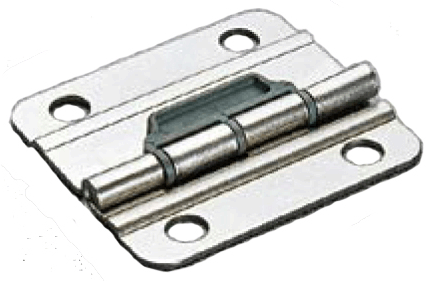

Part Number: 65F1C169		 Central hinge

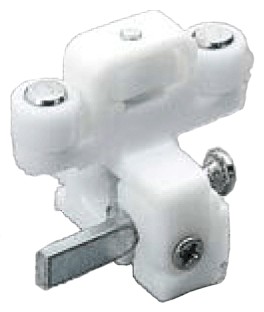

Part Number: 65F1CXE9		 Sliding block

Part Number: 65F1PXAY
Salice Bortoluzzi
Please contact U.S. Industrial Fasteners for more information on the New Salice Bortoluzzi.
Mover System
* Vertical sliding system for a wall (upper) cabinet only.
* Door Height Options = 480mm (18 inches) or 600mm (23 inches) only.
* Door Width Options based on Door Width (LA) = 900mm (35 inches). 1200mm (47 inches), 1800mm (70 inches), 2400mm (94 inches) only.
* Maximum Door Weight = 13 pounds - 50 pounds
Slider M50+ System
* Sliding system for a floor cabinet.
* Maximum Door Height for tracks up to 1500mm = 2200mm (86 inches)
* Maximum Door Height for tracks 1600mm-4000mm = 3000mm (118 inches)
* Door Width = Min. 60mm (23 5/8 inches) Max. 2000mm (78 3/4 inches)
* Maximum Door Thickness with Handle = 45mm (1.7 inches)
* Maximum Door Weight = 50kg (110 lbs)
* Doors can be made of wood, glass (aluminum frame), or clipper doors. The minimum profile width for aluminum doors = 2 inches.
* The clipper doors are only available on track lengths of 1600mm-3000mm.
* Width of the track is based on the internal dimension of the cabinet.
* There is more flexibility in building your cabinet with this system. On the smaller sizes (1200-1500), the tracks are in increments of 100, so you can fall anywhere between. On the larger sizes (1600-4000), the tracks are in increments of 200, so you can have a custom size cabinet but you do not need a custom length track.
Slider L70 System
* Sliding system for a floor cabinet available for 2 door or 3 door units Type 33.
* Maximum Door Height = 3000mm (118 inches).
* Door Width = Min. 800mm (31 inches) Max. 2000mm (78 inches).
* Maximum Door Thickness with Handle = 45mm (1.7 inches).
* Maximum Door Width = 70kg (154 pounds).
* Doors can be made of wood, glass (aluminum frame), or clipper doors. The minimum profile width for aluminum doors = 2 1/2 inches.
* The clipper doors can be used as long as you are within the weight parameters. Max door size is 1500mm x 2650mm.
* Width of the track is based on the internal dimension of the cabinet.
* There is more flexibility in building your cabinet with this system. The tracks are in increments of 200, so you can have a custom size cabinet but you do not need a custom length track.
Slider S
* Sliding system for two-door wall units with decelerated opening and closing.
* Maximum Door Height: 47 1/4 inches
* Minimum Door Thickness: 1 3/4 inches
* Maximum Thickness of the Door with Handle: 1 49/64 inches
* Maximum Door Load: 48 1/2 pounds
* Door Width = Min. 23 5/8 inches Max. 59 inches
* Vertical Door Adjustment: +/- 3/64 inch
* Horizontal Door Adjustment: +/- 1/8 inch
* Upper load-bearing track fitted to the top panel of wall unit.
* Lower track recessed into the base panel of the wall unit.

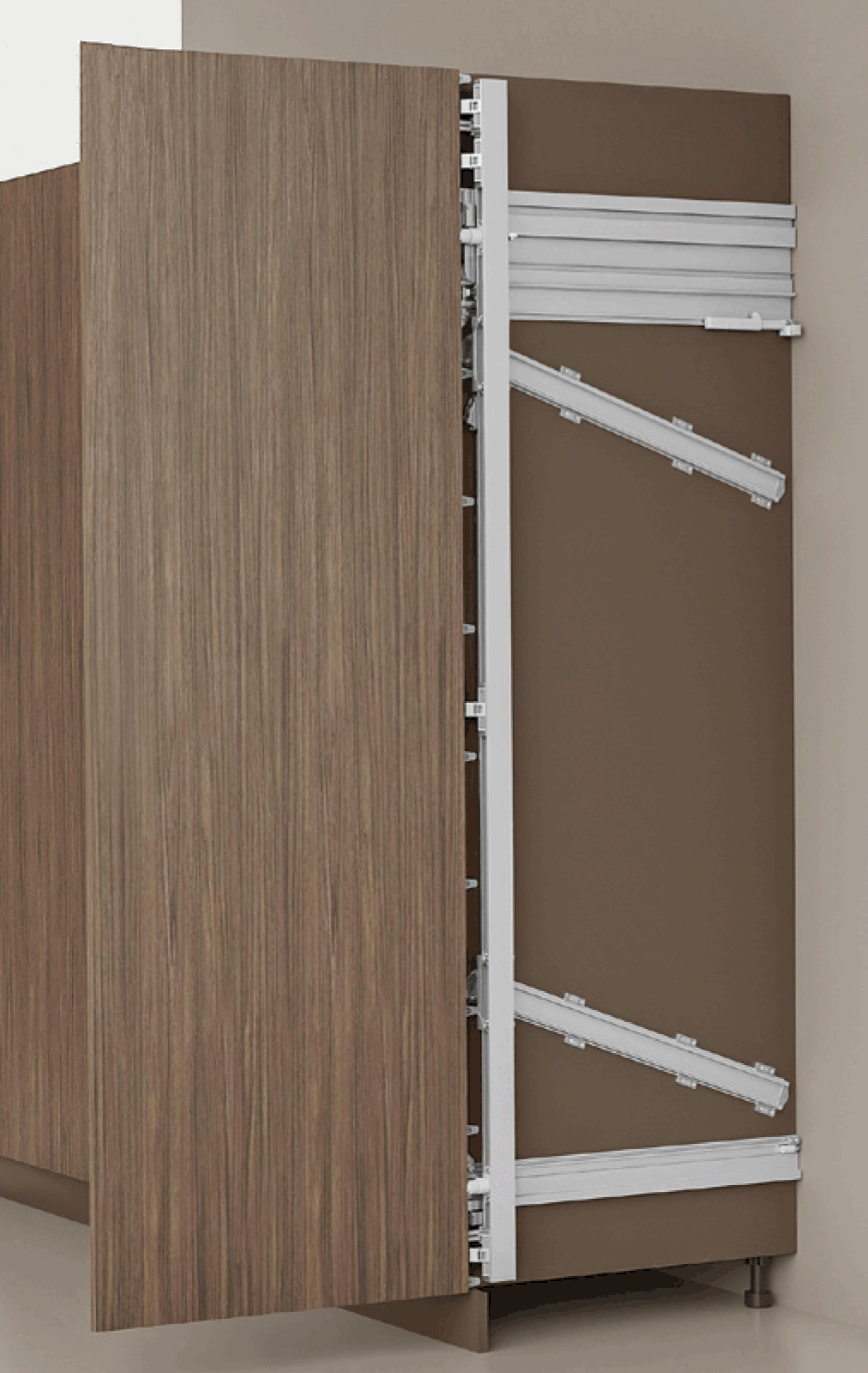

Salice Pocket Door System Exedra
Pocket Door System Exedra is available by special order, please contact U.S. Industrial for more information.
Exedra allows smooth lateral assisted positive openeing and cushioned soft-close movements, which are controlled by a safety device. Exedra gives a smooth, uniform and noiseless movement, regardless of the speed of door insertion.
Tech features:
* Maximum weight for each door: up to 88 lbs (40 Kg) (with 5 hinges allowed and only with a 700 mm max door width)
* Thickness: - min 19 mm (3/4") max 30 mm (1-3/16")
* Width: - min 370mm (14-9/16") max 900mm (35-7/16")
* Height: **-min 1303mm (51-5/16") min 1359 mm (53-1/2") with roller kit - max 2800mm (110-1/4")

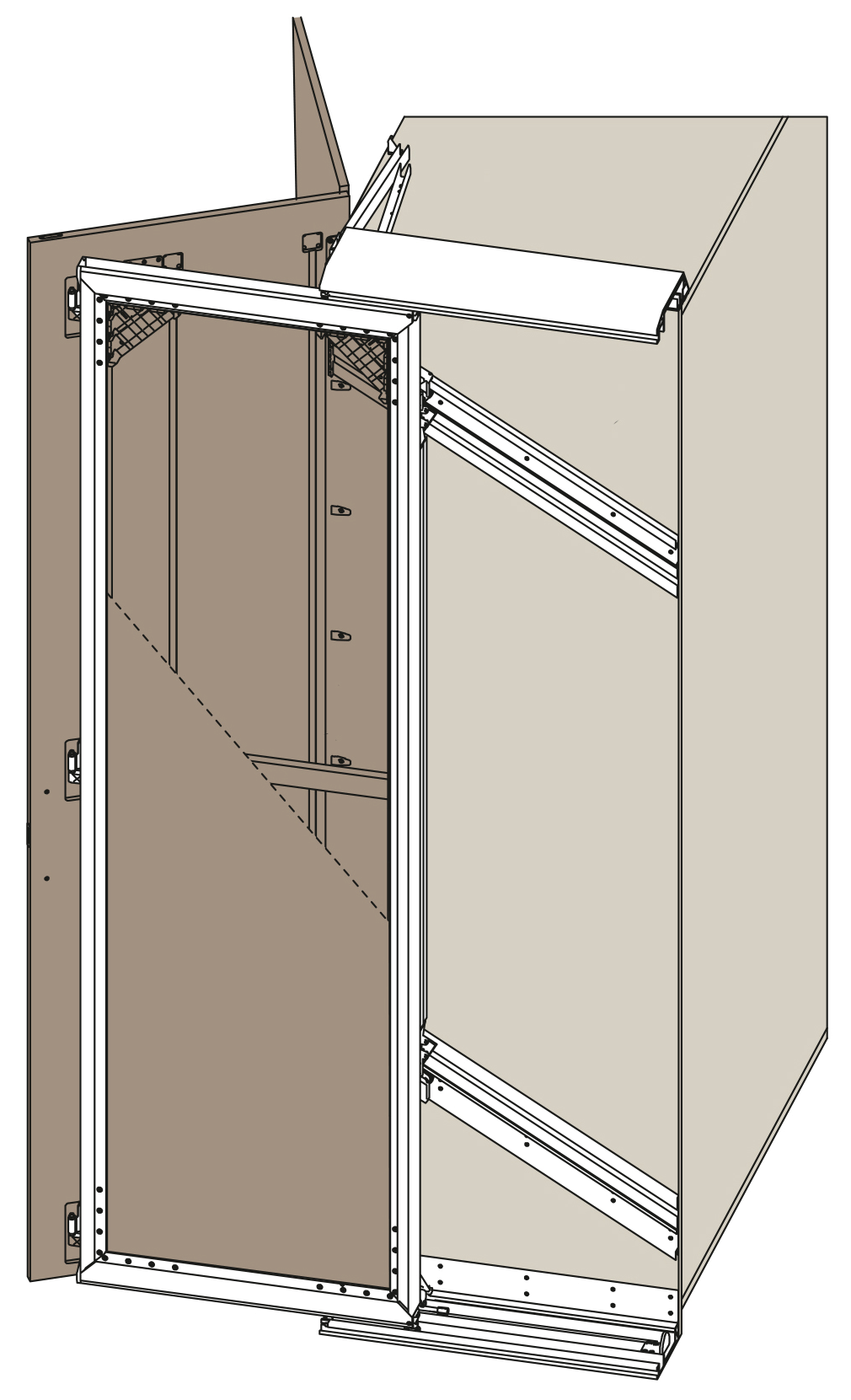

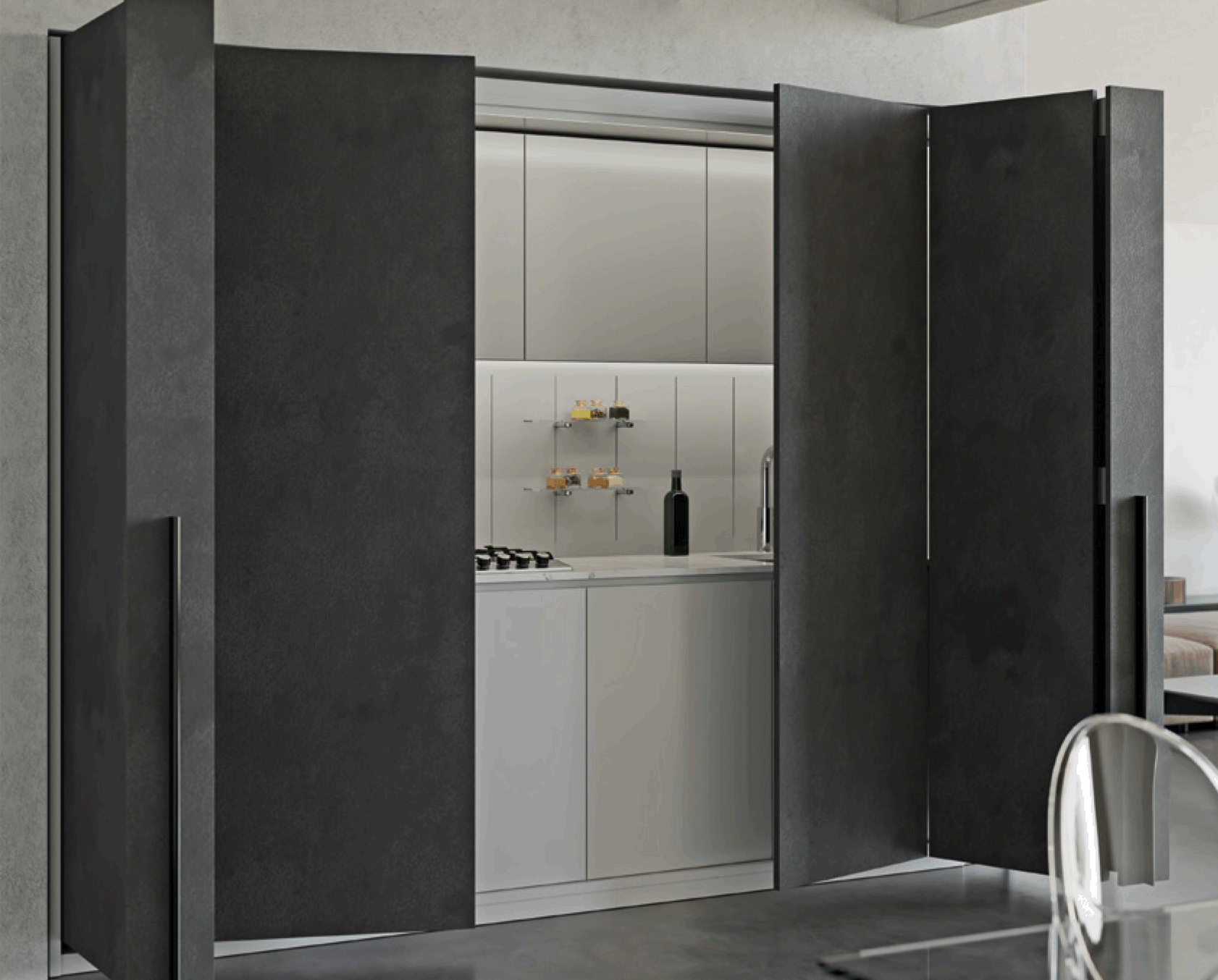

Salice Pocket Door System Exedra 2
Pocket Door System Exedra 2 is available by special order, please contact U.S. Industrial for more information.
Exedra2 Star and Exedra2 Smart are evolutions of the Exedra system, which, thanks to an innovatively-engineered mechanism, enable the simultaneous movement of two linked doors.
Technical Information
DOUBLE pocket door system with cam-assisted door extraction and cushioned door insertion.
Door characteristics:
* Maxiumum weight for single door: 55 lbs (25Kg)
* Doors thickness: min 18mm (3/4") - max 25mm (1")
* Width of single door - Exedra2 Star: min 450 mm (17-11/16") - max 750 mm (29-1/2")
* Doors height: min 1800 mm (70-7/8") - max 2600 mm (102-3/8")
