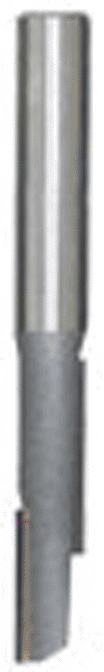

Straight Bits Single Flute

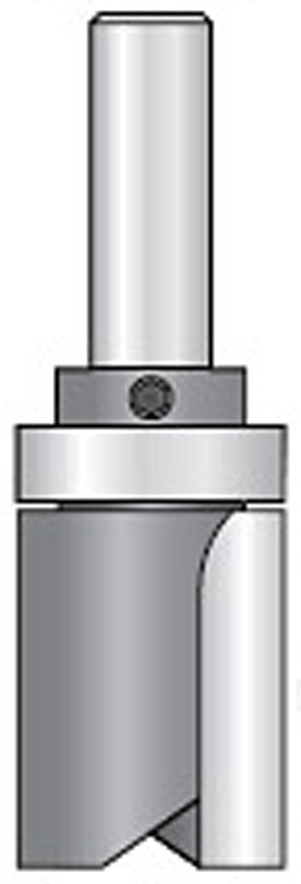

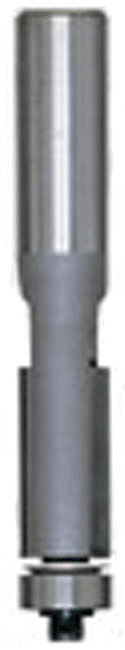

Flush Trim Bits With Ball Bearing Guide
Sold individually
Sold individually
2-Flute
|
Part Number
|
Cutting Diameter Inches
|
Cutting Length Inches
|
Shank Diameter Inches
|
Overall Length Inches
|
| 5224A45312 |
1/2"
|
2"
|
1/2"
|
4"
|
|
Part Number
|
Cutting Diameter Inches
|
Cutting Length Inches
|
Shank Diameter Inches
|
Overall Length Inches
|
| 5224A47090 |
1/4"
|
1/2"
|
1/4"
|
2 1/4"
|
| 5224A47092 |
1/4"
|
1"
|
1/4"
|
2 1/2"
|
| 5224A47100 |
3/8"
|
1"
|
1/4"
|
2 5/8"
|
| 5224A47102 |
3/8"
|
1/2"
|
1/4"
|
2 1/8"
|
| 5224A47103 |
3/8"
|
1"
|
3/8"
|
2 7/8"
|
| 5224A47104 |
1/2"
|
1"
|
1/4"
|
2 5/8"
|
| 5224A47106 |
1/2"
|
1/2"
|
1/4"
|
2 1/4"
|
| 5224A47108 |
1/2"
|
1"
|
1/2"
|
3 1/4"
|
| 5224A47110 |
1/2"
|
1/2"
|
1/2"
|
2 34"
|

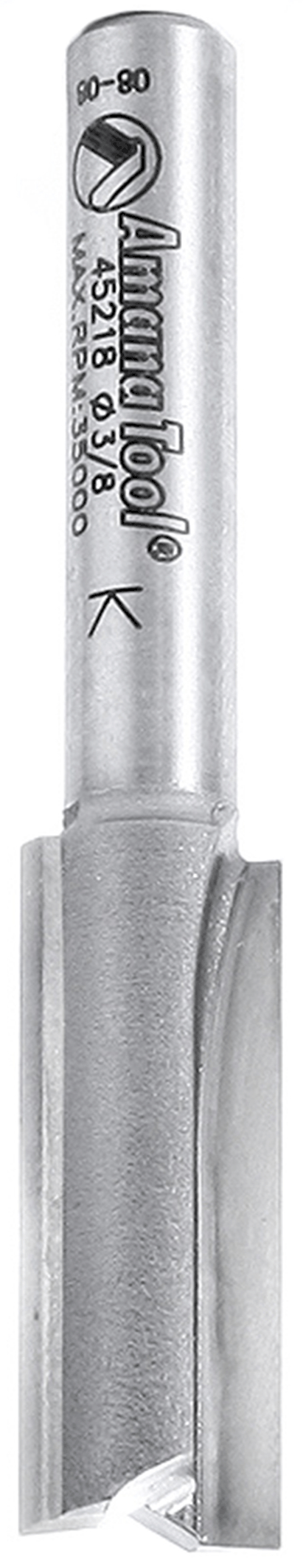

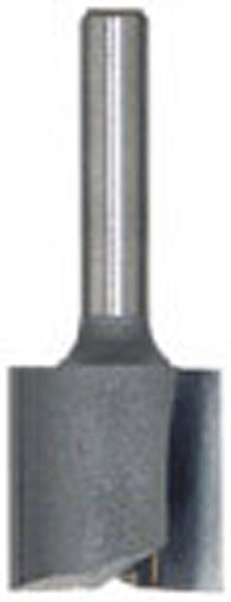

Straight Bits 2 Flute
Sold individually
3-Flute
|
Part Number
|
Cutting Diameter Inches
|
Cutting Length Inches
|
Shank Diameter Inches
|
Overall Length Inches
|
| 5224A45190 |
1/16"
|
3/16"
|
1/4"
|
1 5/8"
|
| 5224A45200 |
1/8"
|
7/16"
|
1/4"
|
2"
|
| 5224A45202 |
3/16"
|
7/16"
|
1/4"
|
2"
|
| 5224A45208 |
1/4"
|
3/4"
|
1/4"
|
2"
|
| 5224A45211 |
1/4"
|
1"
|
1/4"
|
2 7/8"
|
| 5224A45218 |
3/8"
|
1"
|
1/4"
|
2 1/4"
|
| 5224A45226 |
1/2"
|
1"
|
1/4"
|
2 1/8"
|
| 5224A45228 |
5/8"
|
3/4"
|
1/4"
|
2"
|
| 5224A45230 |
3/4"
|
3/4"
|
1/4"
|
2"
|
|
Part Number
|
Cutting Diameter Inches
|
Cutting Length Inches
|
Shank Diameter Inches
|
Overall Length Inches
|
| 5224A47114 |
1/2"
|
1"
|
1/4"
|
2 5/8"
|
| 5224A47116 |
1/2"
|
1/2"
|
1/4"
|
2"
|
| 5224A47118 |
1/2"
|
1"
|
1/2"
|
3 1/4"
|
Flush Trim Bits Extra Long With Ball Bearing Guide
2-Flute
Sold individually
Sold individually
Straight Plunge Bits 2 Flute
Sold Individually
|
Part Number
|
Cutting Diameter Inches
|
Cutting Length Inches
|
Shank Diameter Inches
|
Overall Length Inches
|
| 5224A47124 |
1/2"
|
1 1/2"
|
1/2"
|
3 7/8"
|
| 5224A47126 |
1/2"
|
2"
|
1/2"
|
4 1/4"
|
|
Part Number
|
Cutting Diameter Inches
|
Cutting Length Inches
|
Shank Diameter Inches
|
Overall Length Inches
|
| 5224A45414 |
3/8"
|
1"
|
1/2"
|
2 3/4"
|
| 5224A45418 |
1/2"
|
1"
|
1/2"
|
2 5/8"
|
| 5224A45420 |
1/2"
|
1 1/4"
|
1/2"
|
2 7/8"
|
| 5224A45422 |
1/2"
|
1 1/2"
|
1/2"
|
3 1/8"
|
| 5224A45426 |
1/2"
|
2"
|
1/2"
|
4 1/4"
|
| 5224A45427 |
1/2"
|
2 1/4"
|
1/2"
|
4 1/2"
|
| 5224A45445 |
23/32"
|
1 1/4"
|
1/2"
|
2 7/8"
|
| 5224A45448 |
1"
|
1 1/4"
|
1/2"
|
2 7/8"
|
Bevel Trim With Ball Bearing Guide
Sold individually
Panel Pilot Concave Grind
Single flue, Sold individually
|
Part Number
|
Type Cut
|
Cutting Diameter Inches
|
Cutting Length Inches
|
Shank Diameter Inches
|
Overall Length Inches
|
| 5224A47200 |
15°
|
5/8"
|
9/32"
|
1/4"
|
1 7/8"
|

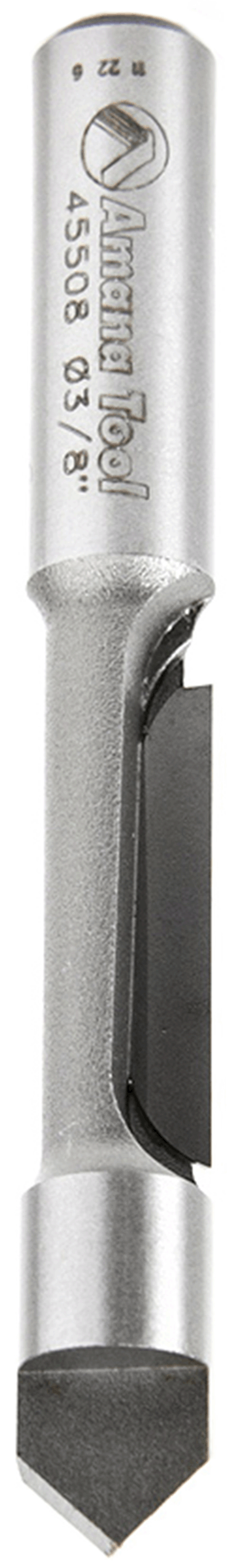

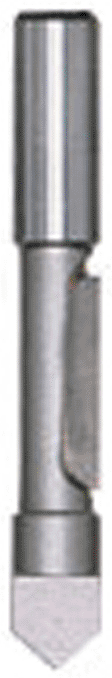

V Groove Bits
Sold Individually
|
Part Number
|
Cutting Diameter Inches
|
Cutting Length Inches
|
Shank Diameter Inches
|
Overall Length Inches
|
| 5224A45508 |
3/8"
|
1"
|
3/8"
|
3"
|
Mortising Bits
|
Part Number
|
Angle
|
Cutting Diameter Inches
|
Cutting Length Inches
|
Shank Diameter Inches
|
Overall Length Inches
|
| 5224A45700 |
90°
|
3/8"
|
7/16"
|
1/4"
|
1 5/8"
|
| 5224A45702 |
90°
|
3/8"
|
7/16"
|
1/2"
|
2"
|
| 5224A45704 |
90°
|
1/2"
|
1/2"
|
1/4"
|
1 5/8"
|
| 5224A45705 |
60°
|
1/2"
|
5/8"
|
1/2"
|
2 1/4"
|
Sold Individually
3 Wing Slotting Cutter
|
Part Number
|
Cutting Diameter Inches
|
Cutting Length Inches
|
Shank Diameter
Inches |
Overall Length Inches
|
| 5224A45500 |
1/2"
|
3/4"
|
1/4"
|
2"
|
| 5224A45502 |
5/8"
|
3/4"
|
1/4"
|
2"
|
Sold individually

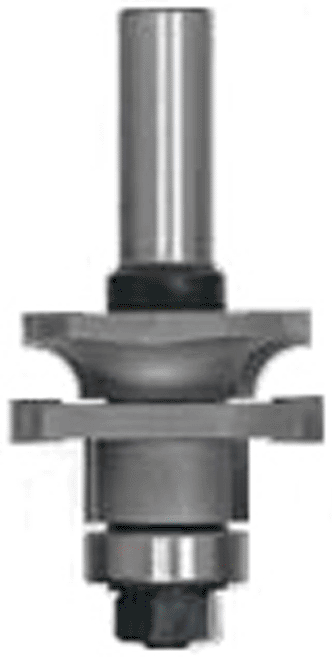

2-Piece Stile and Rail Sets
Sold individually
|
Part Number
|
Number of Wings
|
Cutter Diameter Inches
|
Kerf Inches
|
Bore Inches
|
| 5224A53200 |
3
|
1 7/8"
|
1/16"
|
5/16"
|
| 5224A53206 |
3
|
1 7/8"
|
3/16"
|
5/16"
|

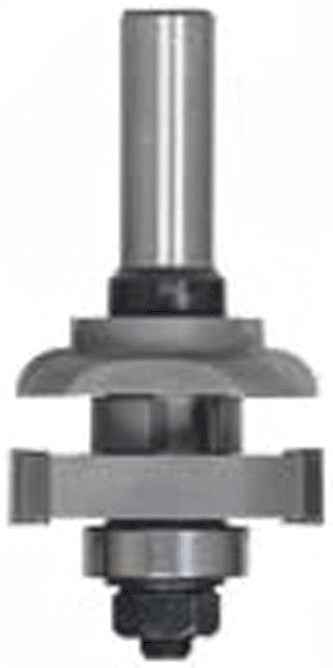

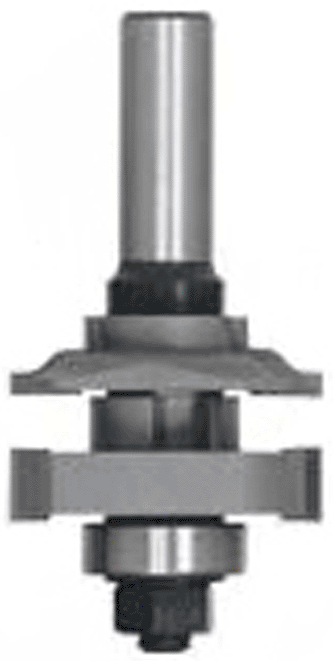

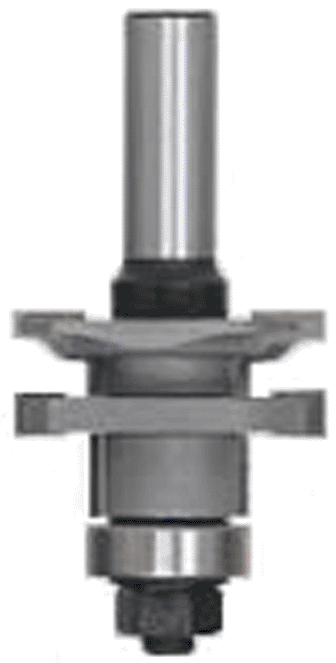

Slot Cutter Assembly
|
Part Number
|
Cutting Diameter Inches
|
Type
|
Radius
|
Shank Diameter Inches
|
Overall Length Inches
|
| 5224A55430 |
1 5/8"
|
Ogee
|
1/4"
|
1/2"
|
3 5/16"
|
Sold Individually

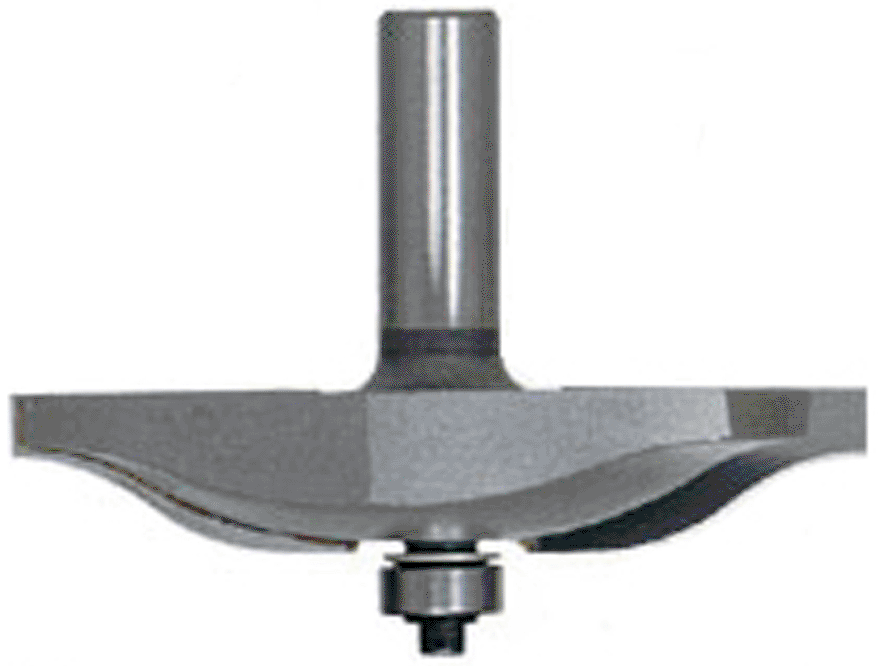

Raised Panel Bits
Sold Individually
|
Part Number
|
# of Wings
|
Cutting Diameter Inches
|
Cutting Length Inches
|
Shank Diameter Inches
|
Overall Length Inches
|
| 5224A53400 |
3
|
1 7/8"
|
1/16"
|
1/4"
|
2 3/8"
|
| 5224A53406 |
3
|
1 7/8"
|
1/8"
|
1/4"
|
2 3/8"
|
| 5224A534061 |
3
|
1 7/8"
|
1/8"
|
1/2"
|
2 3/8"
|
| 5224A53410 |
3
|
1 7/8"
|
1/4"
|
1/4"
|
2 3/8"
|
|
Part Number
|
Overall Diameter Inches
|
Cutting Depth Inches
|
Radius or Angle
|
Shank Diameter Inches
|
Overall Length Inches
|
|
5224A54117
|
3 3/8"
|
1 7/16"
|
15°
|
1/2"
|
2 3/8"
|
| 5224A54118 |
2 5/8"
|
1 1/16"
|
3/4"
|
1/2"
|
2 1/2"
|
| 5224A54119 |
3 3/8"
|
1 7/16"
|
1 9/16"
|
1/2"
|
2 3/8"
|
| 5224A54121 |
3 3/8"
|
1 7/16"
|
7/8"
|
1/2"
|
2 1/2"
|

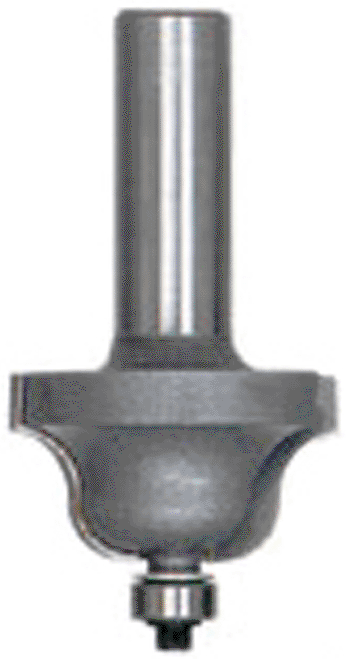

Roman Ogee Bits With Ball Bearing Guide
2-Flute
Sold individually
Sold individually

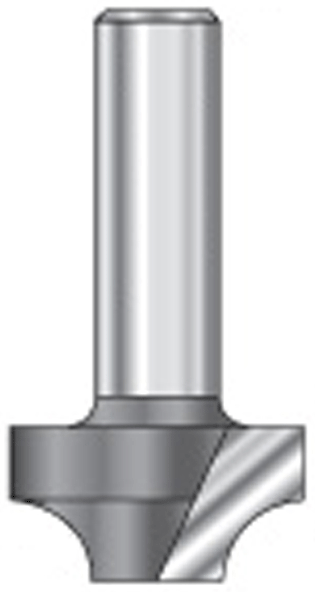

Corner Beading Bit
Sold Individually
|
Part Number
|
Radius Inches
|
Cutting Diameter Inches
|
Cutting Length Inches
|
Shank Diameter Inches
|
Overall Length Inches
|
| 5224A49200 |
5/32"
|
1"
|
5/8"
|
1/4"
|
2 1/8"
|
| 5224A49204 |
1/4"
|
1 3/8"
|
7/8"
|
1/4"
|
2 1/4"
|
|
Part Number
|
Radius Inches
|
Cutting Diameter Inches
|
Cutting Length Inches
|
Shank Diameter Inches
|
Overall Length Inches
|
| 5224A54160 |
1/8"
|
7/8"
|
9/16"
|
1/4"
|
2 1/8"
|

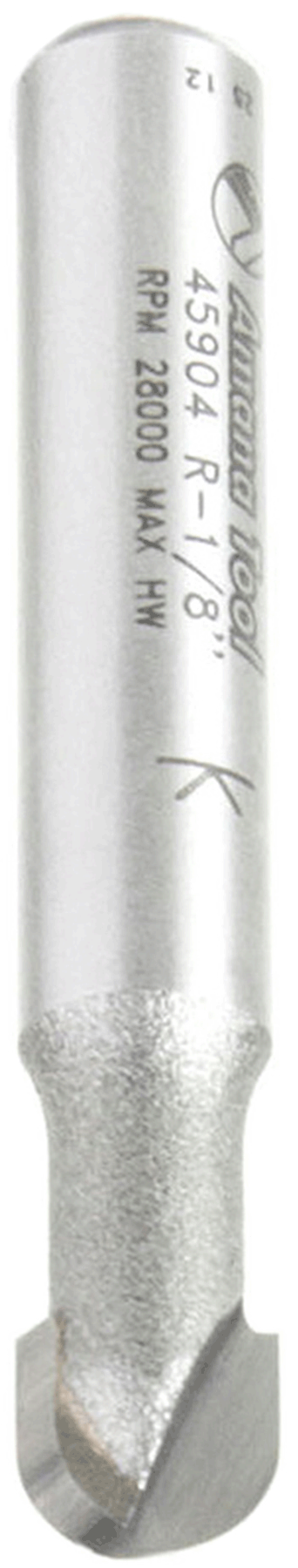

Core Box Bits
2-Flute
Sold individually
Sold individually
Flush Trim "V" Groove With Ball Bearing Guide
4 Wing Bevel Trim Cutter Assembly
Sold Individually
|
Part Number
|
Cutting Diameter Inches
|
Radius Inches
|
Cutting Length Inches
|
Shank Diameter Inches
|
Overall Length Inches
|
| 5224A45904 |
1/4"
|
1/8"
|
1/4"
|
1/4"
|
1 5/8"
|
| 5224A45906 |
3/8"
|
3/16"
|
1/4"
|
1/4"
|
1 1/2"
|
| 5224A45910 |
1/2"
|
1/4"
|
3/8"
|
1/4"
|
1 1/2"
|
| 5224A45912 |
1/2"
|
1/4"
|
3/8"
|
1/2"
|
2 1/8"
|
| 5224A45918 |
3/4"
|
3/8"
|
7/16"
|
1/4"
|
1 3/4"
|
| 5224A45920 |
3/4"
|
3/8"
|
7/16"
|
1/2"
|
2"
|
| 5224A45924 |
1"
|
1/2"
|
5/8"
|
1/4"
|
1 3/4"
|
|
Part Number
|
Type Cut
|
Shank Diameter Inches
|
Cutting Diameter Inches
|
Cutting Length Inches
|
Overall Length Inches
|
| 5224A47400 |
Flush
|
1/4"
|
7/8"
|
1/4"
|
2 3/8"
|

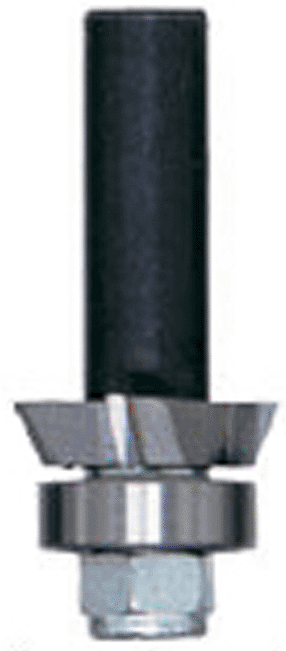

Dado Clean-Out Bit
Cove Bits With Ball Bearing Guide
2 Flute, Sold Individually
2-Flute
Sold individually
Sold individually
|
Part Number
|
Cutting Diameter Inches
|
Cutting Length Inches
|
Shank Diameter Inches
|
Overall Length Inches
|
Replace Bearing Part #
|
Replace Collar Part #
|
| 5224A45460S |
1/2"
|
1/4"
|
1/4"
|
1 5/8"
|
A47701
|
A47724
|
| 5224A45474S |
9/16"
|
3/8"
|
1/4"
|
1 27/32"
|
A47753
|
A47224
|
|
Part Number
|
Radius Inches
|
Cutting Diameter Inches
|
Cutting Length Inches
|
Shank Diameter Inches
|
Overall Length Inches
|
| 5224A49104 |
1/4"
|
7/8"
|
9/16"
|
1/4"
|
2"
|
| 5224A49112 |
3/8"
|
1 1/8"
|
9/16"
|
1/4"
|
2"
|
| 5224A49116 |
1/2"
|
1 3/8"
|
3/4"
|
1/4"
|
2 1/4"
|
|
5224A49118
|
1/2"
|
1 3/8"
|
3/4"
|
1/2"
|
2 1/2"
|

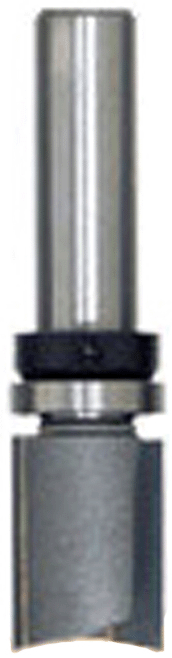

Top Bearing Bit
Sold Individually

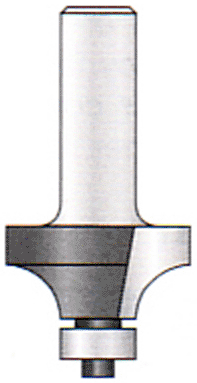

Corner Rounding Bits With Ball Bearing Guide
2-Flute
Sold individually
Sold individually
|
Part Number
|
Cutting Diameter Inches
|
Cutting Length Inches
|
Shank Diameter Inches
|
Overall Length Inches
|
Replace Bearing Part #
|
Replace Collar Part #
|
| 5224A45460 |
1/2"
|
1"
|
1/4"
|
2 1/2"
|
A47721
|
A47739
|
| 5224A45461 |
1/2"
|
1 1/4"
|
1/4"
|
2 3/4"
|
A47701
|
A47724
|
| 5224A45462 |
5/8"
|
1"
|
1/4"
|
2 3/4"
|
A47712
|
A47724
|
| 5224A45464 |
3/4"
|
1"
|
1/4"
|
2 1/2"
|
A47714
|
A47724
|
| 5224A45487 |
1/2"
|
1/2"
|
1/4"
|
2"
|
A47701
|
A47724
|
|
Part Number
|
Cutting Diameter Inches
|
Radius Inches
|
Cutting Length Inches
|
Shank Diameter Inches
|
Overall Length Inches
|
| 5224A49492 |
5/8"
|
1/16"
|
5/16"
|
1/4"
|
1 3/4"
|
| 5224A49496 |
3/4"
|
1/8"
|
3/8"
|
1/4"
|
2"
|
| 5224A49500 |
7/8"
|
3/16"
|
1/2"
|
1/4"
|
2"
|
| 5224A49504 |
1"
|
1/4"
|
1/2"
|
1/4"
|
2"
|
| 5224A49506 |
1"
|
1/4"
|
1/2"
|
1/2"
|
2 7/16"
|
| 5224A49512 |
1 1/4"
|
3/8"
|
5/8"
|
1/4"
|
2 3/16"
|
| 5224A49514 |
1 1/4"
|
3/8"
|
5/8"
|
1/2"
|
2 9/16"
|
| 5224A49516 |
1 1/2"
|
1/2"
|
3/4"
|
1/4"
|
2 1/4"
|
| 5224A49519 |
1 3/4"
|
5/8"
|
7/8"
|
1/2"
|
2 3/4"
|
| 5224A49520 |
2"
|
3/4"
|
1"
|
1/2"
|
2 7/8"
|
| 5224A49522 |
2 1/2"
|
1"
|
1 1/4"
|
1/2"
|
3 3/16"
|
| 5224A49526 |
3 1/2"
|
1 1/2"
|
1 3/4"
|
1/2"
|
3 5/8"
|
Sold Individually
|
Part Number
|
Cutting Diameter Inches
|
Cutting Length Inches
|
Shank Diameter Inches
|
Overall Length Inches
|
Replace Bearing Part #
|
Replace Collar Part #
|
| 5224A45463 |
3/4"
|
1"
|
1/2"
|
3"
|
A47721
|
A47739
|
| 5224A45465 |
3/4"
|
1 3/4"
|
1/2"
|
3 3/4"
|
A47721
|
A47739
|
| 5224A45467 |
1"
|
1 3/4"
|
1/2"
|
3 3/4"
|
A47754
|
A47739
|
| 5224A45468 |
1 1/8"
|
1 1/2"
|
1/2"
|
3 1/2"
|
A47738
|
A47740
|
| 5224A45551 |
1 1/8"
|
2"
|
1/2"
|
4"
|
A47738
|
A47740
|

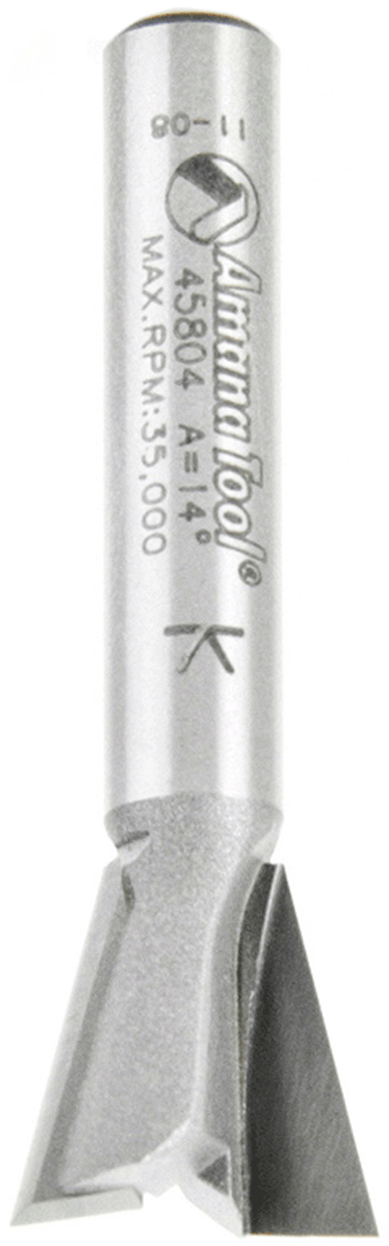

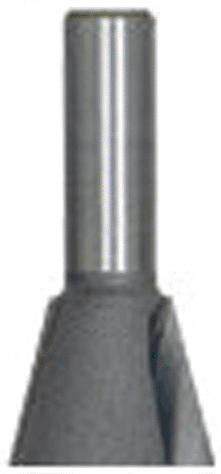

Dovetail Bits
Sold Individually
Down Shear Face Plunge Template With Upper Ball Bearing
Sold individually
|
Part Number
|
Angle
|
Cutting Diameter Inches
|
Cutting Length Inches
|
Shank Diameter Inches
|
Overall Length Inches
|
| 5224A45804 |
14°
|
1/2"
|
1/2"
|
1/4"
|
1 3/4"
|
| 5224A45806 |
14°
|
1/2"
|
.532"
|
1/4"
|
2 1/2"
|
| 5224A45832 |
14°
|
1/2"
|
1/2"
|
1/4"
|
2"
|
| 5224A45838 |
7°
|
17/32"
|
25/32"
|
1/2"
|
2 3/16"
|
|
Part Number
|
Cutting Diameter Inches
|
Cutting Length Inches
|
Shank Diameter Inches
|
Replace Bearing Part #
|
Replace Collar
Part # |
| 5224A45364 |
3/4"
|
2"
|
1/2"
|
A47721
|
A47739
|
Chamfer Bits 2 Flute With Ball Bearing Guide
Sold individually

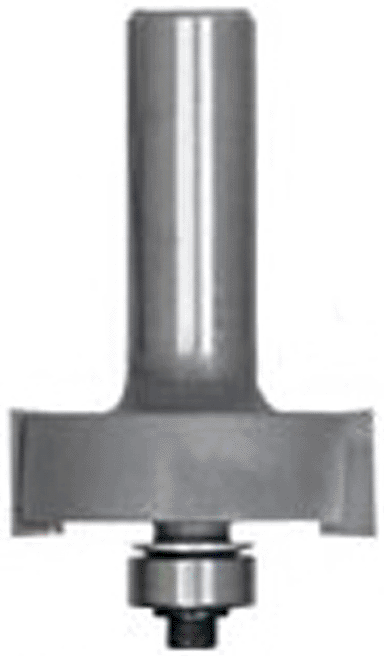

Rabbet Bits With Ball Bearing
Sold individually
|
Part Number
|
Angle
|
Cutting Diameter Inches
|
Carbide Length Inches
|
Shank Diameter Inches
|
Overall Length Inches
|
| 5224A49400 |
45°
|
1 1/4"
|
5/8"
|
1/4"
|
2"
|
| 5224A49402 |
45°
|
1 1/4"
|
5/8"
|
1/2"
|
2 3/8"
|
| 5224A49404 |
45°
|
1 31/32"
|
1 1/16"
|
1/2"
|
2 23/32"
|
| 5224A49406 |
45°
|
2 3/8"
|
1 3/8"
|
1/2"
|
2 7/8"
|
| 5224A49408 |
15°
|
7/8"
|
21/32"
|
1/4"
|
2 1/4"
|
| 5224A49410 |
22 1/2°
|
1 1/4"
|
7/8"
|
1/2"
|
2 7/8"
|
|
Part Number
|
Cutting Diameter Inches
|
Rabbet Length Inches
|
Shank Diameter Inches
|
Depth of Rabbet Inches
|
Overall Length Inches
|
| 5224A49300 |
1 1/4"
|
1/2"
|
1/4"
|
3/8"
|
2"
|
| 5224A49302 |
1 1/4"
|
1/2"
|
1/2"
|
3/8"
|
2 3/8"
|
Beading Router Bit
Multi-Rabbet Bits With Ball Bearing Guide
Sold individually
|
Part Number
|
Radius
Inches |
Large
Diameter Inches |
Cutting
Length Inches |
Shank
Diameter Inches |
Overall
Length Inches |
| 5224A56178 |
5/16"
|
1 1/8"
|
9/16"
|
1/2"
|
2 3/4"
|
|
Part Number
|
Cutting Diameter Inches
|
Rabbet Length Inches
|
Shank Diameter Inches
|
Depth of Rabbet Inches
|
Overall Length Inches
|
| 5224A49340 |
1 3/8"
|
1/2"
|
1/4"
|
1/8", 1/4", 5/16", 3/8", 7/16", 1/2"
|
2"
|
Steel Ball Bearing Guides
Sold individually
Laminate Trim Bits
Sold individually
Flush Single Flute Panel Pilot
|
Part Number
|
Inside Diameter Inches
|
Outside Diameter Inches
|
| 5224A47706 |
3/16"
|
1/2"
|
| 5224A47708 |
5/16"
|
7/8"
|
| 5224A47738 |
1/2"
|
1 1/8"
|
|
Part Number
|
Shank Diameter Inches
|
Cutting Diameter Inches
|
Cutting Length Inches
|
Overall Length Inches
|
| 5224A51200 |
1/4"
|
1/4"
|
1/4"
|
1 1/2"
|
Ask About Our Amana CNC Bits
7 Degree Single Flute Panel Pilot
|
Part Number
|
Shank Diameter Inches
|
Cutting Diameter Inches
|
Cutting Length Inches
|
Overall Length Inches
|
| 5224A51202 |
1/4"
|
1/4"
|
1/4"
|
1 1/2"
|
U.S. Industrial Fasteners Phone: 480-967-8702 / Toll Free 800-289-5386
2026 East Cedar Street Tempe, Arizona 85281
2026 East Cedar Street Tempe, Arizona 85281
