Rev-A-Shelf Convenience Hardware

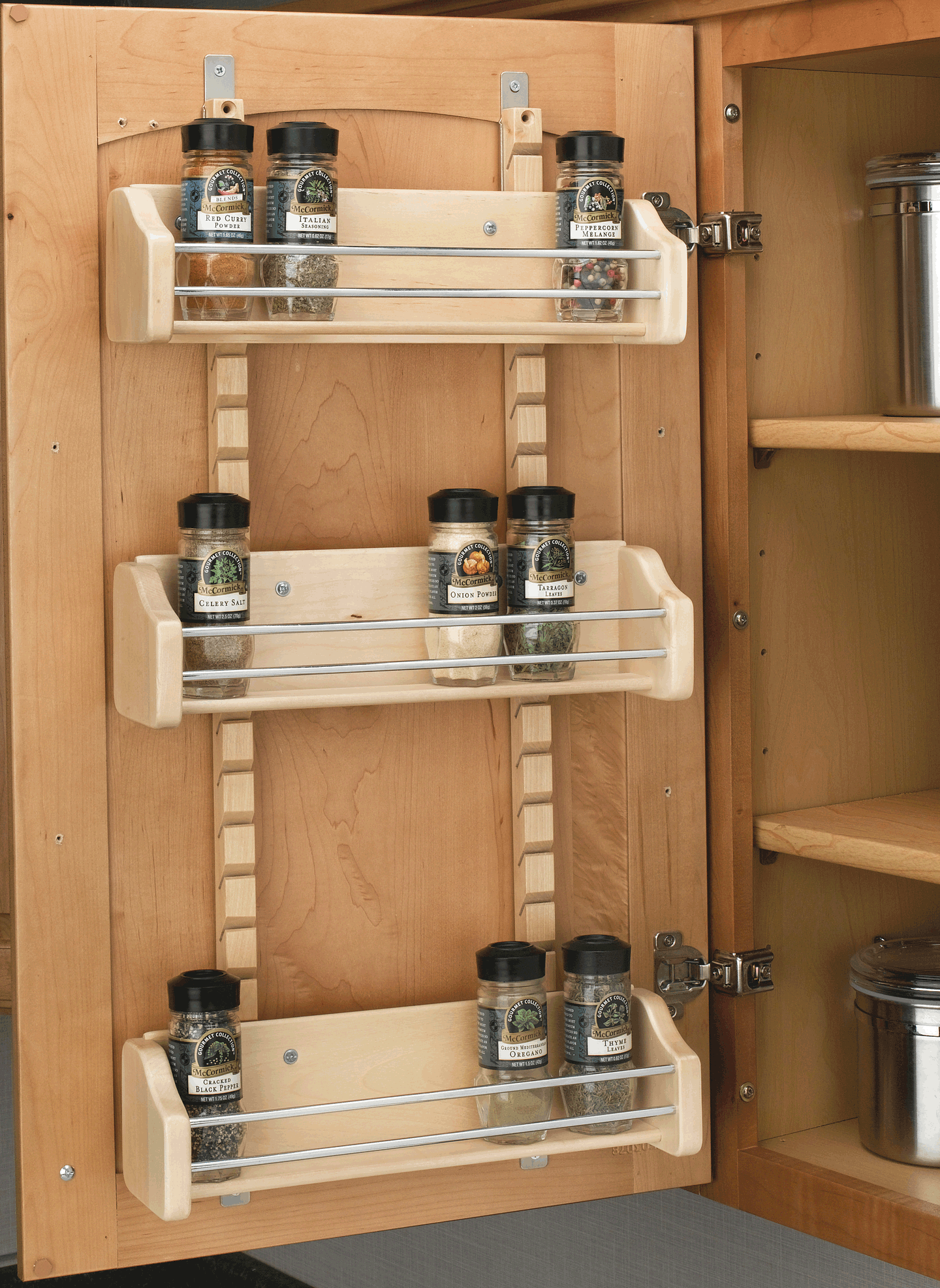

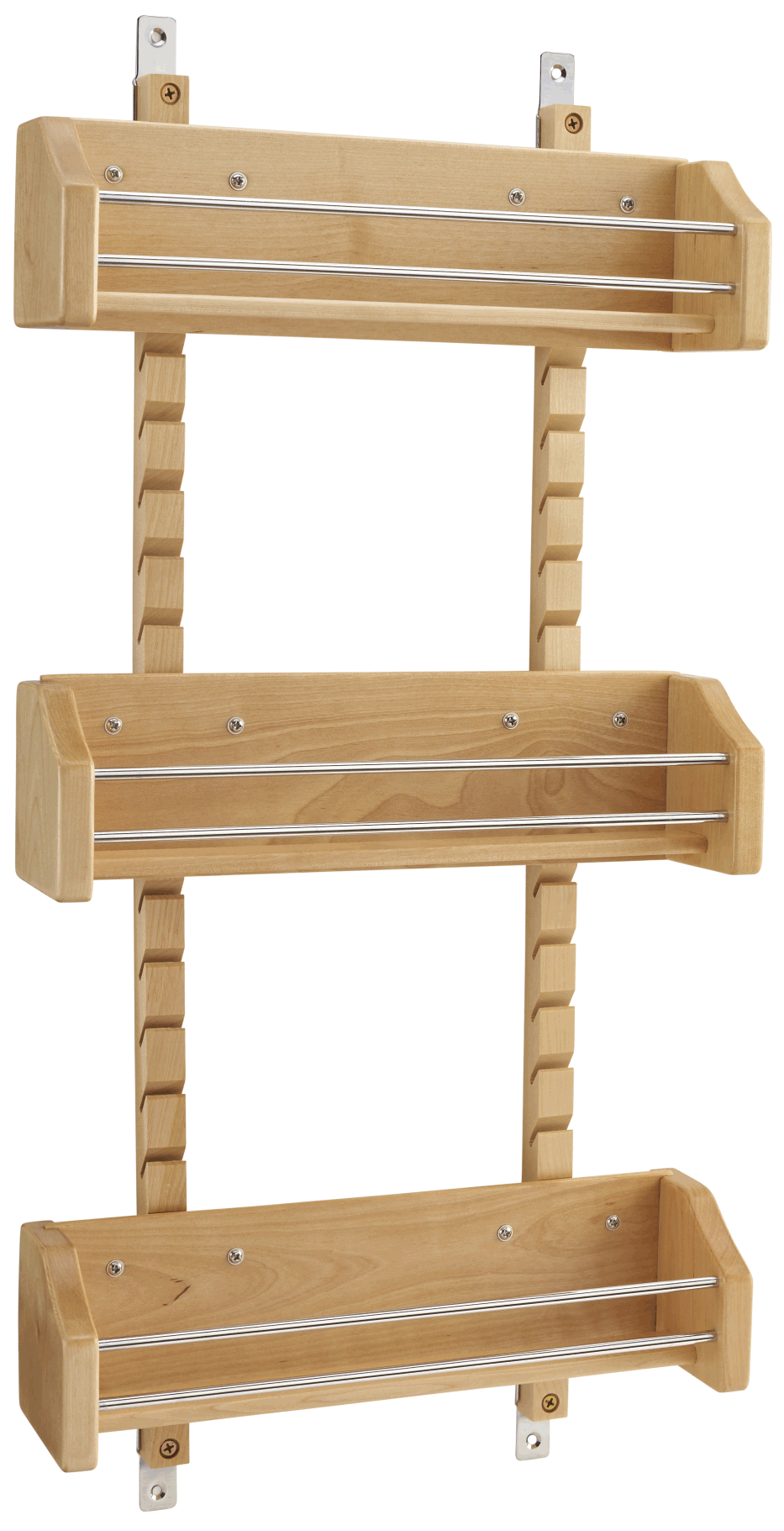

Adjustable Door Mount Spice Rack

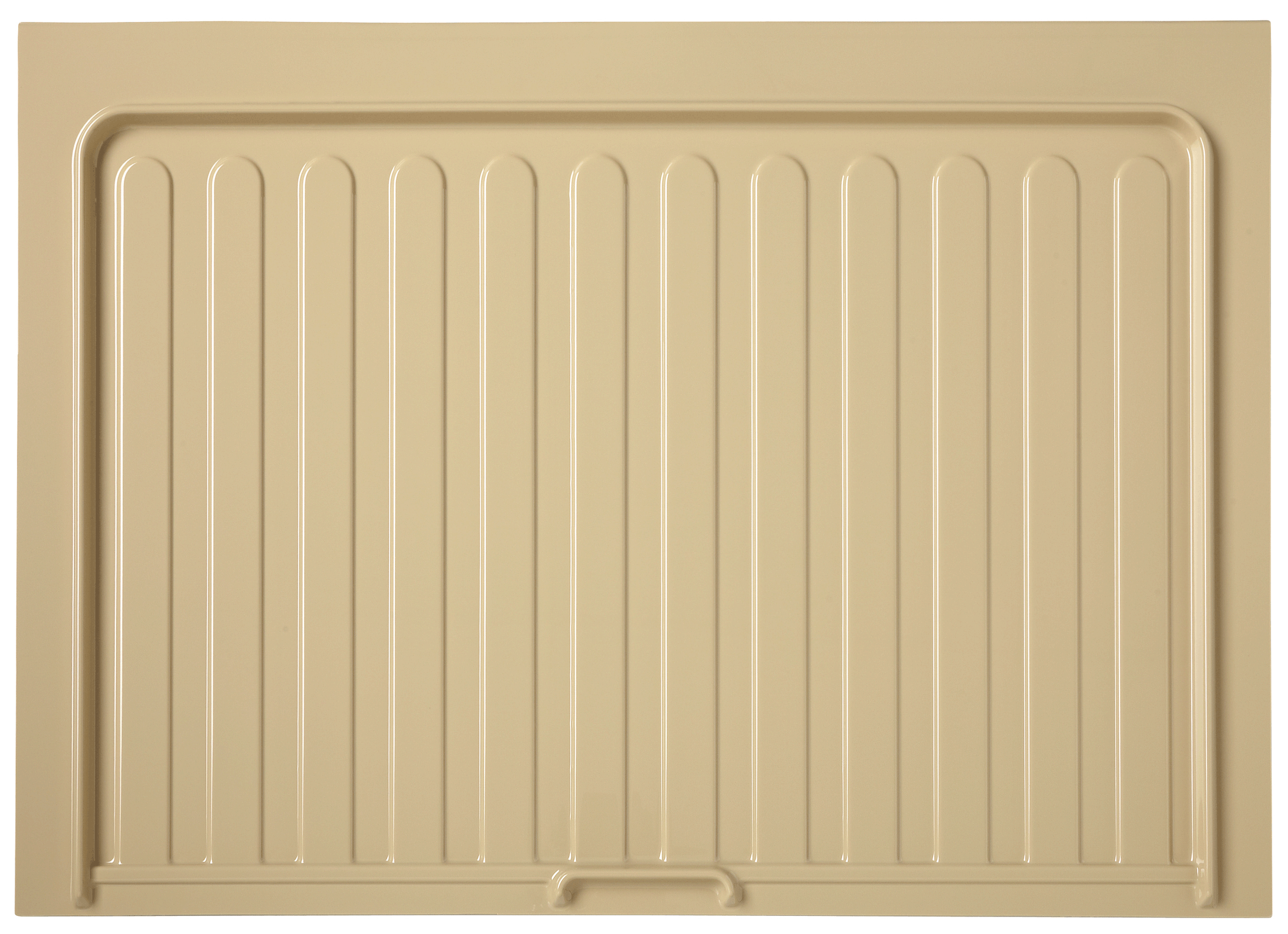

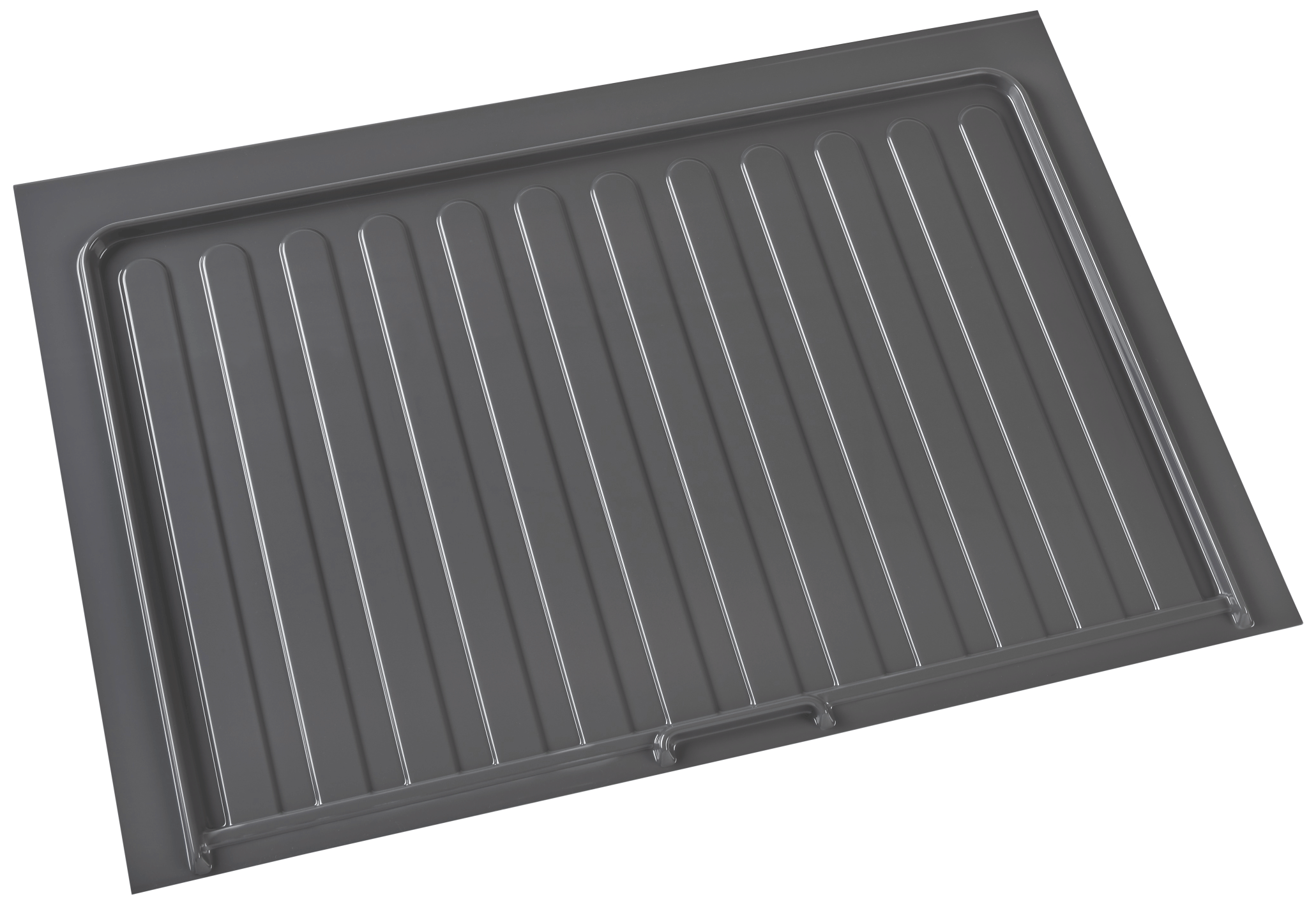

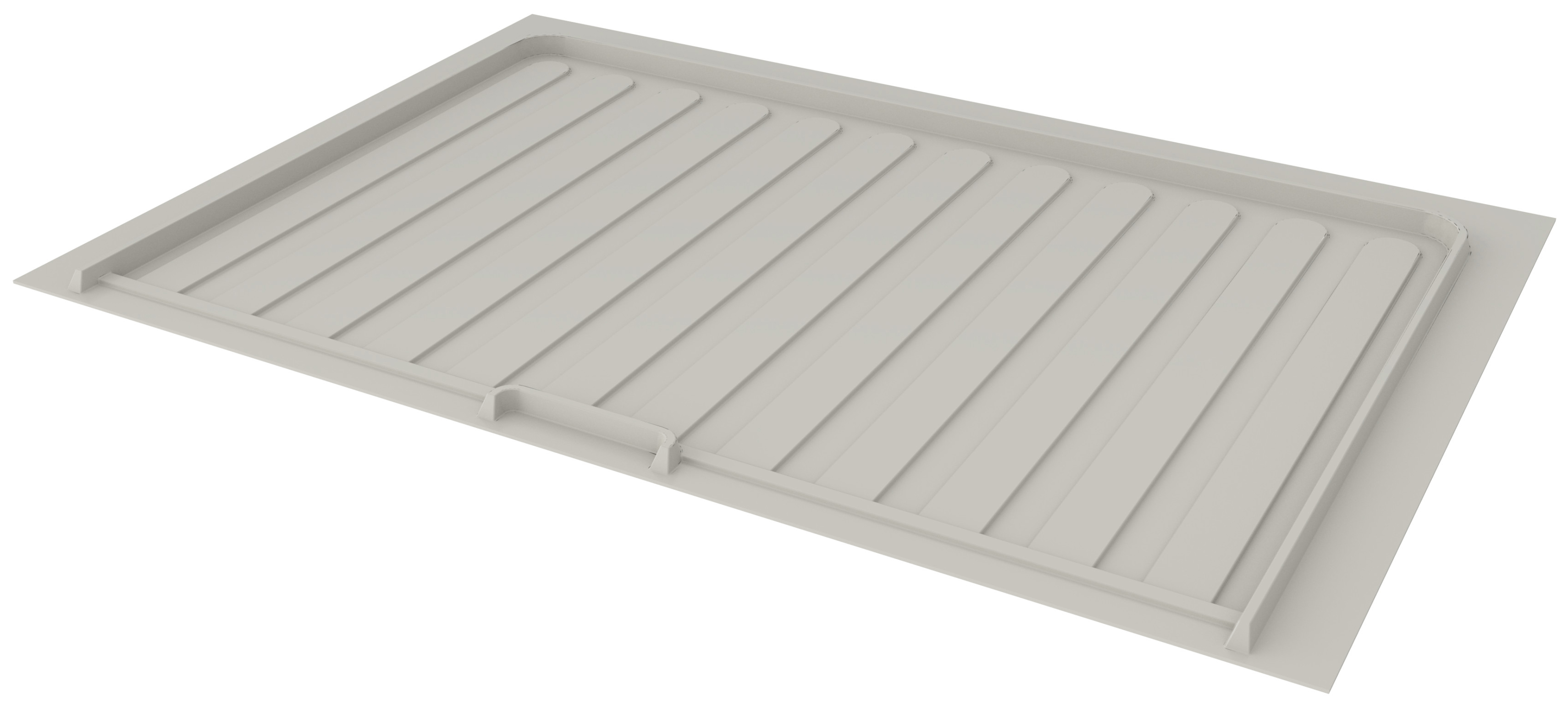

Polymer Drip Tray

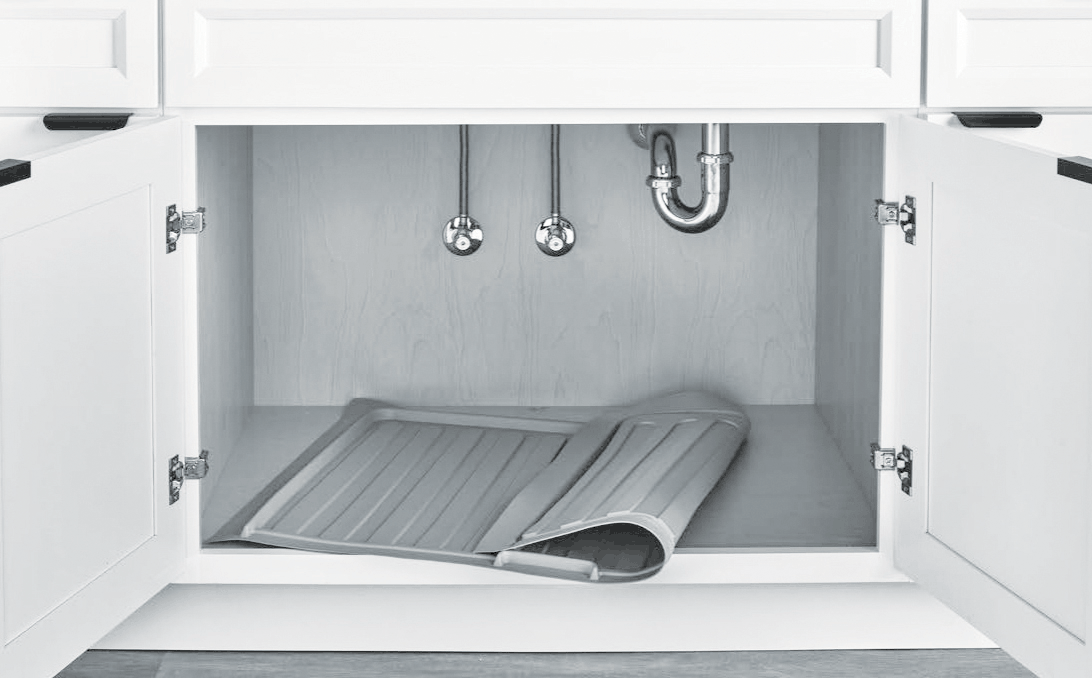

The SBDT is your first line of defence against under sink cabinet damage from minor leaks. The unique design not only protects the bottom of your cabinet by holding water the tray actually funnels excessive water to the front of your cabinet and out onto the floor alerting you of the leak. The series is available in three sizes designed for installation in 30", 36" or 40" sink base cabinet construction. They are easy clean up and resistant to most household chemicals.
Rev-A-Shelf helps to maintain shelf space and kep spice within reach with our adjustable wood door storage spice rack. Includes (3) bins and are adjustable to any position so they don't interfere with your cabinet shelfves. Easy to install and can be configured in any position as your spices change.
Part Number
Width
Height
Depth
Color
RVSBDT3336A1
31 1/2" - 34 1/2"
3/4"
21 1/2" - 23 1/4"
Almond
RVSBDT3336S1
31 1/2" - 34 1/2"
3/4"
21 1/2" - 23 1/4"
Silver
RVSBDT3942A1
37 1/2" - 40 1/2"
3/4"
21 1/2" - 23 3/4"
Almond
Part Number
Width
Height
Depth
Color
RV4ASR15
10 1/8"
25"
4"
Maple
RV4ASR18
13 1/8"
25"
4"
Maple
RV4ASR21
16 1/8"
25"
4"
Maple

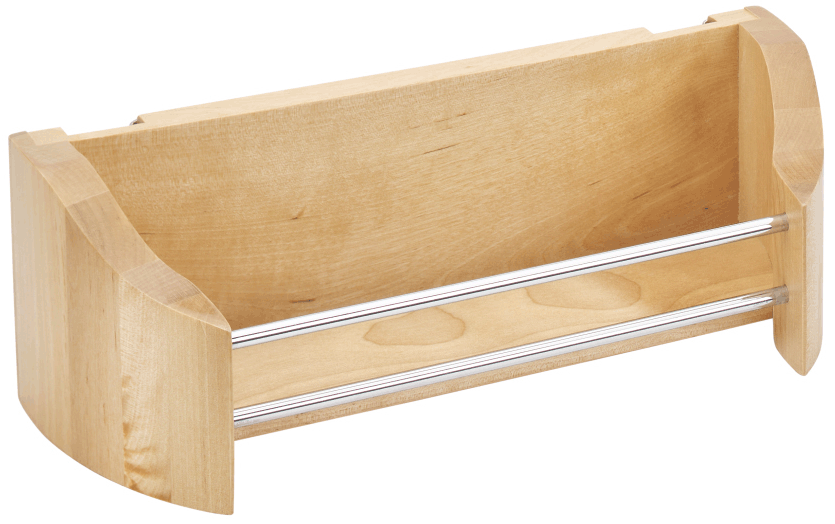

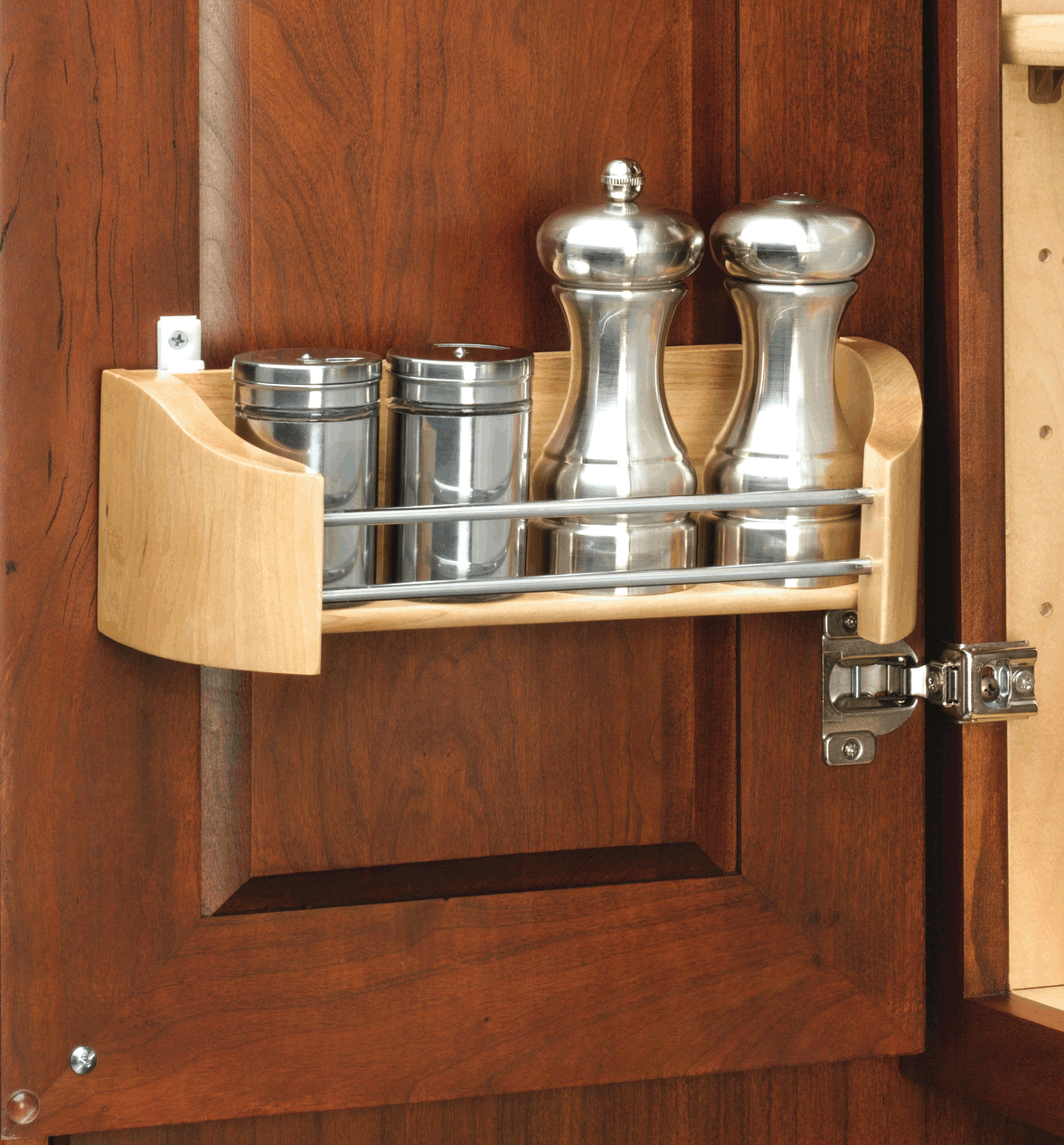

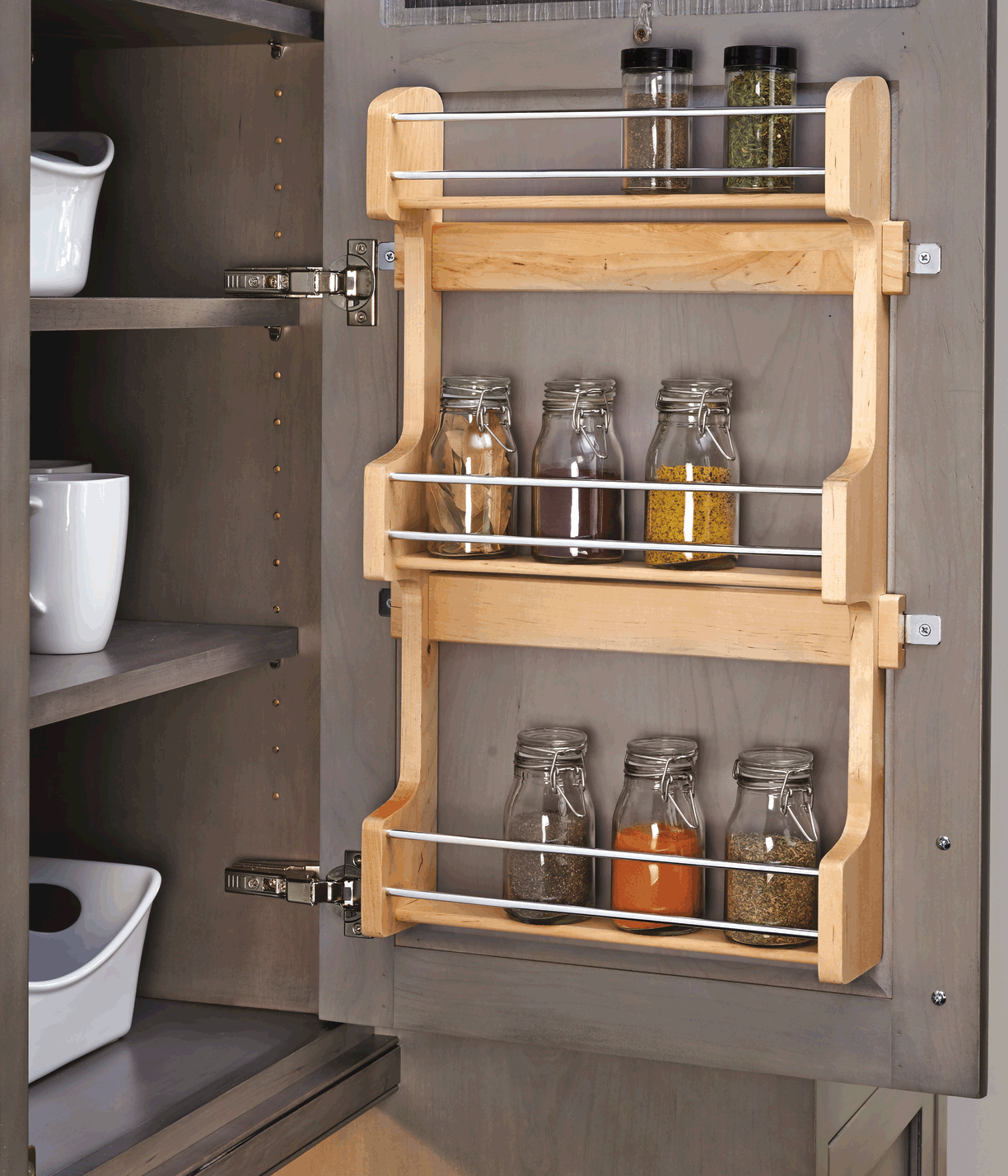

Door Mount Spice Rack
Vanity Base Drip Tray
Rev-A-Shelf helps to maintain shelf space and keep spices within reach our wood door storage spice rack. Easy to install adn all hardware included.
Part Number
Width
Height
Depth
Color
RV4SR15
10 1/2"
21 1/4"
3 1/8"
Maple
RV4SR18
13 1/2"
21 1/4"
3 1/8"
Maple
RV4SR21
16 1/2"
21 1/4"
3 1/8"
Maple

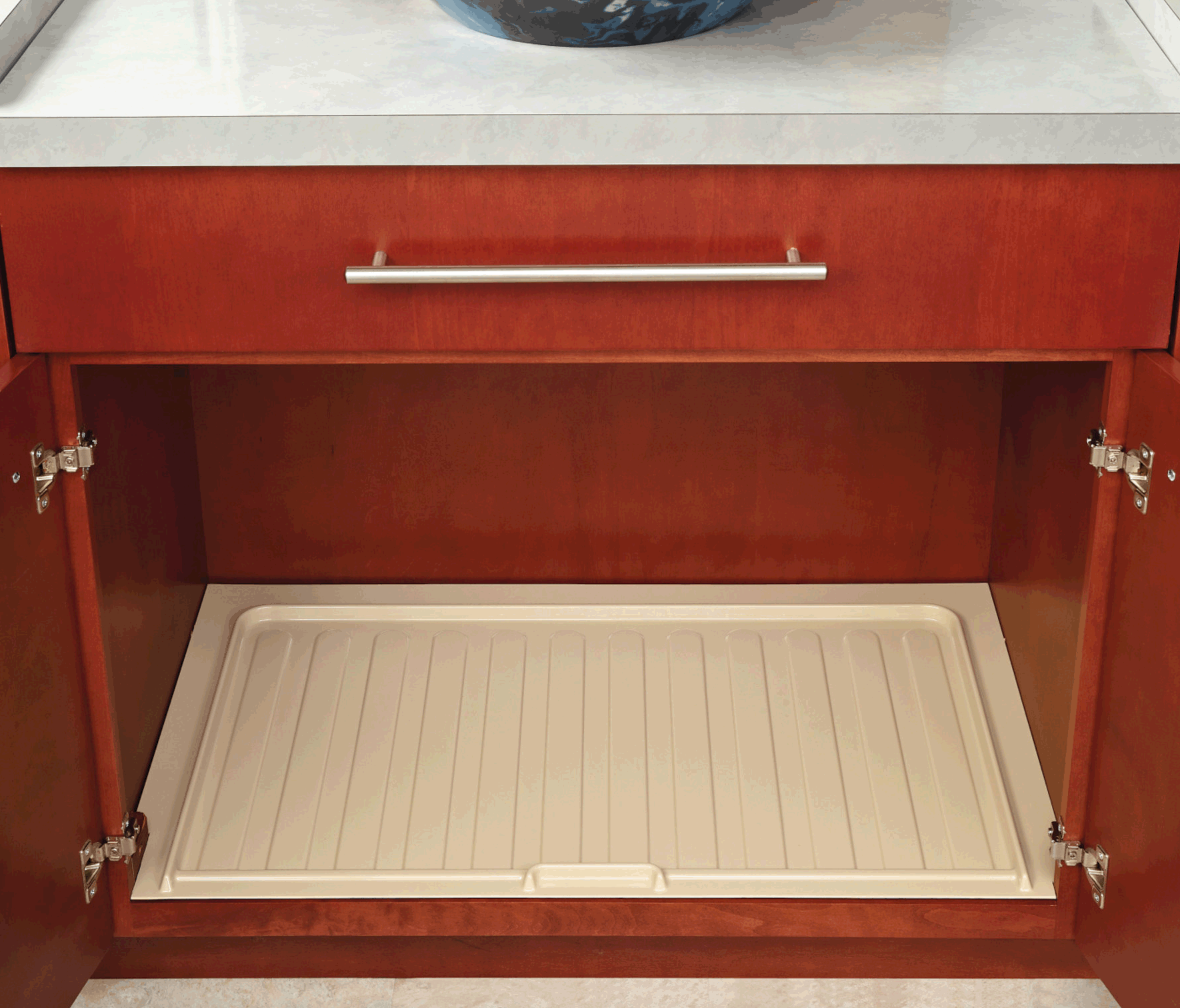

The SVBDT is your first line of defense against under sink vanity cabinet damage from minor leaks. The unique design not only protects the bottom of your cabinet by holding water the tray actually funnels excessive water to the front of your cabinet and out onto the floor alerting you of the leak. Designed for installation in NEW 24", 30" and 36" vanity sink base cabinet construction, they can be cut down to fit a 21", 27" or 33" cabinets, and the sleek surface makes for easy clean up.

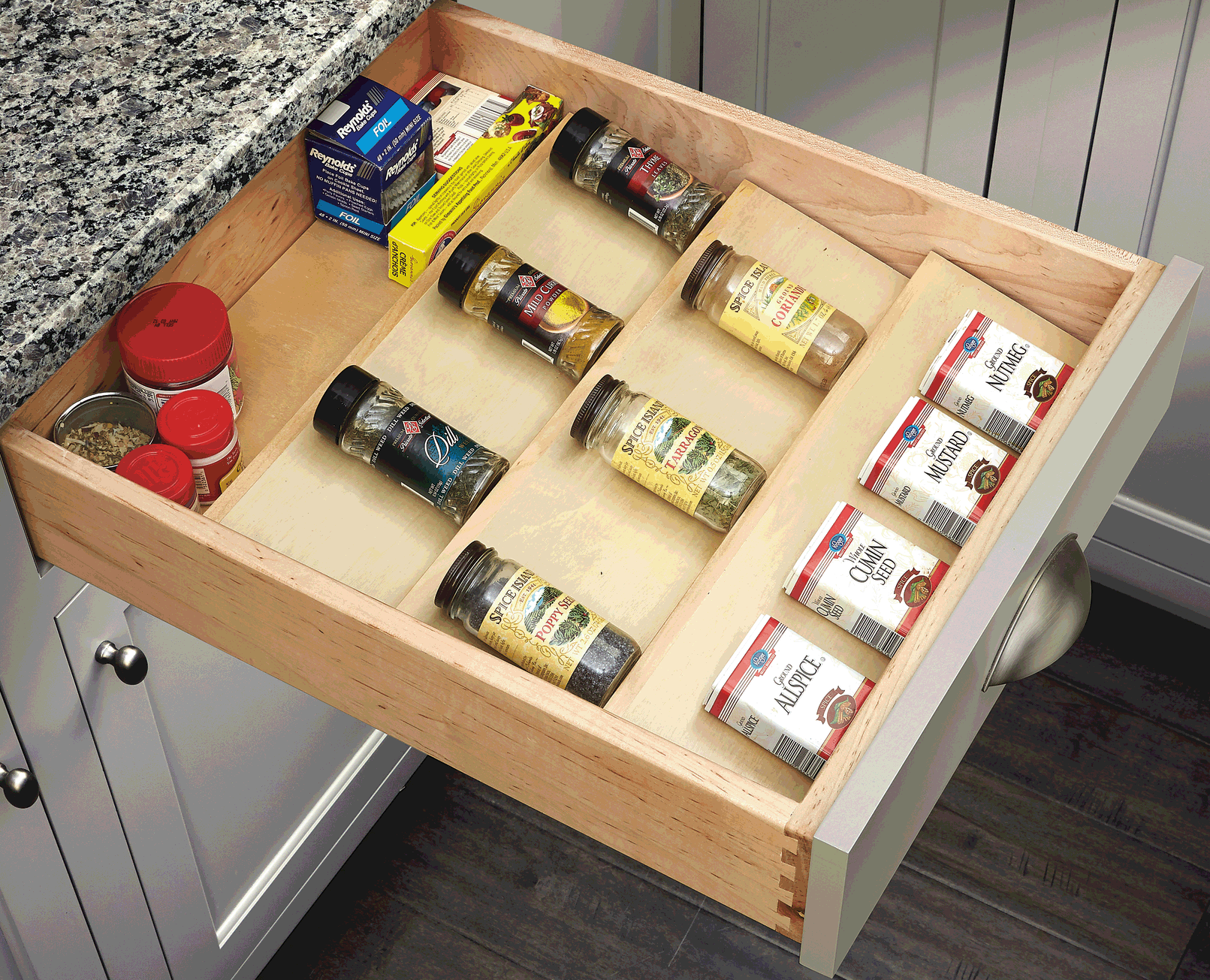

Wood Spice Drawer Insert
Part Number
Width
Height
Depth
Color
RVSBVDT2124A1
19 1/2" - 22 1/2"
3/4"
18 1/2" - 20 1/4"
Almond
RVSBVDT2730A1
25 1/2" 28 1/2"
3/4"
18 1/2" - 20 1/4"
Almond
RVSBVDT3336A1
31 1/2" - 34 1/2"
3/4"
18 1/2" - 20 1/4"
Almond
Keep spices conveniently stored in a drawer by the stove with Rev-A-Shelfs Spice Drawer Insert. With a tiered configuration for total organization and easy access, these spice drawer inserts are available in natural maple and walnut. The 4SDI Series can be customized to fit various drawer sizes up to a Base 36"

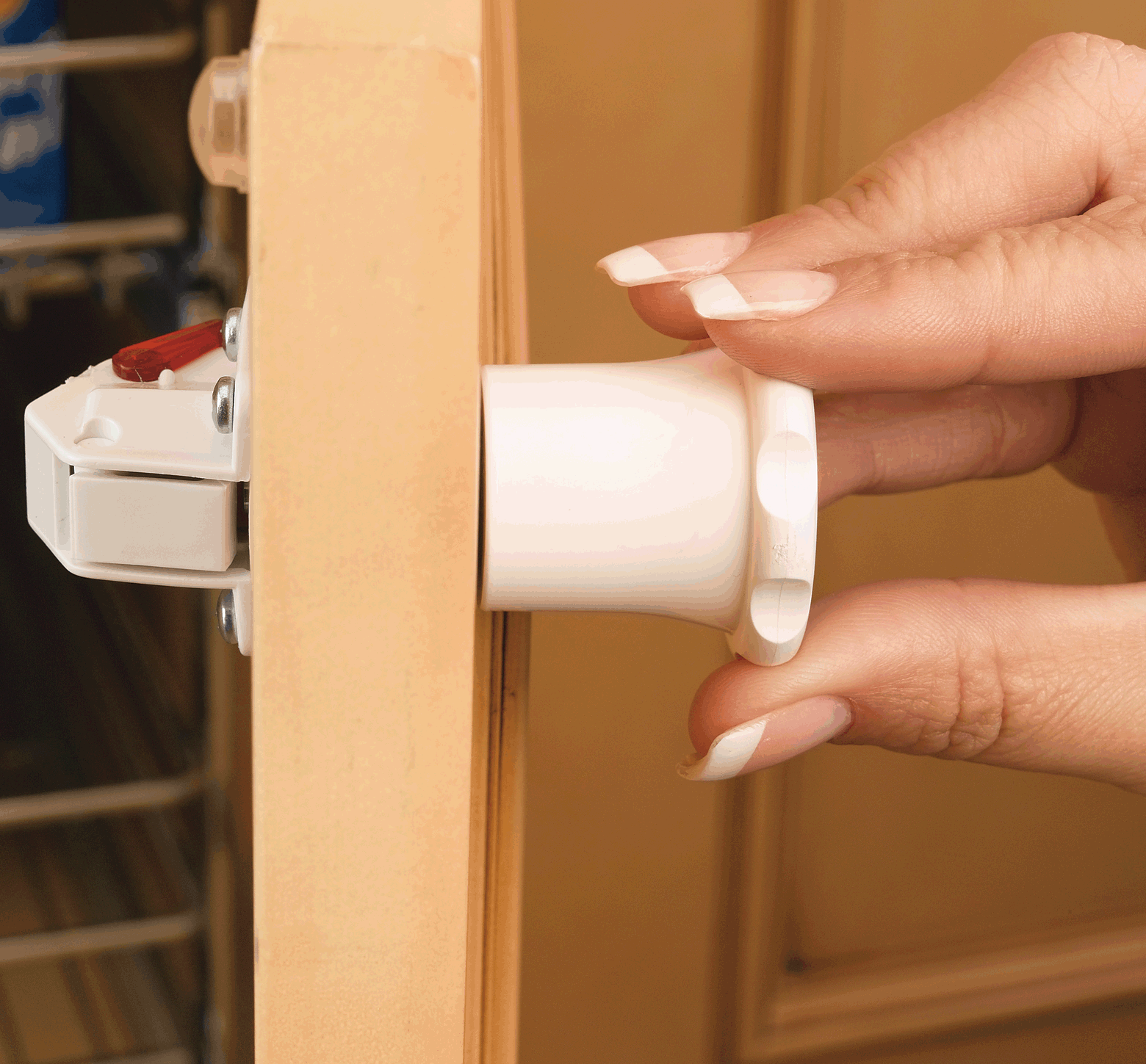

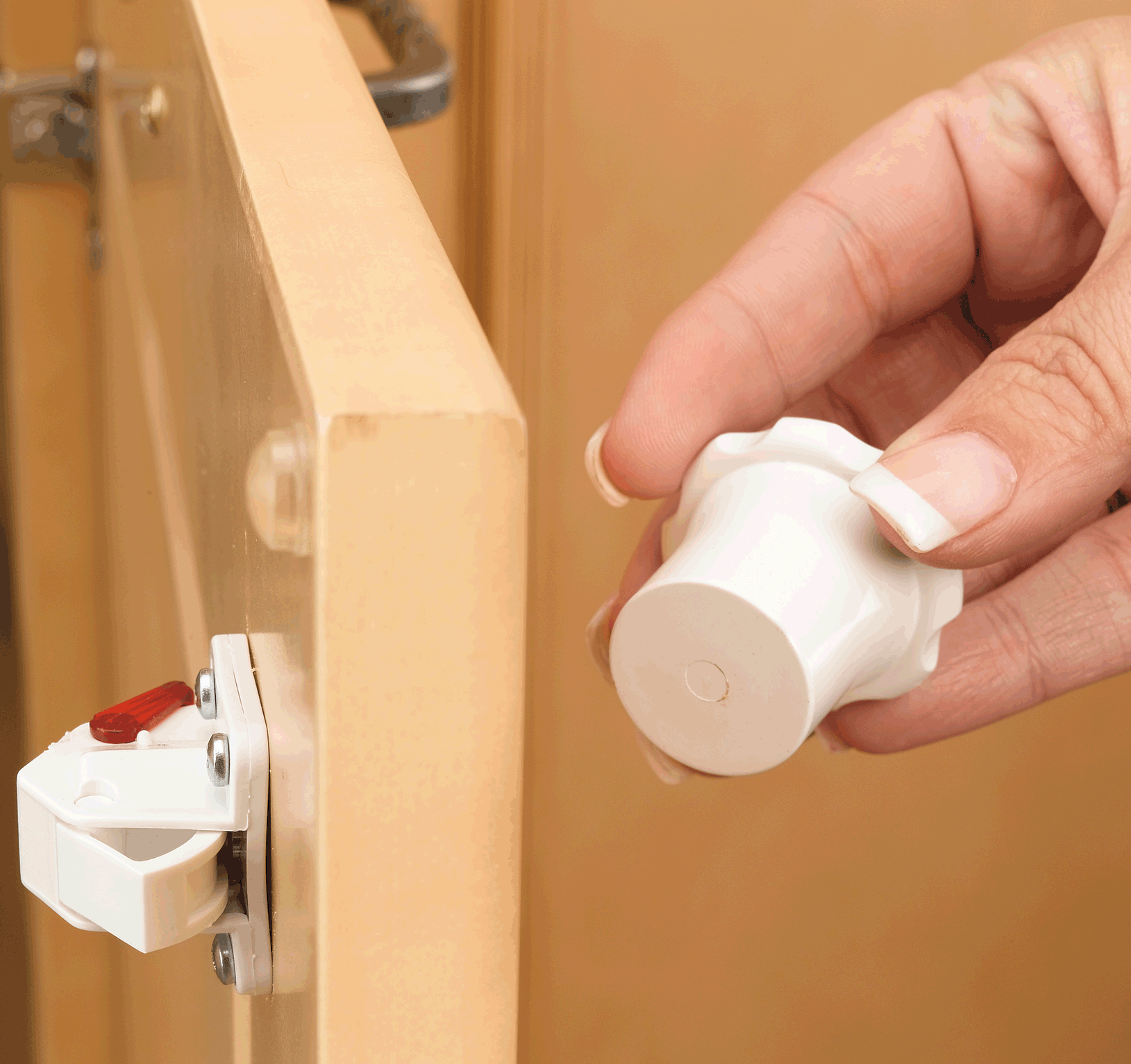

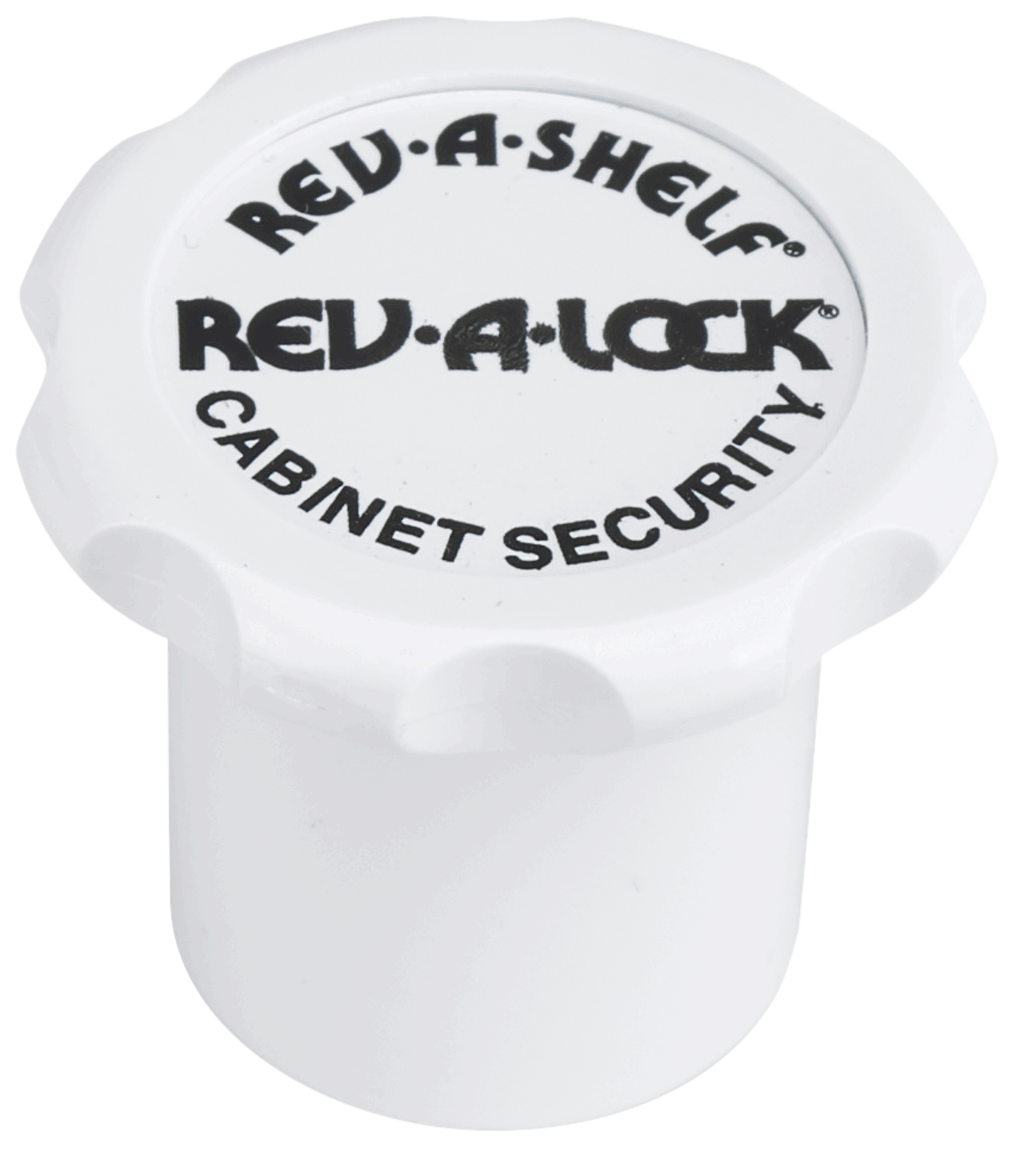

Rev-A-Lock Cabinet Security
Part Number
Width
Height
Depth
Color
RV4SDI18
3" - 16"
1 9/16"
5 3/16" - 19 3/4"
Maple
RV4SDI24
3" - 22"
1 9/16"
5 3/16" - 19 3/4"
Maple
RV4SDI361
1" - 33 1/8"
1 3/4"
15 3/4" - 19 3/4"
Maple
Cut-Out Cutting Board Drawer
 Introducing the revolutionary peace of mind accessory for any parent or grandpaert, the Rev-A-Lock. This security device is one-of-a-kind with powerful magnetic locks. The lock assembly can attach to wood, glass, metal, and particleboard cabinets for a guaranteed safeguard from curious little hands. To open the cabinet, simply hold the magnetic key against the cabinet door to disengage the lock. The RL Series also features an unlocking device that aloows a disabling of the lock so cabinets can be opened without the key.
Part Number
Description
Color
RVRL2011
Magnetic Lock Assembly
White
RVRL2021
Magnetic Key
White
If you want a professional kitchen with a prep station, then look no further than Rev-A-Shelf's 4WCCB cut-out cutting board drawer. Available in varying sizes for multiple cabinet applications, this drawer makes clean-up easy.
Vanity Outlet Grooming Organizer
Part Number
Width
Height
Depth
Color
RV4WCCB18SC1
15"
4 5/16"
21 3/4"
Maple
RV4WCCB419FLSC1
16 1/2"
4 5/16"
21 21/32"
Maple
Are you tired of a cluttered vanity and unsightly cords everywhere? Then your search is over, Rev-A-Shelf's 445 Series Electric Grooming Pullout is the solution for you. this ideal bathroom cabinetry organizer allows you to store and power curling irons, blow dryers and so much moor. Door mountable, it is easy to access, and additional shelves provide storage for other beauty products.

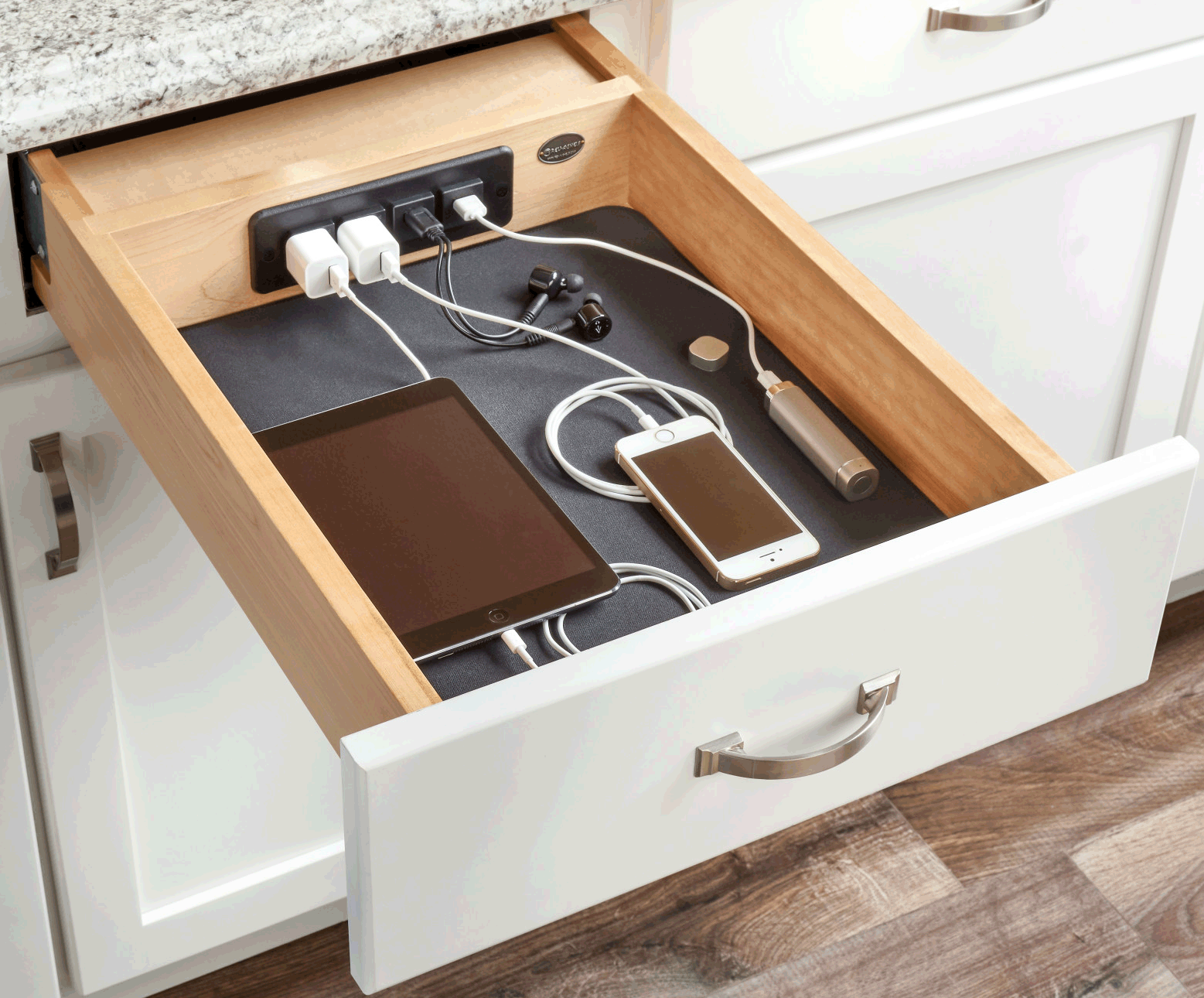

Charging Drawer
Part Number
Width
Height
Depth
Wood
RV445VBOSC8C
9 9/32"
26 1/8"
19 23/32"
Maple
Grooming Organizer

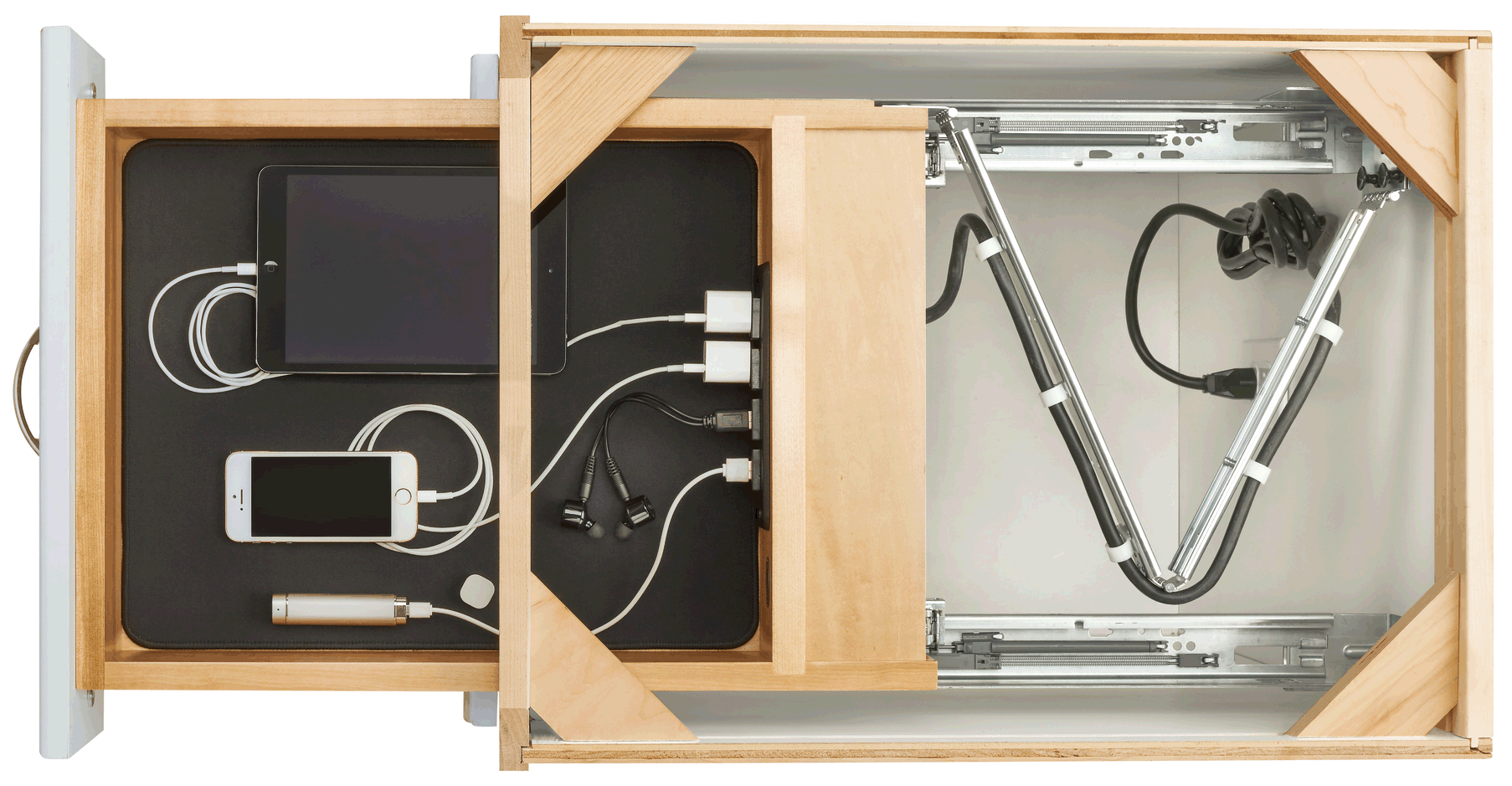

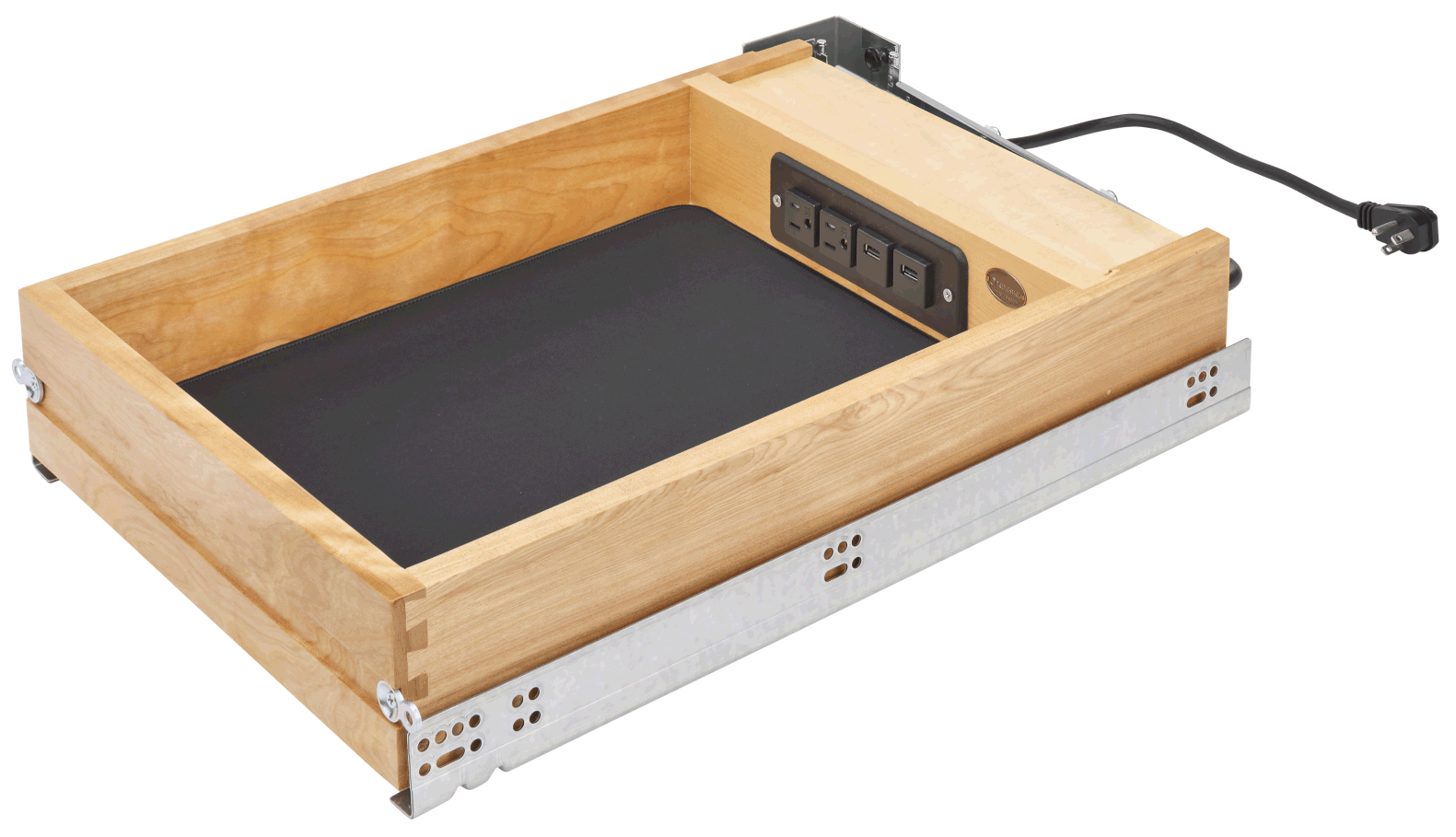

Charge all your elctronics together in one location with Rev-A-Shelf's 4WCDBH Series Charging Drawer System.
Part Number
Width
Height
Depth
Color
RV4WCDB18FL1
16 1/2"
4 5/16"
22 7/16"
Maple
RV4WCDB18SC1
15"
4 5/16"
23 3/4"
Maple
Combination Knife Holder/Cutting Board Drawer
Find the ideal bathroom cabinetry organizer with Rev-A-Shelf's 445 Series. Designed for face frame 12" full height vanity cabinets, this grooming pullout organizer features two shelves, two removable stainless steel bins, adjustable rub bushings, patented door mount brackets with mico-adjustment, natural maple construction, and full-extension, TANDEM, 110 lb. rated slides with BLUMOTION soft-close.
Part Number
Width
Height
Depth
Wood
RV445VCG20SC8
8 7/16"
20 3/8"
19 9/16"
Maple
RV445VCG25SC8
8 7/16"
25 9/16"
19 9/16"
Maple
Convenietly store your cutting board and knives together in one complete drawer system with Rev-A-Shelf's 4KCB Series. Featuring natural maple construction, BLUMOTION soft-close slides and figure 8 door mount brackets. This easy-to-install unit includes a built-in knife organizer, up to (4) storage compartments and a wood cutting board.
Vanity Tiered Organizer
Part Number
Width
Height
Depth
Color
RV4KCB18SC1
15"
4 3/8"
22 1/8"
Maple
RV4KCB21SC1
18"
4 3/8"
22 1/8"
Maple
RV4KCB24SC1
21"
4 3/8"
22 1/8"
Maple
Rev-A-Shelf's vanity organizers are perfect height and depth for most bathroom vanities. Organize all of your bathroom necessites without having to reach in the back of your cabinets. Simple installation and patented door mount kit is included to attach your own cabinet door to the front of the unit for easy 1-step access. The 448-VC is avaialble in both a Vanity Height and Base Height version, and features our patented adjustable door mount brackets that allow up to 5 inches of flexibility for trouble-free installation on any door style.
Wood Utility Knife Insert
Part Number
Width
Height
Depth
Wood
RV448VC20SC8
8 1/2"
20 3/8"
19 9/16"
Maple
RV448VC25SC8
8 1/2"
25 9/16"
19 9/16"
Maple
Conveniently store all your cutlery, utensil and knives in these unique drawer organizers. Rev-A-Shelf's 4WUTKB Series designed for 36" or smaller base cabinet drawers. This natural maple trim-to-fit insert features drop-in installation and ample space for your untensils, cutlery and knives with up to four static, two adjustable storage compartments and fifteen knife slots.
Maple L Shaped Vanity Organizer
Conveniently store items while maximizing your under sink vanity space with Rv-A-Shelf's 441 L-Shaped Organizer. Designed for 24" and 30" vanity sink base cabinets and made of maple dovetail hardwood with semi-gloss finish, this organizer features a unique reversable frame that can be mounted on the left or right to fit around obtrusive plumbing. It glides on TANDEM, 90 lb. rated slides with BLUMOTION soft close and includes non-skid vinyl lining and acrylic bins.
Part Number
Width
Height
Depth
Color

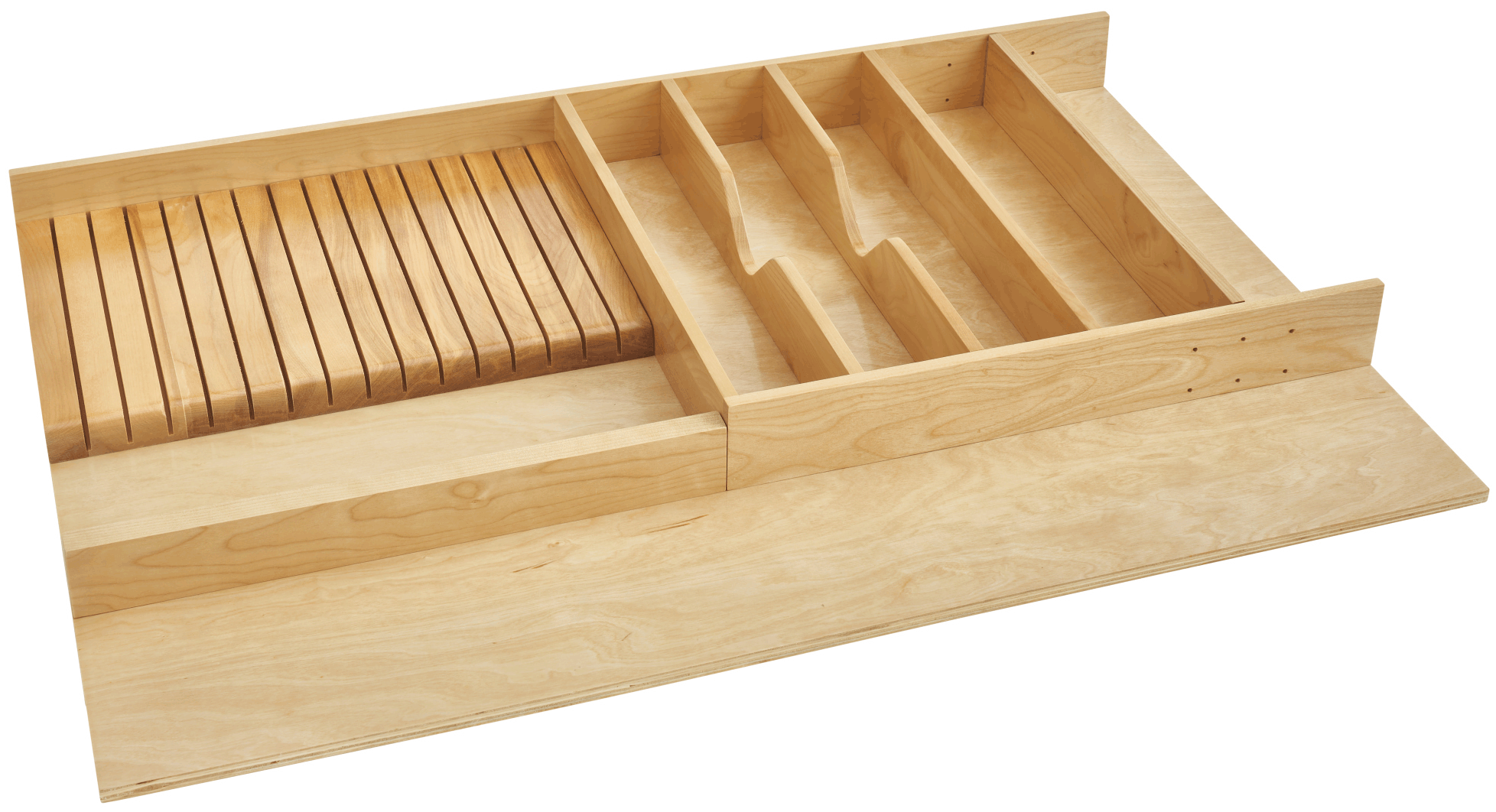

RV4WUTKB361
33 1/8"
2 7/8"
22"
Maple
Wood Double Cutlery Insert
Part Number
Width
Height
Depth
Wood
RV44112VSBSC1
8 3/4"
18 7/8"
18 25/32"
Maple
RV44115VSBSC1
11 11/16"
18 7/8"
18 25/32"
Maple
Vanity Outlet Drawer
Make the mess of a cluttered vanity a thing of the past with Rev-A-Shelf's vanity outlet drawer. Store hair dryers and curling irons in one easy to access location and additional compartments are perfect for organizing beauty products. With the integrated outlet you always have a free receptacle to plug items in.

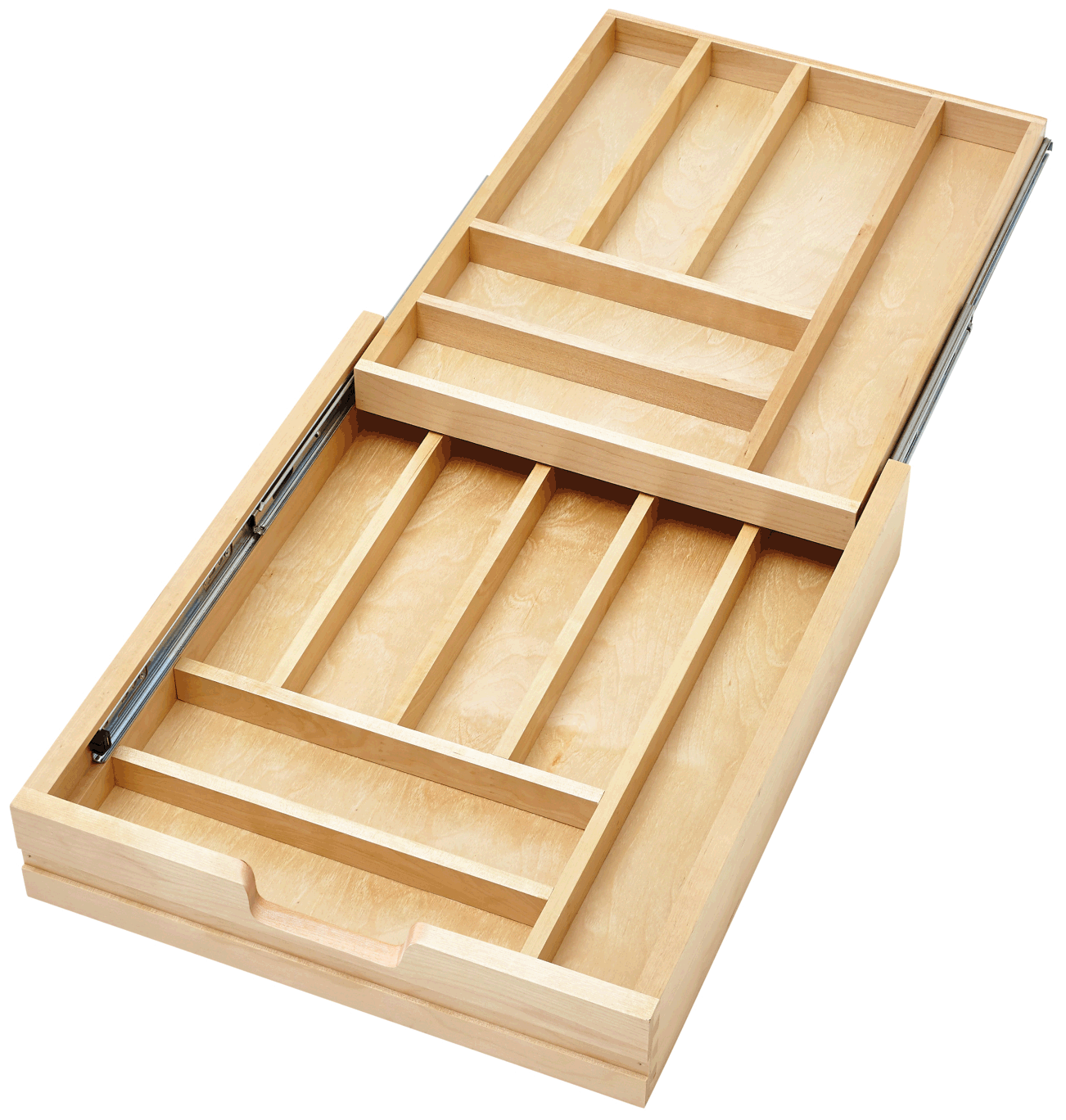

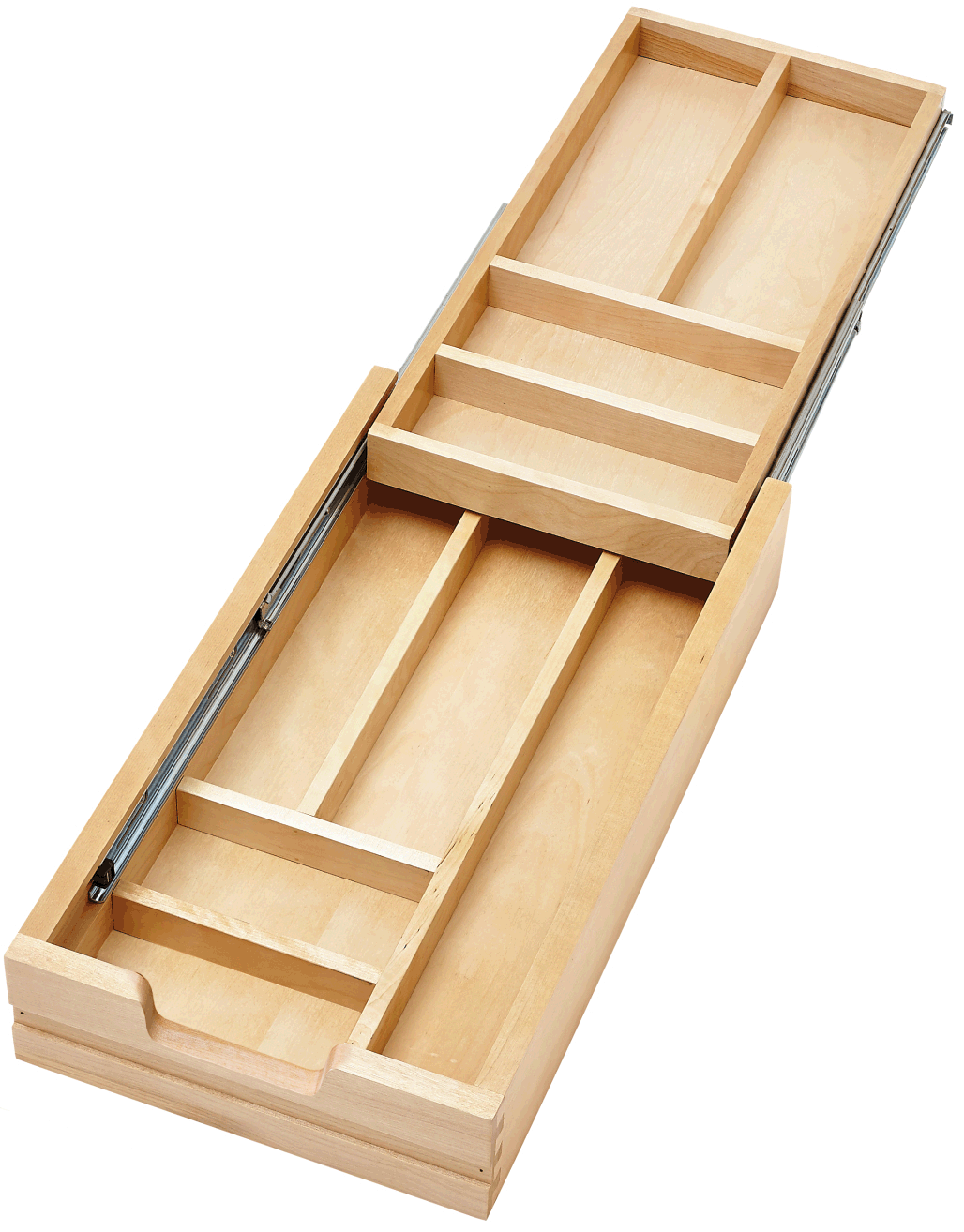

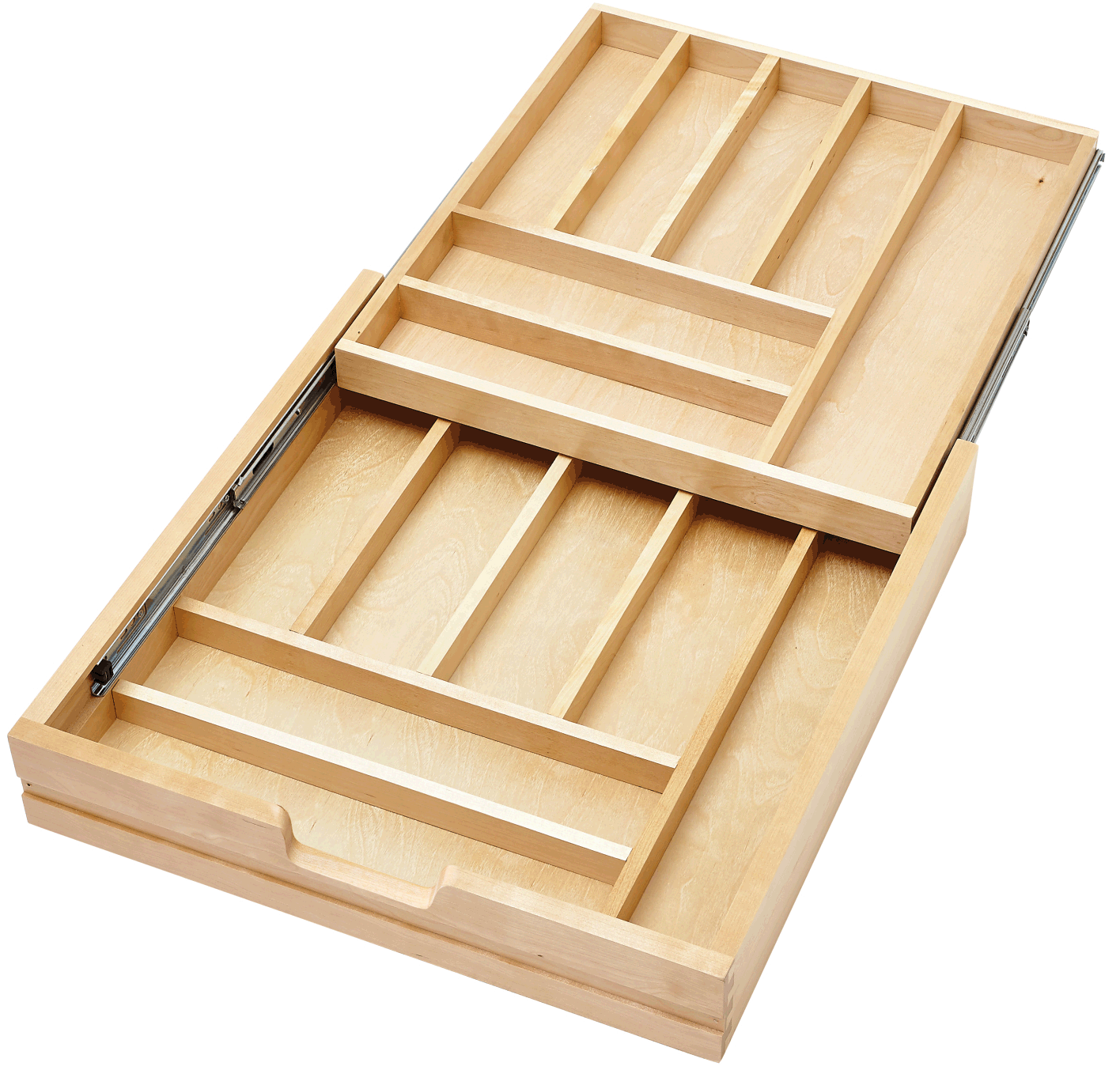

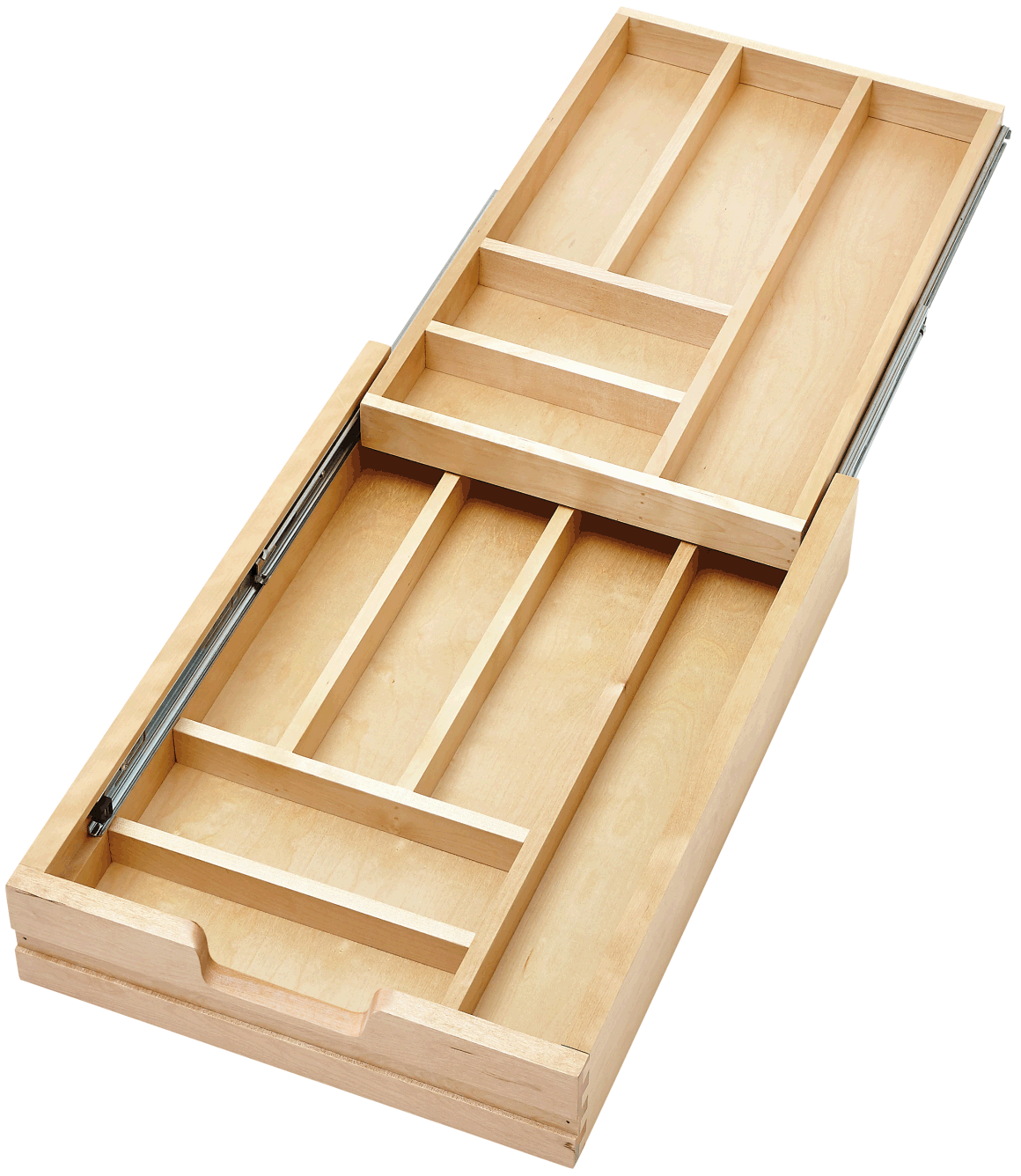

Double up your drawer space with Rev-A-Shelf's Two-Tiered drawer. This drawer box comes pre-assembled and ready to install into your existing cabinet drawer opening.
Part Number
Width
Height
Depth
Color
RV4WTCD15SC1
12"
4 5/16"
21 3/4"
Maple
RV4WTCD18SC1
15"
4 5/16"
21 3/4"
Maple
RV4WTCD21SC1
18"
4 5/16"
21 3/4"
Maple
RV4WTCD24SC1
21"
4 5/16"
21 3/4"
Maple
Part Number
Width
Height
Depth
Color
RV4VOD18FLSC1
16 1/2"
8 15/16"
20 1/8"
Maple
RV4VOD18SC1
15"
8 15/16"
20 1/8"
Maple
Vanity Drawer Organizer Insert
Have you ever wished for a clutter free vanity? With our VCOS drawer organizer you can conveniently access and organize everything from cosmetics to cotton balls. This trim-to-fit insert drops-in taking your space from messy to magnificent in just seconds.

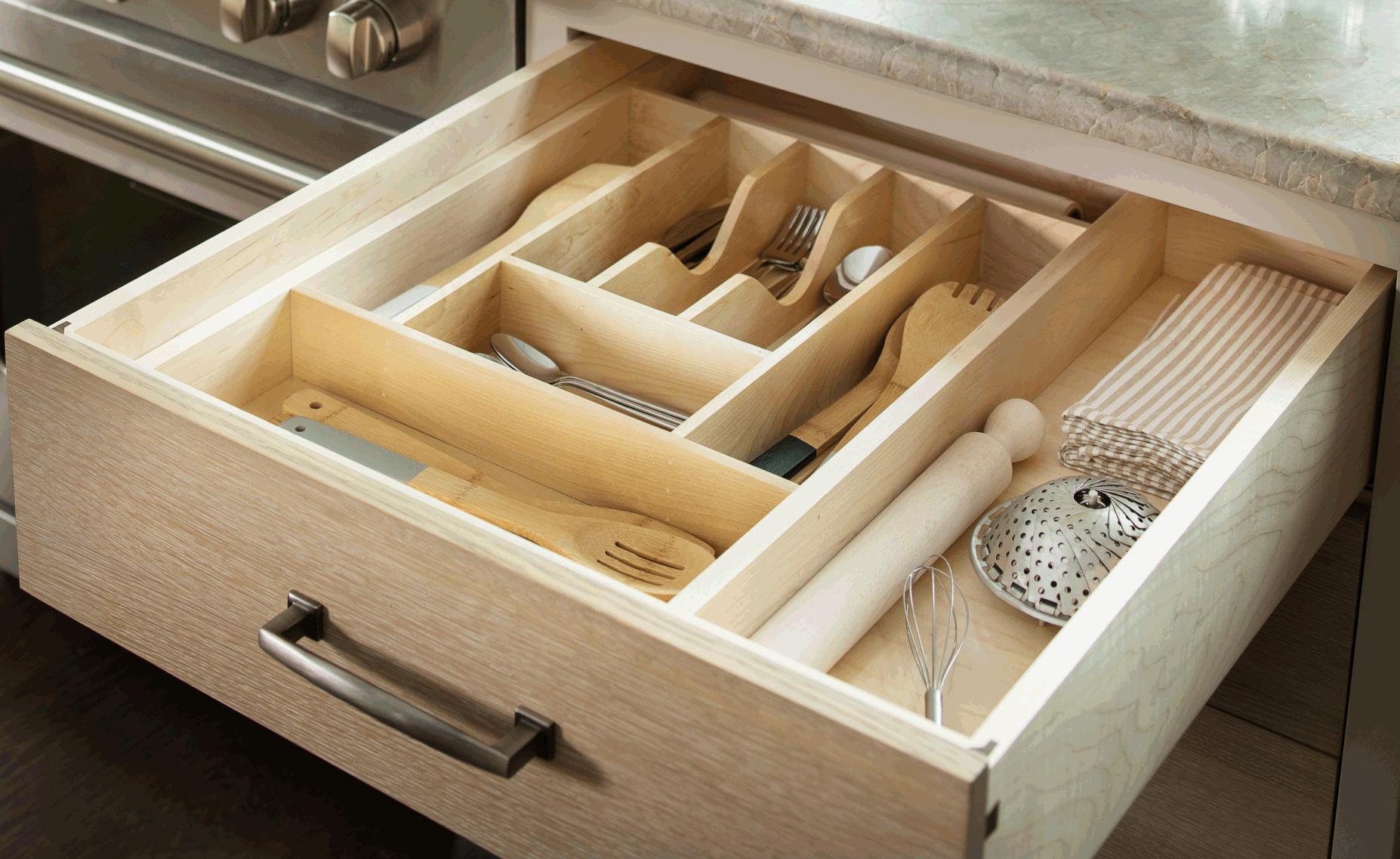

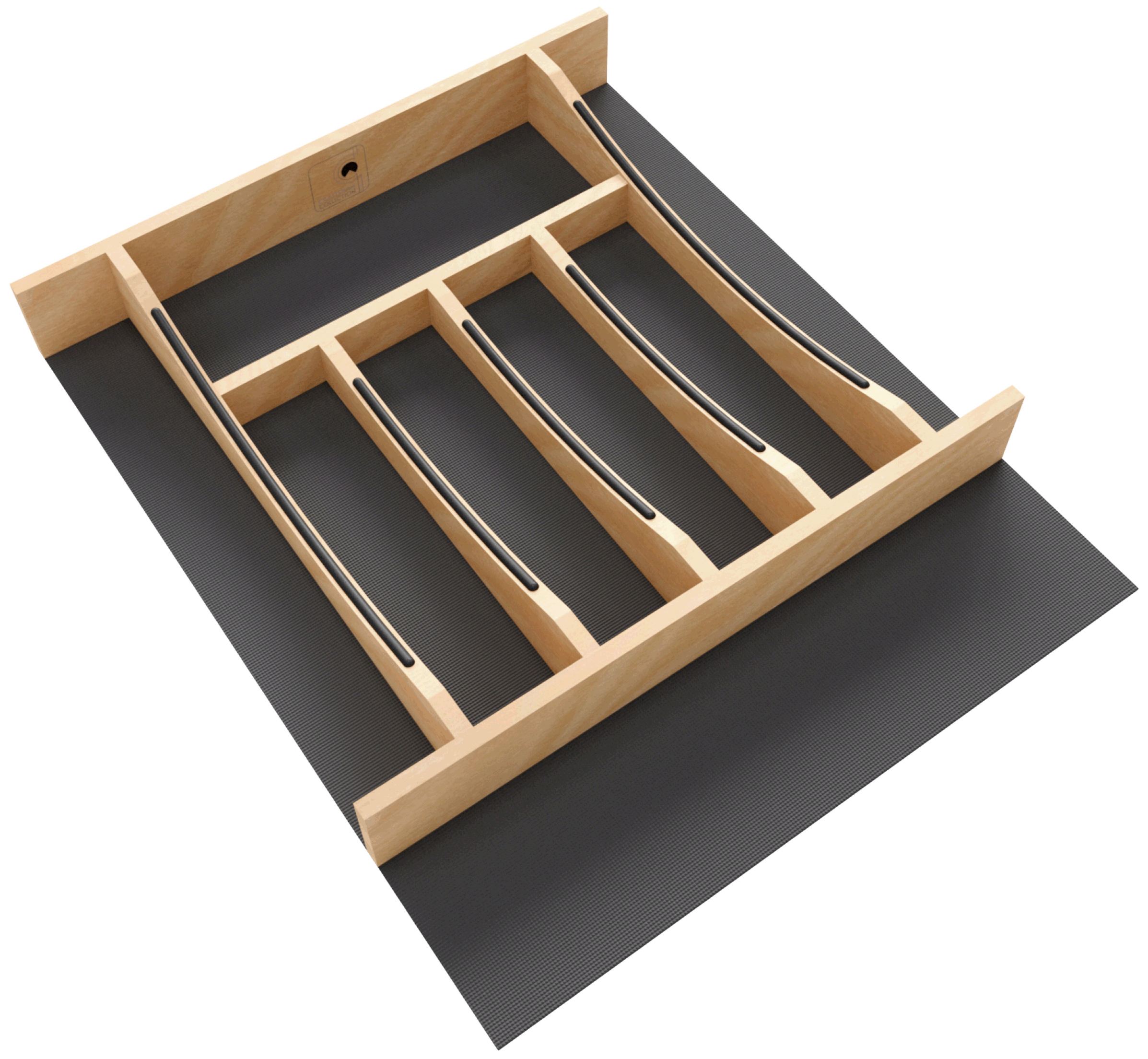

Wood Cutlery Tray Insert
Part Number
Width
Height
Depth
Color
RV4VCOS221
21 3/4"
2"
21 1/8"
Maple
Wood Bottom Mount Hamper

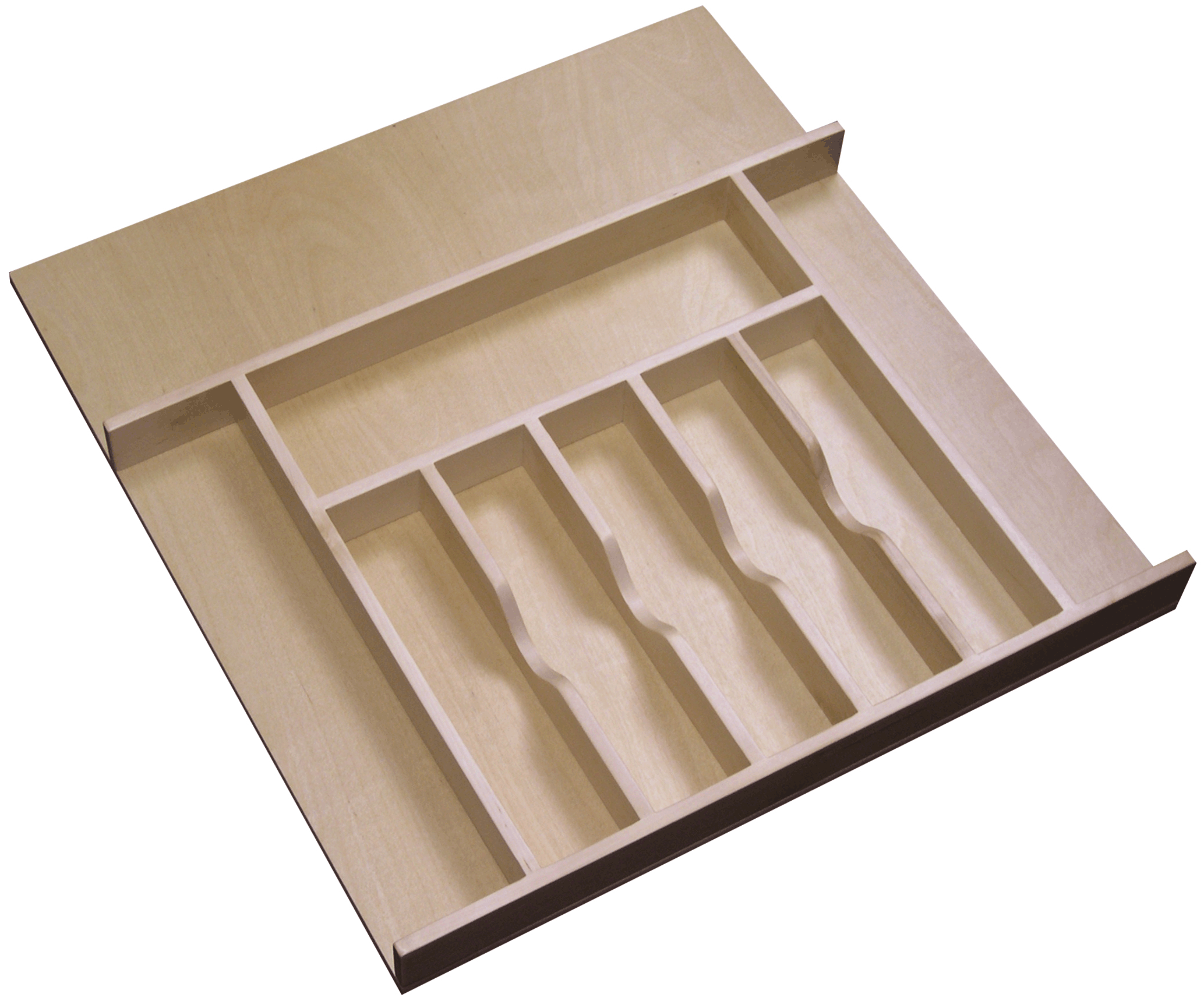

Organize kitchen drawers with Rev-A-Shelf's Wood Cutlery Tray Insert. The 4WCT Series is made of our classic Maple hardwood with a UV cured clear finish to ensure an acceptable match to any kitchen cabinet. This modern day clutter solution requires a simple drop-in installation with two sizes that may be trimmed to fit various drawer sizes.
Part Number
Width
Height
Depth
Color
RV4WCT1
8 3/4" - 14 5/8"
2 7/8"
15 1/2" - 22"
Maple
RV4WCT1SH
8 3/4" - 14 5/8"
2 7/8"
15 1/2" - 22"
Maple
RV4WCT3
14 1/2" - 20 5/8"
2 7/8"
15 1/2" - 22"
Maple
RV4WCT3SH
14 1/2" - 20 5/8"
2 7/8"
15 1/2" - 22"
Maple
Keep your closet floor clear of clothes with our 4WH Series, featuring natural maple dovetail frame, 1.5 BU white hamper and Rev-A-Motion soft-open/soft-close.
Part Number
Width
Height
Depth
Color
RV4WHRM15DM1
14 1/4"
21"
19 3/4"
Maple
RV4WHVCSC21DM1
20 5/16"
21 1/4"
18 11/16"
Maple

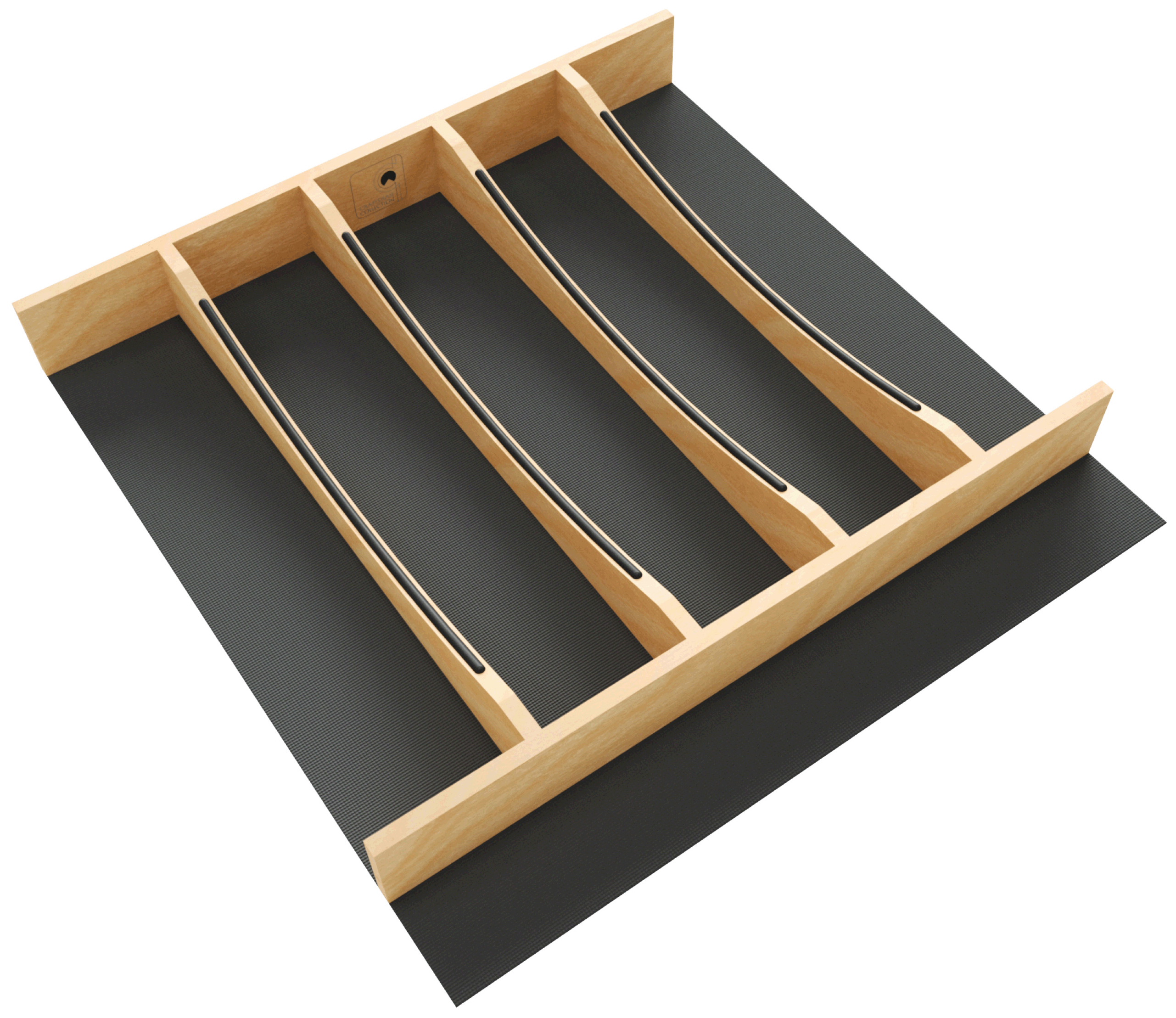

Wood Utensil Tray Insert
Aluminum Bottom Mount Wire Hamper
Keep clothes off the floor and make laundry less of a chore with Rev-A-Shelf Double Wire Pullout Hamper. Two machine washable cloth liners fit perfectly in removable wire baskets, held in place by your choice of a silver or white polymer base.

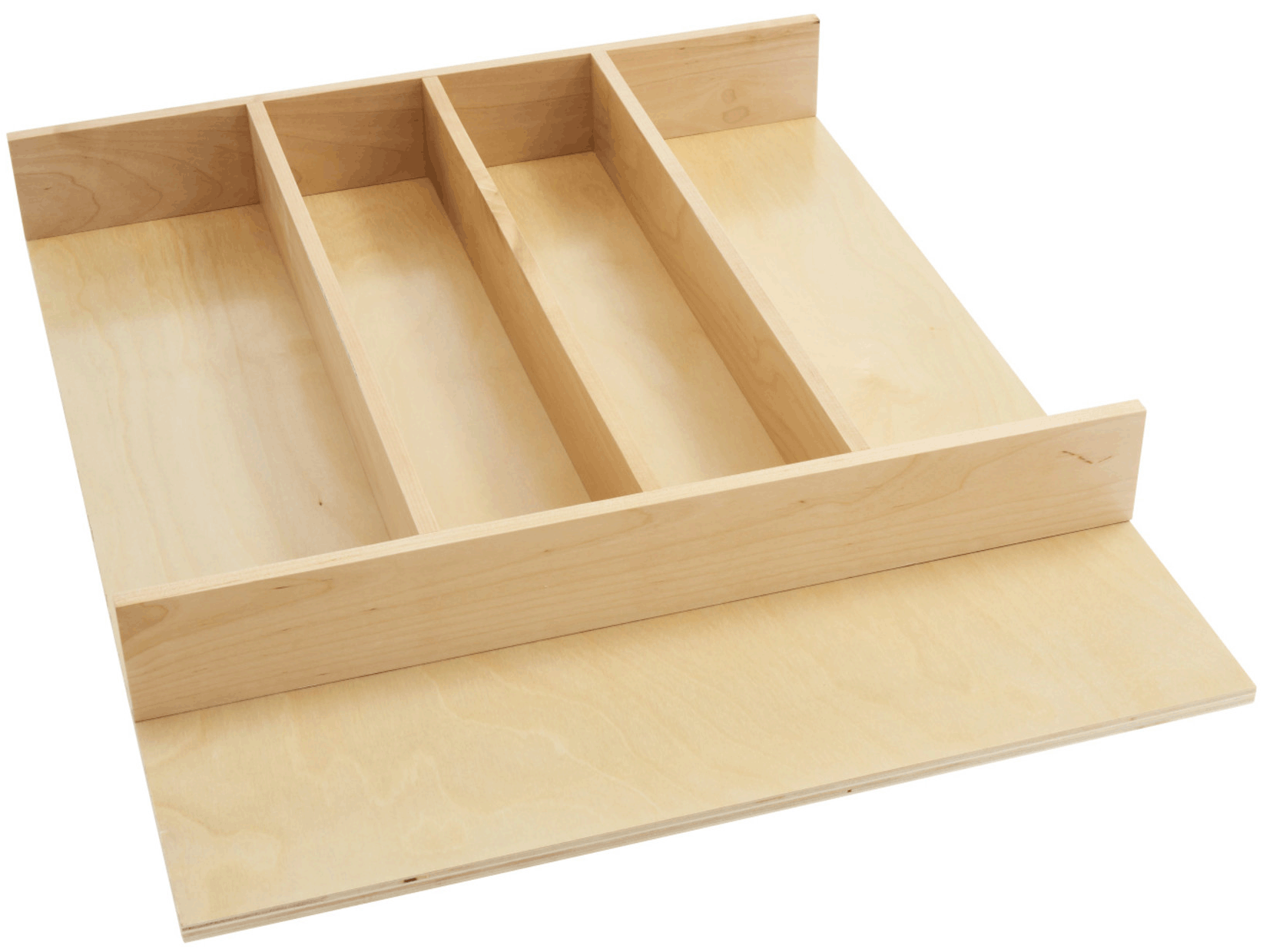

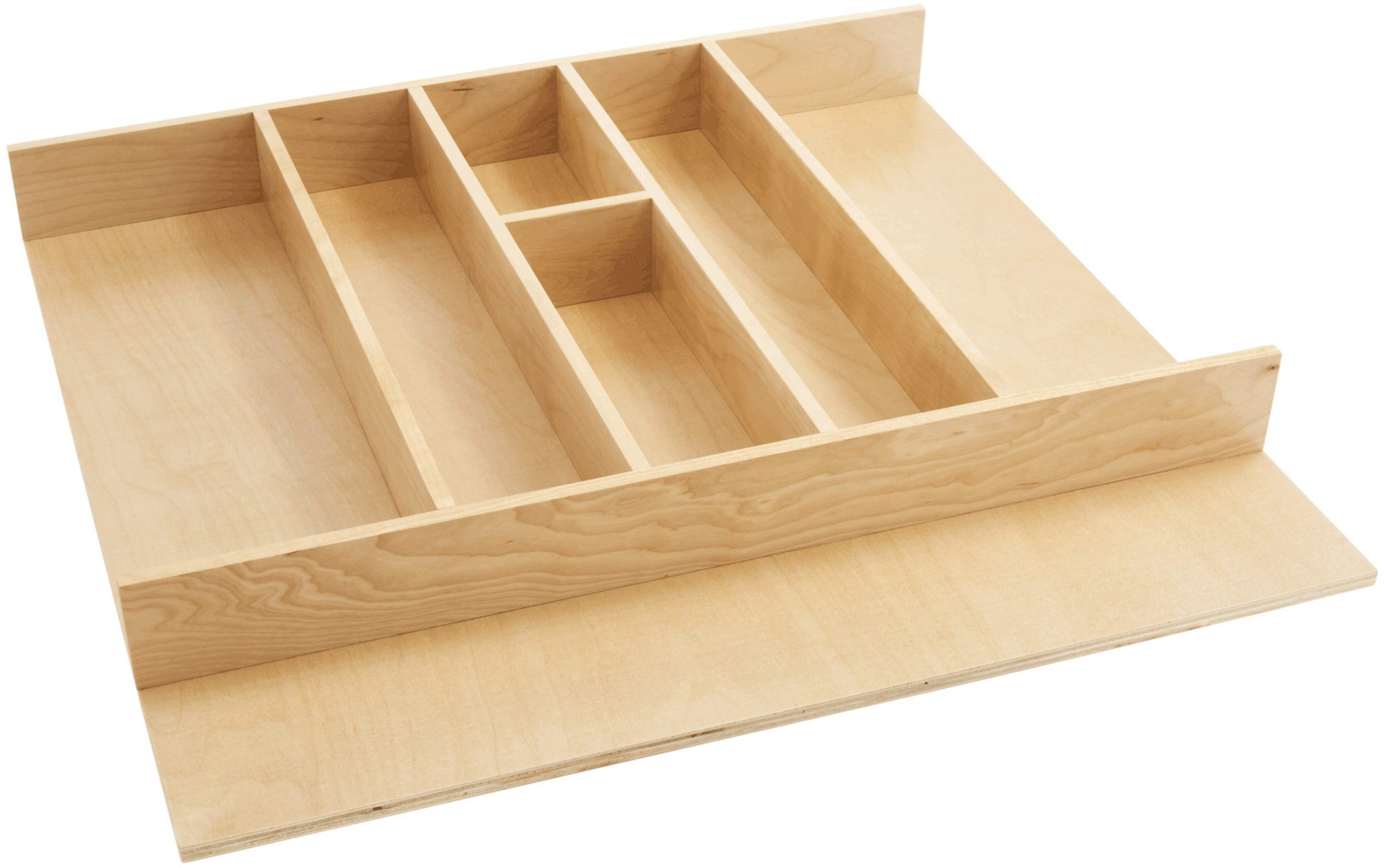

Conveniently store all your kitchen utensils in one organizer with Rev-A-Shelf's 4WUT Series. Designed for 36" or smaller base cabinet drawers, this trim-to-fit insert features up to eleven large storage compartments and is available in natural maple or walnut construction. With drop-in installation it's never been easier to take your kitchen organization to the next level.
Part Number
Width
Height
Depth
Base Color
RVCH241419RM211
24"
18 7/8"
13 15/16"
White
RVCH241419RM217
24"
18 7/8"
13 15/16"
Gray
Part Number
Width
Height
Depth
Color
RV4WUT1
8 1/8" - 18 1/2"
2 7/8"
17" - 22"
Maple
RV4WUT1SH
8 1/8" - 18 1/2"
2 3/8"
17" - 22"
Maple
RV4WUT3
12" - 24"
2 7/8"
17 5/8" - 22"
Maple
RV4WUT3SH
12" - 24"
2 3/8"
17 5/8" - 22"
Maple

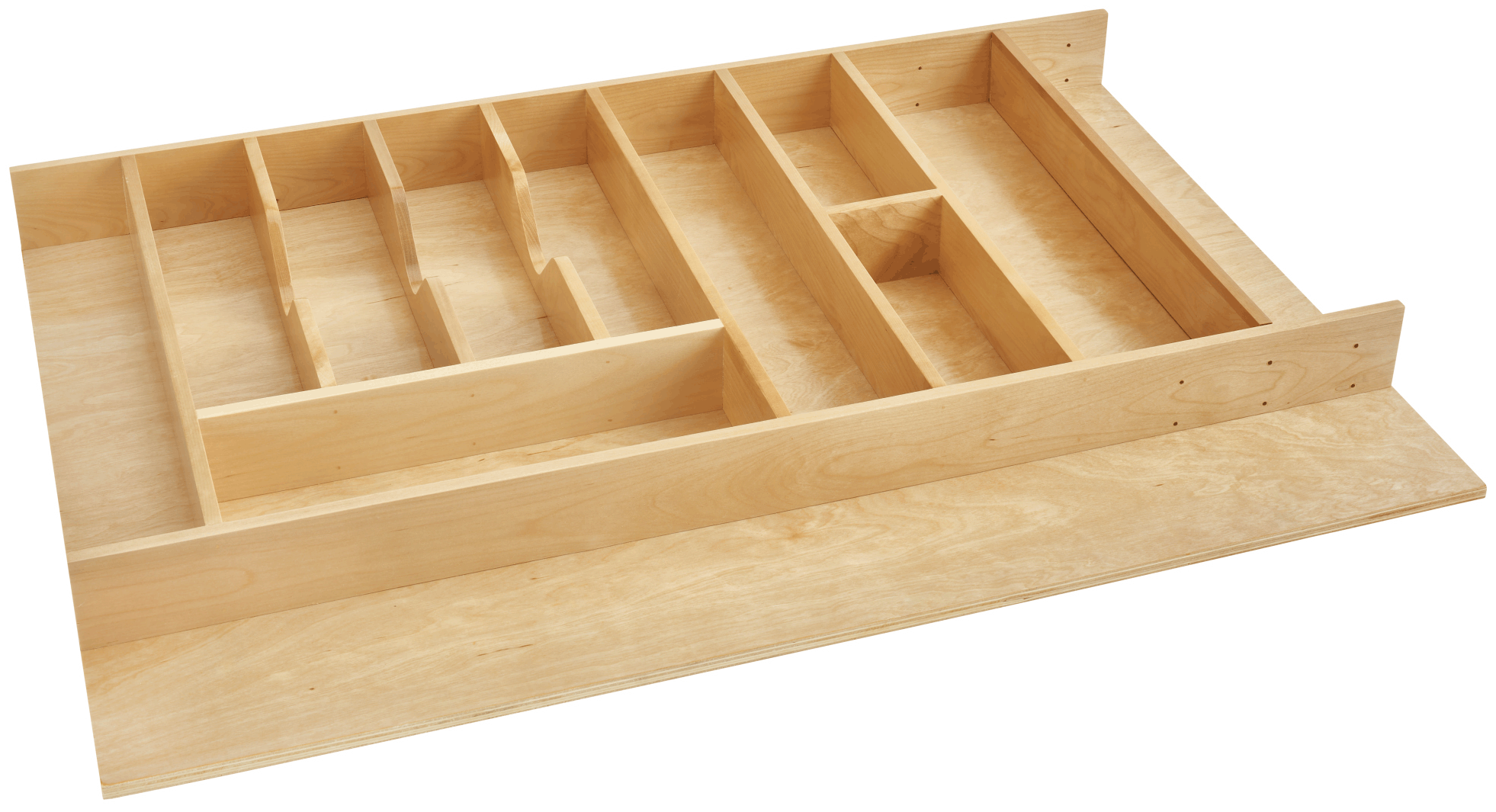

RV4WUTCT361
33 1/8"
2 7/8"
22"
Maple
Aluminum Bottom Mount Canvas Hamper
This beautiful pullout hamper is the only one in the industry that features aluminum frame with Rev-A-Shelf's patented soft-close/soft-open Rev-A-Motion technology. Designed for vanity base 18 cabinets, the removable cloth bag makes laundry simple, and the adjustable door mount brackets ensure a perfect fit every time.
Cascade Bottom Mount Waste Pullout
Part Number
Width
Height
Depth
Color
RV519015RM111
14 9/32"
19 11/32"
18 1/16"
White
RV519015RM117
14 9/32"
19 11/32"
18 1/16"
Silver
Part Number
Width
Height
Depth
Color
RV4WD221
1/2"
2 7/8"
22"
Maple
RV4WD22SH1
1/2"
2 3/8"
22"
Maple
RV4WDKB1
1/2"
2"
22"
Maple
Polymer Bottom Mount Hamper
Polymer Cutlery Tray
Rev-A-Shelf's drawer inserts are the best if you are looking for a custom look. Why settle for a cutlery insert that just drops in your drawer and moves every time you open and close your drawer. Create a custom fit by trimming to your exact size.
Another option for collecting dirty clothes, the Pullout Wire Hamper is available in four sizes and is easily removable for carrying to the laundry room. The HRV Series features full-extension slides and easy installation with just four screws.
Part Number
Width
Height
Depth
Color
RVHRV1215S
11 7/8"
14 3/4"
18"
White
RVHRV1220S
11 7/8"
19 3/8"
18"
White
RVHRV1520S
14 3/4"
19 3/8"
18"
White
RVHRV1520SCR
14 3/4"
19 3/8"
18"
Chrome
Part Number
Width
Height
Depth
Color
RVCT1W52
11 1/2"
2 3/8"
21 1/4"
White
RVCT2W52
14 1/4"
2 3/8"
21 1/4"
White
RVCT3W52
17 1/2"
2 3/8"
21 1/4"
White
RVCT4W52
21 7/8"
2 3/8"
21 1/4"
White
Polymer Bottom Mount Hamper
Polymer Utensil Tray Insert
Keep dirty clothes from piling on the floor with Rev-A-Shelf's large Pullout Polymer Hamper. The HPRV Series features a shallow 20" depth for vanity applications, full-extension ball bearing slides, 1.5 Bushel capacity and installs with just four screws.
Door mount kit sold separately.
Part Number
Width
Height
Depth
Color
RVHPRV1520S
14 1/4"
19 3/8"
20"
White
RVHPRV1925S
19 7/8"
24"
14"
White
Rev-A-Shelf's drawer inserts are the best if you are looking for a custom look. Why settle for a utility insert that drops in your drawer and moves every time you open adn close your drawer. Create a custom fit by trimming to your exact size.
Wire Tilt-Out Hamper
Part Number
Width
Height
Depth
Color
RVUT10W52
11 1/2"
2 3/8"
21 1/4"
White
RVUT12W52
14 1/4"
2 3/8"
21 1/4"
White
RVUT15W52
17 1/2"
2 3/8"
21 1/4"
White
RVUT18W52
21 7/8"
2 3/8
21 1/4"
White
Now you can conceal and accss laundry in one easy motion with the CTOHB Tilt-Out Hamper. Simply door mount the basket rest to a bottom hinged cabinet for easy one step "Slide-In/Slide-Out" basket removal. The series is available in two sizes and three finishes, stylish chrome, satin nickel and oil rubbed bronze. Each is constructed with durable 6.6mm wire and feature capacities of 1.7 bushels (55 Quarts) for the 16" wide unit, and 2.3 bushels (74 Quarts) for the large 21" unit. Liners and Tilt-out hardware sold separately.

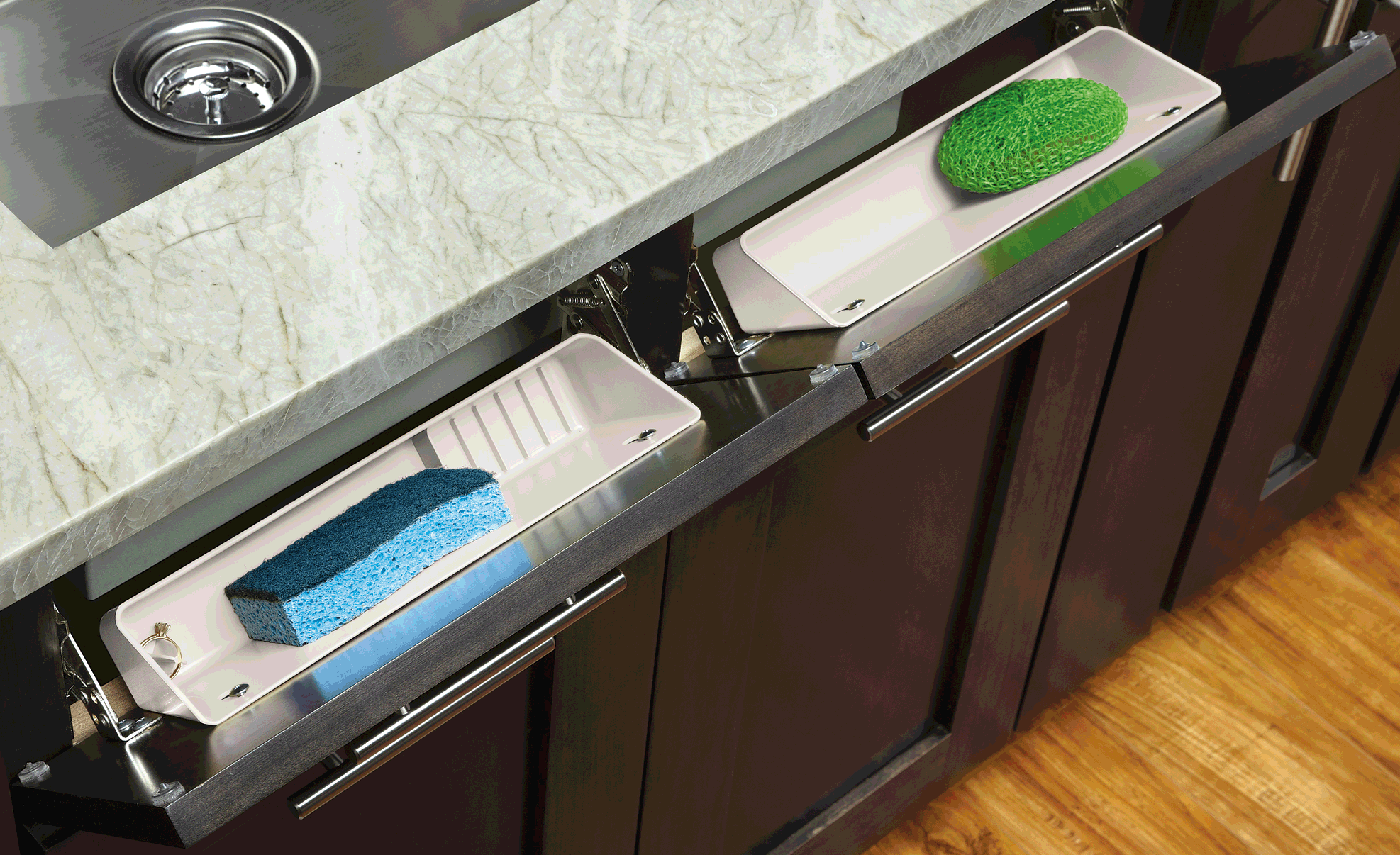

Slim Tip-Out Trays

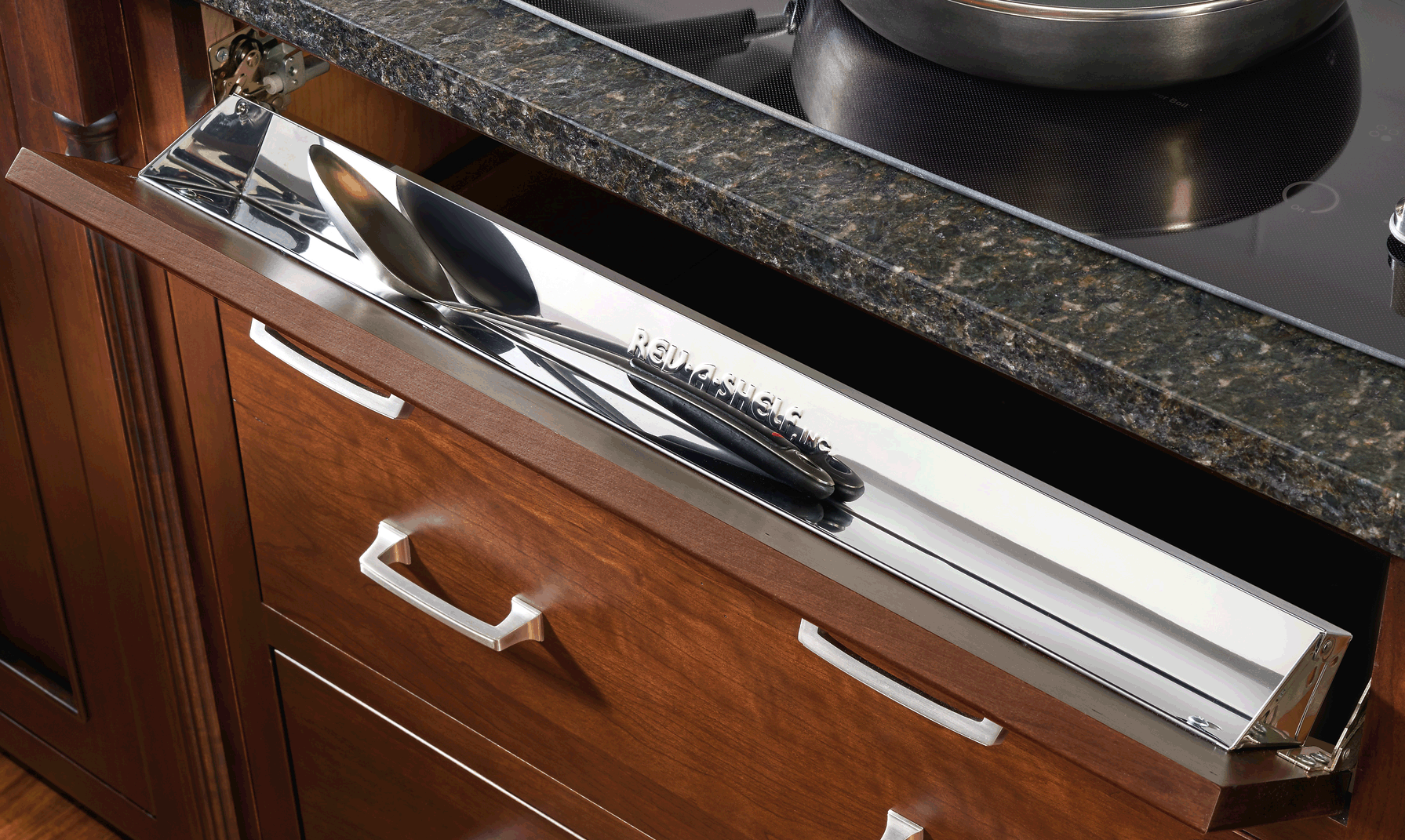

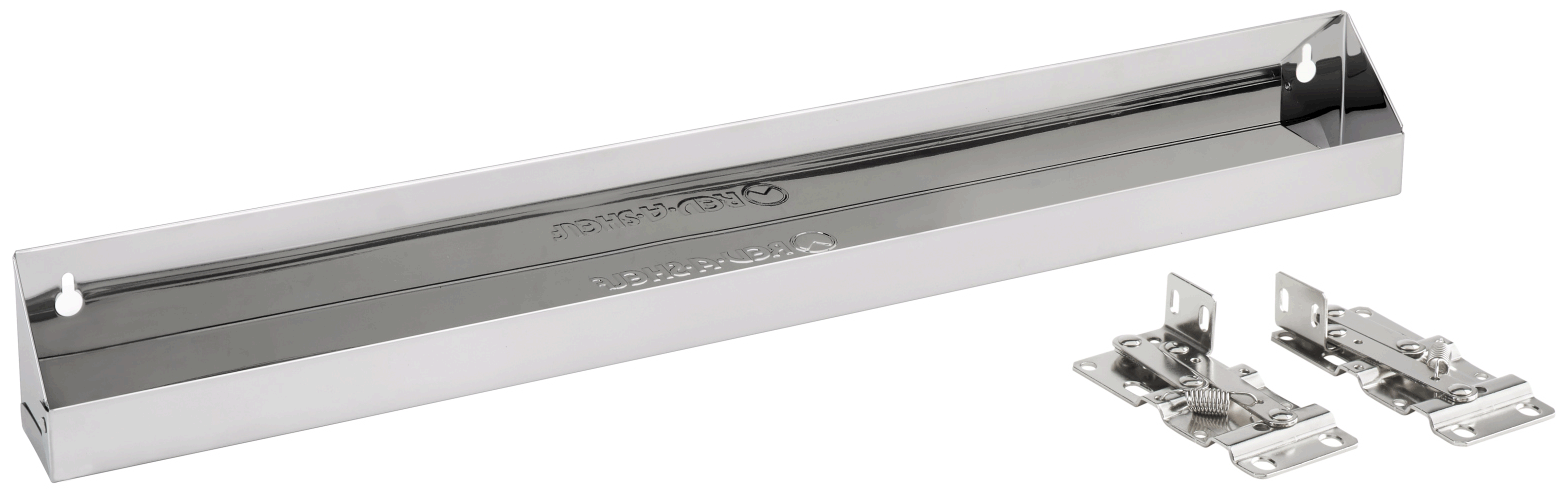

Tip-out trays are a must-have for every kitchen and bathroom! Perfect for hiding sponges and scouring pads out of sight yet keeping them easily accessible, the Slim Series is designed to accommodate minimum clearance openings for large sink applications.
Part Number
Width
Height
Depth
Color
RVCTOHB161319CR52
15 1/2"
19 3/4"
13 1/2"
Chrome
RVCTOHB211319CR52
20 1/2"
19 3/4"
13 1/2"
Chrome
Part Number
Width
Height
Depth
Hinge Type
Included
Color
RV6541361152
36"
3 15/16"
1 11/16"
Tip-Out Hinges
White
RV65413611ETH
36"
3 15/16"
1 11/16"
Euro Tip-Out Hinges
White
RV654136SC1150
36"
3 15/16"
1 11/16"
Soft Close Hinges
White
RV654136114
36"
3 15/16"
1 11/16"
Bulk - No Hinges
White
Cascade Bottom Mount Waste Pullout
Our Hamper Bag keeps laundry out-of-sight and out-of-mind, hiding behind a closed, hinged cabinet hamper door. It is shaped like a basket, but it feels like a tote bag with its fully-lined, woven black fabric and soft mesh side panels. Garment ventilation and viewing are impoved with the elegant, matte black steel frame maintaining its slanted rim shape (for clearance of the shelf above the hamper door). Best of all, it's a snap to install and use. Simply lift the bag from its frame using the fold-down handles to carry the contents off for washing. It's that simple.
Standard Tip-Out Trays
Part Number
Width
Height
Depth
Color
RVCTOHSL181
16"
19 1/2"
13 1/2"
Black
RVCTOHSL241
21"
19 1/2"
13 1/2"
Black
RVCTOHSL301
27"
19 1/2"
13 1/2"
Black
RVCTOHBSL161419CR1
16"
19 1/2"
13 1/2"
Chrome

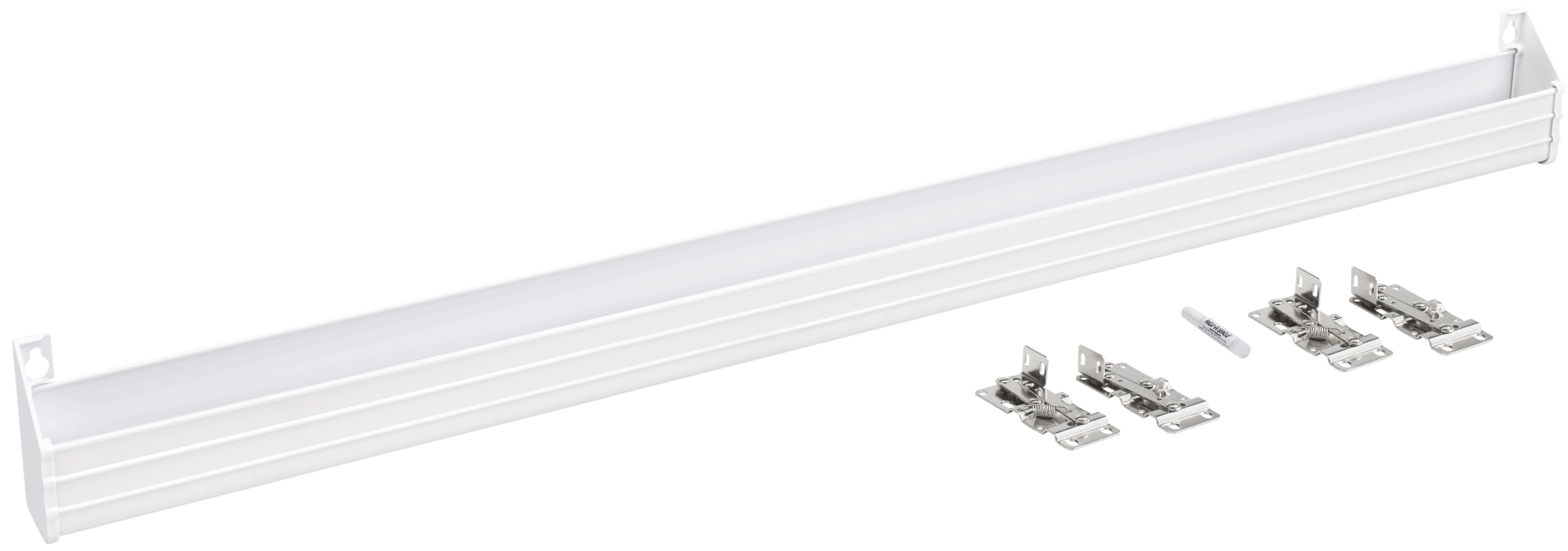

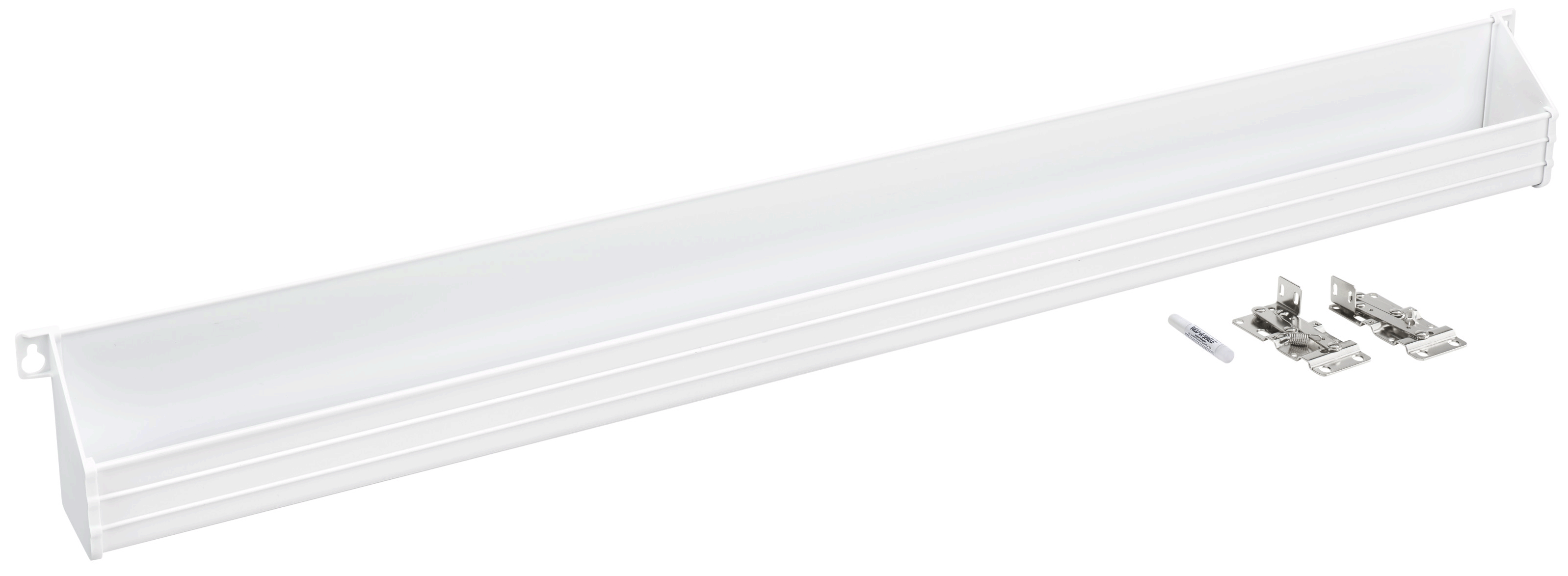

Designed for custom projects, the extruded polymer tip-out/spice tray is available in36" that can be trimmed to the desired length. This versatile tray includes molded polymer end caps with key-shaped holes for easy removal and cleaning. Simply cut the tray to the desired size, attach the end caps with the adhesive provided and install the false front panel.
Comes with self-holding hinges.
Part Number
Width
Height
Depth
Hinges Included
Color
RV6551361150
36"
3 15/16"
2 7/16"
1 pair Standard
White
RV6551361152
36"
3 15/16"
2 7/16"
2 pairs Standard
White
RV655136SC1150
36"
3 15/16"
2 7/16"
1 pair Soft Close
White
RV657136114
36"
3 15/16"
2 7/16"
Bulk - No Hinges
White
Flap Stay
Got a hinged door in need of swing control? Perfect for hamper doors, the flap stay hardware fastens to both the inside and the adjacent vertical section panel. One flap stay is included with purchase of a Sidelines by Rev-A-Shlef CTOHS hampers but is not included with any other type of basket purchase.

Flap Stay Chrome
Part Number: RVCTOHBSLFS1

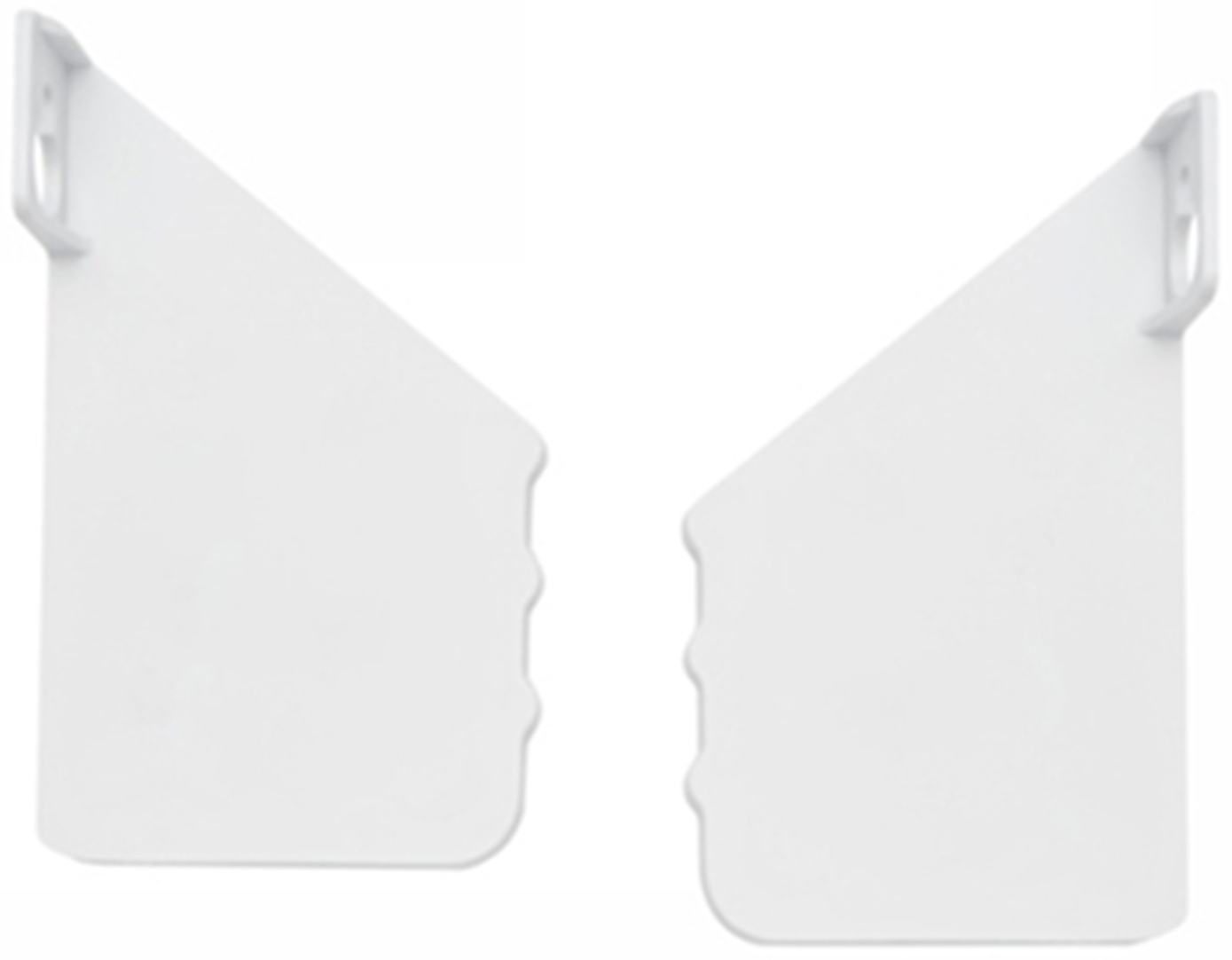

False Front Ends
False Front Ends with Screws
Packed 40 per box

Part Number: RVST97114
Closet Basket Pullouts

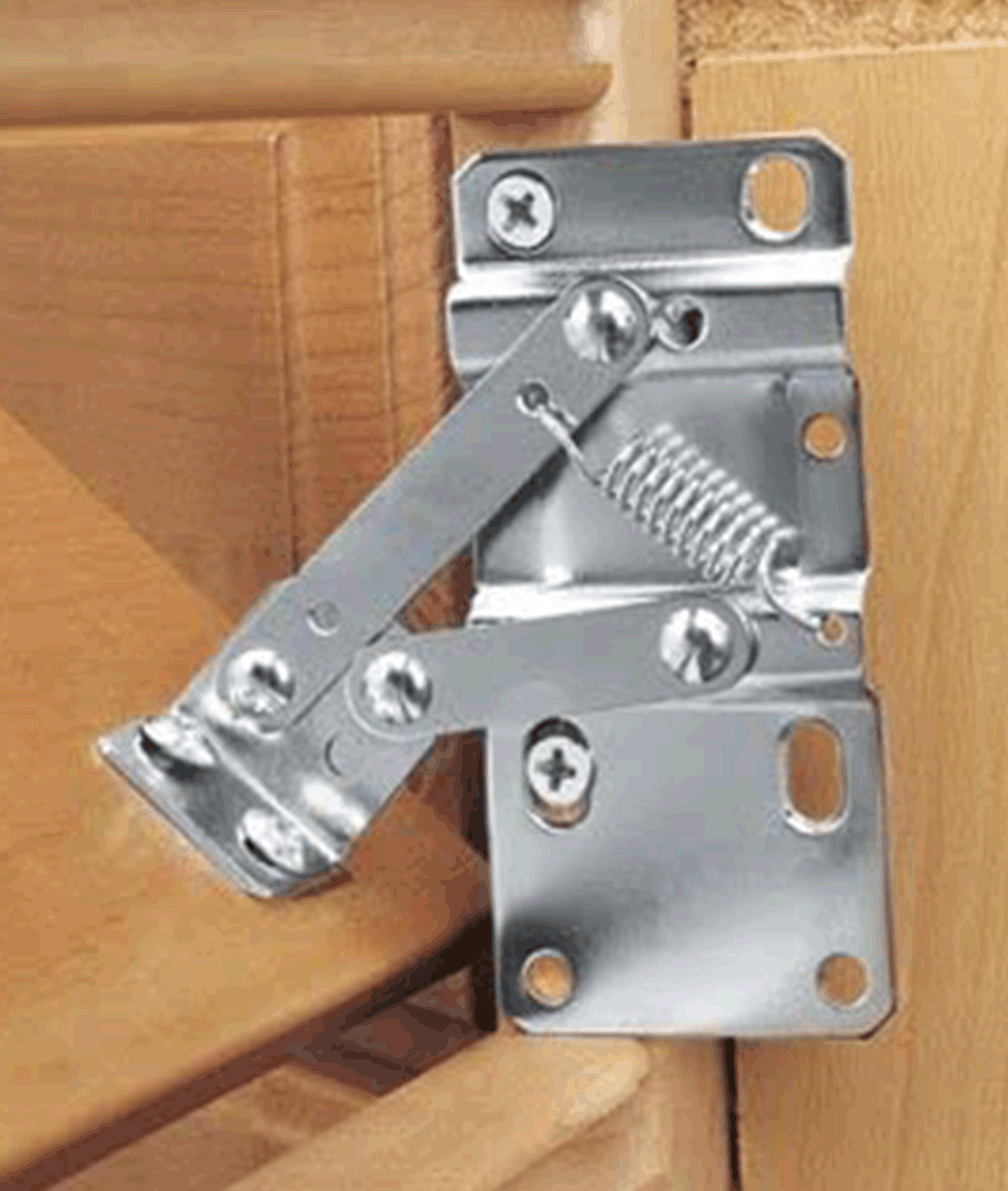

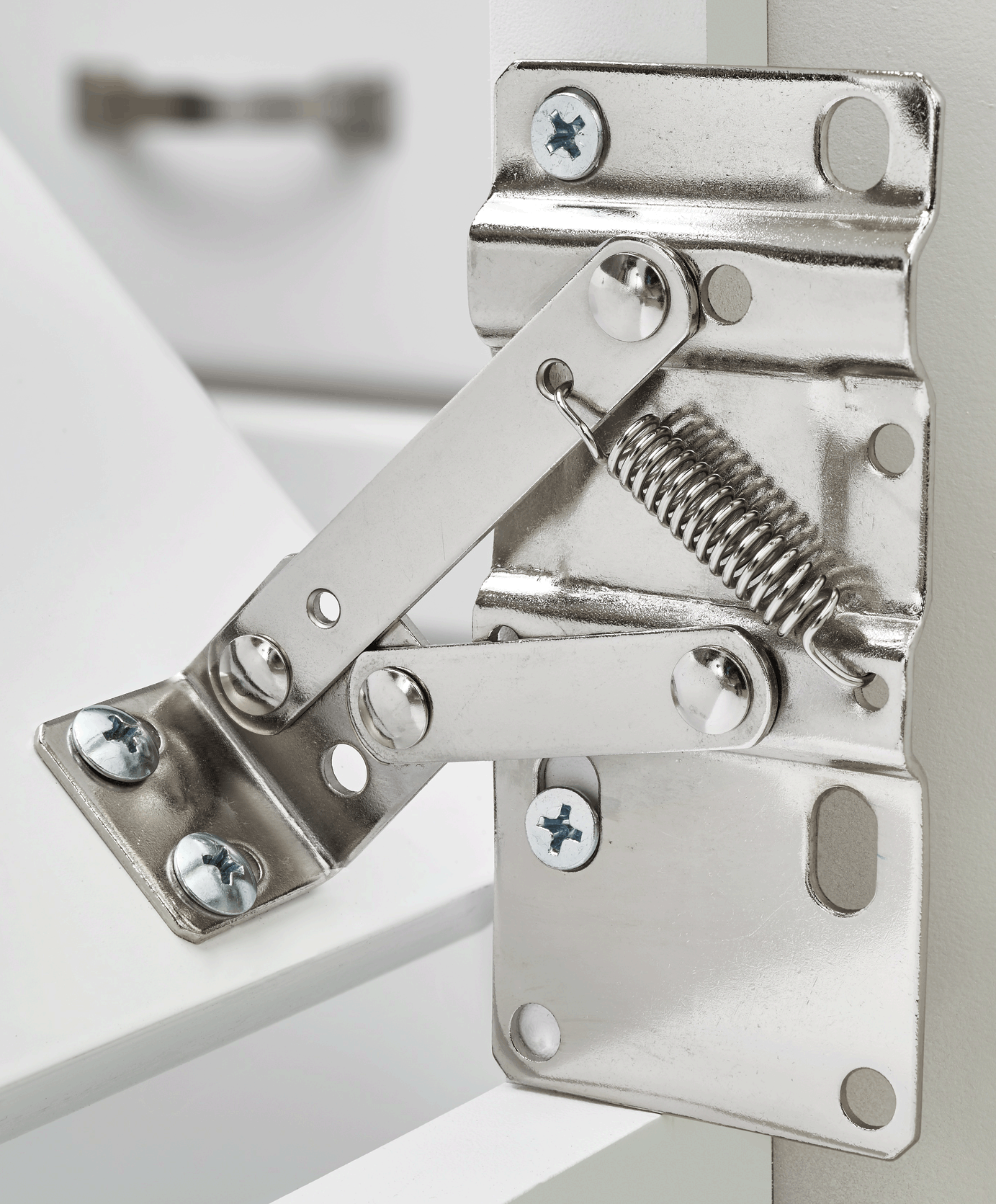

Tip-Out Hinges
Part Number
Hinge Type
RV65529402204
Standard
RV65529502204
Standard Heavy Duty
RV655297114
Standard with End Caps
RVLD022050SC40
Soft Close
The original, Sidelines' patented baskets feature full-extension, ball-bearing slides and are available in several luxury finishes, from chrome to bronze, in a variety of sizes. Optional basket slide permit mounting into fixed cabinet sections for closet, laundry, kitchen or pantry for use like a drawer.
Part Number
Width
Height
Depth
Color
RVCBSLl181405BZ3
18"
5 3/8"
14"
Bronze
RVCBSL181405CR3
18"
5 3/8"
14"
Chrome
RVCBSL181405SN3
18"
5 3/8"
14"
Satin Nickel
RVCBSL181410BZ3
18"
10 1/2"
14"
Bronze
RVCBSL181410CR3
18"
10 1/2"
14"
Chrome
RVCBSL181410SN3
18"
10 1/2"
14"
Satin Nickel
RVCBSL181417BZ3
18"
17"
14"
Bronze
RVCBSL181417CR3
18"
17"
14"
Chrome
RVCBSL181417SN3
18"
17"
14"
Satin Nickel
RVCBSL241405BZ3
24"
5 3/8"
14"
Bronze
RVCBSL241405CR3
24"
5 3/8"
14"
Chrome
RVCBSL241405SN3
24"
5 3/8"
14"
Satin Nickel
RVCBSL241410BZ3
24"
10 1/2"
14"
Bronze
RVCBSL241410CR3
24"
10 1/2"
14"
Chrome
RVCBSL241410SN3
24"
10 1/2"
14"
Satin Nickel
RVCBSL241417BZ3
24"
17"
14"
Bronze
RVCBSL241417CR3
24"
17"
14"
Chrome
RVCBSL241417SN3
24"
17"
14"
Satin Nickel
RVCBSL301405BZ3
30"
5 3/8"
14"
Bronze
RVCBSL301405CR3
30"
5 3/8"
14"
Chrome
RVCBSL301405SN3
30"
5 3/8"
14"
Satin Nickel
RVCBSL301410BZ3
30"
10 1/2"
14"
Bronze
RVCBSL301410CR3
30"
10 1/2"
14"
Chrome
RVCBSL301410SN3
30"
10 1/2"
14"
Satin Nickel
RVCBSL301417BZ3
30"
17"
14"
Bronze
RVCBSL301417CR3
30"
17"
14"
Chrome
RVCBSL301417SN3
30"
17"
14"
Satin Nickel
Tip-Out Euro Hinge
Part Number: RV6552ETH10
Stainless Sink Front Tip-Out Trays
Add a little luxury to otherwise wasted space with a stainless steel tip-out tray. Perfect for your kitchen or bathroom.
Part Number
Width
Height
Depth
Color
RV6581135
13"
2 1/8"
3"
Stainless Steel
RV6581165
16"
2 1/8"
3"
Stainless Steel
RV6581255
25"
2 1/8"
3"
Stainless Steel
RV6581285
28"
2 1/8"
3"
Stainless Steel
RV6581315
31"
2 1/8"
3"
Stainless Steel
RV658131SC52
31"
2 1/8"
3"
Stainless Steel with Soft Close Hinges
Molded Sink Front Tip-Out Trays
Rev-A-Shelf's most popular Sink Front Tip-Out Tray Set, the 6572 Series includes one conventional open tray, one accessory tray with ring holder and soap dish, and 2 pairs of Self-Holding hinges. The 6572 Series is made of high-impact polystyrene and is available in 11" or 14" sizes.
Part Number
Width
Height
Depth
Color
RV6572111152
11"
2 1/8"
3 13/16"
White
RV6572141152
14"
2 1/8"
3 13/16"
White
Back
Next
U.S. Industrial Fasteners Phone: 480-967-8702 / Toll Free 800-289-5386
2026 East Cedar Street Tempe, Arizona 85281
