Locks

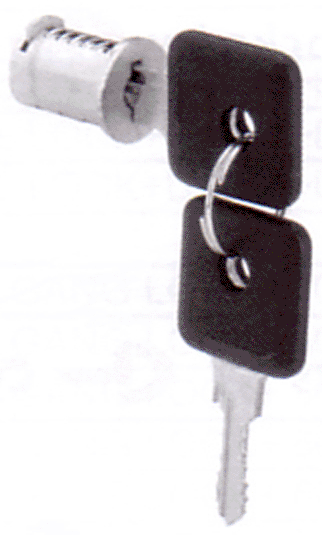

Cylinder Core

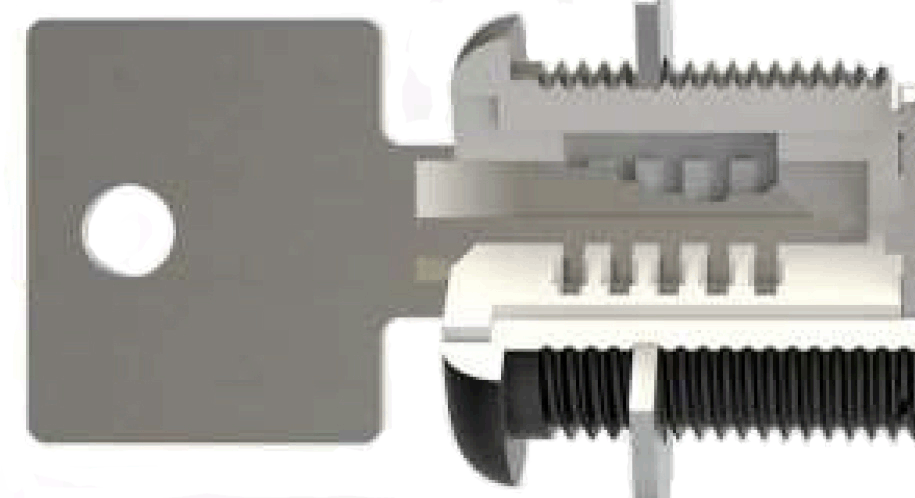

Cascade Series - Disc Tumbler Locks
Part Number
Finish
Keys Available
Length
Box Quantity
7170CLCL1C0xx
Nickel
15
30mm
50
7170CLCL1CMIX
Nickel
Mixed
30mm
50
7170CLCL1C0xxBR
Brass
15
30mm
50
7170CLCL1C0xxBK
Black
15
30mm
50

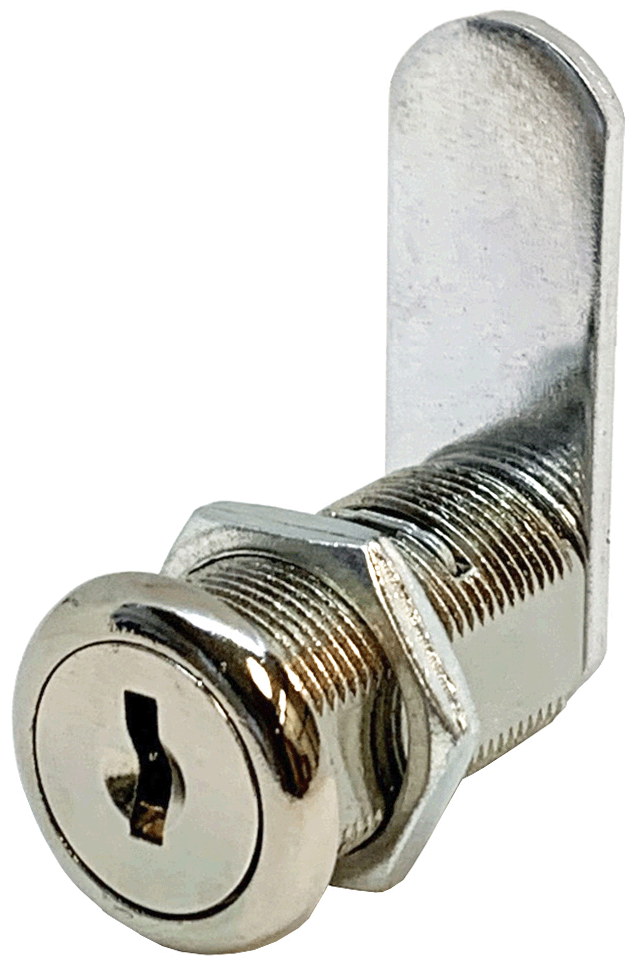

953 Series
Part Number
Description
7170CL1MK
CL1 Master Key
7170CL1RK
CL1 Removal Key
Part Number
Barrel Length
Key
Finish
Box Quantity
OL95314AC346A
1 3/16"
C346A
Bright Nickel
15
OL95314AC390A
1 3/16"
C390A
Bright Nickel
15
OL95314AC413A
1 3/16"
C413A
Bright Nickel
15
OL95314AC415A
1 3/16"
C415A
Bright Nickel
15
OL95314AC420A
1 3/16"
C420A
Bright Nickel
15
OL95314AC452A
1 3/16"
C452A
Bright Nickel
15
OL95314AD301
1 3/16"
MKKA301
Bright Nickel
15
OL95314AD302
1 3/16"
MKKA302
Bright Nickel
15
OL95314AD303
1 3/16"
MKKA303
Bright Nickel
15
OL95314AD304
1 3/16"
MKKA304
Bright Nickel
15
OL95314AD305
1 3/16"
MKKA305
Bright Nickel
15
OL95314AMKKD
1 3/16"
MKKD
Bright Nickel
15
OL95314AKD
1 3/16"
KD
Bright Nickel
15
Lock Housings

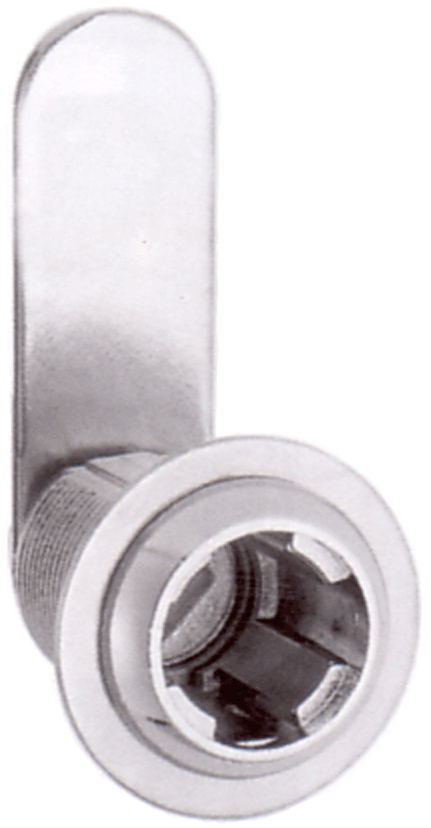

Cam Lock Housing

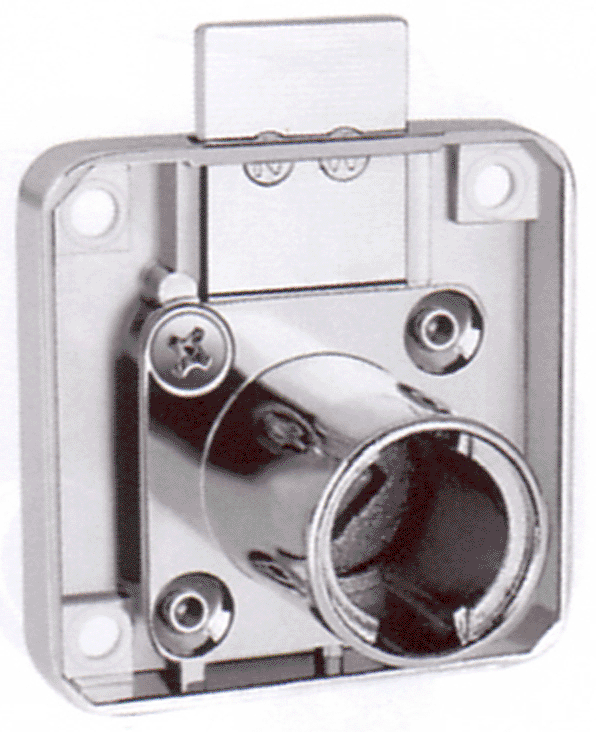

Square Drawer Lock Housing
Double Drawer Lock Housing

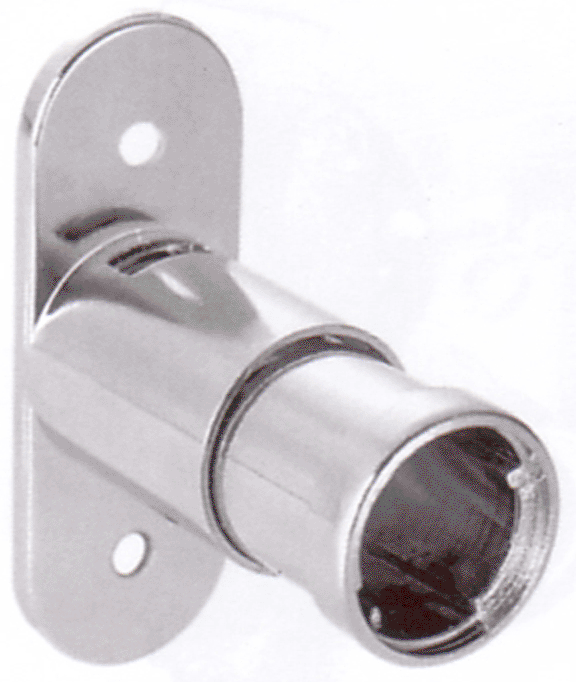

Push Lock Housing
Part Number
Finish
Type
Length
Box Quantity
7170CLA6073001
Nickel
Cam Lock
30mm
50
7170CLA6073002
Brass
Cam Lock
30mm
50
7170CLA6073004
Black
Cam Lock
30mm
50
7170CLA60736501
Nickel
Cam Lock
36.5mm
50
7170CLA60744501
Nickel
Cam Lock
44.5mm
50
7170CLA6012201S
Nickel
Square Drawer Lock
22mm
50
7170CLA6012204S
Black
Square Drawer Lock
22mm
50
7170CLA6282201
Nickel
Double Drawer Lock
22mm
50
7170CLA6042201
Nickel
Push Lock
22mm
50
7170CLA6042202
Brass
Push Lock
22mm
50
Part Number
Barrel Length
Key
Finish
Box Quantity
OL953US19C346A
1 3/16"
C346A
Matte Black
15
OL953US19C390A
1 3/16"
C390A
Matte Black
15
OL953US19C413A
1 3/16"
C413A
Matte Black
15
OL953US19C415A
1 3/16"
C415A
Matte Black
15
OL953US19C452A
1 3/16"
C452A
Matte Black
15
OL953US19D301
1 3/16"
MKKA301
Matte Black
15
OL953US19D302
1 3/16"
MKKA302
Matte Black
15
OL953US19D303
1 3/16"
MKKA303
Matte Black
15
OL953US19MKKD
1 3/16"
MKKD
Matte Black
15
OL953US19KD
1 3/16"
KD
Matte Black
15

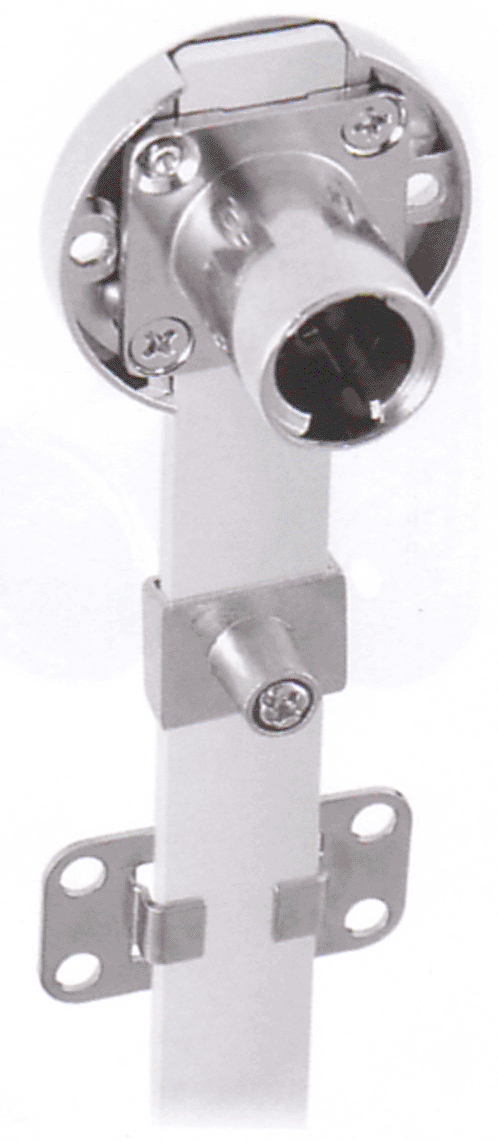

Gang Lock Housings
Cores sold separately.

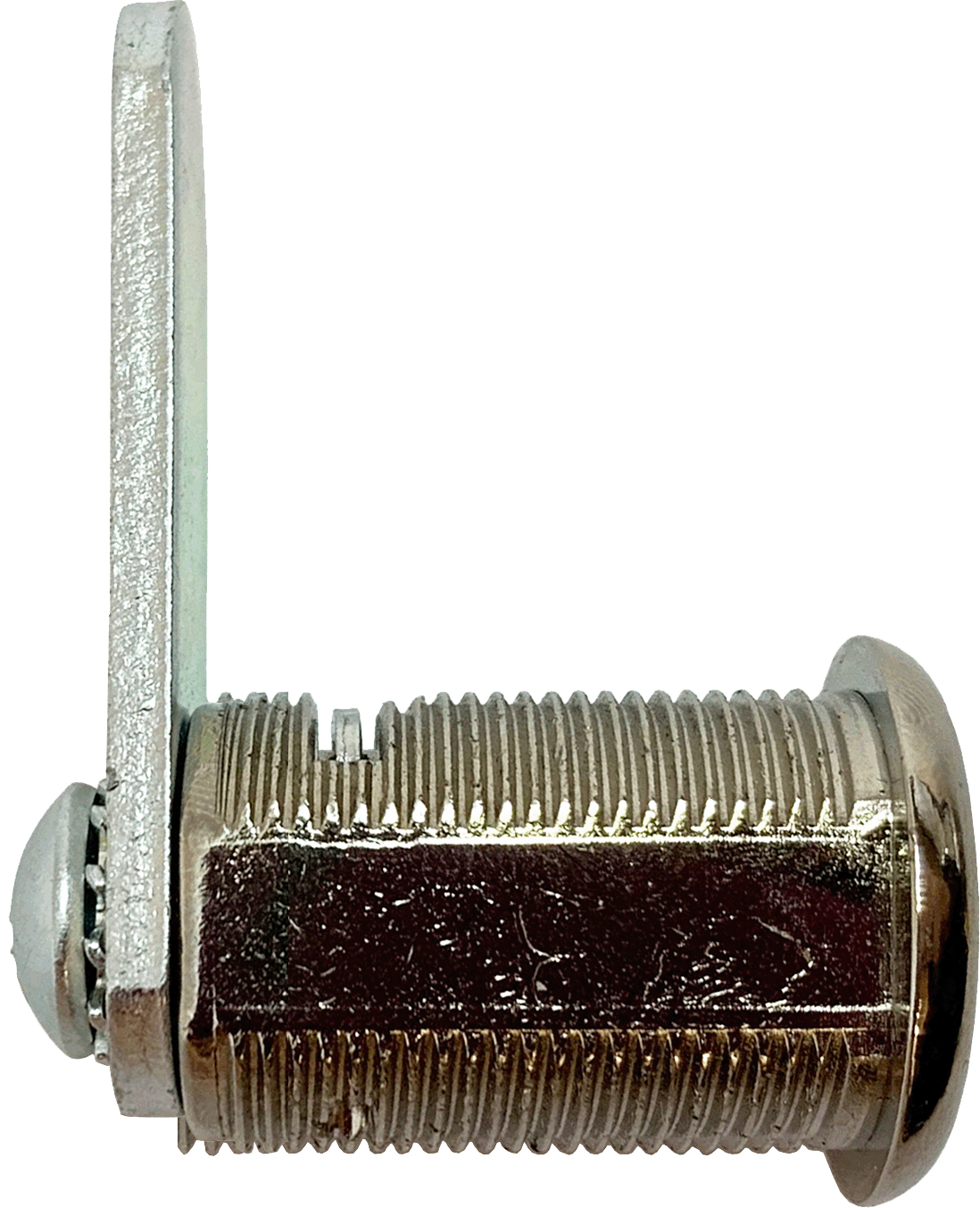

954 Series
Part Number
Size
Keys Available
Finish
Box Quantity
7170CLA6022201C0001
600mm
30
Nickel
50
Part Number
Barrel Length
Key
Finish
Box Quantity
OL95414AC346A
15/16"
C346A
Bright Nickel
15
OL95414AC390A
15/16"
C390A
Bright Nickel
15
OL95414AC413A
15/16"
C413A
Bright Nickel
15
OL95414AC415A
15/16"
C415A
Bright Nickel
15
OL95414AC452A
15/16"
C452A
Bright Nickel
15
OL95414AKD
15/16"
KD
Bright Nickel
15
OL954US19C415A
15/16"
C415A
Matte Black
15
OL954US19KD
15/16"
KD
Matte Black
15
Insertion of Cylinder Core

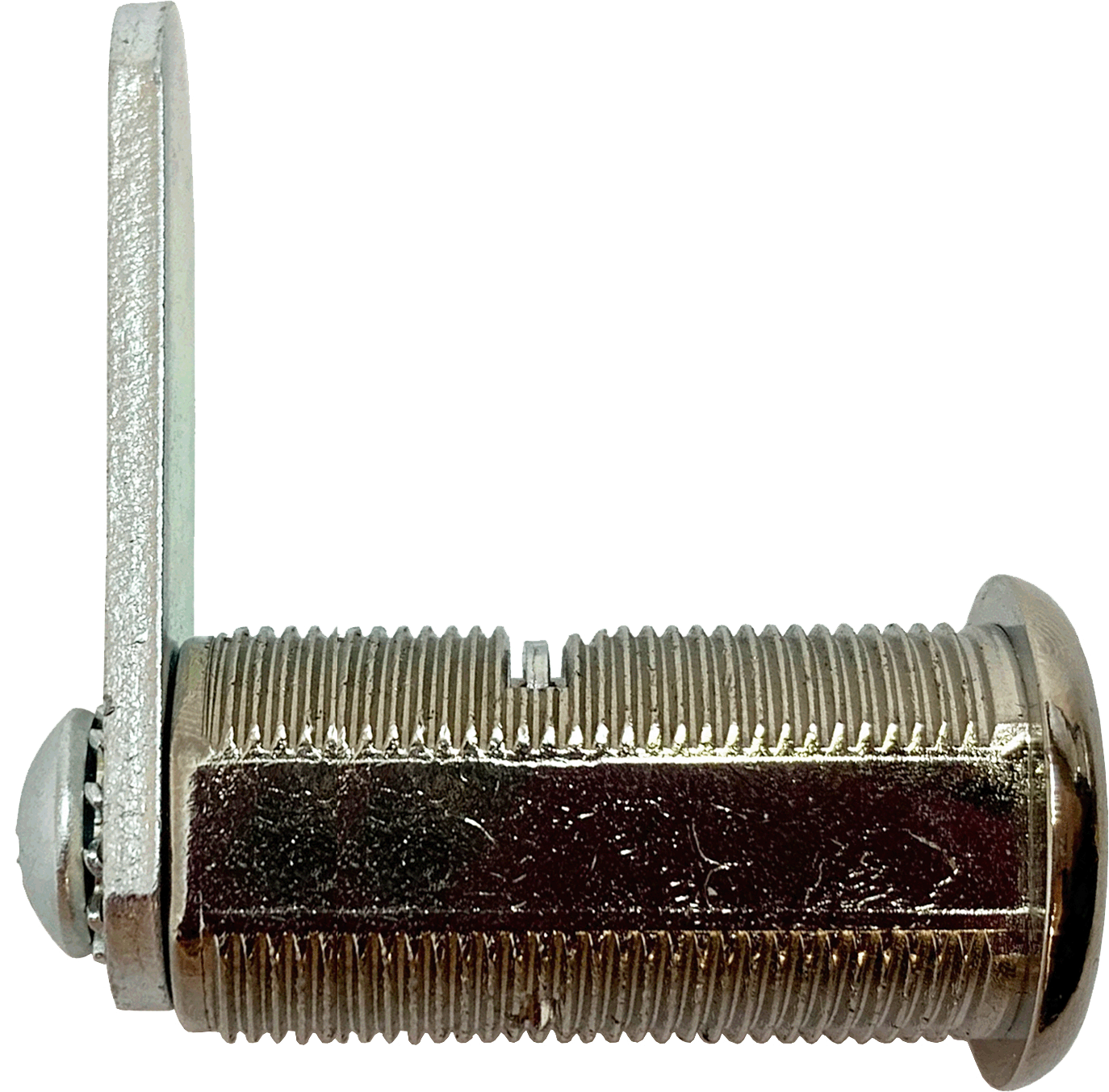

955 Series
1 & 2: Install cylinder core with inserted key in the cylinder housing. (Be sure to align the two diamond shaped objects on both - cylinder core and the cylinder housing.)

3: Apply light pressure until cylinder core snaps into place.
Removal of Cylinder Core
Part Number
Barrel Length
Key
Finish
Box Quantity
OL95514AC415A
1 7/16"
C415A
Bright Nickel
15
OL95514AC452A
1 7/16"
C452A
Bright Nickel
15
OL95514AMKKD
1 7/16"
MKKD
Bright Nickel
15
OL95514AKD
1 7/16"
KD
Bright Nickel
15
OL955US19C415A
1 7/16"
C415A
Matte Black
15
OL955US19KD
1 7/16"
KD
Matte Black
15

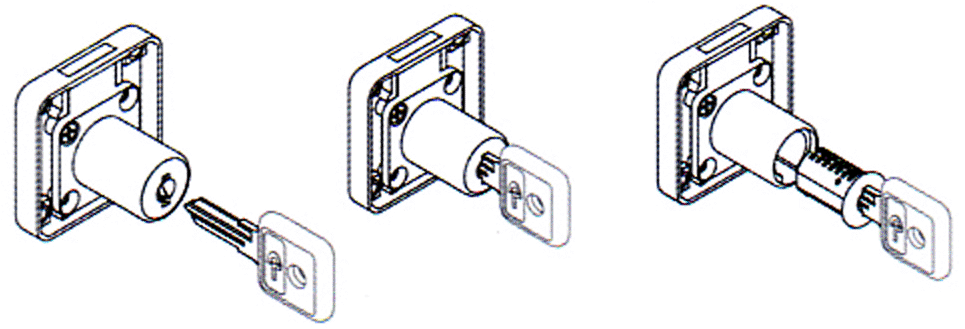

1 & 2: Insert removal key into cylinder core.

3: Remove cylinder core with removal key from cylinder housing.

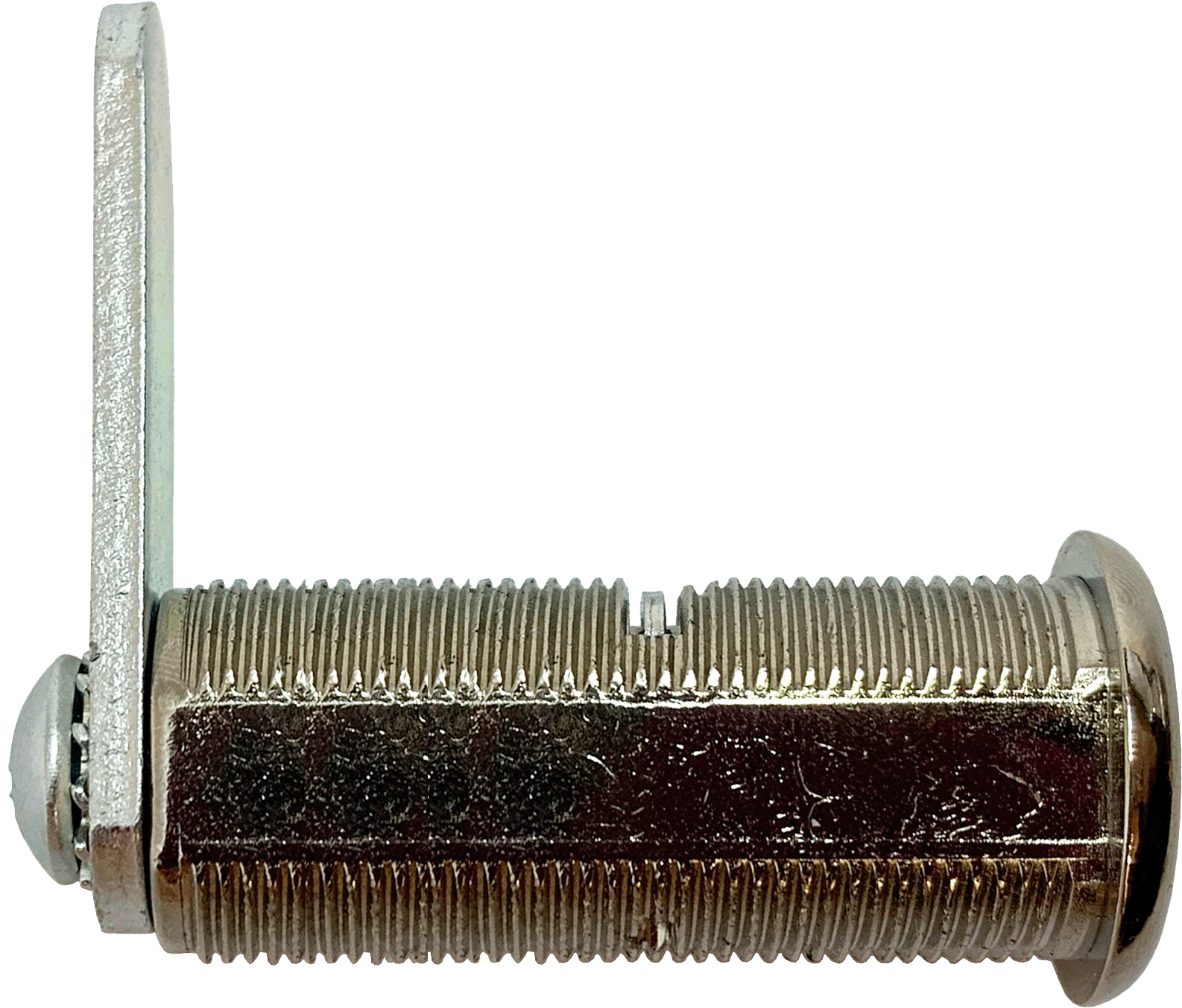

960 Series

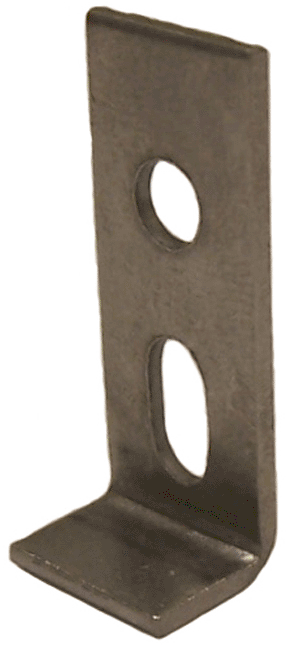

Lockclip
Packed 1,000 per box.

1/2" x 1 3/16" x 1/4" Lip
Part Number: 7101C14

1/2" x 1 3/16" x 3/8" Lip
Part Number: 7101C1426
Part Number
Barrel Length
Key
Finish
Box Quantity
OL96014AC346A
1 3/4"
C346A
Bright Nickel
15
OL96014AC390A
1 3/4"
C390A
Bright Nickel
15
OL96014AC413A
1 3/4"
C413A
Bright Nickel
15
OL96014AC415A
1 3/4"
C415A
Bright Nickel
15
OL96014AC420A
1 3/4"
C420A
Bright Nickel
15
OL96014AC452A
1 3/4"
C452A
Bright Nickel
15
OL96014AD301
1 3/4"
MKKA301
Bright Nickel
15
OL96014AD302
1 3/4"
MKKA302
Bright Nickel
15
OL96014AD303
1 3/4"
MKKA303
Bright Nickel
15
OL96014AD304
1 3/4"
MKKA304
Bright Nickel
15
OL96014AD305
1 3/4"
MKKA305
Bright Nickel
15
OL96014AMKKD
1 3/4"
MKKD
Bright Nickel
15
OL96014AKD
1 3/4"
KD
Bright Nickel
15
OL960US19C415A
1 3/4"
C415A
Matte Black
15
OL960US19MKKD
1 3/4"
MKKD
Matte Black
15
OL960US19KD
1 3/4"
KD
Matte Black
15

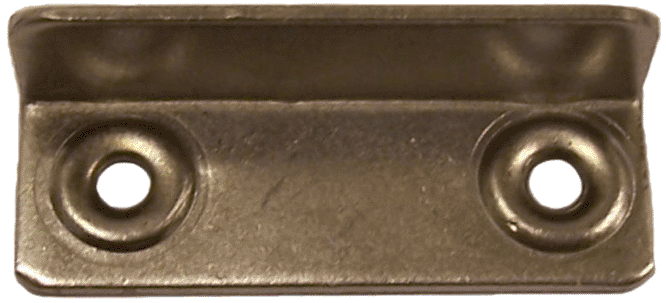

Strike Plate for Locks
Packed 500 per box.

Part Number: 7170RL3102NI

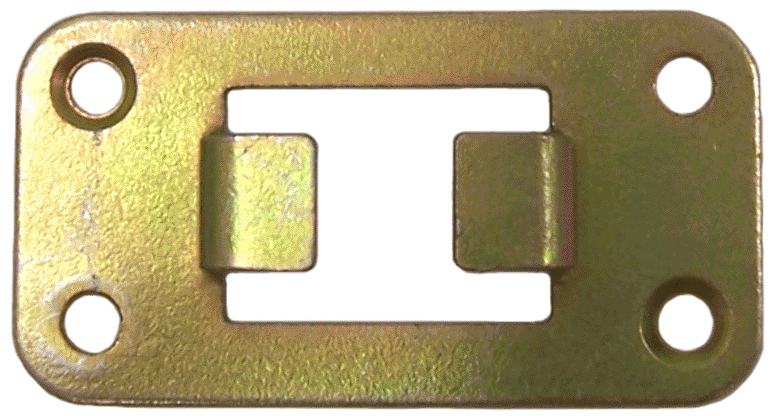

H Mounting Bracket for Locks
Packed 500 per box.

Part Number: 7170CIT31205

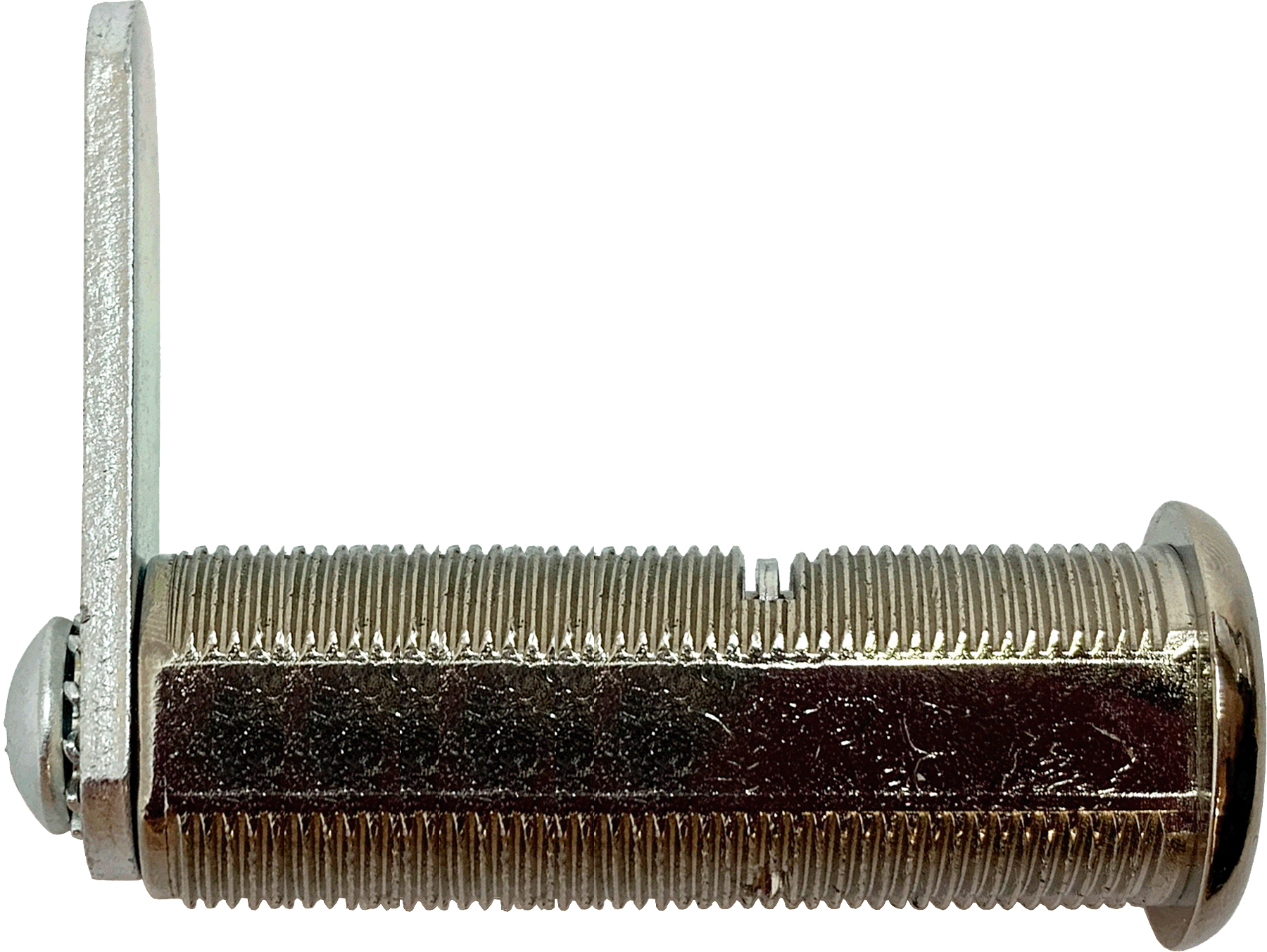

961 Series

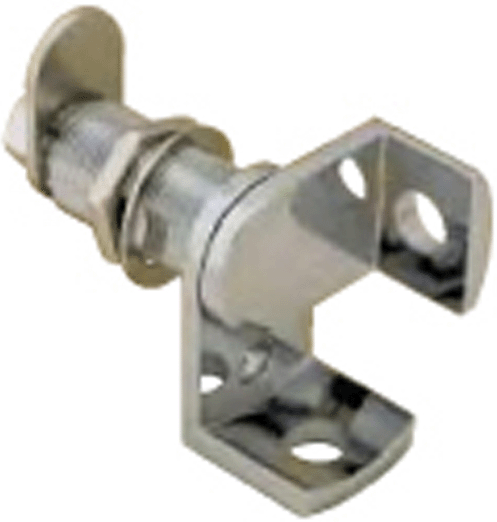

Cam Lock Hasp
Matte Nickel Finish
Packed 25 per box.

Part Number: 7323517600
Part Number
Barrel Length
Key
Finish
Box Quantity
OL96114AC415A
2"
C415A
Bright Nickel
15
OL96114AKD
2"
KD
Bright Nickel
15
OL961US19C415A
2"
C415A
Matte Black
15
OL961US19KD
2"
KD
Matte Black
15
Pin Tumbler Locks - National Keyway
Spacers

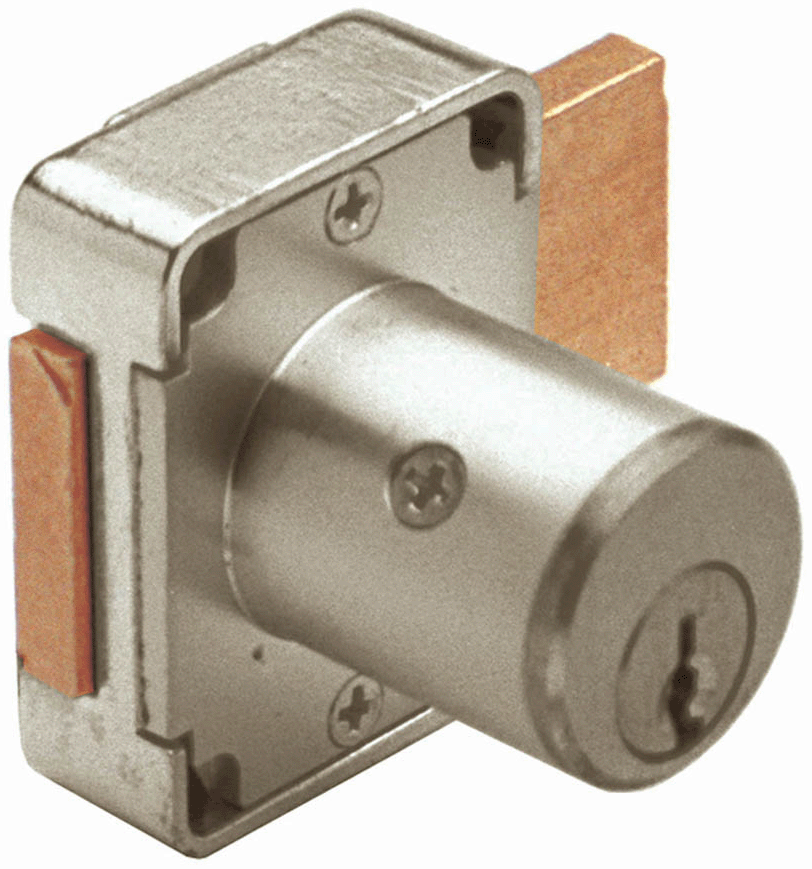

100DR Door Lock
Rekeyable.
Barrel Diameter: 7/8"
Includes: 56-1 bar strike
Available in Oil Rubbed Bronze and Satin Brass
WP21
WP22
Part Number
Thickness
Use With
Box Quantity
OLWP21
3/32"
100, 200, 500
100
OLWP22
1/4"
100, 200, 500
200
Part Number
Barrel Length
Key
Finish
Box Quantity
OL10026D78107
7/8"
KA107
Brushed Chrome
10
OL10026D78915
7/8"
KA915
Brushed Chrome
10
OL10026D78KD
7/8"
KD
Brushed Chrome
10
Strikes
1/2" Bar Strike
White Plastic
Packed 100 per box.

Part Number: OL10055

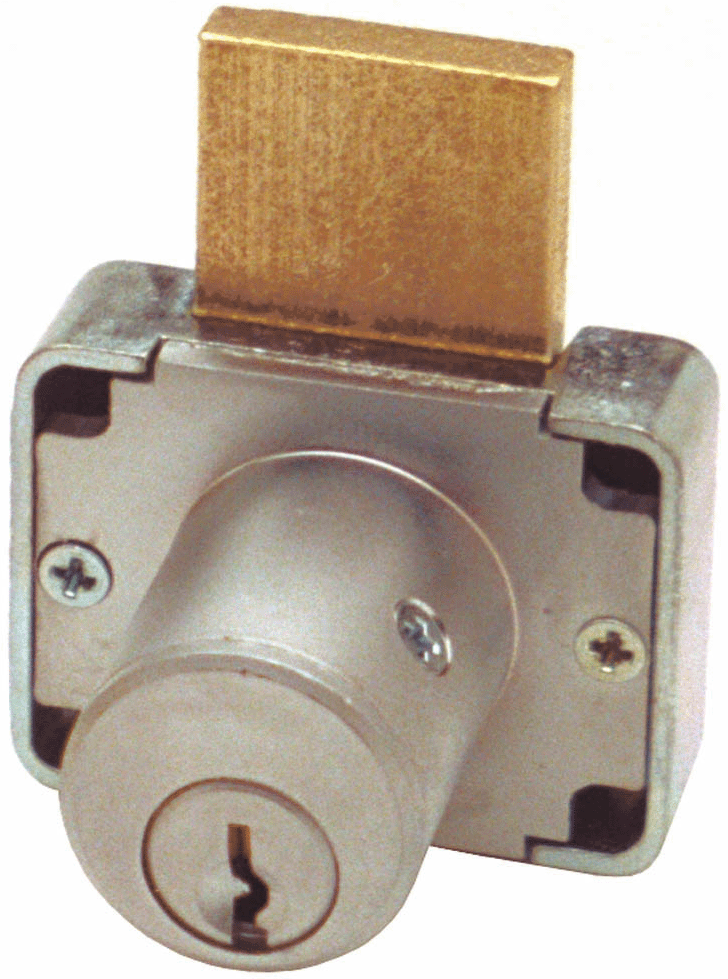

200DW Drawer Lock
Rekeyable.
Barrel Diameter: 7/8"
Includes: 56-1 bar strike.
Available in Oil Rubbed Bronze and Satin Brass.
Angle Strike
Brushed Chrome
Packed 100 per box.

Part Number: OL12326D
Part Number
Barrel Length
Key
Finish
Box Quantity
OL20026D78107
7/8"
KA107
Brushed Chrome
10
OL20026D78915
7/8"
KA915
Brushed Chrome
10
OL20026D78KD
7/8"
KD
Brushed Chrome
10
OL20026D138107
1 3/8"
KA107
Brushed Chrome
10
OL20026D138915
1 3/8"
KA915
Brushed Chrome
10
OL20026D138KD
1 3/8"
KD
Brushed Chrome
10
Heavy Duty Angle Strike
Brushed Chrome
Packed 200 per box.

Part Number: OL12226D

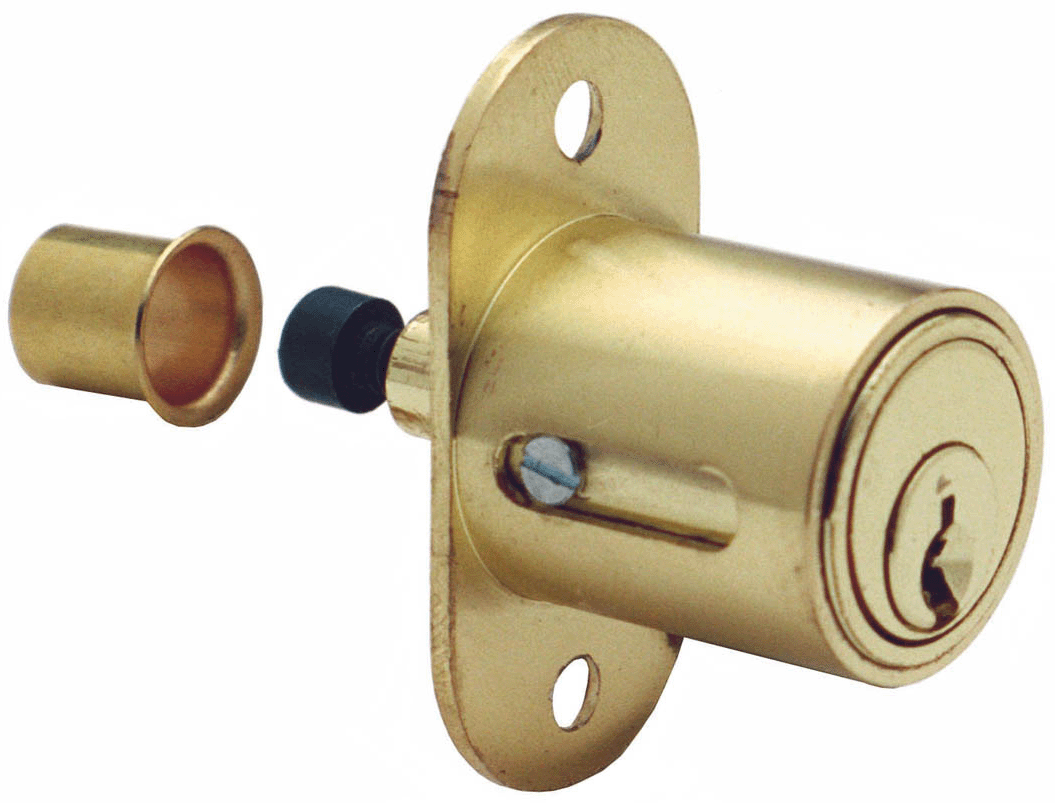

300SD Sliding Door Lock
 Frameless Drawer Strike
Provides a locking point when there is no frame between drawers.
Can be mounted on left or right side of cabinet frame.
Packed 100 per box.

Part Number: OL124ZP
Rekeyable.
Barrel Length: 1"
Barrel Diameter: 1"
Includes: bolt extender, strike locator, and strike sleeve.
Available in Oil Rubbed Bronze and Bright Brass
Part Number
Diameter
Key
Finish
Box Quantity
OL300SD26D78107
1"
KA107
Brushed Chrome
20
OL300SD26D78915
1"
KA915
Brushed Chrome
20
OL300SD26D78KD
1"
KD
Brushed Chrome
20

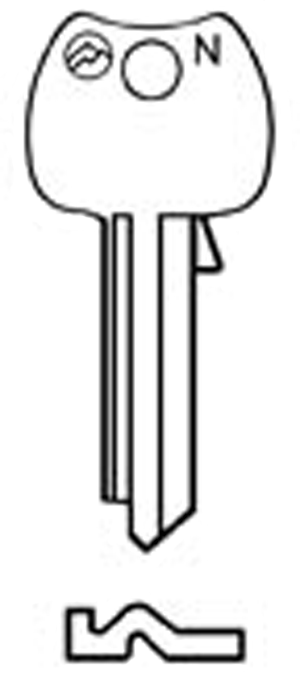

National Keyway Cut Key
Cut master key for National GM2 (5-pin) master key system.
Packed 50 per box.

Part Number: OLKBGM2MKNP

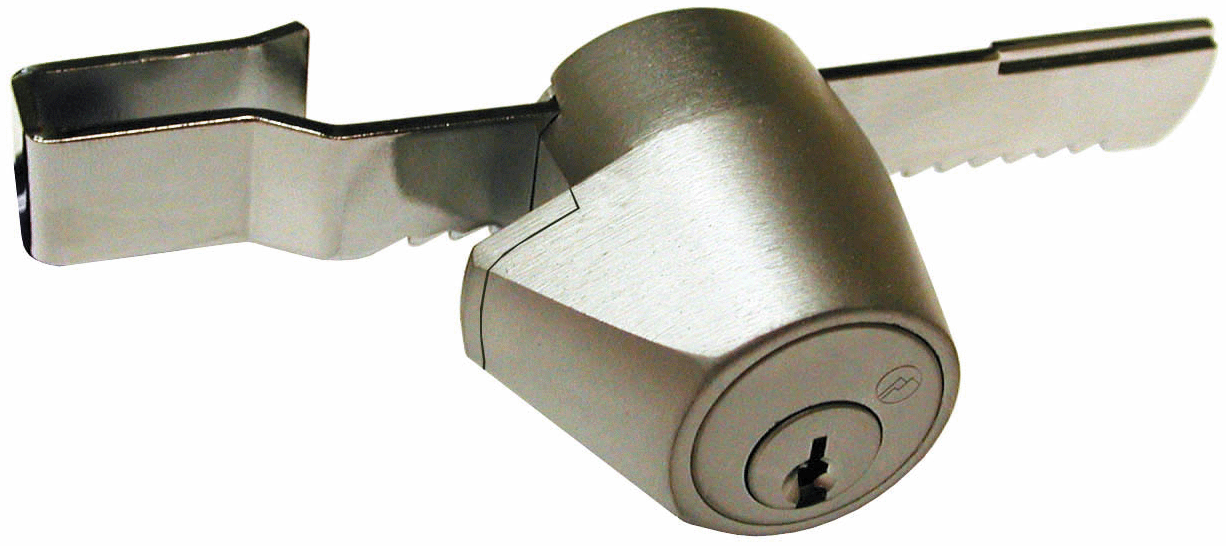

329R Showcase/Ratchet Lock
Rekeyable.
Strap fits 1/4" material.
Part Number
For Material Thickness
Key
Finish
Box
Quantity
OL329R26D915
1/4"
KA915
Brushed Chrome
10
OL329R26KD
1/4"
KD
Brushed Chrome
10
DCN Cam Locks
Rekeyable.
Available in Oil Rubbed Bronze and Bright Brass.
Part Number
For Material Thickness
Key
Finish
Box
Quantity
OLDCN126D915
3/4"
KA915
Brushed Chrome
10
OLDCN126DKD
3/4"
KD
Brushed Chrome
10
OLDCN426D915
1 1/2"
KA915
Brushed Chrome
10
OLDCN426DKD
1 1/2"
KD
Brushed Chrome
10

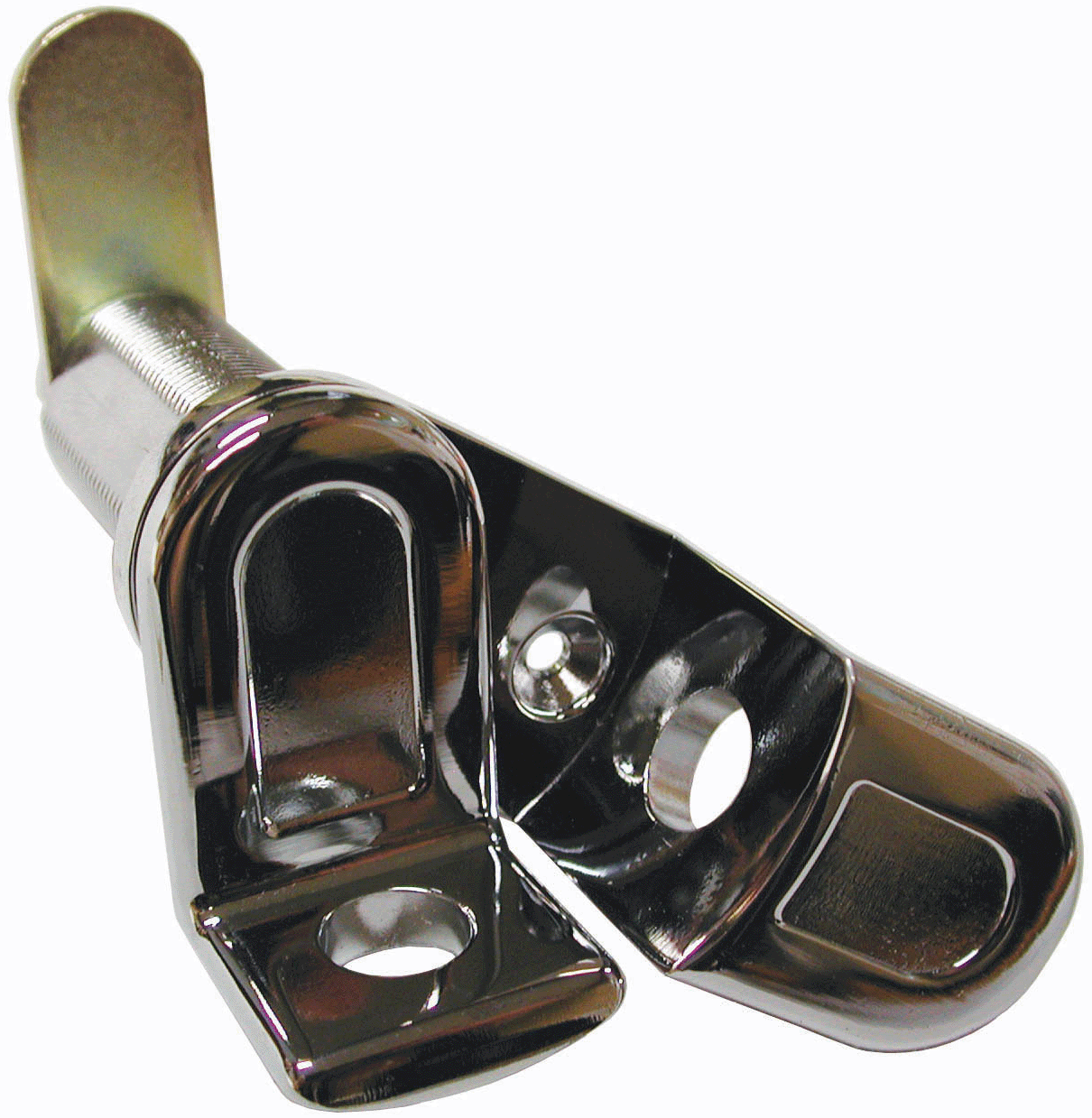

DCP Padlockable Cam Locks
Part Number
Barrel Length
Key
Finish
Box Quantity
OLDCPUS26
1 7/32"
N/A
Polished Chrome
10
OLDCP500US26
1 7/32"
With Pull
Polished Chrome
10
