Lighting
LED Strip Lighting
LED Ribbon Lighting
Dimensions: 12" x 45/64" x 13/32"
18 LEDs offer 108 lumens at 2.8 watts
Dimensions: 16" x 45/64" x 13/32"
25 LEDs offer 148 lumens at 2.88 watts
*120 v - No Transformer Needed
*Bulb life up to 30,000 hours
*Dimmable
*Up to 87% energy savings vs halogen or xenon bulbs
*Cool to the touch
*Requires a power cord, sold separately
1.2 watt per foot
Must use a transformer
Comes with 2 male quick connectors and 2 male solder-on connectors.
Size
Part Number
Light
Color
12" 91DL1123W
Warm
White
12" 91DL1126W
Cool
White
16" 91DL1163W
Warm
White
16" 91DL1166W
Cool
White
Part Number
Description
Light
Box
Quantity
91LEDRROLLCW
16' LED Ribbon Roll
Cool White
1
91LEDRROLLWW
16' LED Ribbon Roll
Warm White
1
LED Under Cabinet Light with 2-Way Switch
LED Ribbon Dimmer
Dimmer is optional
Must also use a transformer
Dimensions 16-11/16" x 2-19/64" x 1-1/64"
56 LEDs offer 336 lumens at 4 watts
Requires a power cord, sold separately
Size
Part Number
Light
Color
16" 91DL2164W
Warm
White
Part Number
Description
Watt
Box
Quantity
91LEDDIMMER2A
12 Volt LED Dimmer DC
24
1
91LEDDIMMER5A
12 Volt LED Dimmer DC
60
1
LED Puck Lights

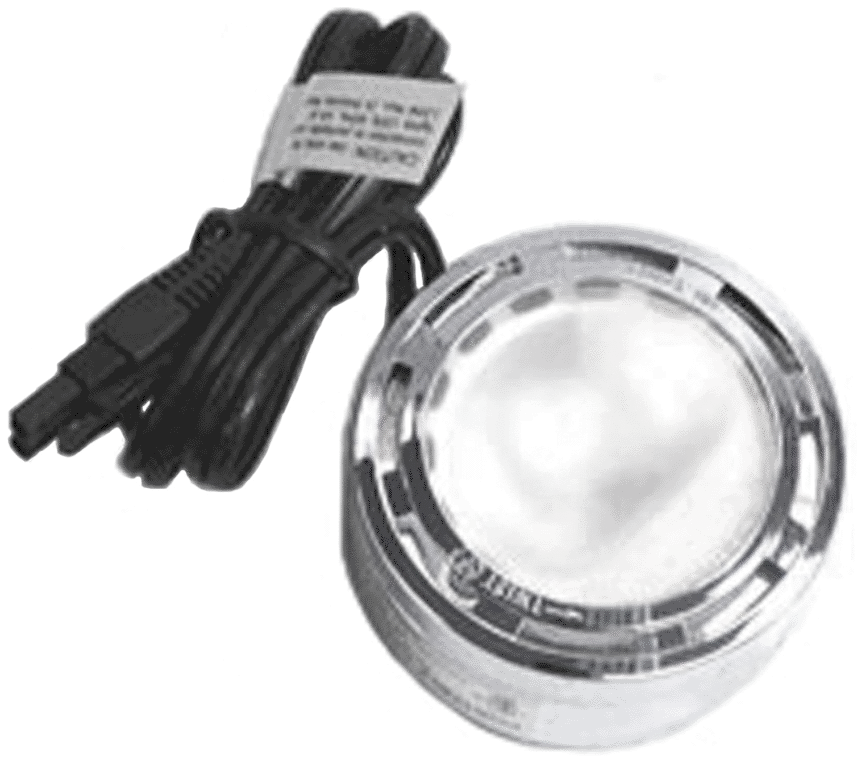

Plastic Puck Light
Surface mount ring diameter
2 3/4" (1 1/32" depth)
Recessed mount ring diameter
2 3/8" (1" depth)
LED Ribbon Magnetic Transformer
To be used with wall dimmer switch
Metal Puck Light
Surface mount ring diameter
2 3/4" (1" depth)
Recessed mount ring diameter
2 3/8" (3/4" depth)
Part Number
Description
Watt
Box
Quantity
91LEDTF12V20W
12 Volt LED Magnetic Transformer
20
1
91LEDTF12V40W
12 Volt LED Magnetic Transformer
40
1
*120 v - No Transformer Needed
*Bulb life up to 30,000 hours
*Dimmable
*Up to 87% energy savings vs halogen or xenon bulbs
*Cool to the touch
*Surface or recessed mounting hardware included
*Plastic 2.5 watt / Steel 1.8 watt
*80 Lumens
*Requires a power cord, sold separately
*Link up to 10 lights in a series
LED Ribbon Transformer
Type
Part Number
Light
Color
Plastic 91DL3703BK
Warm
Black
Plastic 91DL3706BK
Cool
Black
Plastic 91DL3703WH
Warm
White
Plastic 91DL3706WH
Cool
White
Metal 91DL4703SN
Warm
Satin Nickel
Metal 91DL4706SN
Cool
Satin Nickel
Part Number
Description
Watt
Box
Quantity
91LEDTF2A
12 Volt LED Transformer
24
1
91LEDTF5A
12 Volt LED Transformer
60
1
LED Connectors and Power Cords
LED Ribbon Connectors
5" Male Ribbon Connector
6" Female Ribbon Connector
On/Off Switch
Power Cord
Used to connect multiple ribbons together
Part Number
Description
Color
91DL500W Butt Connector
White
91DL512W 12" Connector
White
91DL536W 36" Connector
White
91DL555W On/Off Switch with 4" + 4" Power Cord
White
91DL5601W 6' Power Cord with Switch
White
91DL5600W 6' Power Cord No Switch
White
Part Number
Description
Box
Quantity
91LEDAC907
5" Male Ribbon Connector
1
91LEDAC912
6" Female Ribbon Connector
1

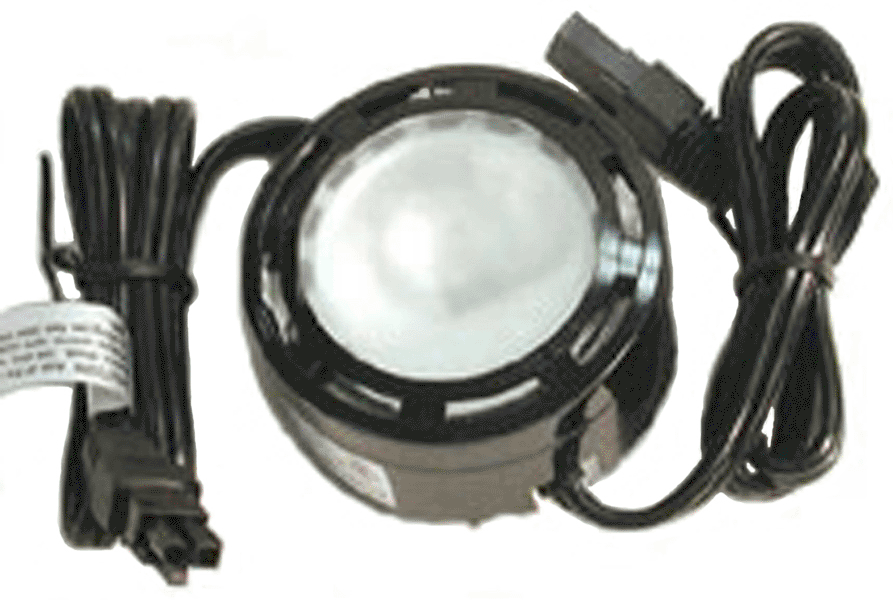

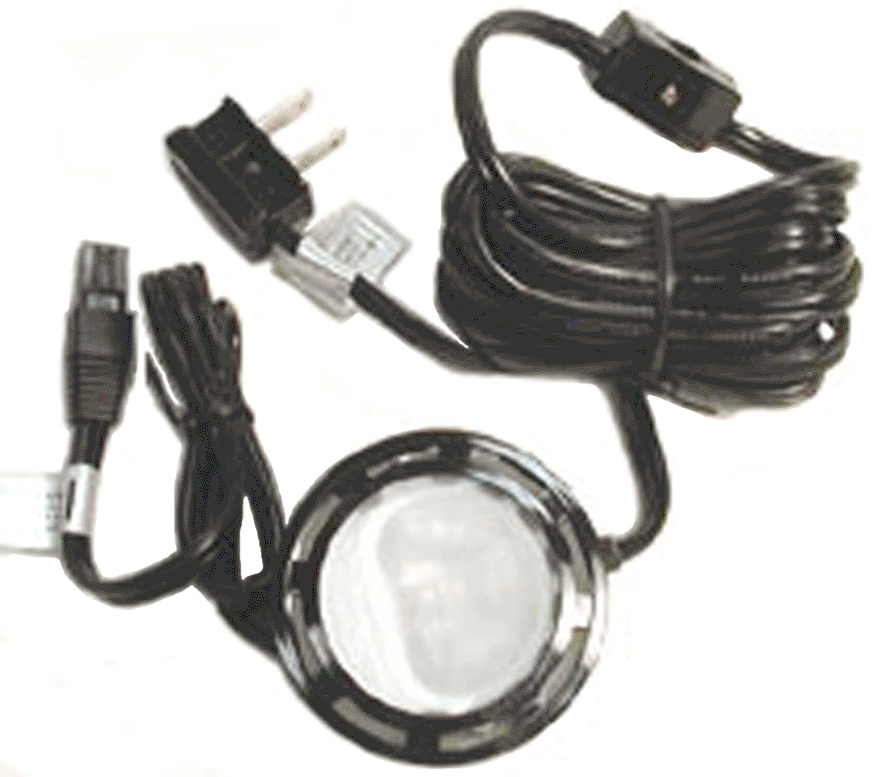

Puck Lights
No Transformer Needed
2 5/8" Hole Needed to Recess Lights
Stocked in Black.
Available in Brass, Chrome, and White

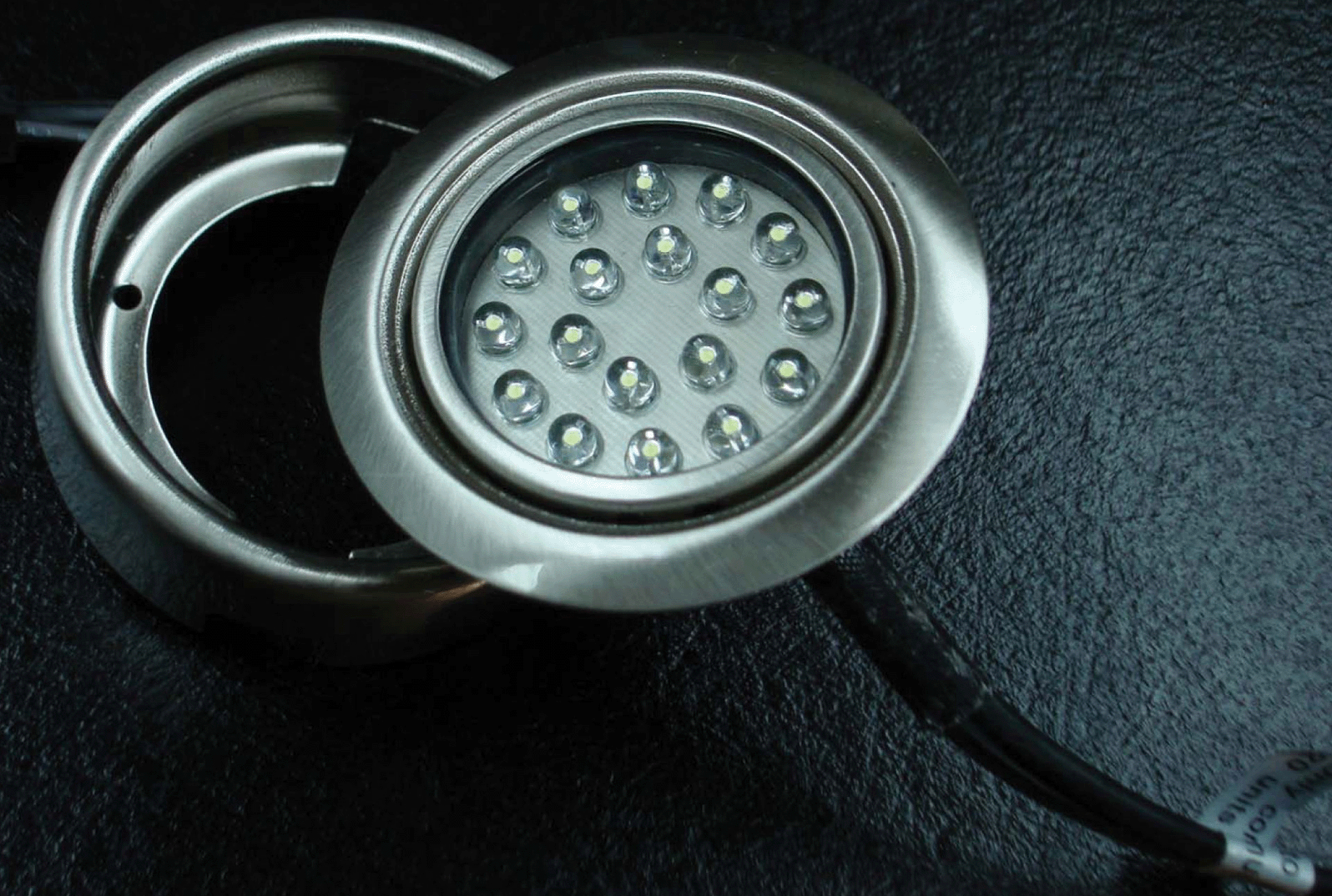

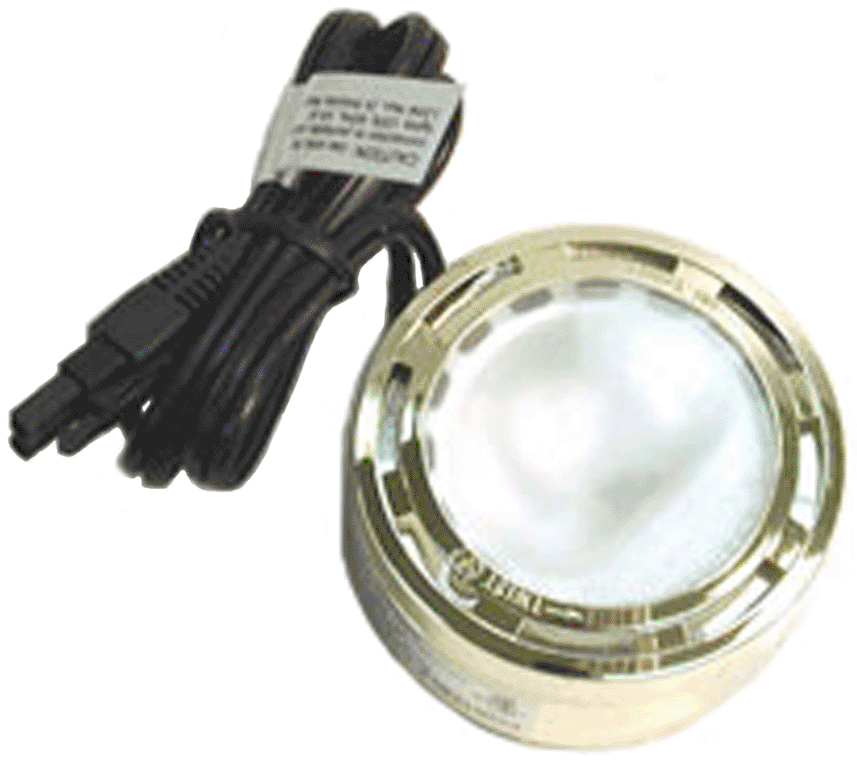

LED Puck Light
120V LED system, no special transformer required. Can be hard wired.
No UV rays
Low energy consumption
Only 1.5 watts total power
Long life over 50,000 hours
Available in 5 colors: White, Black, Brass, Chrome, and Brushed Chrome
Warm white
Fully dimable
2 3/16" hole needed to recess lights.
Link up to 20 lights using one single power supply
91P1121BK3
91P1121BK33
Part Number
Type
Color
91HC512002014
1.5 Watt LED Puck
Black
91HC512002078
1.5 Watt LED Puck
Brushed Chrome
91P1122BK103
Part Number
Type
Color
91P1121BK3
3' Male
Black
91P1121BK33
3' Male 3' Female
Black
91P1122BK103
10' Male 3' Female
Black

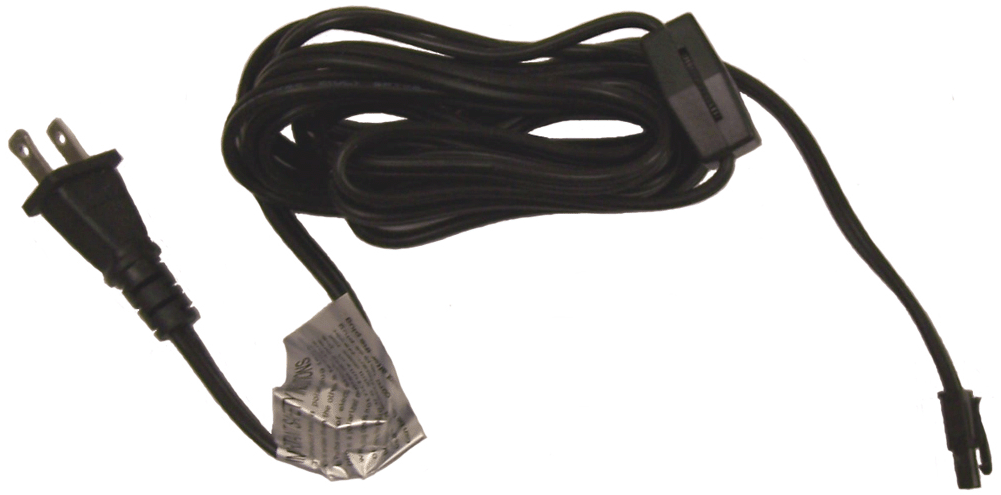

LED Puck Power Cord
10' Power Cord with Roll Switch

Part Number: 91HC513000099

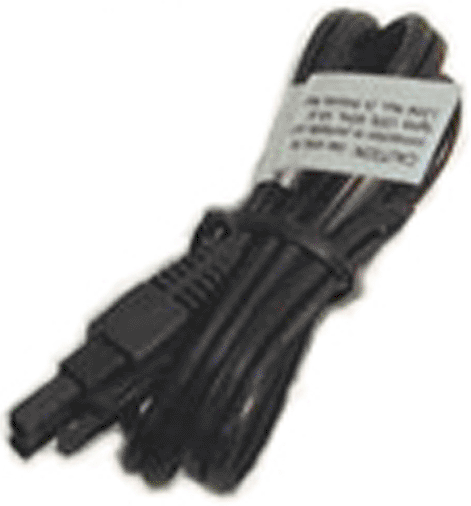

Puck Light Extension
LED Puck Extension
24" extension black.
Use when more space is required.
between lights and transformer.

Part Number: 91AC724BK
36" LED Puck Light Extension

Part Number: 91HC591336
Puck Light Bulb
Control Panel
20 watt, 12 volt halogen bulb.
For Puck Lights.

Part Number: 91PK12020W
The illuminated master switch has an integrated circuit breaker with reset feature to provide overload and short circuit protection.
Extension Cord
Voltage rating 120 volt, 60 hz, 13 amp.
10' black power cord, 14' phone cord.
5 receptacles and 1 phone jack.
Mounts with wood screws and spring clips.

Part Number: 90SLPCH543
6' length.
Stocked in brown.

Part Number: 91WR6MF

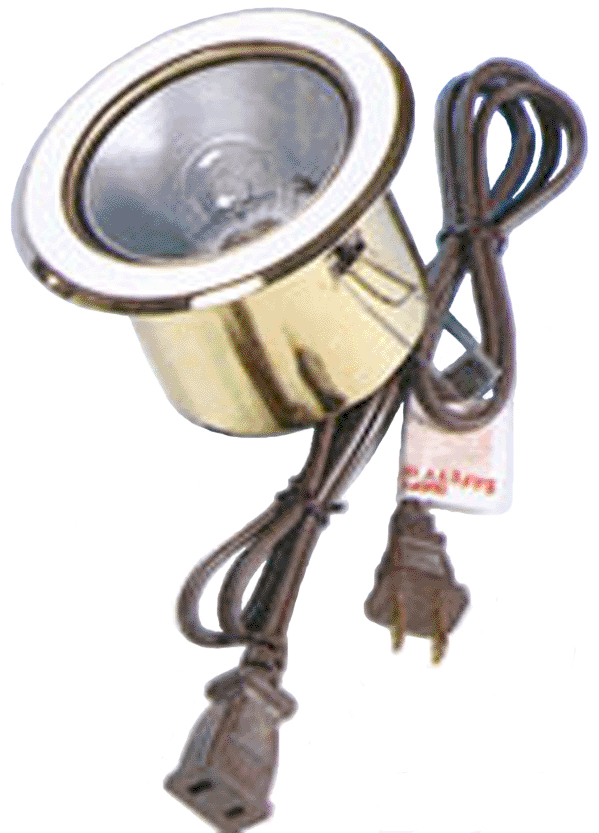

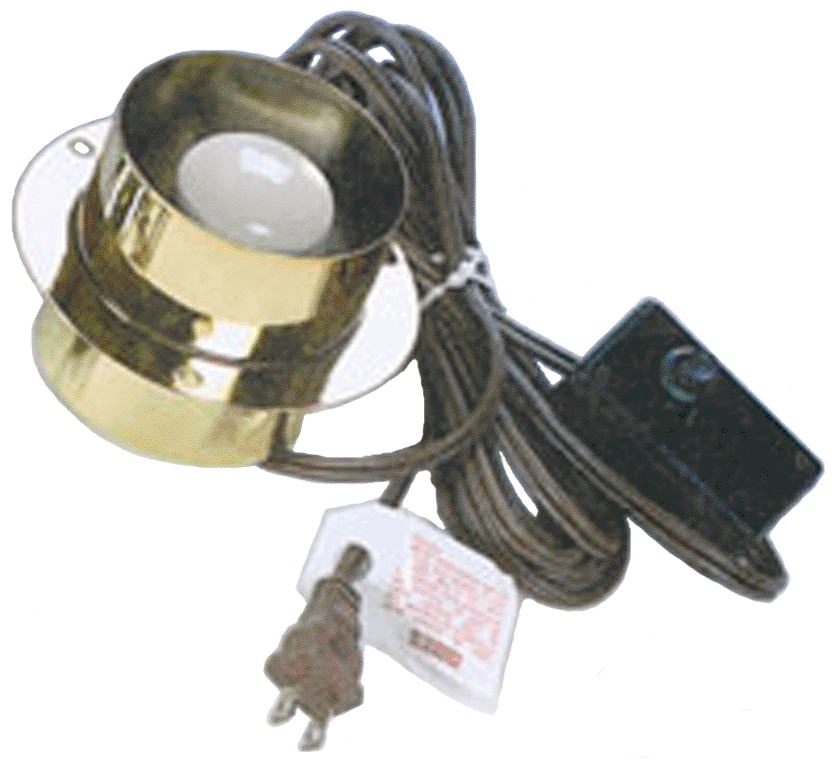

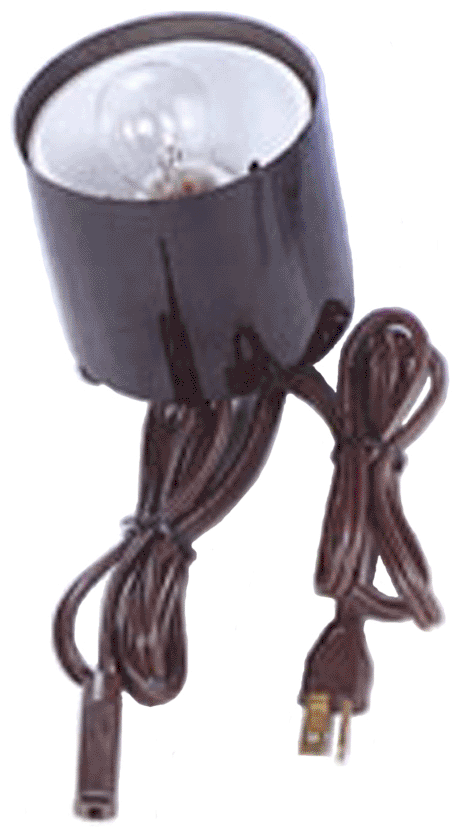

Can Lights
Flange Type
Cord
Brass
Black
White
Box Quantity
Bottom
10' Male
91301R10MFBK 91301R10MFWH
30
Bottom
24" Male
91301R24MF
30
Center
10' Male
24" Female
91302R24F10MF
30
None
10' Male
91300R10MBK
30
None
Double Can
36" Connector
91300R36DBK
30
Electrical Harnesses and Dimmers

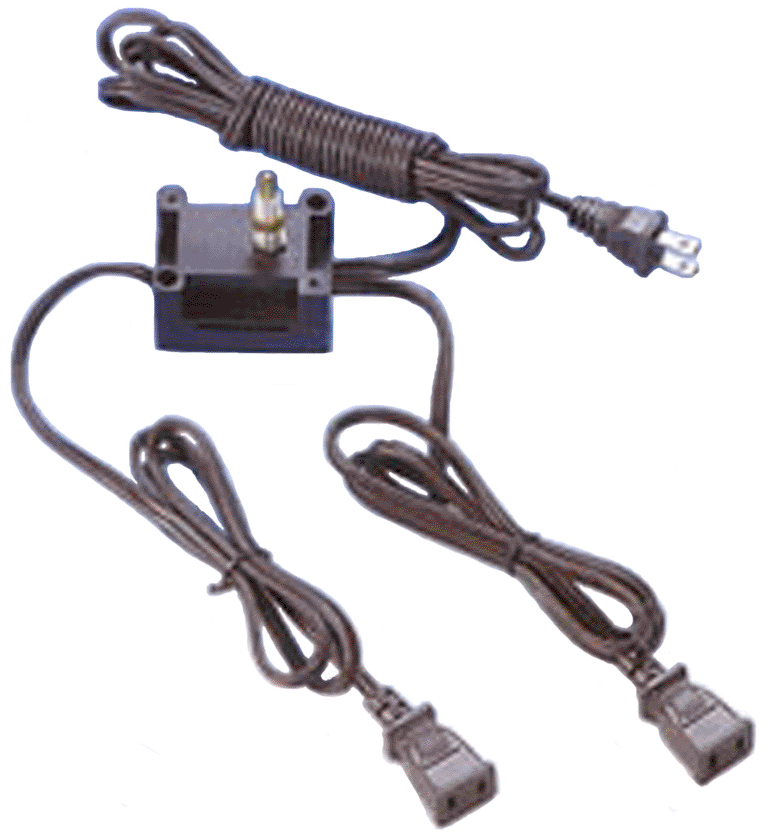

Headboard Harness
Dimmer
Type
Cord Type
Part Number
Headboard Harness With 3-Way Switch
10' Male, 2-24" Female, Controlled by Rotary Dimmer, 2 Grounded Outlets, Telephone Jack Cable, and 3-Way Switch.
91101F24M3W
Touch Dimmer
10' Male 2-24" Female
913A
