Lift & Bed Mechanisms
Selby Cabinet Mounted Double and Queen Size Platform Bed Mechanism

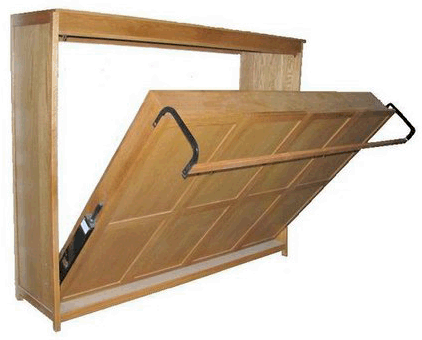

Selby Horizontal Mounted Double and Queen Platform Bed Mechanism
Only the Mechanism is Included
Only the Mechanism is Included
Wood frame is built on back side of door to receive mattress or box spring. Adjustable-tension counterbalanced spring units control decent and assist ascent. Fully mounted inside cabinet, not bolted to the floor! Modified to a horizontal-opening mechanism where taller cabinets are not desired. The control cylinders fasten to the sides of the platform and fit into brackets mounted inside the sidewalls of the cabinet.
Wood frame is built on back side of door to receive mattress or box spring. Adjustable-tension counterbalanced spring units control descent and assist ascent. Fully mounted inside cabinet, not bolted to the floor! Pivoting footrest folds inside cabinet when closed. Cabinet fastens to the wall with a small "L." bracket at top. Cabinet depth only 14"!
Twin Inside Mount - 50 kg
Part Number: 7104XSMVO90I		 85 kg
Part Number: 7104XSMH0140X
Twin Outside Mount - 50 kg
Part Number: 7104XSMVO90
Double/Queen Outside Mount - 75 kg
Part Number: 7104XSMV0547SX		 For more information on the Selby Bed Mechanisms please click on the link below.

Selby Bed Mechanisms
Double/Queen Inside Mount - 110 kg
Part Number: 7104XSMVO138
Double/Queen Outside Mount - 110 kg
Part Number: 7104XSMVO138X
New Wind soft close lift systems from Salice.
Please contact U. S. Industrial Fasteners for more information.
Salice Wind Soft Close Lifts
New Wind soft close lift systems from Salice.
Spring
Minimums
Maximums
W Spring
Min Door Weight: 1.75 lbs
Min Door Height: 8 5/8"
Max Door Weight: 11.5 lbs
Max Door Height: 12 9/16"
D Spring
Min Door Weight: 4 lbs
Min Door Height: 8 5/8"
Max Door Weight: 17 lbs
Max Door Height: 24"
I Spring
Min Door Weight: 10.5 lbs
Min Door Height: 12 9/16"
Max Door Weight: 21 lbs
Max Door Height: 24"
F Spring
Min Door Weight: 18.5 lbs
Min Door Height: 12 9/16"
Max Door Weight: 32 lbs
Max Door Height: 24"
S Spring
Min Door Weight: 26 lbs
Min Door Height: 12 9/16"
Max Door Weight: 41 lbs
Max Door Height: 24"
Part Number
Spring
Box Quantity
65FRAKFEXWSN9
W
1 set
65FRAKFEXDSN9
D
1 set
65FRAKFEXISN9
I
1 set
65FRAKFEXFSN9
F
1 set
65FRAKFEXSSN9
S
1 set
Cover Sets
Part Number
Color
Box Quantity
65SRXA78AMSNXXF
Gray
1 set
65SRXA78A1SNXXF
White
1 set
65SRXA78AiSNXXF
Steel
1 set
Kinvaro
Grass Kinvaro L-80 Parallel Lifter
Set includes: left hand and right hand lifter door mounting brackets and gray cover caps, 1 set of spring tensions and 1 cross bar.
Part Number
For Cabinet Height
Spring
Flap Weight (lbs)
GRF152147441201
390mm - 409mm
A
4.6 - 12.1
GRF152147442201
410mm - 429mm
A
4.2 - 11
GRF152147443201
430mm - 600mm
A
4.4 - 9.9
Face Frame Adapter for L-80
Right and Left with Screws
GRF151135906201
Grass Kinvaro T-65 Lift Up Flap Fitting
Set includes: left hand and right hand Lifter with door mounting brackets and gray cover caps, 1 set of balance springs pre-installed, and 1 extra set of coded springs for alternate weight ranges.
Part Number
Overlay
For
Door Weight (lbs)
Door Width
Door Height
GRF151147682201
Variable
Wood
1.5 - 16.3
up to 47 1/4"
9 27/32" - 23 5/8"
Grass Kinvaro T-71 Lift Up Fitting
Set includes: left hand and right hand Lifter with door mounting brackets and gray cover caps, 1 set of balance springs pre-installed, and 1 extra set of coded springs for alternate weight ranges.
Part Number
Overlay
For
Door Weight (lbs)
Door Width
Door Height
GRF151147696201
Variable
Wood
3.1 - 18.7
up to 47 1/4"
11 13/16" - 23 5/8"
Grass Kinvaro T-76 Lift Up Fitting
Set includes: left hand and right hand Lifter with door mounting brackets and gray cover caps and 1 set of balance springs pre-installed.
Part Number
Overlay
For
Door Weight (lbs)
Door Width
Door Height
GRF151147706201
Variable
Wood
11.5 - 24.25
up to 47 1/4"
15 3/4" - 23 5/8"
Kinvaro Installation Templates
L-80 Drilling Jig
GR0049001
T-65 Drilling Jig
GR0049201
T-71 & T-76 Drilling Jig
GR00493001
Door Template Drilling Jig
GR0049501
5mm Drill Bit
GR0049601
Ferrari - Klok Flip Up Lid Stay
Klok Flip Up Lid Stay
Packed individually.

Part Number: FRLE1GCOOK276
Lid Supports - Self Balancing
Spring Loaded - Carlson Mfg.
To find inch pounds, multiply 1/2 the distance from front to back times the weight of the lid.
Spring Color
Low Limit
High Limit
White
110 lbs
140 lbs
Orange
95 lbs
125 lbs
Yellow
65 lbs
95 lbs
Black
55 lbs
65 lbs
Maroon
45 lbs
55 lbs
Green
40 lbs
45 lbs
Blue
35 lbs
40 lbs
Gray
20 lbs
35 lbs
702 Series
703 Series
Inside mount support holds lid in any position.
Series 702 can be ordered left or right mount.
Stocked in statutory bronze with these springs:
Series 703 mounts to rear of unit (non-handed).
Stocked in statutory bronze with these springs:
Color
Side
Part Number
Blue
Left
7153702BLL
Blue
Right
7153702BLR
Green
Left
7153702GL
Green
Right
7153702GR
Maroon
Left
7153702ML
Maroon
Right
7153702MR
Yellow
Left
7153702YL
Yellow
Right
7153702YR
White
Left
 7153702WL
White
Right
 7153702WR
Color
Part Number
Blue
7153703BL
Orange
7153703O
Yellow
7153703Y
Flap Stay
Flap Stay Nickel
Sold Individually.

Part Number: 7104SX8519METAL
