Salice F70 Heavy Duty Smove Slides
Full extension heavy duty fully synchronized drawer runner.
Face frame assembly with metal socket.
Smove: Fully integrated in the runner, decelerates the closing action of the drawer.
Face frame assembly with metal socket.
Smove: Fully integrated in the runner, decelerates the closing action of the drawer.
* With Smove decelerated system.
* Safety system that prevents the drawers from turning over.
* Drawer height adjustment (+ 3mm).
* Available in 15" to 30" length.
* Compatable with Lineabox drawers.
* Finish: bright zinc-plated.
* 100% made in Italy.
|
Part Number
|
Size
|
Side
|
Box Quantity
|
| 65G7U6S457XXD |
18"
|
Right Hand
|
6 pair
|
| 65G7U6S457XXS |
18"
|
Left Hand
|
6 pair
|
| 65G7U6S533XXD |
21"
|
Right Hand
|
6 pair
|
| 65G7U6S533XXS |
21"
|
Left Hand
|
6 pair
|
| 65G7U6S610CXD |
24"
|
Right Hand
|
6 pair
|
| 65G7U6S610CXS |
24"
|
Left Hand
|
6 pair
|
| 65G7U6S686CXD |
27"
|
Right Hand
|
6 pair
|
| 65G7U6S686CXS |
27"
|
Left Hand
|
6 pair
|
| 65G7U6S762CXD |
30"
|
Right Hand
|
6 pair
|
| 65G7U6S762CXS |
30"
|
Left Hand
|
6 pair
|

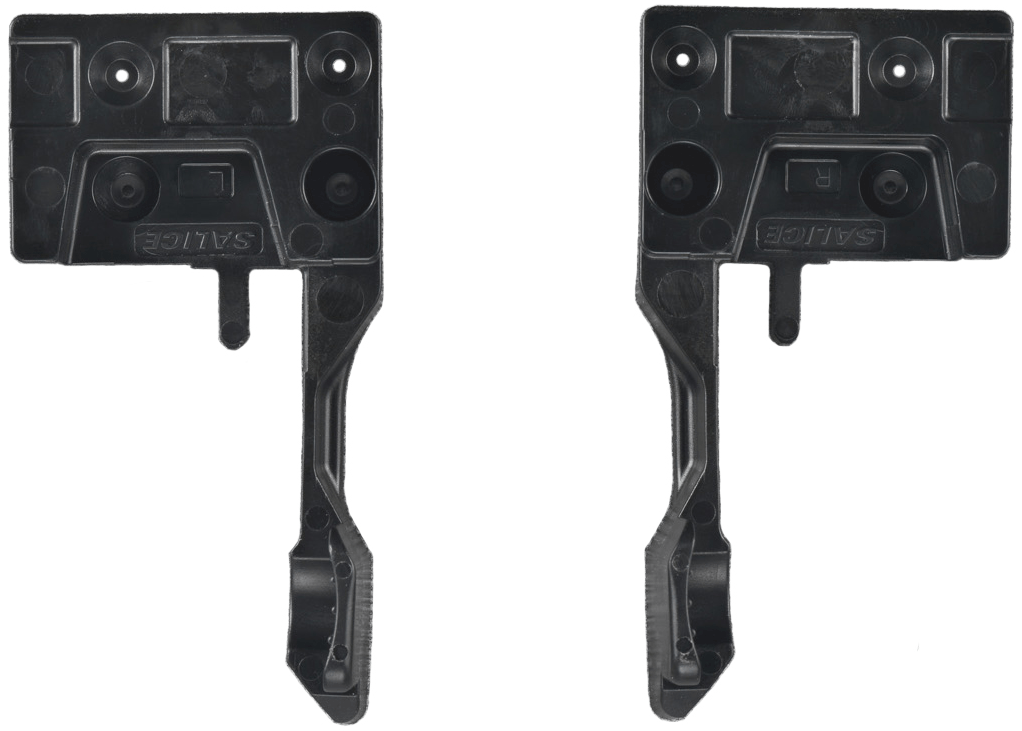

F70 Front Locking Device
F70 Tilt Adjustment Lever
Standard mount - side and depth adjustments.
Dual metal/plastic construction.
Tool free lateral and depth adjustments.
Pre-drilling recommended 2.5mm (3/32")
Right hand and left hand clips.
100 per box.
Right Locking Device Part Number: 65AFCGXX3D
Left Locking Device Part Number: 65AFCGXX3S
Provides +3mm of adjustment to help align drawers.
Works without drawer removal.
100 per box.
Part Number: 65AGLRXX3F

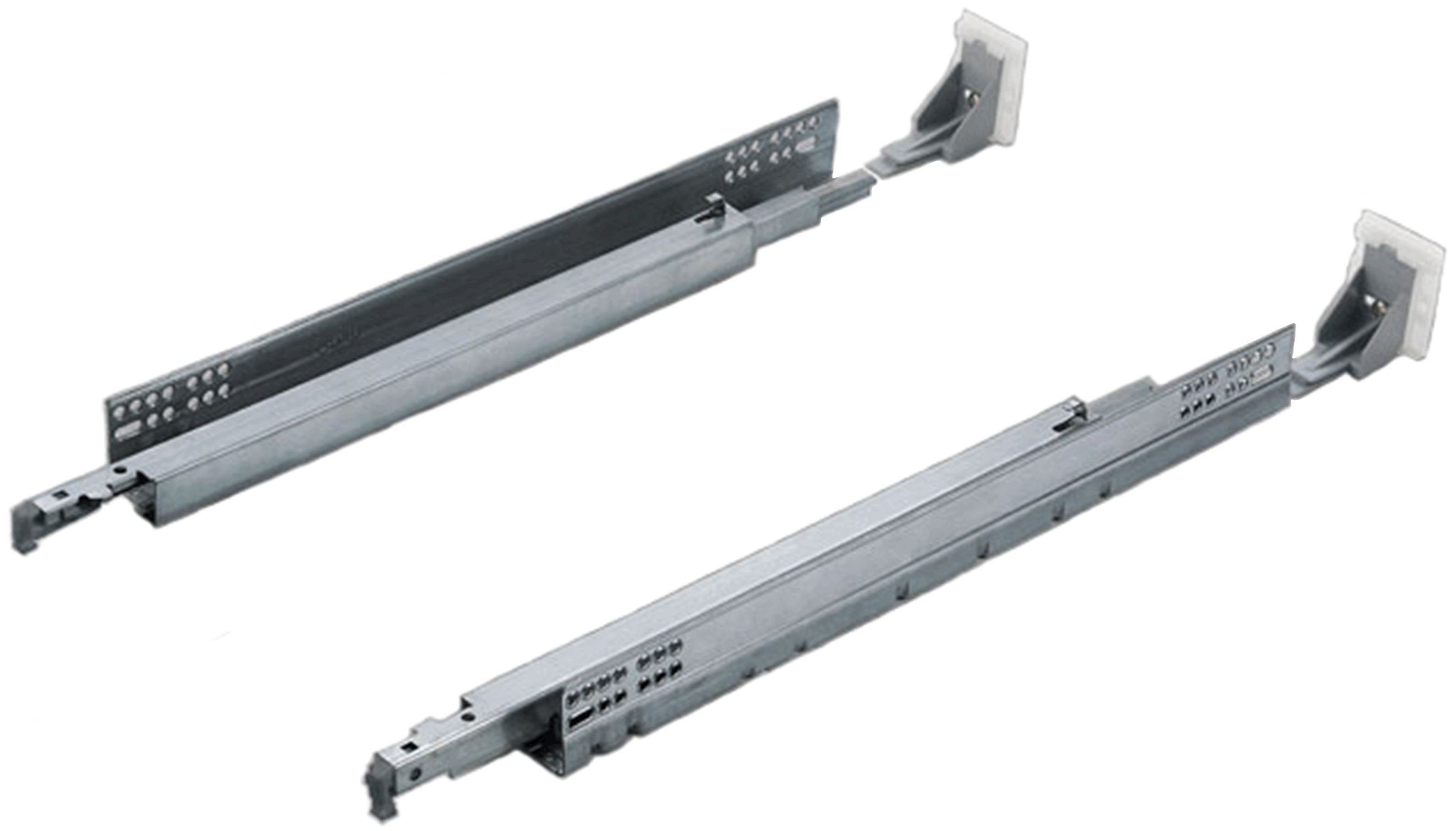

Salice Futura Smove 7555 Slides
Full extension runner fixed to the drawer front by clip.
Smove: Fully integrated in the runner, decelerates the closing action of the drawer.
Smove: Fully integrated in the runner, decelerates the closing action of the drawer.
* Dynamic load capacity N 294 (75 lbs)/100 lbs static.
* With Smove decelerated closing.
* Safety system that prevents the drawers from turning over.
* Drawer height adjustment (+ 3mm).
* Finish: bright zinc-plated.
|
Part Number
|
Size
|
Runner Length
|
Box Quantity
|
| 65A7555229 |
9"
|
239mm/ 9.4"
|
6 pair
|
| 65A7555305 |
12"
|
315mm / 12.4"
|
6 pair
|
| 65A7555381 |
15"
|
391mm / 15.4"
|
6 pair
|
| 65A7555457 |
18"
|
467mm / 18.4"
|
6 pair
|
| 65A7555533 |
21"
|
543mm / 21.4"
|
6 pair
|
Salice Futura Smove 7557
Full extension runner fixed to the drawer front by clip.
Smove: Fully integrated in the runner, decelerates the closing action of the drawer.
Smove: Fully integrated in the runner, decelerates the closing action of the drawer.
* Load capacity: 75 lbs dynamic 100 lbs static
* With push opening system.
* Safety system that prevents the drawers from turning over.
* Drawer height adjustment (+ 3mm).
* Finish: bright zinc-plated
|
Part Number
|
Size
|
Runner Length
|
Box Quantity
|
| 65A7557229 |
9"
|
263mm / 10.4"
|
6 pair
|
| 65A7557305 |
12"
|
315mm / 12.4"
|
6 pair
|
| 65A7557381 |
15"
|
391mm / 15.4"
|
6 pair
|
| 65A7557457 |
18"
|
467mm / 18.4"
|
6 pair
|
| 65A7557533 |
21"
|
543mm / 21.4"
|
6 pair
|
Futura Smove Adjustable Clips
Futura Smove Front Clips
Right hand and left hand clips.
100 per box.
Right Clip Part Number: 65A750010R
Left Clip Part Number: 65A750010L
Right hand and left hand clips.
100 per box.
Right Clip Part Number: 65A710610R
Left Clip Part Number: 65A710610L

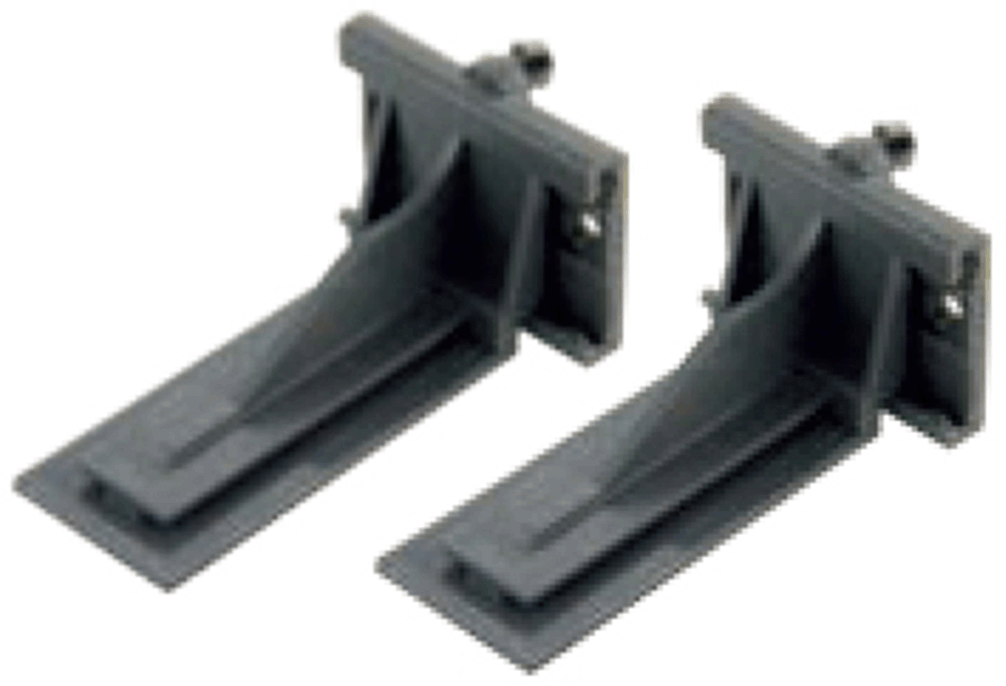

Futura Smove Rear Bracket

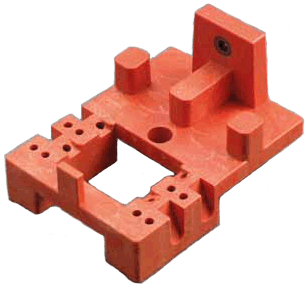

Futura Undermount Jig
Sold individually.
Part Number: 65A199800755010
100 per box.
Part Number: 65AGSKXX5
* Ridges on drawer member and front locking devices for immediate connection
* Support roller for uniform drawer front height
* Easy to open with a low pull-out force 20 N (4.4 lbs)
* Wide drawer member provides stability between cabinet and drawer member
* Wear resistant nylon rollers ensure quiet and precise running characteristics
* Minimal drawer front gap using the integrated 2-D adjustment
* Superior stability provided by 31 mm wide drawer members
* Face frame or frameless application
* Full extension with a synchronized mechanism
* Soft-close damping system
* Maximum connection to drawer slide and front locking device
* Uniform height position of drawer front panel, regardless of weight
* Suitable for drawers up to 48" wide
* Integrated 2-dimensional (height and side) adjustment for alignment
* Height adjustment + 3.5 mm
* Side adjustment +/- 1.5 mm
* 88 lbs load rating (40 kg)
* For 5/8" (16 mm) drawer material
2 Dimensional - Dynapro Soft Close Drawer Systems
|
Part Number
|
Drawer Length
|
Box Quantity
|
| GR1310003 |
9"
|
5 pair
|
| GR1310103 |
12"
|
5 pair
|
| GR1310203 |
15"
|
5 pair
|
| GR1310303 |
18"
|
5 pair
|
| GR1310403 |
21"
|
5 pair
|
3 Dimensional - Dynapro Soft Close Drawer Systems
Full extension with a synchronized mechanism.
Soft-close damping system.
Maximum connection to drawer slide and front locking device.
Integrated 3-dimensional adjustment for alignment.
Height adjustment + 3.5 mm
Side adjustment +/- 1.5 mm
Tilt adjustment + 4.0 mm
88 lbs load rating (40 kg)
* Requires Dynapro Adjustment Adapter
|
Part Number
|
Drawer Length
|
Box Quantity
|
| GRF130100726204 |
12"
|
5 pair
|
| GRF130100727204 |
15"
|
5 pair
|
| GRF130100728204 |
18"
|
5 pair
|
| GRF130100729204 |
21"
|
5 pair
|
Heavy Duty - Dynapro Soft Close Drawer Slides
Full extension with a synchronized mechanism.
Soft-close damping system.
Maximum connection to drawer slide and front locking device.
Integrated 3-dimentional adjustment for alignment.
Height adjustment + 3.5 mm
Side adjustment +/- 1.5 mm
Tilt adjustment + 4.0 mm
132 lbs load rating (60 kg)
* Requires Dynapro Adjustment Adapter
|
Part Number
|
Drawer Length
|
Box Quantity
|
| GRF130100730204 |
18"
|
5 pair
|
| GRF130100731204 |
21"
|
5 pair
|
| GRF130100732204 |
24"
|
5 pair
|
| GRF130101394203 |
27"
|
5 pair
|
| GRF130101395203 |
30"
|
5 pair
|
Dynapro Front Locking Device
Dynapro Narrow Front Locking Device
For standard width drawers
For standard width inset drawers
Minimum inside drawer width 180 mm (7 3/32")
Pre-drilling recommended 2.5mm (3/32")
Packed 200 per box.
Left Front Locking Device
Part Number: GRF134125000233
Right Front Locking Device
Part Number: GRF134125001233
*Limited Supplies on These, Please Call for More Information.
For narrow and standard width drawers
For narrow and standard width inset drawers
Minimum inside drawer width 95mm (3 3/4")
Pre-drilling recommended 2.5mm (3/32")
Packed 200 per box
Left Part Number: GRF134100699233
Right Part Number: GRF134100700233
Dynapro Adjustment Adapters
Dynapro Front Locking Device
Packed 200 per box
Left Part Number: GRF134125002233
Right Part Number: GRF134125003233
For standard width drawers
For standard width insert drawers
Minimum inside drawer width 150mm (5 7/8")
For drawer materials 1/2"(13mm) up to 3/4"(19mm)
For frameless or face frame application
Packed 200 per box
Left Front Locking Device
Part Number: GRF134108947233
Right Front Locking Device
Part Number: GRF134108948233
Dynapro Rear Mount Sockets
Dynapro Drilling Template
Part Number: GR7950VE300
Undermount Soft Close Slides with 3D Locking Device
2 way adjustable.
Lever disconnect.
Loading capacity 90 lbs
|
Part Number
|
Slide Length Inches
|
Finish
|
Box Quantity
|
| PR88009 |
9"
|
Zinc
|
6 sets
|
| PR850012 |
12"
|
Zinc
|
6 sets
|
| PR850015 |
15"
|
Zinc
|
6 sets
|
| PR850018 |
18"
|
Zinc
|
6 sets
|
| PR850021 |
21"
|
Zinc
|
6 sets
|
Rear Bracket for 8500 slide.
Packed 100 per box.
Part Number: PR8500BRKT
Packed 100 per box.
Part Number: PR8500BRKT
Included Locking Device
Advantage Pro 7800 Series
Soft-Close Undermount Slides
|
Part Number
|
Drawer Length
|
Finish
|
Box Quantity
|
| PR780012 |
12"
|
Zinc
|
6 pairs
|
| PR780015 |
15"
|
Zinc
|
6 pairs
|
| PR780018 |
18"
|
Zinc
|
6 pairs
|
| PR780021 |
21"
|
Zinc
|
6 pairs
|
Designed for American 3" increment drawer depth system.
Available with rear metal bracket.
75 lbs capacity, 50,000 cycles per KCMA requirements.

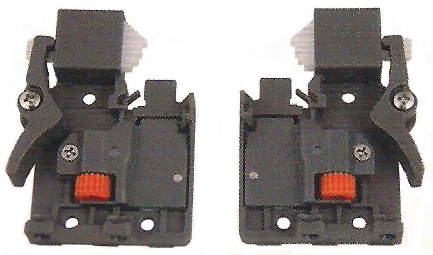

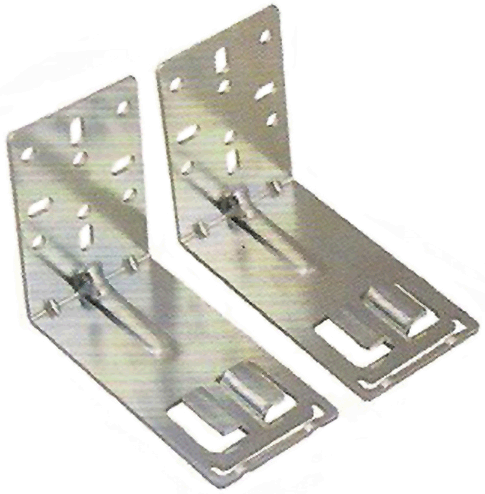

Soft-Close Undermount Clips and Brackets
Soft-Close Undermount Side Bracket
Packed 100 per box.
Part Number: PR7800EUBRKT
"Impaz" is the complete solution for all your cabinet drawer needs.
Drawer System
"Impaz" offers unique features:
*Steel drawer side panels
*Self closing
*Epoxy coated
*Two way front adjustments
*Clip-on front brackets
*RTA assembly (no machines required)
*Single extension
*Load capacity 25 kg/55 lbs
*Smooth rolling mechanism
*Double out-stop safety feature
*Locked-in position when extended
|
Part Number
|
Length
|
Height
|
Color
|
Box Quantity
|
| FU4021400 |
400mm 16"
|
3.3"
|
White
|
10
|
| FU4021450 |
450mm 18"
|
3.3"
|
White
|
10
|
| FU4021500 |
500mm 20"
|
3.3"
|
White
|
10
|
| FU4021550 |
550mm 22"
|
3.3"
|
White
|
10
|
| FU4321400 |
400mm 16"
|
4.6"
|
White
|
5
|
| FU4321450 |
450mm 18"
|
4.6"
|
White
|
5
|
| FU4321500 |
500mm 20"
|
4.6"
|
White
|
5
|
| FU4321550 |
550mm 22"
|
4.6"
|
White
|
5
|
| FU4621400 |
400mm 16"
|
5.8"
|
White
|
5
|
| FU4621450 |
450mm 18"
|
5.8"
|
White
|
5
|
| FU4621500 |
500mm 20"
|
5.8"
|
White
|
5
|
| FU4621550 |
550mm 22"
|
5.8"
|
White
|
5
|
2. Drawers sides left & right
3. Front fixing brackets (Sold Separately)
4. Cover caps (Sold Separately)
Front Fixing Bracket - Clip-On
Drawer Front Marking Jigs
|
Type
|
Right
|
Left
|
| Screw-On |
FU16040R
|
FU16040L
|
Part Number: FU91040
Railing Marking Template
Part Number: FU93000
Part Number: FU92404
*Slim 13mm width side.
*Integrated height and side adjustment, tilt adjustment at back.
*Tool-free assembly.
*Works exclusively with Dynapro.
*Maximum drawer width 48".
*For frame and frameless cabinetry.
*Stocking in 15" (381mm), 18" (457mm) and 21" (533mm) lengths.
*Stocking in 3 1/2" (88mm), 4 3/4" (121mm), 7 1/4" (185mm) and 9 3/4" (249mm) heights
H89
H185
|
Part Number
|
Description
|
Finish
|
Box Quantity
|
| GRF135121353211 | 89mm x 381mm (15") Vionaro |
Graphite
|
10 pair
|
| GRF135121356211 | 89mm x 457mm (18") Vionaro |
Graphite
|
10 pair
|
| GRF135121359211 | 89mm x 533mm (21") Vionaro |
Graphite
|
10 pair
|
|
Part Number
|
Description
|
Finish
|
Box Quantiy
|
| GRF135121553207 | 185mm x 381mm (15") Vionaro |
Graphite
|
10 pair
|
| GRF135121556207 | 185mm x 457mm (18") Vionaro |
Graphite
|
10 pair
|
| GRF135121559207 | 185mm x 533mm (21") Vionaro |
Graphite
|
10 pair
|
H121
H249
|
Part Number
|
Description
|
Finish
|
Box Quantity
|
| GRF135135059207 | 121mm x 381mm (15") Vionaro |
Graphite
|
10 pair
|
| GRF135135062207 | 121mm x 457mm (18") Vionaro |
Graphite
|
10 pair
|
| GRF135135065207 | 121mm x 533mm (21") Vionaro |
Graphite
|
10 pair
|
|
Part Number
|
Description
|
Finish
|
Box Quantity
|
| GRF135135086207 | 249mm x 381mm (15") Vionaro |
Graphite
|
10 pair
|
| GRF135135089207 | 249mm x 457mm (18") Vionaro |
Graphite
|
10 pair
|
| GRF135135092207 | 249mm x 533mm (21") Vionaro |
Graphite
|
10 pair
|
Set Includes:
2 - Cover Caps
1 - Front Locking Device Set Left/Right
2 - Front Connectors
4 - Front Connector Screws
1 - Front Bottom Connector
2 - End Cap
Graphite
Packed 50 per Box
Part Number: GRF136100278517
Set Includes
2 - Cover Caps
1 - Front Locking Device Set Left/Right
2 - Front Connectors
4 - Front Connector Screws
1 - Front Bottom Connector
2 - End Cap
Graphite
Packed 50 per Box
Part Number: GRF136100319517
Set Includes:
2 - Front Connectors with 10mm Dowels
2 - Interior Cover Caps
Packed 50 per Box
Gray Part Number: GRF136106491517
Graphite Part Number: GRF136106492517
Set Includes:
2 - Front Connectors with 10mm Dowels
2 - Interior Cover Caps
2 - Front Stabilizers with 8mm Dowels
Packed 50 per Box
Gray Part Number: GRF136106493517
Graphite Part Number: GRF136106494517
Graphite
Packed 10 per Box
Part Number: GRF136120538507
Graphite
Packed 10 per Box
Part Number: GRF136120539507
*Ball bearing telescopic full extension.
*Hold-in detent ensures drawer stay closed.
*Easy lever disconnect for removal of drawer box from cabinet member.
*Drawer side - white epoxy finish; Drawer slide - zinc coated steel.
*Load capacity: 100 lb dynamic, 100 lb static.
*Adjustments: Cam Height +/-2mm. Side +/-1.5mm.
6023
6423
|
Part Number
|
Description
|
Drawer Slide Side Height
|
Finish
|
Box Quantity
|
| GR3006303 | 350mm/13 3/4" ZBox Slide |
3 3/8"
|
White
|
5 sets
|
| GR3006403 | 400mm/15 3/4" ZBox Slide |
3 3/8"
|
White
|
5 sets
|
| GR3006503 | 470mm/18 1/2" ZBox Slide |
3 3/8"
|
White
|
5 sets
|
| GR3006703 | 550mm/21 5/8" ZBox Slide |
3 3/8"
|
White
|
5 sets
|
|
Part Number
|
Description
|
Drawer Slide Side Height
|
Finish
|
Box Quantity
|
| GR3007803 | 350mm/13 3/4" ZBox Slide |
8 3/8"
|
White
|
5 sets
|
| GR3007903 | 400mm/15 3/4" ZBox Slide |
8 3/8"
|
White
|
5 sets
|
| GR3008003 | 470mm/18 1/2" ZBox Slide |
8 3/8"
|
White
|
5 sets
|
| GR3008303 | 550mm/21 5/8" ZBox Slide |
8 3/8"
|
White
|
5 sets
|
6223
|
Part Number
|
Description
|
Drawer Slide Side Height
|
Finish
|
Box Quantity
|
| GR3007303 | 350mm/13 3/4" ZBox Slide |
5 7/8"
|
White
|
5 sets
|
| GR3007403 | 400mm/15 3/4" Zbox Slide |
5 7/8"
|
White
|
5 sets
|
| GR3007503 | 470mm/18 1/2" ZBox Slide |
5 7/8"
|
White
|
5 sets
|
| GR3007703 | 550mm/21 5/8" ZBox Slide |
5 7/8"
|
White
|
5 sets
|
Integrated drawer slide and side panel.
Self-closing feature with 60mm (2 5/8") self-closing range.
Includes built-in drawer front adjustment and bumpers.
Doweled for rapid assembly.
Adapts to frame or frameless construction.
Available in white baked-on epoxy finish.
Zargen 6036
|
Part Number
|
Description
|
Drawer Slide Side Height
|
Color
|
Box Quantity
|
| GR1189504 |
270 mm/ 10 5/8" Zargen 6036 Slide
|
3 3/8"
|
White
|
5 sets
|
| GR1189604 |
350 mm/ 13 3/4" Zargen 6036 Slide
|
3 3/8"
|
White
|
5 sets
|
| GR1284904 |
400 mm/ 15 3/4" Zargen 6036 Slide
|
3 3/8"
|
White
|
5 sets
|
| GR1285004 |
440 mm/ 17 3/8" Zargen 6036 Slide
|
3 3/8"
|
White
|
5 sets
|
| GR1285104 |
470 mm/ 18 1/2" Zargen 6036 Slide
|
3 3/8"
|
White
|
5 sets
|
| GR1285204 |
510 mm/ 20 1/16" Zargen 6036 Slide
|
3 3/8"
|
White
|
5 sets
|
| GR1190104 |
550 mm/ 21 5/8" Zargen 6036 Slide
|
3 3/8"
|
White
|
5 sets
|
Zargen 6136
|
Part Number
|
Description
|
Drawer Slide Side Height
|
Color
|
Box Quantity
|
| GR2290603 |
350 mm/ 13 3/4" Zargen 6136 Slide
|
4 5/8"
|
White
|
5 sets
|
| GR2290703 |
400 mm/ 15 3/4" Zargen 6136 Slide
|
4 5/8"
|
White
|
5 sets
|
| GR2270003 |
440 mm/ 17 3/8" Zargen 6136 Slide
|
4 5/8"
|
White
|
5 sets
|
| GR2270103 |
470 mm/ 18 1/2" Zargen 6136 Slide
|
4 5/8"
|
White
|
5 sets
|
| GR2270203 |
510 mm/ 20 1/16" Zargen 6136 Slide
|
4 5/8"
|
White
|
5 sets
|
| GR2270303 |
550 mm/ 21 5/8" Zargen 6136 Slide
|
4 5/8"
|
White
|
5 sets
|
Zargen 6236
|
Part Number
|
Description
|
Drawer Slide Side Height
|
Color
|
Box Quantity
|
| GR2290803 |
350 mm/ 13 3/4" Zargen 6236 Slide
|
5 7/8"
|
White
|
5 sets
|
| GR2290903 |
400 mm/ 15 3/4" Zargen 6236 Slide
|
5 7/8"
|
White
|
5 sets
|
| GR2270403 |
440 mm/ 17 3/8" Zargen 6236 Slide
|
5 7/8"
|
White
|
5 sets
|
| GR2270503 |
470 mm/ 18 1/2" Zargen 6236 Slide
|
5 7/8"
|
White
|
5 sets
|
| GR2270603 |
510 mm/ 20 1/16" Zargen 6236 Slide
|
5 7/8"
|
White
|
5 sets
|
| GR2270703 |
550 mm/ 21 5/8" Zargen 6236 Slide
|
5 7/8"
|
White
|
5 sets
|
Zargen 6436
|
Part Number
|
Description
|
Drawer Slide Side Height
|
Color
|
Box Quantity
|
| GR2291003 |
350 mm/ 13 3/4" Zargen 6436 Slide
|
8 3/8"
|
White
|
5 sets
|
| GR2291103 |
400 mm/ 15 3/4" Zargen 6436 Slide
|
8 3/8"
|
White
|
5 sets
|
| GR2270803 |
440 mm/ 17 3/8" Zargen 6436 Slide
|
8 3/8"
|
White
|
5 sets
|
| GR2270903 |
470 mm/ 18 1/2" Zargen 6436 Slide
|
8 3/8"
|
White
|
5 sets
|
| GR2271003 |
510 mm/ 20 1/16" Zargen 6436 Slide
|
8 3/8"
|
White
|
5 sets
|
| GR2271103 |
550 mm/ 21 5/8" Zargen 6436 Slide
|
8 3/8"
|
White
|
5 sets
|
U.S. Industrial Fasteners Phone: 480-967-8702 / Toll Free 800-289-5386
2026 East Cedar Street Tempe, Arizona 85281
2026 East Cedar Street Tempe, Arizona 85281
