Connecting Fittings
Striplox Connectors
Camfix - System 6
#20 Griplox Biscuits
Packed 200 per Box
Part Number: SLBISCUIT20
Size
Type
Part Number
Color
Case Quantity
19mm
Drop-On
6706397AW
Antique White
1,250
19mm
Drop-On
6706397CA
Candlelight
1,250
19mm
Drop-On
6706397KA
Brown
1,250
19mm
Drop-On
6706397LA
Black
1,250
19mm
Drop-On
6706397MB
Almond
1,250
19mm
Drop-On
6706397SI
Silver
1,250
19mm
Drop-On
6706397WA
White
1,250

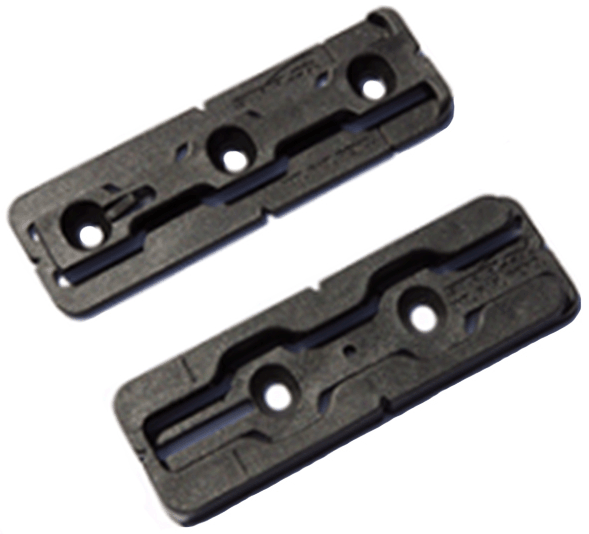

Striplox Pro 23
3 1/2" Length
200-350 lb load capacity
Packed 100 per Box
Part Number: SL101023103
Camfix - System 6
Striplox Pro 55
4 31/32" Length
230-440 lb load capacity
Packed 50 per Box
Part Number: SL101055103
Size
Type
Part Number
Color
Case Quantity
16mm
Drop-On
6706383CL
Brown
2,500
16mm
Drop-On
6706383LA
Black
2,500
16mm
Drop-On
6706383WA
White
2,500
19mm
Drop-On
6706387CL
Brown
2,500
19mm
Drop-On
6706387LA
Black
2,500
19mm
Drop-On
6706387MB
Almond
2,500
19mm
Drop-On
6706387WA
White
2,500

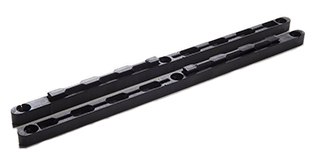

Striplox Megalox
10" Length
330-650 lb load capacity
Packed 50 per Box
Part Number: SL106241103
Quickfit Dowel - System 6
Striplox Clip 50
200-275 lb load capacity
Packed 100 per Box
Part Number: SL104050103
Part Number
Length
Thread Size
Color
Case Quantity
6706408YA
12mm
5mm
Gray
5,000

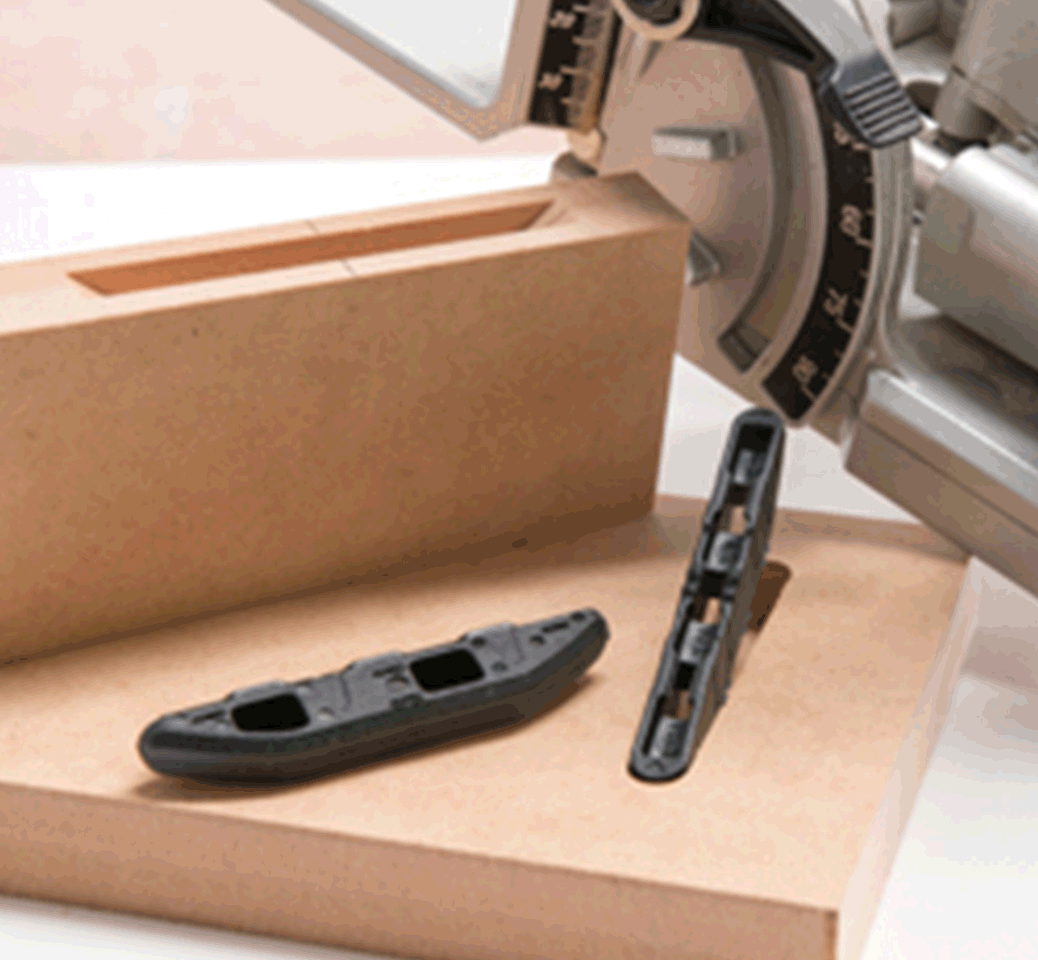

Striplox Mini 60 Joiner
Packed 200 per Box
Part Number: SL102060103
Klix Euro Dowel - System 6

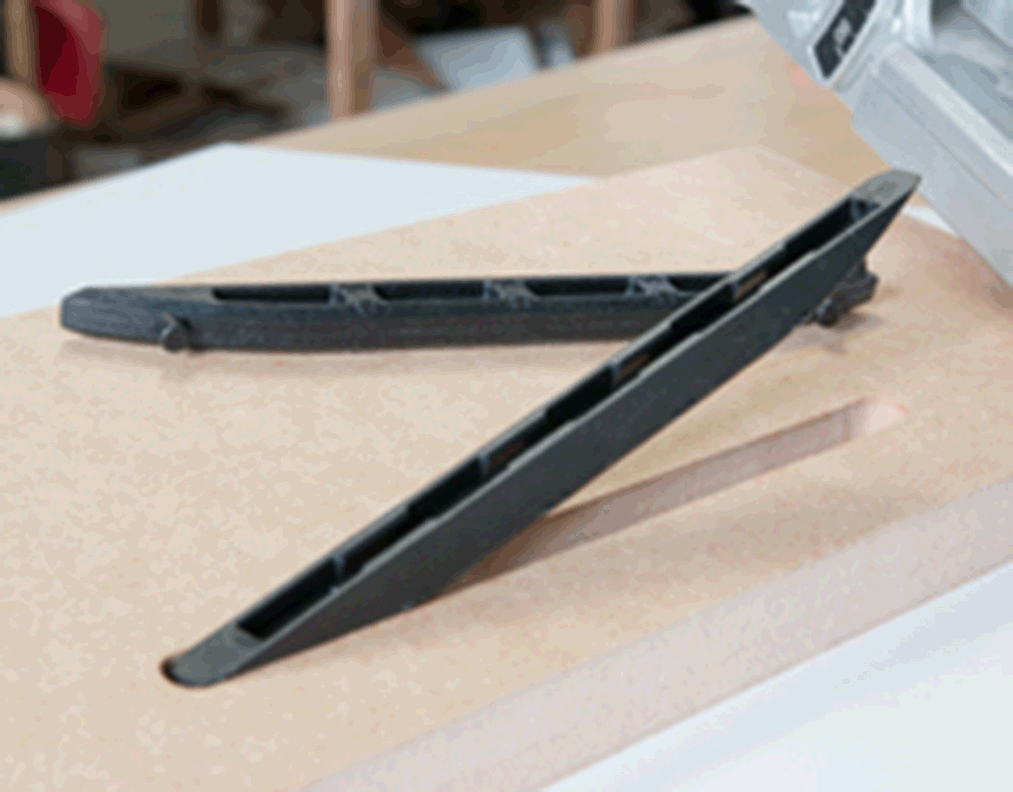

Striplox Mini 120 Joiner
Packed 100 per Box
Part Number: SL102120103
Part Number
Length
Hole Size
Color
Case Quantity
6706406ZN
11mm
5mm
Zinc
5,000

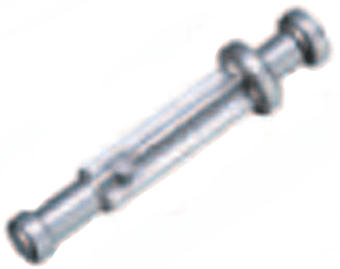

Double Dowel - System 6
Striplox 180D
440-500 lb load capacity
Packed 20 per Box
Part Number: SL105114103
Part Number
Length
Hole Size
Color
Case Quantity
6706416ZN
19mm
3mm or 5mm
Zinc
2,500

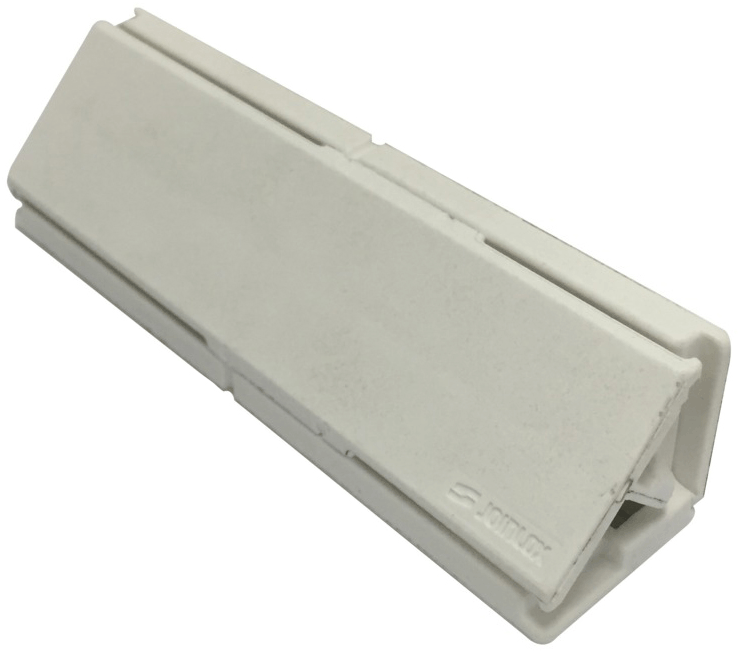

Striplox 90D 98mm
Right Angle Joiner
Packed 50 per Box

Black Part Number: SL103098103

White Part Number: SL103098203

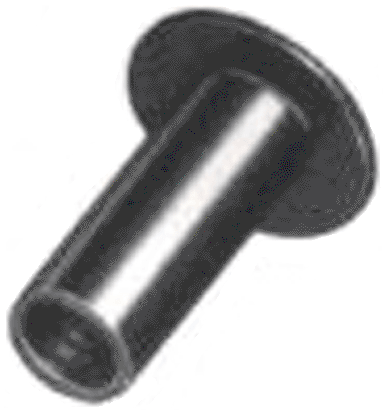

Binding Posts & Screws
Stocked in aluminum.
Posts
Striplox Accessories
Size
Part Number
Weight Pounds/M
Carton Quantity
8-32 x 1/4 3528080437
1.72
1,000
8-32 x 3/8 3528080637
2.13
1,000
7mm Router Bit
Packed 10 per Box
Part Number: SL160007107

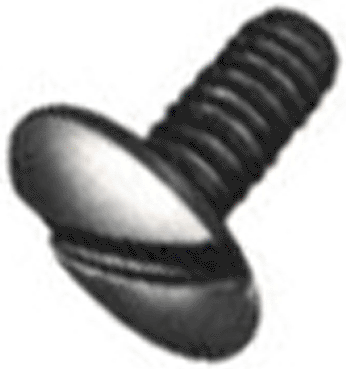

Screws
Size
Part Number
Weight Pounds/M
Carton Quantity
8-32 x 3/8 3528080637S
2.13
1,000
Liquidlox 20 grams
Adhesive compatible with all Striplox assembly products.
Packed 10 per Box
Part Number: SL170020012

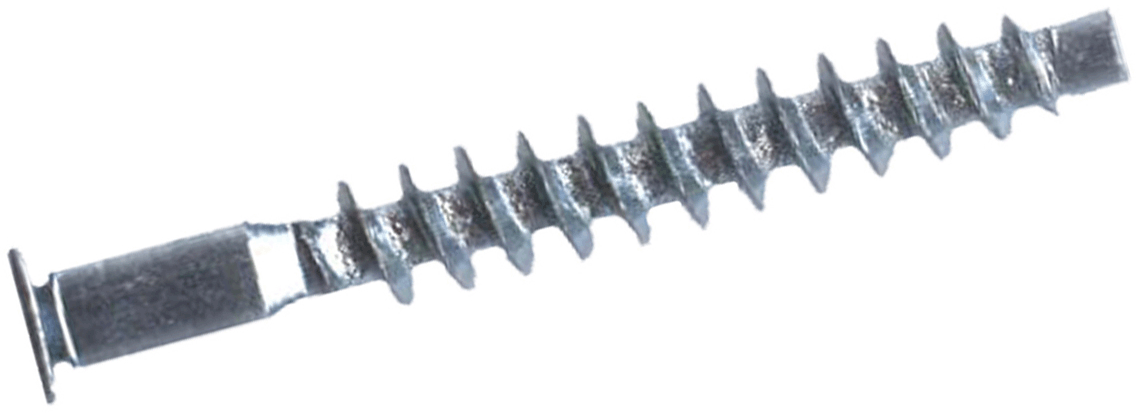

Confirmat Connector Screw
Stocked in zinc.
Size
Part Number
5mm x 40mm 7326437098
7mm x 50mm 7326442197
7mm x 50mm
with Nibs and Sharp Point
7326444190
7mm x 70mm 7326442295
Mark-Out Template
Packed 10 per Box
Part Number: SL150000004

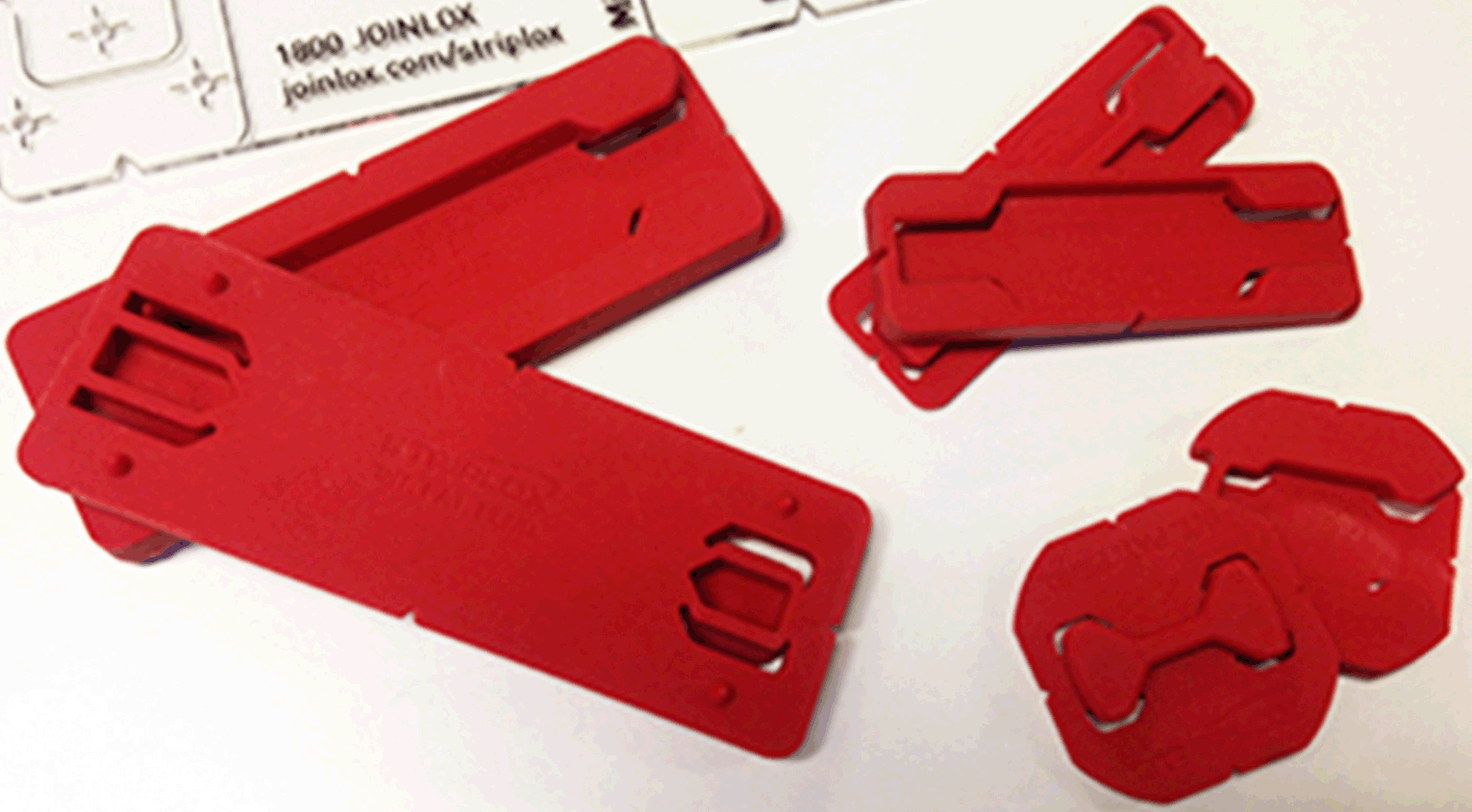

Pro Jig Sets
Packed 12 per Box

Pro 23 Part Number: SL180023303

Pro 55 Part Number: SL180055303

Clip 50 Part Number: SL180050303

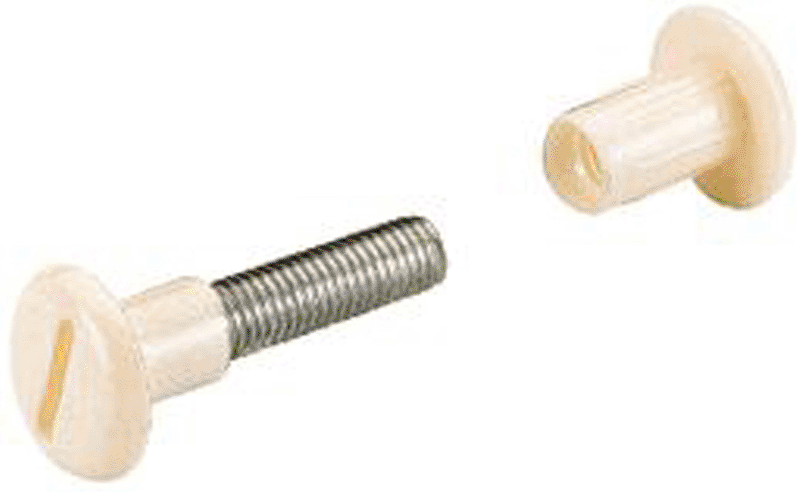

Thread Connectors

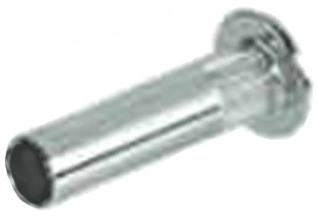

Sleeve with Screw End
Size
Part Number
For Wood Thickness
4mm x 31.5mm 631072393
35mm - 38mm
Additional Screws
Size
Part Number
4mm x 11.5mm 631006621
Plastic Leveler
92mm-150mm
Black
Packed 200 per case.

Part Number: 6702666LA

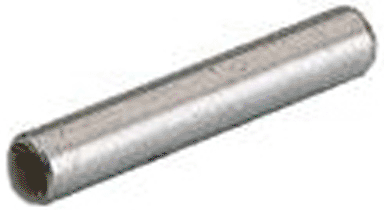

Additional Sleeves
Size
Part Number
4mm x 15mm 631004938
4mm x 40mm 631004942
Leg Extender
Connector Screws
50mm
Black
Packed 200 per case.

Part Number: 6702571LA
Color
For Wood Thickness
of 34mm - 41mm
Cap
Brown 631004740 631004746
Black 7326706302 Included

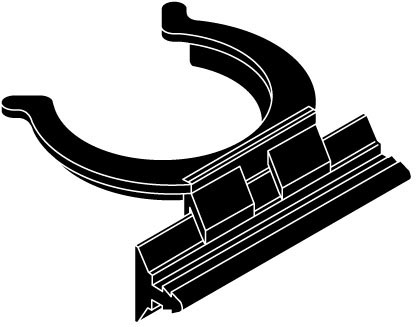

Toe Kick Clip
Comes with Screw On and Knock In plate.
Black
Packed 200 per case.

Part Number: 6702523L
Cross Dowel Nuts
Connecting fitting type JCD. For use with type BA, BB, and BC.
Size
Part Number
1/4-20 x 16mm 3602141601
Knock In Fixing Block

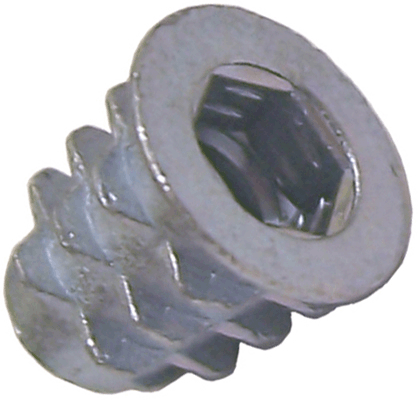

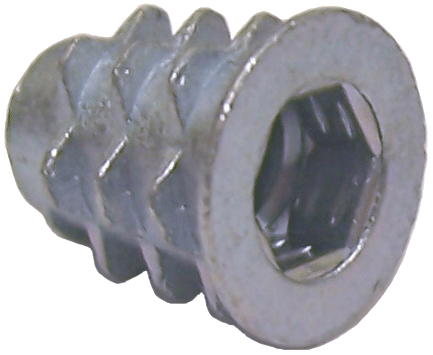

Insert Nuts - Hex Drive
Black
Packed 200 per case.

Part Number: 6702558LA
Screw On Fixing Block
Size
Type
Drive
Part Number
8-32 x 10mm
D
4mm Hex
3601081002
10-24 x 13mm
D
5mm Hex
3601101302
10-24 x 13mm
A
Knock-In
3601101302A
1/4-20 x 13mm
D
6mm Hex
3601141302
1/4-20 x 20mm
D
6mm Hex
3601142002
1/4-20 x 25mm
D
6mm Hex
3601142502
5/16-18 x 13mm
D
8mm Hex
3601251302
5/16-18 x 13mm
B
Knock-In
3601251302B
5/16-18 x 15mm
SK
8mm Hex
3601251502SK
5/16-18 x 25mm
D
8mm Hex
3601252502
5/16-18 x 30mm
SK
8mm Hex
3601253002SK
Black
Packed 200 per case.

Part Number: 6702559LA
Drawer Front Adjuster
Eliminates uneven drawer banks.
Multi-direction adjustment.
Locking screw to fasten.
Independent of drawer system.
One piece housing.
Fits in 25mm hole.

Brown Part Number: 6706309KA
Joint Connector Nuts
Connecting fitting type JCD. For use with type BA, BB, and BC connector bolts. 5mm hex drive.
Size
Part Number
Finish
10-24 x 16mm 3603101608
Black
1/4-20 x 17mm 3603141707
Bronze
1/4-20 x 17mm 3603141708
Black

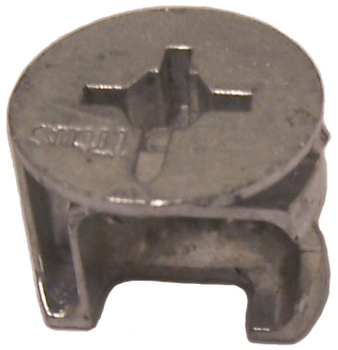

Klix Cam - System 5
Joint Connector Lags
Part Number
Hole Size
Depth
Color
Case Quantity
6705654ZN*
15mm
12mm
Zinc
2,000
*Indicates hex drive.
Hex drive decorator head. Stocked in bronze. 4mm hex drive.

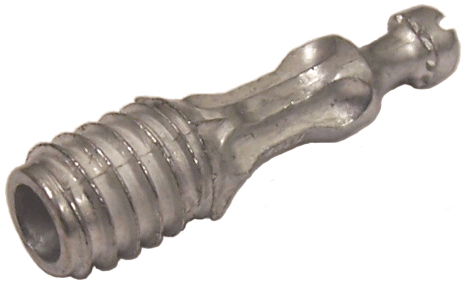

Klix Dowel - System 5
Size
Head Diameter
Part Number
Finish
7mm x 50mm
17mm
3613075007
Bronze
7mm x 70mm
17mm
3613077007
Bronze
7mm x 100mm
17mm
36130710007
Bronze
Part Number
Length
Thread Size
Color
Case Quantity
6705908ZN
20mm
6mm
Zinc
2,000

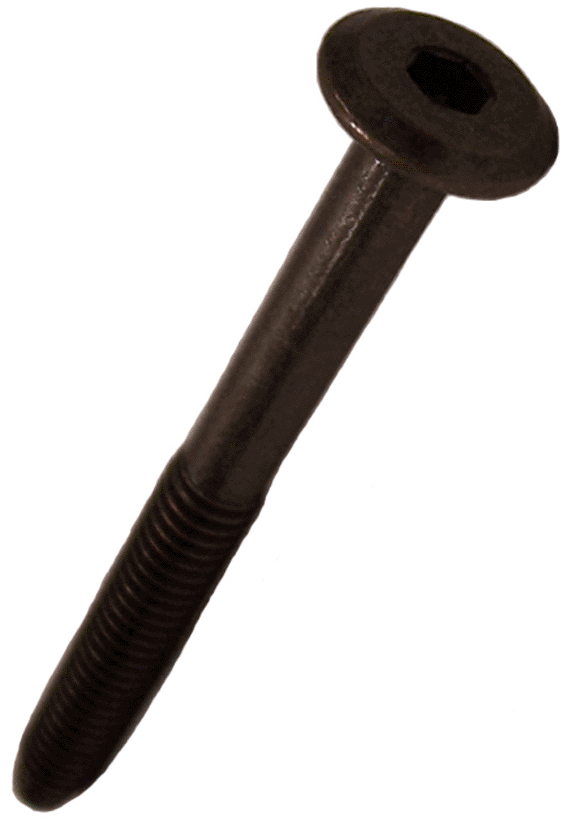

Joint Connector Bolts
Quickfit Push-In Dowels - System 5

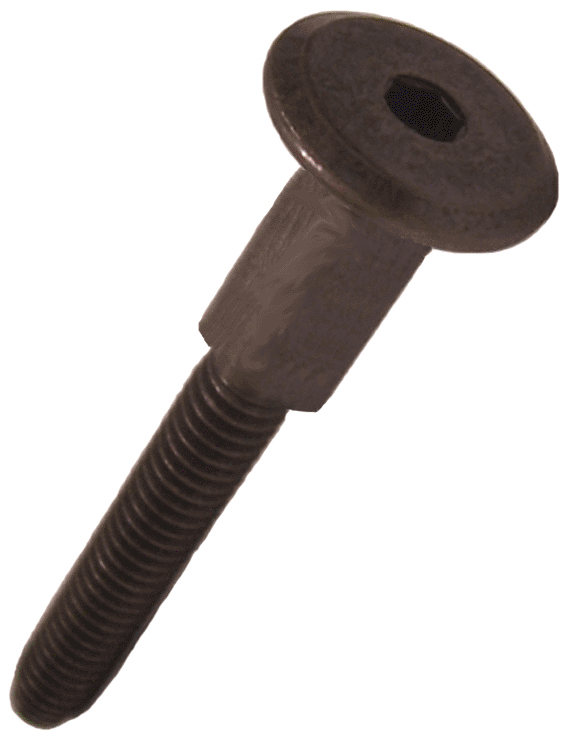

Type BA 17mm Head Shoulder, 5mm Hex Drive.
Part Number
Length
Thread Size
Color
Case Quantity
6705810YA
24mm
10mm
Gray
2,000
Size
Part Number
Finish
1/4-20 x 35mm 3611143508S
Black
1/4-20 x 35mm 3611143507S
Bronze
1/4-20 x 50mm 3611145007S
Bronze
1/4-20 x 60mm 3611146007S
Bronze
Quickfit Dowels

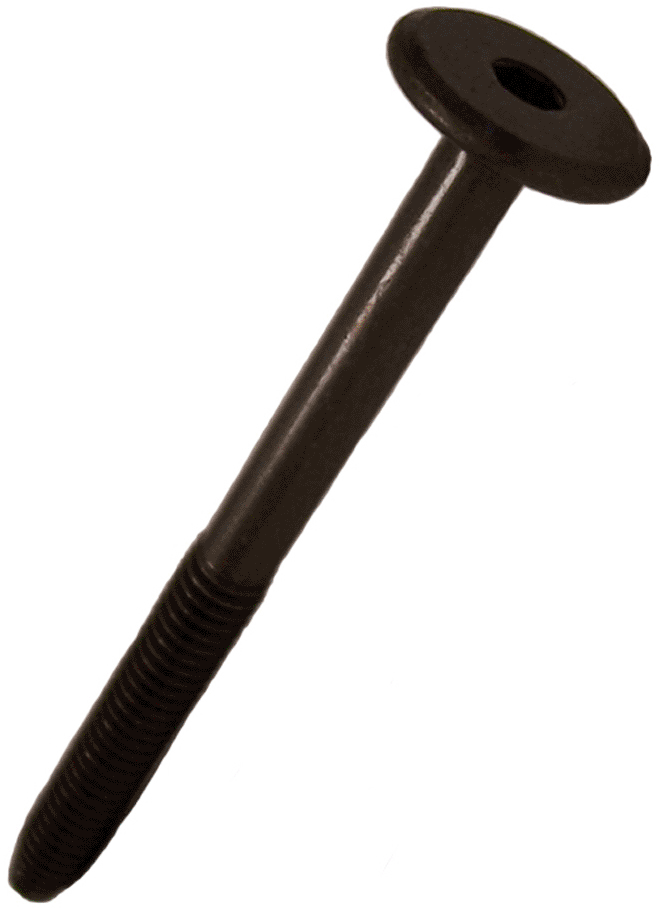

Type BB No Shoulder 17mm Head 4mm Hex Drive
Part Number
Length
Thread Size
Color
Case Quantity
6705563
24mm
8mm
Dark Gray
2,000
6705554YA
34mm
8mm
Dark Gray
2,000
Size
Part Number
Finish
1/4-20 x 30mm 3611143008
Black
1/4-20 x 35mm 3611143507
Bronze
1/4-20 x 50mm 3611145007
Bronze
1/4-20 x 60mm 3611146007
Bronze
1/4-20 x 70mm 3611147008
Black
1/4-20 x 80mm 3611148006
Brass
1/4-20 x 80mm 3611148007
Bronze
Type BC No Shoulder 13mm Head 4mm Hex Drive
Size
Part Number
Finish
1/4-20 x 50mm 361114500713
Bronze
1/4-20 x 60mm 361114600813
Black
