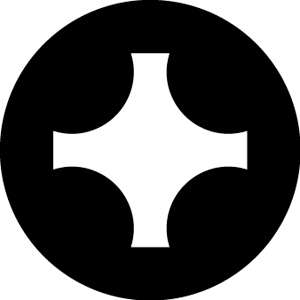

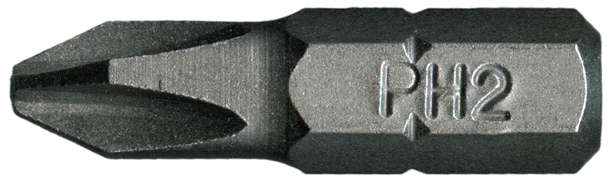

Phillips Hex Insert Bit
Aircraft Extension Bits
Surface treated
118 degree
High speed steel
6 per box
|
Part Number
|
Shank Size
|
Point Size
|
Length Inches
|
Length MM
|
| 51014401 |
1/4"
|
1
|
1"
|
25mm
|
| 51014402 |
1/4"
|
2
|
1"
|
25mm
|
| 51014402ACR |
1/4"
|
2
|
1"
|
25mm
|
| 51014403 |
1/4"
|
3
|
1"
|
25mm
|
| 51014462 |
1/4"
|
2
|
1"
|
25mm
|
| 51014462ACR |
1/4"
|
2
|
1"
|
25mm
|
|

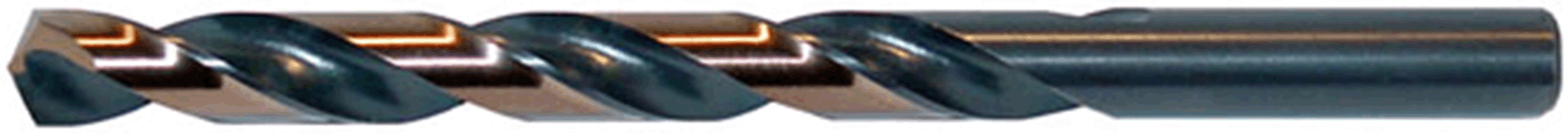

Drill Size
|
Part Number
|
Flute Length
|
Overall Length
|
| 1/8" | 51610840 |
1 5/8"
|
6"
|
| 5/32" | 51611040 |
2"
|
6"
|
| 3/16" | 51611240 |
2 5/16"
|
6"
|
| 7/32" | 51611440 |
2 1/2"
|
6"
|
| 1/4" | 51611640 |
2 3/4"
|
6"
|
| 17/64" | 51611740 |
2 7/8"
|
6"
|
| 9/32" | 51611840 |
2 15/16"
|
6"
|
| 5/16" | 51612040 |
3 3/16"
|
6"
|

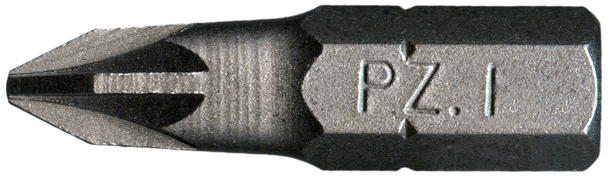

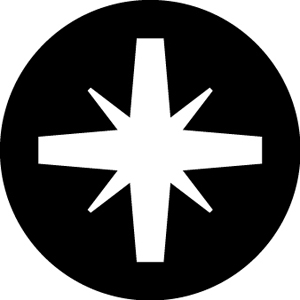

Pozi Drive Bits
|
Part Number
|
Type
|
Point Size
|
Length Inches
|
Length MM
|
| 51334402PZD |
1/4" Insert
|
2
|
1"
|
25mm
|
| 5134492CPZD |
1/4" Insert
|
2
|
6"
|
152mm
|
| 5134403PZD |
1/4" Insert
|
3
|
1"
|
25mm
|

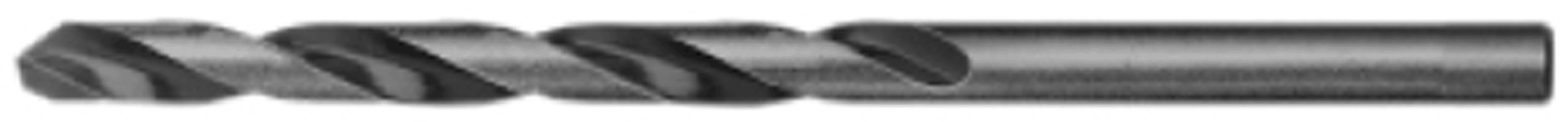

Cobalt Jobber Bits
135 degree
Split point
Rockwell hardness
12 per box for 1/16" to 1/4" sizes
6 per box for 17/64" to 1/2" sizes

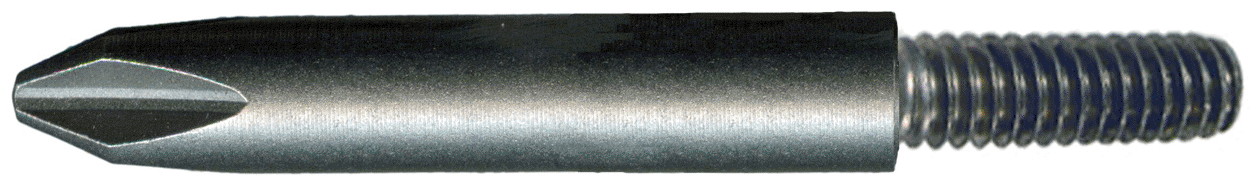

Phillips Threaded Bit
|
Drill Size
|
Part Number
|
Flute Length
|
Overall Length
|
| 5/64" | 516605 |
1"
|
2"
|
| 3/32" | 516606 |
1 1/4"
|
2 1/4"
|
| 7/64" | 516607 |
1 1/2"
|
2 5/8"
|
| 1/8" | 516608 |
1 5/8"
|
2 3/4"
|
| 9/64" | 516609 |
1 3/4"
|
2 7/8"
|
| 5/32" | 516610 |
2"
|
3 1/8"
|
| 3/16" | 516612 |
2 5/16"
|
3 1/2"
|
| 13/64" | 516613 |
2 7/16"
|
3 5/8"
|
| 7/32" | 516614 |
2 1/2"
|
3 3/4
|
| 1/4" | 516616 |
2 3/4"
|
4"
|
| 5/16" | 516620 |
3 3/16"
|
4 1/2"
|
| 3/8" | 516624 |
3 5/8"
|
5"
|
| 7/16" | 516628 |
4 1/16"
|
5 1/2"
|
|
Part Number
|
Diameter
|
Length Inches
|
Length MM
|
| 510716ZP |
10-32
|
1 1/2"
|
38mm
|

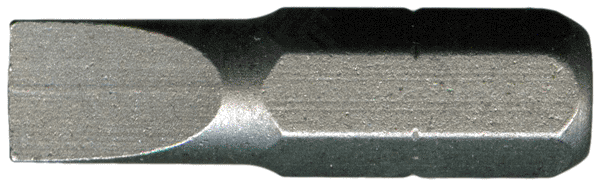

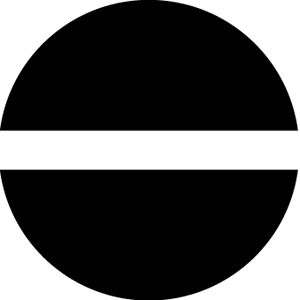

Slotted 1/4" Hex Insert Bits
|
Part Number
|
Screw Size
|
Length Inches
|
Blade Thickness
|
Blade Width
|
| 51214453 |
#8 - #10
|
1"
|
0.042
|
1/4"
|

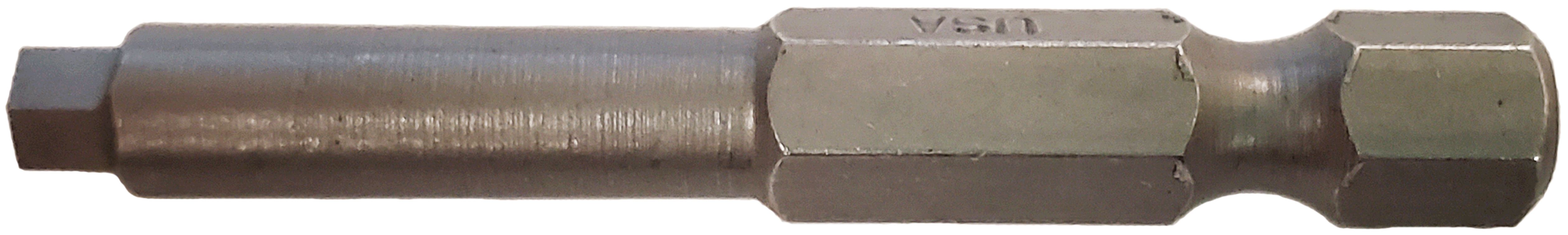

Socket 1/4" Hex Insert Bits

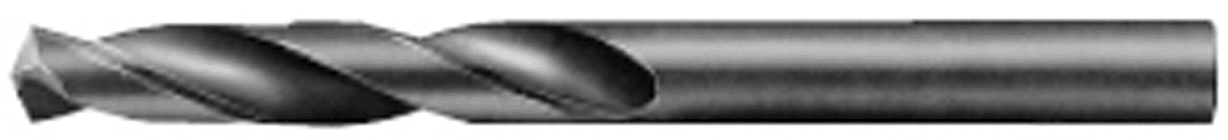

Stubby/Screw Machine Bits
|
Part Number
|
Hex Size
|
Length Inches
|
Length MM
|
| 5155AM4MM |
4mm
|
1"
|
25mm
|
| 5155AM5MM |
5mm
|
1"
|
25mm
|
| 5155AM6MM |
6mm
|
1"
|
25mm
|
Surface treated
135 degree
Split point
High speed steel
12 per box for 1/16" to 9/32" sizes
6 per box for 5/16" to 1/2" sizes
*Denotes 118 degree split point

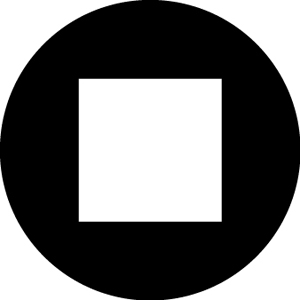

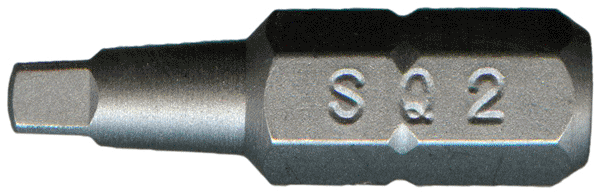

Square 1/4" Hex Insert Bits
|
Drill Size
|
Part Number
|
Flute Length
|
Overall Length
|
| *1/16" | 516204 |
5/8"
|
1 5/8"
|
| *5/64" | 516205 |
11/16"
|
1 11/16"
|
| 3/32" | 516206 |
3/4"
|
1 3/4"
|
| 7/64" | 516207 |
13/16"
|
1 13/16"
|
| 1/8" | 516208 |
7/8"
|
1 7/8"
|
| 9/64" | 516209 |
15/16"
|
1 15/16"
|
| 5/32" | 516210 |
1"
|
2 1/16"
|
| 11/64" | 516211 |
1 1/16"
|
2 1/8"
|
| 7/32" | 516214 |
1 1/4"
|
2 3/8"
|
| 1/4" | 516216 |
1 3/8"
|
2 1/2"
|
| 17/64" | 516217 |
1 7/16"
|
2 5/8"
|
| 5/16" | 516220 |
1 5/8"
|
2 13/16"
|
| 21/64" | 516221 |
1 11/16"
|
2 7/8"
|
| 11/32" | 516222 |
1 11/16"
|
3"
|
| #29 | 517229 |
15/16"
|
1 7/8"
|
| #38 | 517238 |
15/16"
|
1 13/16"
|
|
Part Number
|
Point Size
|
Nominal Size
|
Length Inches
|
Length MM
|
| 51119501 |
1
|
3/32"
|
1"
|
25mm
|
| 51119502 |
2
|
1/8"
|
1"
|
25mm
|
| 51119503 |
3
|
9/64"
|
1"
|
25mm
|

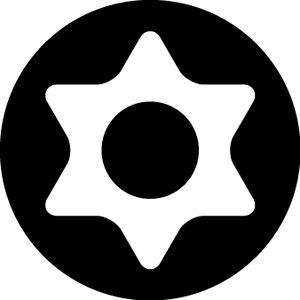

Torx Security 1/4" Hex Insert Bits
|
Part Number
|
Driver Size
|
Length Inches
|
Length MM
|
| 5154TXP10 |
T10-H
|
1"
|
25mm
|
| 5154TXP20 |
T20-H
|
1"
|
25mm
|

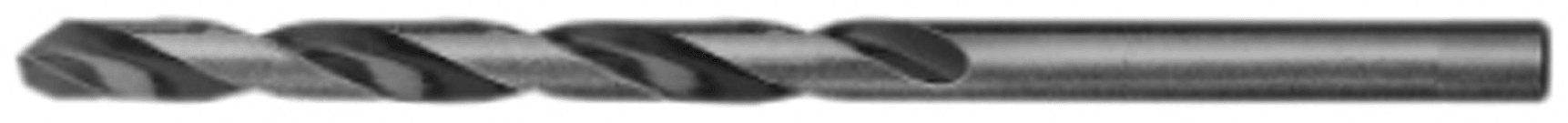

Metric Jobber Bits

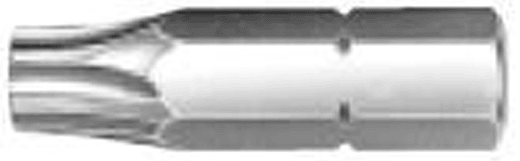

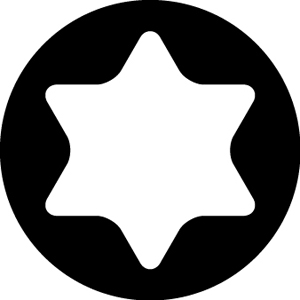

Torx 1/4" Hex Insert Bits
118 degree
High speed steel
12 per box for 3mm to 6mm sizes
6 per box for 8mm to 10mm sizes
|
Part Number
|
Driver Size
|
Length Inches
|
Length MM
|
| 513644TX06 |
T-6
|
1"
|
25mm
|
| 513644TX07 |
T-7
|
1"
|
25mm
|
| 513644TX08 |
T-8
|
1"
|
25mm
|
| 513644TX09 |
T-9
|
1"
|
25mm
|
| GRK86417 |
T-10
|
1"
|
25mm
|
| GRK86425 |
T-15
|
1"
|
25mm
|
| 513644TX20 |
T-20
|
1"
|
25mm
|
| GRK86441 |
T-25
|
1"
|
25mm
|
| GRK86449 |
T-30
|
1"
|
25mm
|
| GRK86457 |
T-40
|
1"
|
25mm
|
|
Drill Size
|
Part Number
|
Flute Length
|
Overall Length
|
| 5mm | 519105 |
62mm
|
92mm
|
| 6mm | 519106 |
70mm
|
102mm
|
| 8mm | 519108 |
81mm
|
114mm
|

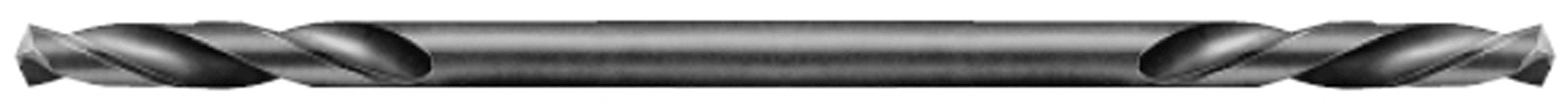

Double End Drill Bits
Surface treated
135 degree
Split point
12 per box

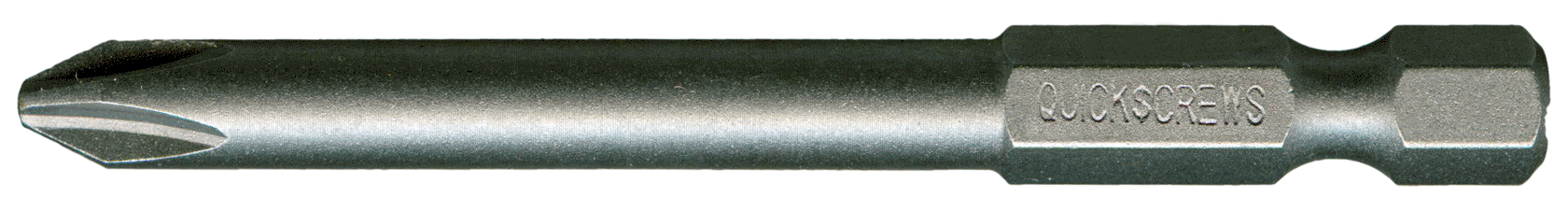

Phillips 1/4" Power Bits
|
Drill Size
|
Part Number
|
Flute Length
|
Overall Length
|
| 7/64" | 516307 |
1/2"
|
1 7/8"
|
| 1/8" | 516308 |
1/2"
|
2"
|
| 9/64" | 516309 |
1/2"
|
2"
|
| 5/32" | 516310 |
1/2"
|
2 1/16"
|
| 3/16" | 516312 |
1/2"
|
2 3/16"
|
| 7/32" | 516314 |
1/2"
|
2 3/8"
|
| #20 | 516320 |
1/2"
|
2 1/8"
|
| #30 | 516330 |
1/2"
|
2"
|
|
Part Number
|
Point Size
|
Length Inches
|
Length MM
|
Body Diameter Inches
|
Body Diameter MM
|
| 5104491 |
1
|
1 15/16"
|
49mm
|
3/16"
|
4.8mm
|
| 51014491B |
1
|
3 1/2"
|
89mm
|
3/16"
|
4.8mm
|
| 51014491C |
1
|
6"
|
152mm
|
3/16"
|
4.8mm
|
| 5104492 |
2
|
1 15/16"
|
49mm
|
1/4"
|
6.4mm
|
| 5104492A |
2
|
2 3/4"
|
70mm
|
1/4"
|
6.4mm
|
| 5104492B |
2
|
3 1/2"
|
89mm
|
1/4"
|
6.4mm
|
| 5104492C |
2
|
6"
|
152mm
|
1/4"
|
6.4mm
|
| 5104493 |
3
|
1 15/16"
|
49mm
|
5/16"
|
7.9mm
|
| 5104493A |
3
|
2 3/4"
|
70mm
|
5/16"
|
7.9mm
|
| 5104493B |
3
|
3 1/2"
|
89mm
|
5/16"
|
7.9mm
|
| 5104493C |
3
|
6"
|
152mm
|
5/16"
|
7.9mm
|
Masonry Drills
Slow spiral flutes
Sold individually
Sold individually

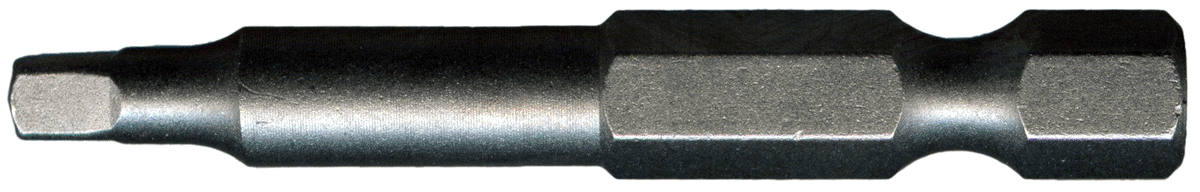

Square 1/4" Power Bits
|
Drill Size
|
Part Number
|
Shank Diameter
|
Overall Length
|
| 1/8" | 51680832 |
1/8"
|
3"
|
| 3/16" | 51681232 |
3/16"
|
4"
|
| 3/16" | 51681240 |
3/16"
|
6"
|
| 1/4" | 51681632 |
1/4"
|
4"
|
| 1/4" | 51681640 |
1/4"
|
6"
|
| 5/16" | 51682032 |
1/4"
|
4"
|
| 5/16" | 51682040 |
1/4"
|
6"
|
| 3/8" | 51682432 |
1/4"
|
4"
|
| 3/8" | 51682440 |
3/8"
|
6"
|
| 1/2" | 51683232 |
1/4"
|
4"
|
| 1/2" | 51683240 |
3/8"
|
6"
|
| 5/8" | 51684040 |
1/2"
|
6"
|
|
Part Number
|
Point Size
|
Nominal Size
|
Length Inches
|
Length MM
|
| 5112954A0 |
0
|
1/16"
|
3"
|
75mm
|
| 51129541 |
1
|
3/32"
|
2"
|
50mm
|
| 5112954A1 |
1
|
3/32"
|
2 3/4"
|
75mm
|
| 5112954B1 |
1
|
3/32"
|
3 1/2"
|
100mm
|
| 5112954C1 |
1
|
3/32"
|
6"
|
152mm
|
| 5112954A2 |
2
|
1/8"
|
2 3/4"
|
75mm
|
| 5112954B2 |
2
|
1/8"
|
3 1/2"
|
100mm
|
| 5112954C2 |
2
|
1/8"
|
6"
|
152mm
|
| 51129543 |
3
|
9/64"
|
2"
|
50mm
|
| 5112954A3 |
3
|
9/64"
|
2 3/4"
|
75mm
|
| 5112954B3 |
3
|
9/64"
|
3 1/2"
|
100mm
|
| 5112954C3 |
3
|
9/64"
|
6"
|
152mm
|

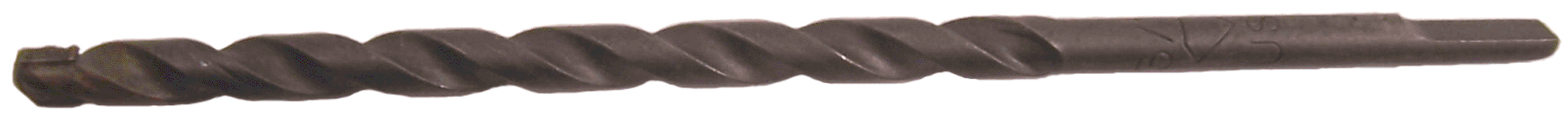

Drill Bits for Concrete Screws
Sold individually

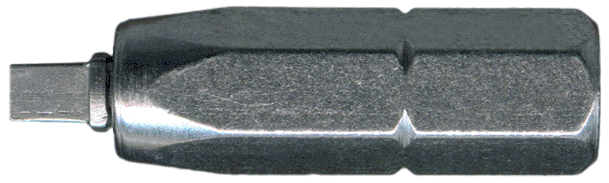

2 Piece Square Bits
|
Drill Size
|
Part Number
|
Flute Length
|
Overall Length
|
| 5/32" | 51701034 |
3 1/4"
|
4 1/2"
|
| 3/16" | 51701234 |
3 1/4"
|
4 1/2"
|
| 3/16" | 51701238 |
4 1/4"
|
5 1/2"
|
|
Part Number
|
Point Size
|
Nominal Size
|
Length Inches
|
Length MM
|
| 51119502P |
2
|
1/8"
|
1"
|
25mm
|
| 51129542P |
2
|
1/8"
|
2"
|
50mm
|
| 5112954A2P |
2
|
1/8"
|
3"
|
75mm
|
| 5112954C2P |
2
|
1/8"
|
6"
|
152mm
|
| 5112954C3P |
3
|
9/64"
|
6"
|
152mm
|

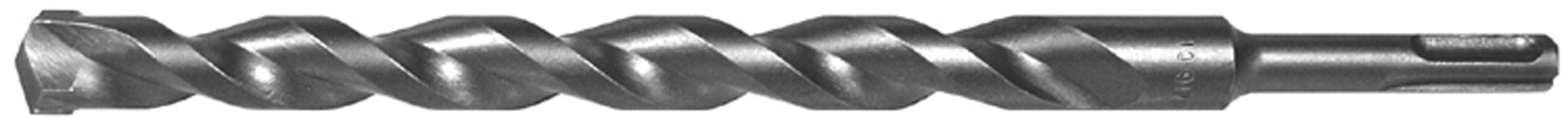

Masonry - SDS Drill Bits
Sold individually
|
Drill Size
|
Part Number
|
Useable Length
|
Overall Length
|
| 5/32" | 51691040 |
4"
|
6"
|
| 3/16" | 51691232 |
2"
|
4"
|
| 3/16" | 51691240 |
4"
|
6"
|
| 1/4" | 51691640 |
4"
|
6"
|
| 5/16" | 51692040 |
4"
|
6"
|
| 3/8" | 51692440 |
4"
|
6"
|
| 1/2" | 51693240 |
4"
|
6"
|
| 11/16" | 51694440 |
4"
|
6"
|
| 3/4" | 51694864 |
10"
|
12"
|

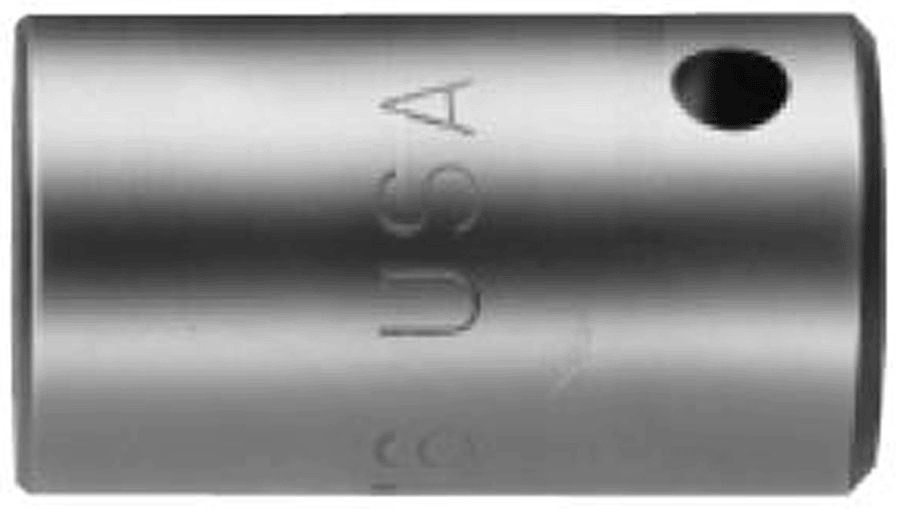

6 Point Sockets
|
Part Number
|
Square Drive
|
Hex Opening
|
Length
|
| 5142MX1108 |
1/4"
|
1/4"
|
7/8"
|
| 5142M1P10 |
1/4"
|
5/16"
|
7/8"
|
| 5142M1P12 |
1/4"
|
3/8"
|
1"
|
| 5142M3112 |
3/8"
|
3/8"
|
1 1/4"
|
| 5142M3116 |
3/8"
|
1/2"
|
1 1/2"
|
| 5142M3118 |
3/8"
|
9/16"
|
1 1/2"
|
| 5142M5E16 |
1/2"
|
1/2"
|
1 1/2"
|
Step Drill Bit HSS
For use with Confirmat Screws
Sold Individually

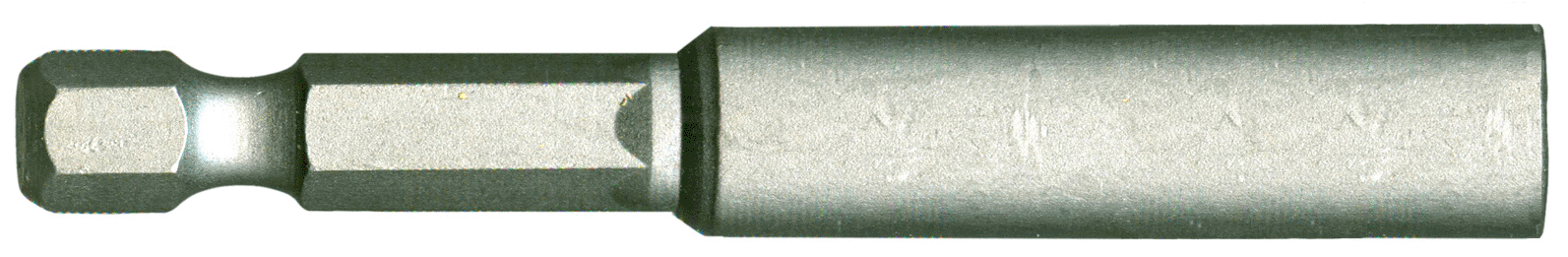

1/4" Magnetic Bit Holders
|
Drill Size
|
Part Number
|
Useable Length
|
Overall Length
|
| 5mm / 7mm | 51960705S |
3"
|
5 3/4"
|
|
Part Number
|
Nose Diameter
|
Length Inches
|
Length MM
|
| 5151M490 |
7/16"
|
3"
|
75mm
|
| 5151M490S |
3/8"
|
3"
|
75mm
|
| 5151M4902 |
7/16"
|
2"
|
51mm
|
| 5151M4902M* |
7/16"
|
2 1/2"
|
63mm
|
| 5151M4906 |
3/8"
|
6"
|
152mm
|

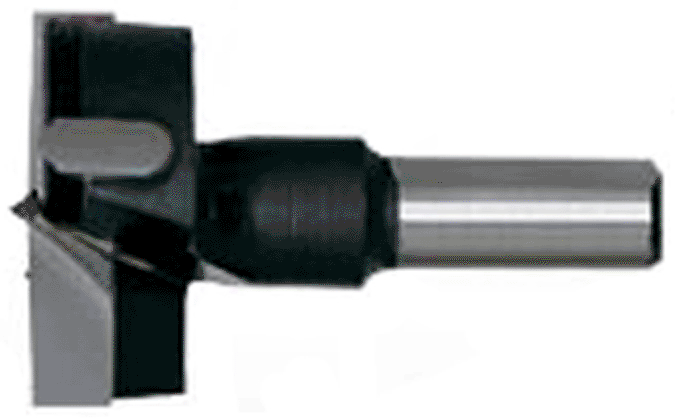

Boring Bits
Sold individually
Shank Diameter 10mm
*Super magnetic.

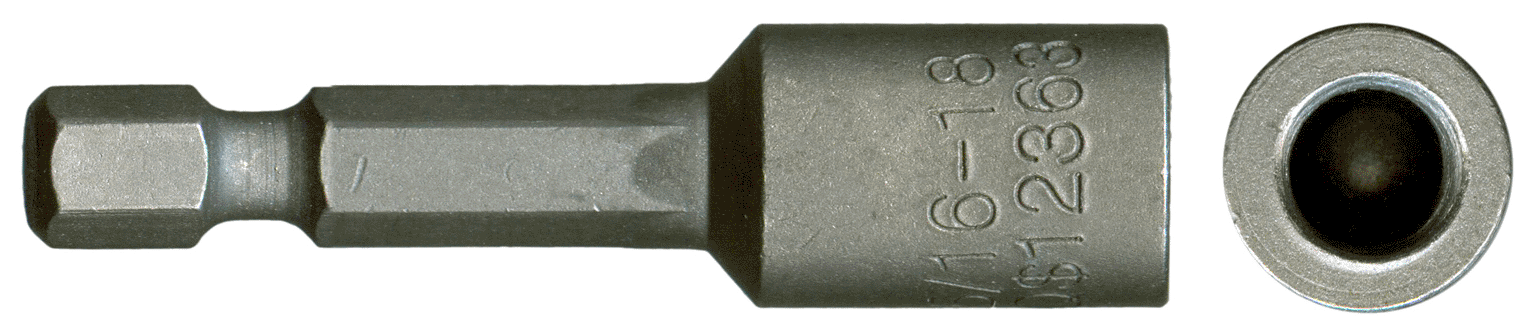

Hanger Bolt Drivers
Dowel Point
Dowel Point
|
Part Number
|
Broached Hex
|
Nose Diameter
|
Length Inches
|
| 5141MDA08T |
1/4"
|
7/16"
|
1 3/4"
|
| 5141MDA10T |
5/16"
|
1/2"
|
1 3/4"
|
| 5141MDA12T |
3/8"
|
9/16"
|
1 3/4"
|

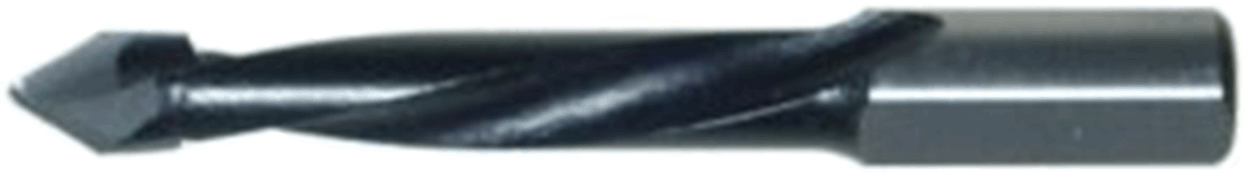

Through Point
|
Bit
Diameter |
Point
|
Part Number for Left
|
Part Number
for Right |
Overall
Length |
| 5mm |
Dowel
|
517605L
|
517605R
|
57mm
|
| 8mm |
Dowel
|
517608L
|
517608R
|
57mm
|
| 10mm |
Dowel
|
5224A301010 |
517610R
|
57mm
|
| 11mm |
Dowel
|
517611R
|
57mm
|
|
| 20mm |
Dowel
|
5224A203201 |
57mm
|
|
| 25mm |
Dowel
|
5224A203251 |
57mm
|
|
| 35mm |
Dowel
|
517635R |
57mm
|
|
| 35mm |
Dowel
|
51763570L
|
51763570R |
70mm
|
| 40mm |
Dowel
|
517640R |
57mm
|
|
| 5mm |
Through
|
517705TL | 517705TR |
58mm
|
| 5mm |
Through
|
51770577TL | 51770577TR |
77mm
|

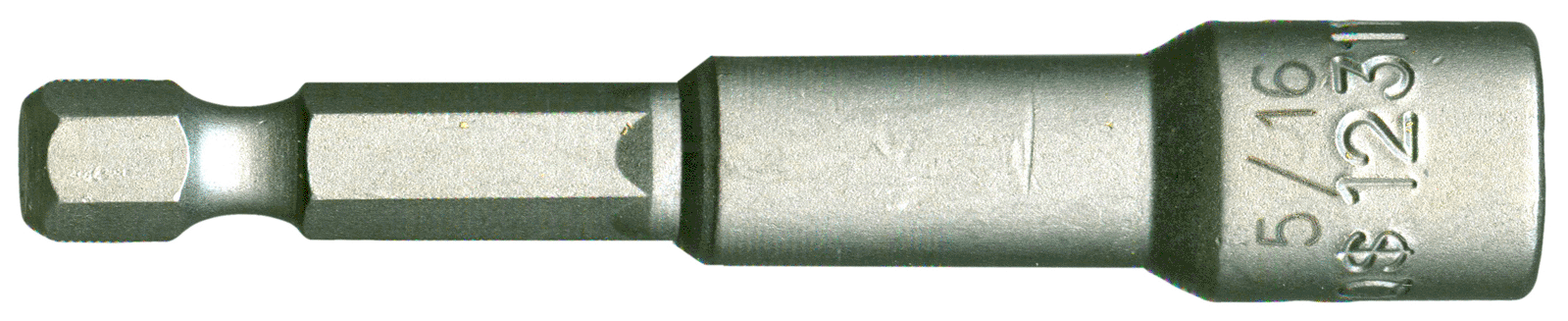

1/4" Magnetic Nutsetters
|
Part Number
|
Size Inches
|
Length Inches
|
Socket Nose
|
| 5141MDA08 |
1/4"
|
1 3/4"
|
7/16"
|
| 5141MDA10 |
5/16"
|
1 3/4"
|
1/2"
|
| 5141MDA12 |
3/8"
|
1 3/4"
|
9/16"
|
| 5141MDA14 |
7/16"
|
1 3/4"
|
5/8"
|
| 5141MDB08 |
1/4"
|
2 9/16"
|
7/16"
|
| 5141MDB10 |
5/16"
|
2 9/16"
|
1/2"
|
| 5141MDC08 |
1/4"
|
4"
|
7/16"
|
| 5141MDC10 |
5/16"
|
4"
|
1/2"
|
| 5141MDC12 |
3/8"
|
4"
|
9/16"
|
| 5141MDD08 |
1/4"
|
6"
|
7/16"
|
| 5141MDD10 |
5/16"
|
6"
|
1/2"
|

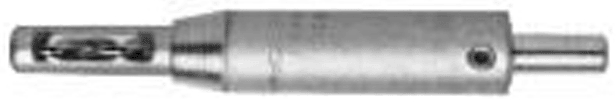

Vix Bits
Sold individually
|
Screw Size
|
Part Number
|
Diameter
|
Shank Size
|
| #3, #4 |
518005VB
|
5/64"
|
1/4"
|
| #5, #6 |
518007VB
|
7/64"
|
1/4"
|
| #8, #9, #10 |
518009VB
|
9/64"
|
1/4"
|
| #12 | 518011VB |
11/64"
|
1/4"
|
| #14 | 518013VB |
13/64"
|
1/4"
|
| 5mm | 51805MVB |
5mm
|
1/4"
|

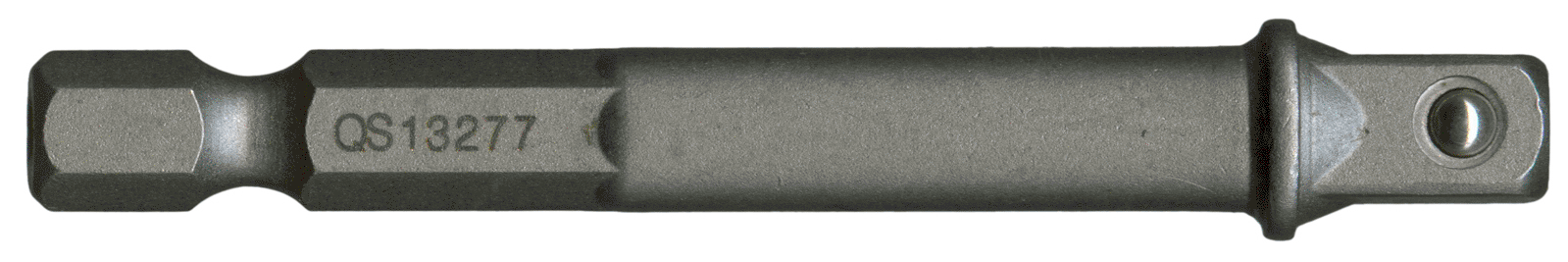

Extensions for Sockets
|
Part Number
|
Hex Drive
|
Type of Lock
|
Length Inches
|
Length MM
|
| 5144EX2502 |
1/4"
|
Pin
|
2"
|
51mm
|
| 5144EX2504 |
1/4"
|
Pin
|
4"
|
102mm
|
| 5144EX3703 |
3/8"
|
Pin
|
3"
|
76mm
|
Replacement Jobber for Vix Bits
Sold individually

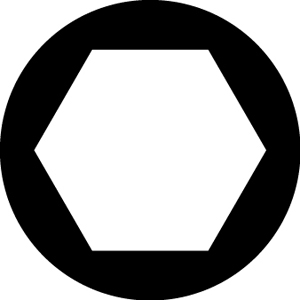

Hex Keys
|
Drill Size
|
Part Number
|
| 5/64" | 518005RVJ |
| 7/64" | 518007RVJ |
| 9/64" | 518009RVJ |
| 13/64 | 518013VBJ |
| 5mm | 51805MRVJ |

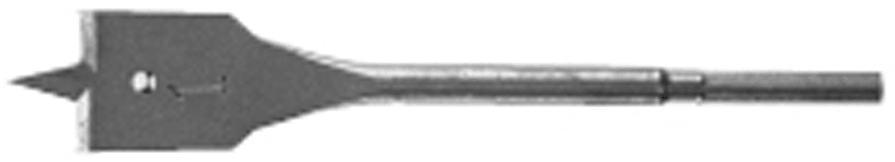

Spade Bits
12 per box
Fractional Hex Keys
|
Drill Size
|
Part Number
|
| 3/8" | 517424WS |
| 1/2" | 517432WS |
| 5/8" | 517440WS |
| 11/16" | 517422WS |
| 3/4" | 517448WS |
| 13/16" | 517452WS |
| 7/8" | 517456WS |
| 1" | 517464WS |
| 1 1/8" | 517472WS |
| 1 1/4" | 517480WS |
| 1 1/2" | 517496WS |
|
Part Number
|
Wrench Size
|
Long Arm (A)
|
Short Arm (B)
|
| 5157025 |
5/64"
|
2"
|
0.656"
|
| 515703L |
3/32"
|
3.375"
|
0.656"
|
| 515705 |
5/32"
|
2.5"
|
0.844"
|
| 515710 |
3/16"
|
2.75"
|
0.938"
|
Metric Hex Keys
|
Part Number
|
Wrench Size MM
|
Long Arm (A)
|
Short Arm (B)
|
| 51574MM |
4mm
|
60mm
|
20mm
|
| 51575MM |
5mm
|
65mm
|
25mm
|
Brad Point Machine Drills
Sold individually
Jobber Bits - General Purpose Fractional
|
Drill Size
|
Part Number
|
Flute Length
|
Overall Length
|
| 1/8" | 517508BP |
3"
|
5"
|
| 3/16" | 517512BP |
3"
|
5"
|
| 5mm | 51755MMBP |
3"
|
5"
|
| 1/4" | 517516BP |
3"
|
5"
|
| 9/32" | 517518BP |
3"
|
5"
|
| 5/16" | 517520BP |
3"
|
5"
|
| 3/8" | 517524BP |
3"
|
5"
|
Surface Treated.
118 degree.
High speed steel.
12 per box for 1/64" to 9/32" sizes.
6 per box for 19/64" to 1/2" sizes.
|
Drill Size
|
Part Number
|
Flute Length
|
Overall Length
|
| 1/16" |
516104
|
7/8"
|
1 7/8"
|
| 5/64" |
516105
|
1"
|
2"
|
| 3/32" |
516106
|
1 1/4"
|
2 1/4"
|
| 7/64" |
516107
|
1 1/2"
|
2 5/8"
|
| 1/8" |
516108
|
1 5/8"
|
2 3/4"
|
| 9/64" |
516109
|
1 3/4"
|
2 7/8"
|
| 5/32" |
516110
|
2"
|
3 1/8"
|
| 11/64" |
516111
|
2 1/8"
|
3 1/4"
|
| 3/16" |
516112
|
2 5/16"
|
3 1/2"
|
| 13/64" |
516113
|
2 7/16"
|
3 5/8"
|
| 7/32" |
516114
|
2 1/2"
|
3 3/4"
|
| 15/64" |
516115
|
2 5/8"
|
3 7/8"
|
| 1/4" |
516116
|
2 3/4"
|
4"
|
| 17/64" |
516117
|
2 7/8"
|
4 1/8"
|
| 9/32" |
516118
|
2 15/16"
|
4 1/4"
|
| 5/16" |
516120
|
3 3/16"
|
4 1/2"
|
| 21/64" |
516121
|
3 5/16"
|
4 5/8"
|
| 11/32" |
516122
|
3 7/16"
|
4 3/4"
|
| 23/64" |
516123
|
3 1/2"
|
4 7/8"
|
| 3/8" |
516124
|
3 5/8"
|
5"
|
| 13/32" |
516126
|
3 7/8"
|
5 1/4"
|
| 27/64" |
516127
|
3 15/16"
|
5 3/8"
|
| 7/16" |
516128
|
4 1/16"
|
5 1/2"
|
| 15/32" |
516130
|
4 5/16"
|
5 3/4"
|
| 1/2" |
516132
|
4 1/2"
|
6"
|

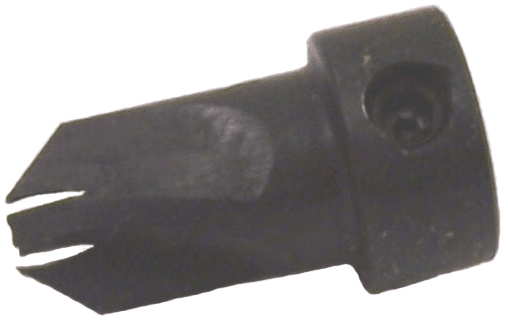

Countersinks
Overall length of 7/8"
|
Part Number
|
Tool Number
|
Taper Point Drill Size
|
Recommended Screw Size
|
Cutting Diameter
|
| 52222408 |
C5
|
1/8"
|
#5
|
3/8"
|
| 52222409 |
C6
|
9/64"
|
#6
|
3/8"
|
| 52222410 |
C7
|
5/32"
|
#7
|
3/8"
|
| 52222411 |
C8
|
11/64"
|
#8
|
3/8"
|
| 52222412 |
C9
|
3/16"
|
#9
|
3/8"
|

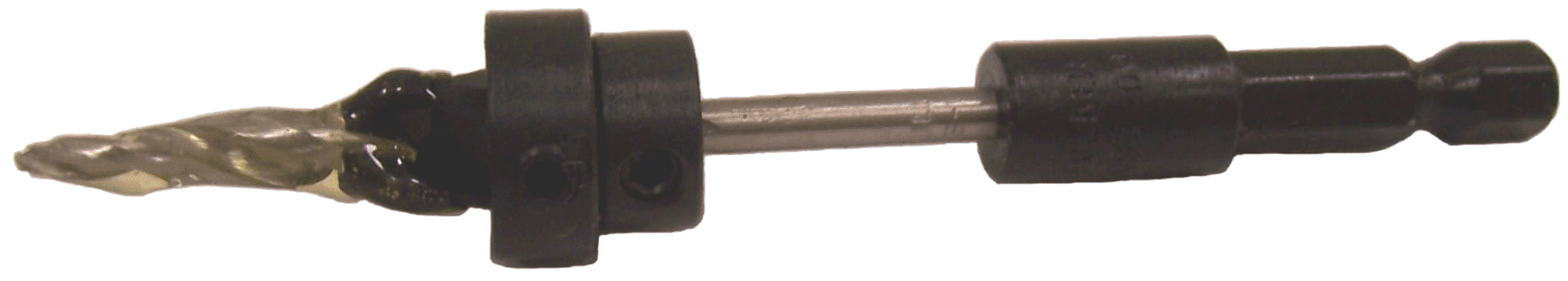

Countersinks
Taper point drill with stop collar.
|
Part Number
|
Type
|
Cutting Diameter
|
Drill Hole Size
|
| 52222408HM |
C5HM
|
3/8"
|
1/8"
|
| 52222409HM |
C6HM
|
3/8"
|
9/64"
|
| 52222410HM |
C7HM
|
3/8"
|
5/32"
|
| 52222411HM |
C8HM
|
3/8"
|
11/64"
|
| 52222412HM |
C9HM
|
3/8"
|
3/16"
|
Jobber Bits - General Purpose Numerical
Surface Treated.
118 degree.
High speed steel.
12 per box for #12 to #72 size.

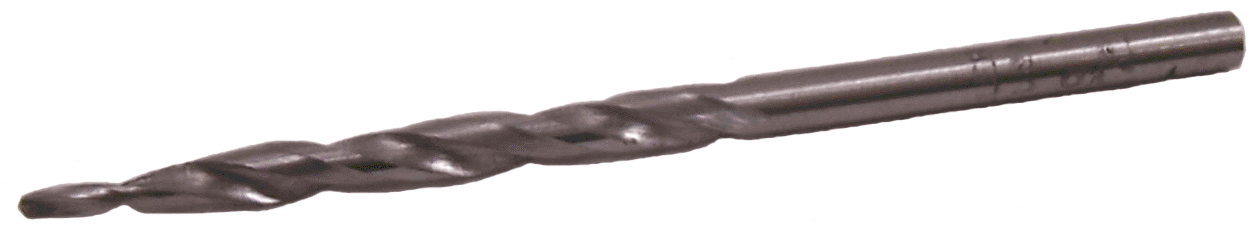

Taper Bits for Countersinks
|
Drill Size
|
Part Number
|
Diameter
|
Flute Length
|
Overall Length
|
| #12 | 517112 |
0.189
|
2 5/16"
|
3 1/2"
|
| #13 | 517113 |
0.185
|
2 5/16"
|
3 1/2"
|
| #14 | 517114 |
0.182
|
2 3/16"
|
3 3/8"
|
| #15 | 517115 |
0.180
|
2 3/16"
|
3 3/8"
|
| #16 | 517116 |
0.177
|
2 3/16"
|
3 3/8"
|
| #19 | 517119 |
0.166
|
2 1/8"
|
3 1/4"
|
| #21 | 517121 |
0.159
|
2 1/8"
|
3 1/4"
|
| #24 | 517124 |
0.152
|
2"
|
3 1/8"
|
| #25 | 517125 |
0.1495
|
1 7/8"
|
3"
|
| #30 | 517130 |
0.1285
|
1 5/8"
|
2 3/4"
|
| #32 | 517132 |
0.116
|
1 5/8"
|
2 3/4"
|
| #33 | 517133 |
0.113
|
1 1/2"
|
2 5/8"
|
| #34 | 517134 |
0.111
|
1 1/2"
|
2 5/8"
|
| #37 | 517137 |
0.104
|
1 7/16"
|
2 1/2"
|
| #38 | 517138 |
0.1015
|
1 7/16"
|
2 1/2"
|
| #39 | 517139 |
0.0995
|
1 3/8"
|
2 3/8"
|
| #40 | 517140 |
0.098
|
1 3/8"
|
2 3/8"
|
| #45 | 517145 |
0.082
|
1 1/8"
|
2 1/8"
|
| #53 | 517153 |
0.0595
|
7/8"
|
1 7/8"
|
| #72 | 517172 |
0.025
|
5/16"
|
1 1/8"
|
Regular Taper Point Drill Bits
|
Part Number
|
Drill Diameter
|
Wood Screw Size
|
Flute Length
|
Overall Length
|
| 517820100125 |
1/8"
|
5
|
1 5/8"
|
2 3/4"
|
| 517820100140 |
9/64"
|
6
|
1 3/4"
|
2 7/8"
|
| 517820100171 |
11/64"
|
8
|
2 1/8"
|
3 1/4"
|
| 517820100187 |
3/16"
|
9
|
2 5/16"
|
3 1/2"
|

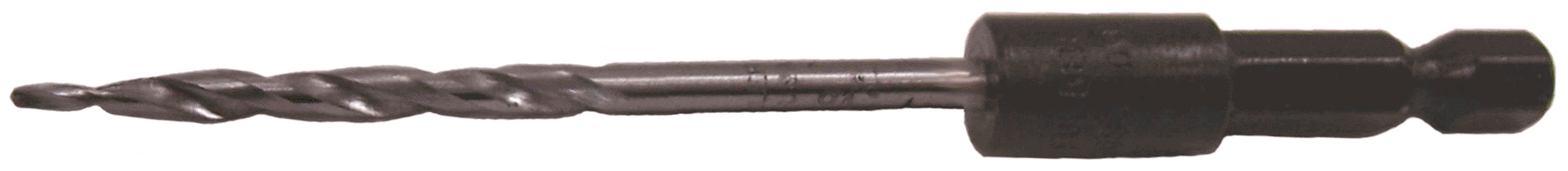

Hex Taper Point Drill Bits
|
Part Number
|
Drill Diameter
|
Wood Screw Size
|
Flute Length
|
Overall Length
|
Flute Type
|
| 517820140125 |
1/8"
|
5
|
1 5/8"
|
3 1/2"
|
1/4 Hex
|
| 517820140140 |
9/64"
|
6
|
1 3/4"
|
3 5/8"
|
1/4 Hex
|
| 517820120187 |
3/16"
|
9
|
2 5/16"
|
4 1/4"
|
1/4 Hex
|
| 517820140218 |
7/32"
|
10
|
2 7/16"
|
4 3/8"
|
1/4 Hex
|
Jobber Bits - Black & Gold
Black & Gold.
Surface treated.
High speed steel.
12 per box.
|
Drill Size
|
Part Number
|
Flute Length
|
Overall Length
|
| 1/8" |
516108135
|
1 5/8"
|
2 3/4"
|
| 5/32" |
516110135
|
2"
|
3 1/8"
|
| 3/16" |
516112135
|
2 5/16"
|
3 1/2"
|
| 7/32" |
516114135
|
2 1/2"
|
3 3/4"
|
| 1/4" |
516116135
|
2 3/4"
|
4"
|
| 5/16" |
516120135
|
3 3/16"
|
4 1/2"
|
| 3/8" |
516124135
|
3 5/8"
|
5"
|
| 27/64" |
516127135
|
3 15/16"
|
5 3/8"
|
| 7/16" |
516128135
|
4 1/16"
|
5 1/2"
|
| 1/2" |
516132135
|
4 1/2"
|
6"
|
| V |
5181V135
|
3 5/8"
|
5"
|
| W |
5181W135
|
3 3/4"
|
5 1/8"
|
| #10 |
517110135
|
2 7/16"
|
3 5/8"
|

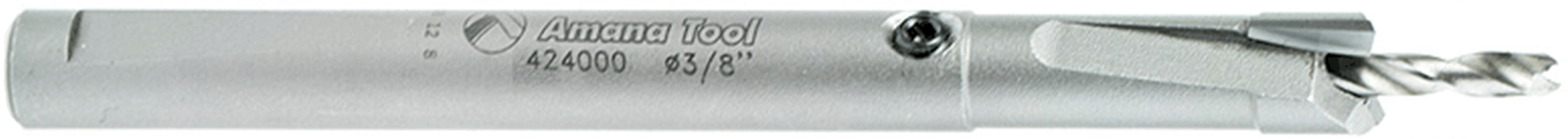

Counterbore for Face Frame Machines
Carbide tipped counterbore for Evans, Ritter, Unique, Marcon and Norfield face frame machines and drill presses.
|
Part Number
|
Cutting Diameter Inches
|
Shank Diameter Inches
|
Overall Length Inches
|
| 5224A424000 |
.136"
|
3/8"
|
4 1/2"
|

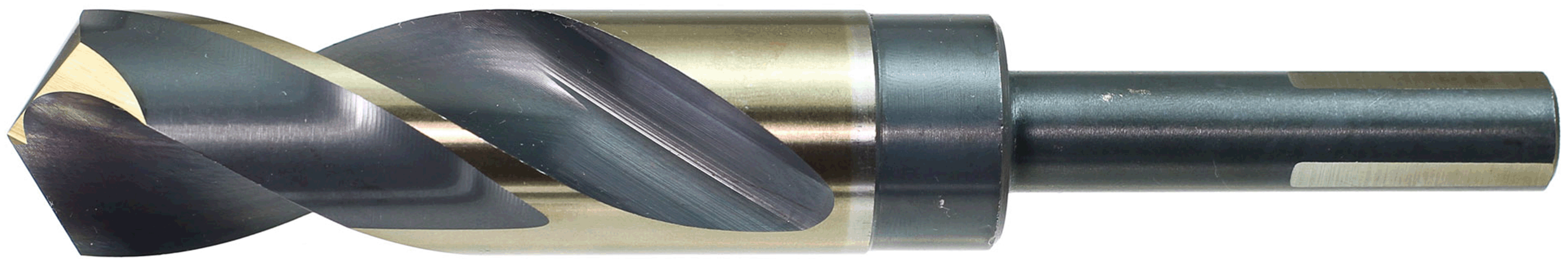

Jobber Bits - Black & Gold
Black & Gold.
Surface treated.
High speed steel.
12 per box.
|
Drill Size
|
Part Number
|
Shank
|
Flute Length
|
Overall Length
|
| 9/16" | 51653612S135 |
1/2" x 2 1/4"
|
3"
|
6"
|
| 5/8" | 51654012S135 |
1/2" x 2 1/4"
|
3"
|
6"
|
U.S. Industrial Fasteners Phone: 480-967-8702 / Toll Free 800-289-5386
2026 East Cedar Street Tempe, Arizona 85281
2026 East Cedar Street Tempe, Arizona 85281
