Import Barn Door Hardware
Flat Rail Surface Mount

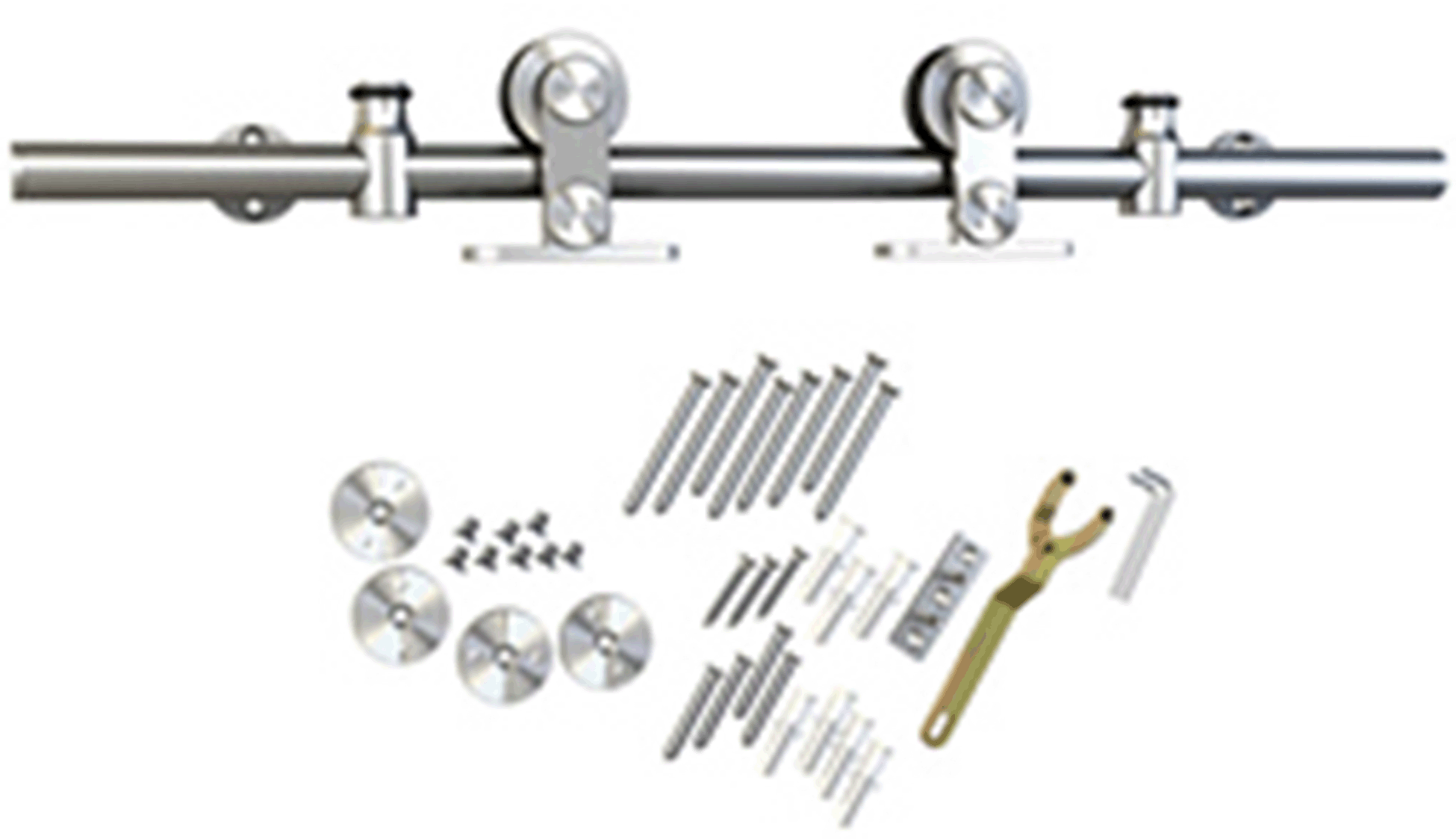

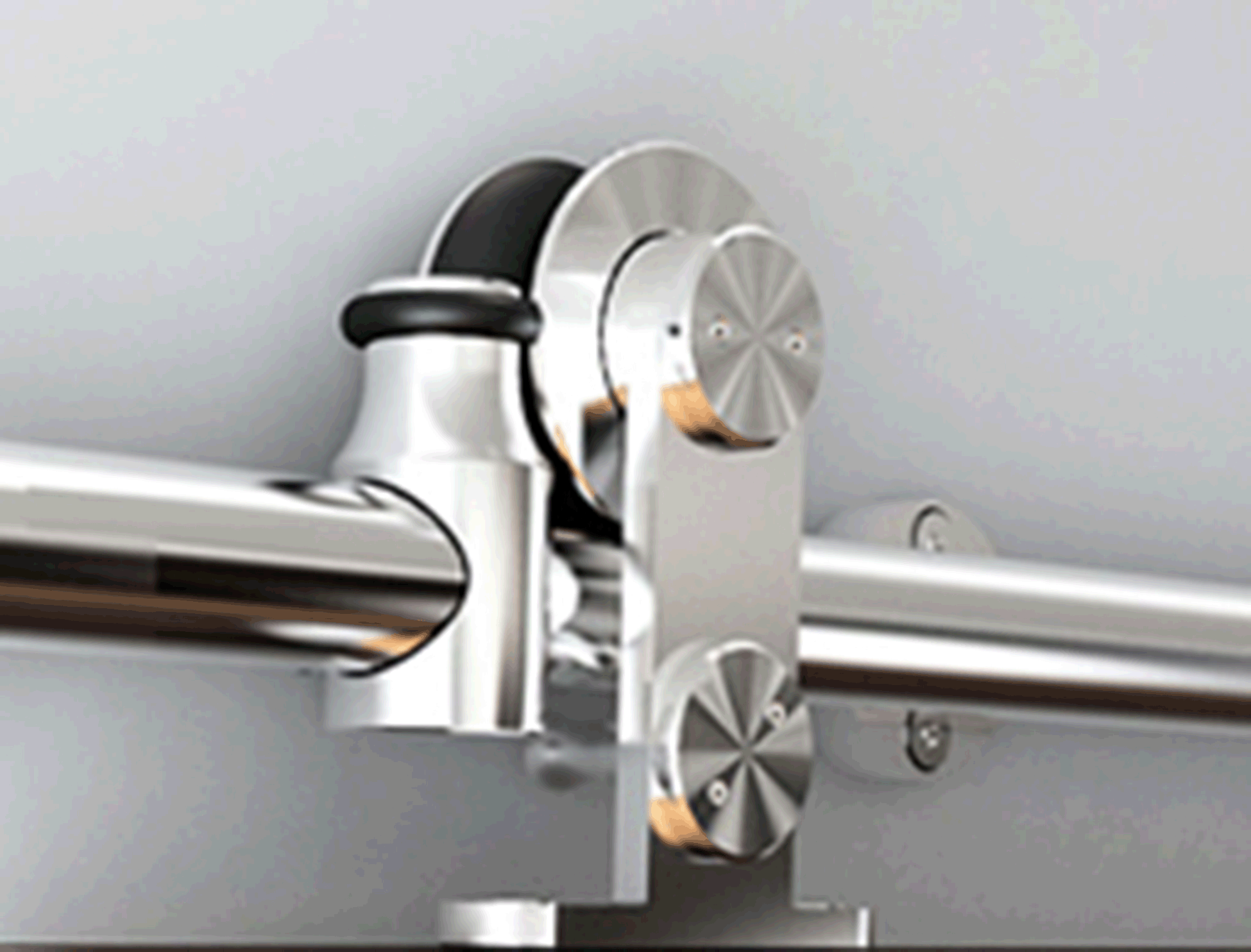

Round Rail Top Mount
Stainless Steel
Max. Door Weight: 260 lbs
Suitable for door thickness of 1 3/8" - 1 9/16" (35 - 40mm) Soft Close 1 3/8" - 1 3/4" (35 - 45mm)
Kit Includes:
* 5 Clamps for Fixing Track
* 2 Door Stoppers
* 1 Rail, Length 6.5' or 8'
* 2 Anti Jump Blocks
* 2 Sliding Door Rollers
* 1 Floor Guide
* Screws and Allen Key
Steel with powder coat or Stainless Steel.
Max. Door Weight: 350 lbs
Suitable for door thickness of 1 1/4" - 1 3/4" (35 - 45mm)
Top Mount Hardware Kit with Soft Close Includes:
* 4 Clamps for Fixing Track
* 2 Door Stops
* 1 Rail, Length 6.5'
* 2 End Caps
* 2 Soft Close Mechanisms
* 2 Triggers for Soft Close
* 2 Sliding Door Rollers
* 1 Floor Guide
* Screws and Mounting Tool

Part Number: FU7712356004
Part Number
Length
Finish
Box Quantity
FU7721451005
6.5'
Steel Matte Black
1 set
FU7721453007
6.5'
Steel Oil Rubbed Bronze
1 set
FU7721456006
6.5'
Stainless Steel
1 set
FU7721451020
8'
Steel Matte Black
1 set
FU7721453021
8'
Steel Oil Rubbed Bronze
1 set
FU7721456023
8'
Stainless Steel
1 set
Flat Rail Top Mount
Kit Includes:
* 5 Clamps for Fixing Track
* 2 Door Stoppers
* 1 Rail, Length 6.5' or 8'
* 2 Anti Jump Blocks
* 2 Sliding Door Rollers
* 1 Floor Guide
* Screws and Allen Key		 Top Mount Hardware Kit Includes:
Steel with powder coat or Stainless Steel.
Max. Door Weight: 350 lbs
Suitable for door thickness of 1 3/16" - 1 3/4" (30 - 45mm)		 * 4 Clamps for Fixing Track
* 2 Door Stops
* 1 Rail, Length 6.5'
* 2 End Caps
* 2 Sliding Door Rollers
* 1 Floor Guide
* Screws and Mounting Tool

Part Number: FU7712456003
Part Number
Length
Finish
Box Quantity
FU7722451008
6.5'
Steel Matte Black
1 set
FU7722456009
6.5'
Stainless Steel
1 set
FU7722451024
8'
Steel Matte Black
1 set
FU7722456025
8'
Stainless Steel
1 set
Mini Flat Rail Surface Mount
Round Rail Surface Mount
Steel with powder coat.
Max. Door Weight: 44 lbs
Suitable for door thickness of 1" - 1 3/16" (25 - 30mm)
Kit Includes:
* 2 Door Stoppers
* 1 Rail, Length 5' 10"
* 2 Anti Jump Blocks
* 2 Sliding Door Rollers
* 1 Floor Guide
* Screws and Mounting Tool

Part Number: FU7721451010
Stainless Steel
Max. Door Weight: 260 lbs
Suitable for door thickness of 1 3/8" - 1 9/16" (35 - 40mm) Soft Close 1 3/8" - 1 3/4" (35 - 45mm)
Surface Mount Hardware Kit with Soft Close Includes: Surface Mount Hardware Kit Includes:
* 4 Clamps for Fixing Track
* 2 Door Stops
* 1 Rail, Length 6.5'
* 2 End Caps
* 2 Sliding Door Rollers
* 1 Floor Guide
* Screws and Mounting Tool

Part Number: FU7711456001
* 4 Clamps for Fixing Track
* 2 Door Stops
* 1 Rail, Length 6.5'
* 2 End Caps
* 2 Soft Close Mechanisms
* 2 Triggers for Soft Close
* 2 Sliding Door Rollers
* 1 Floor Guide
* Screws and Mounting Tool

Part Number: FU7711356002

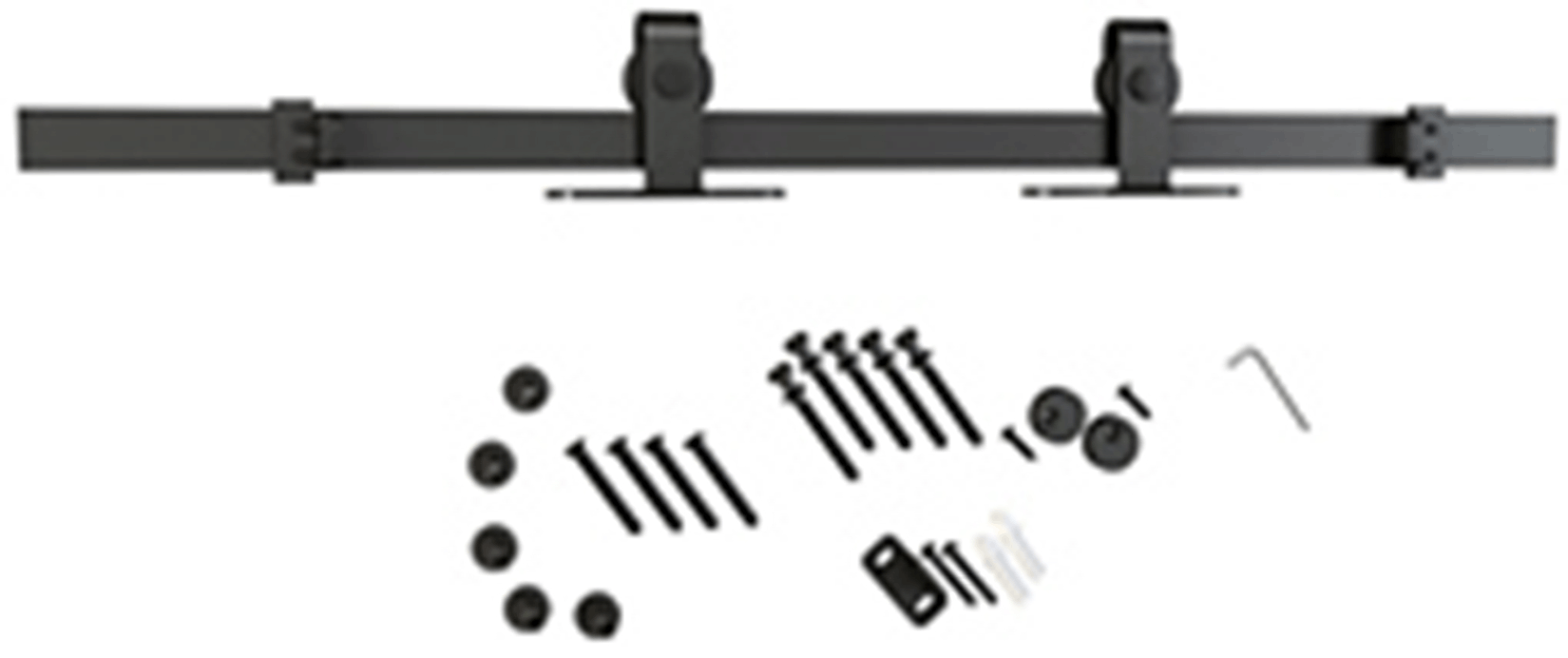

Mini Flat Rail Top Mount
Steel with powder coat.
Max. Door Weight: 44 lbs
Suitable for door thickness of 1" - 1 3/4" (25 - 45mm)

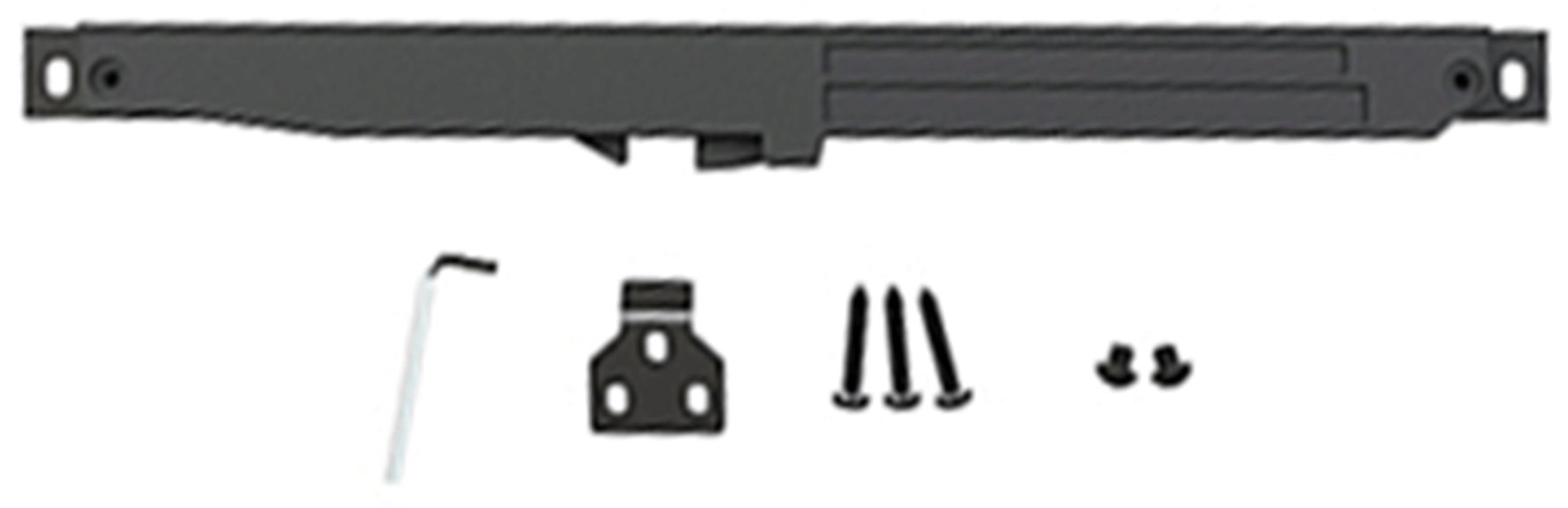

Soft Close Mechanism for Flat Rail
Max Load of 176 lbs
Overall Dimensions:
13-3/8" x 15/16" x 13/16"
Kit Includes:
* 2 Door Stoppers
* 1 Rail, Length 5' 10"
* 2 Anti Jump Blocks
* 2 Sliding Door Rollers
* 1 Floor Guide
* Screws and Mounting Tool
Steel Matte Black Finish

Part Number: FU7722451011
Part Number
Finish
Box Quantity
FU7725351100
Steel Matte Black
1 set
FU7725356109
Stainless Steel
1 set

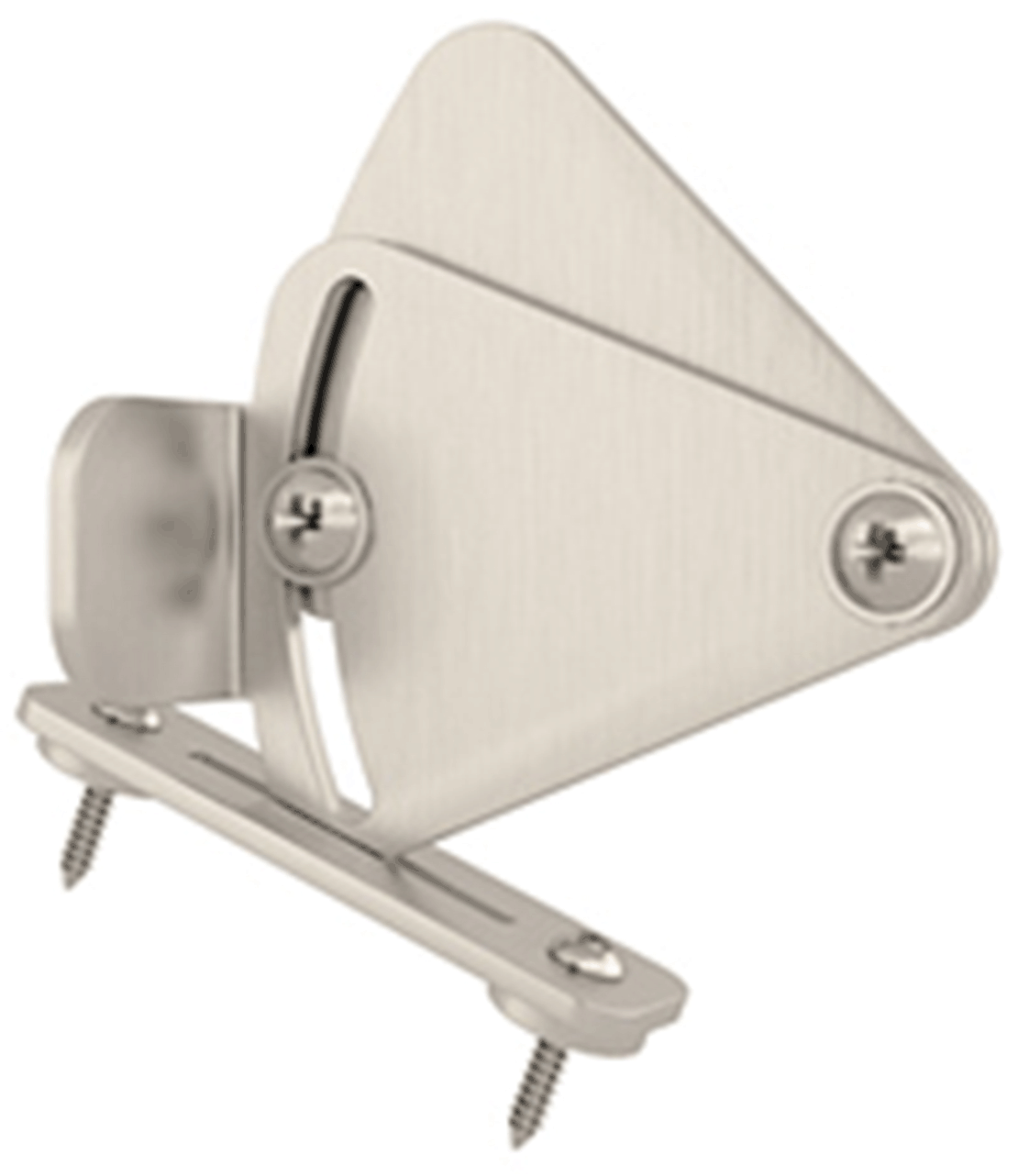

Latches for Barn Door Hardware
Guides and Door Brackets

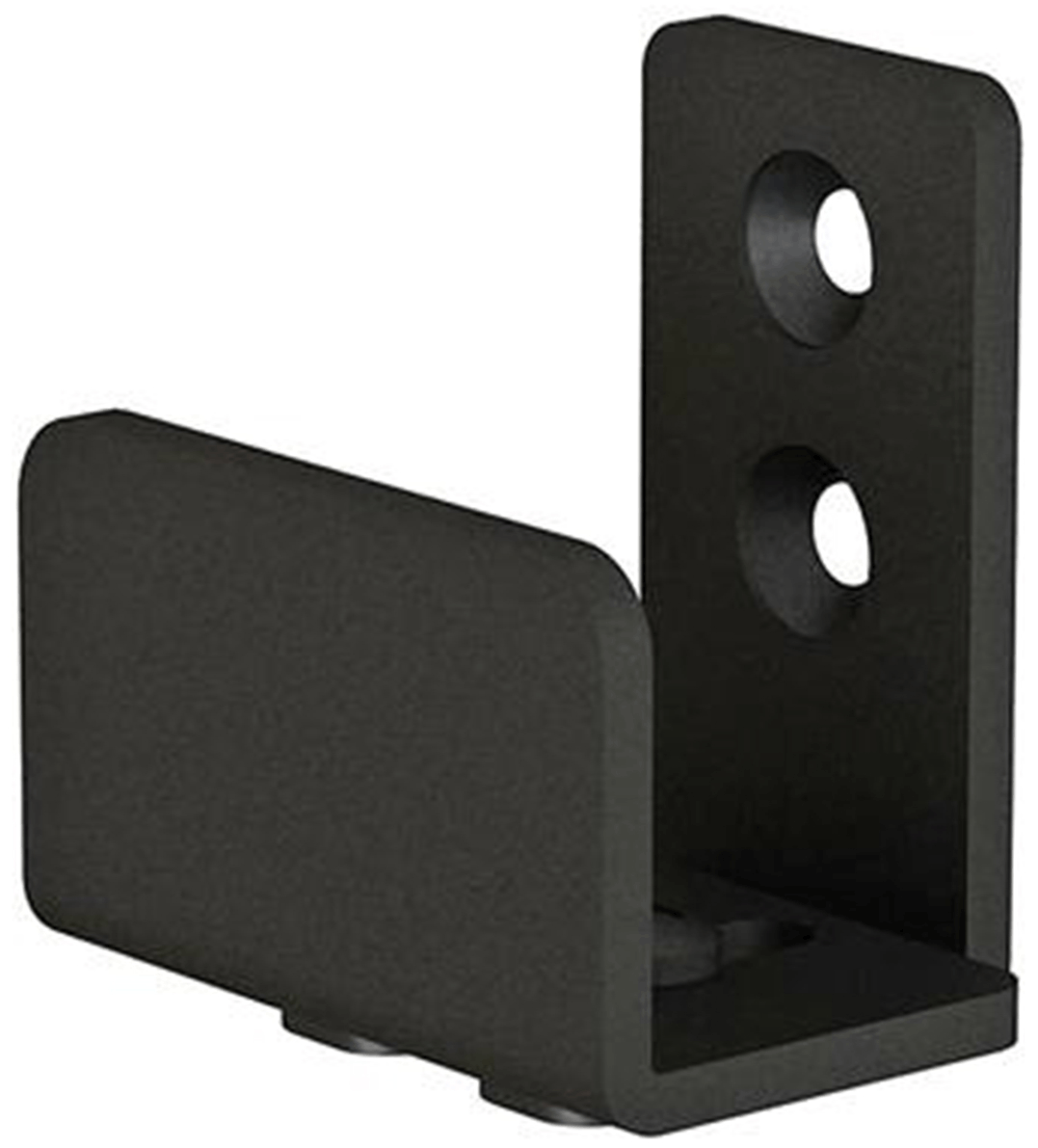

C Guide
Part Number
Finish
Box Quantity
FU7791951110
Matte Black
1
FU7791953111
Oil Rubbed Bronze
1
FU7791956112
Stainless Steel
1
Part Number
Finish
Box Quantity
FU7751951201
Matte Black
1
FU7751953202
Oil Rubbed Bronze
1
FU7751959200
Stainless Steel
1

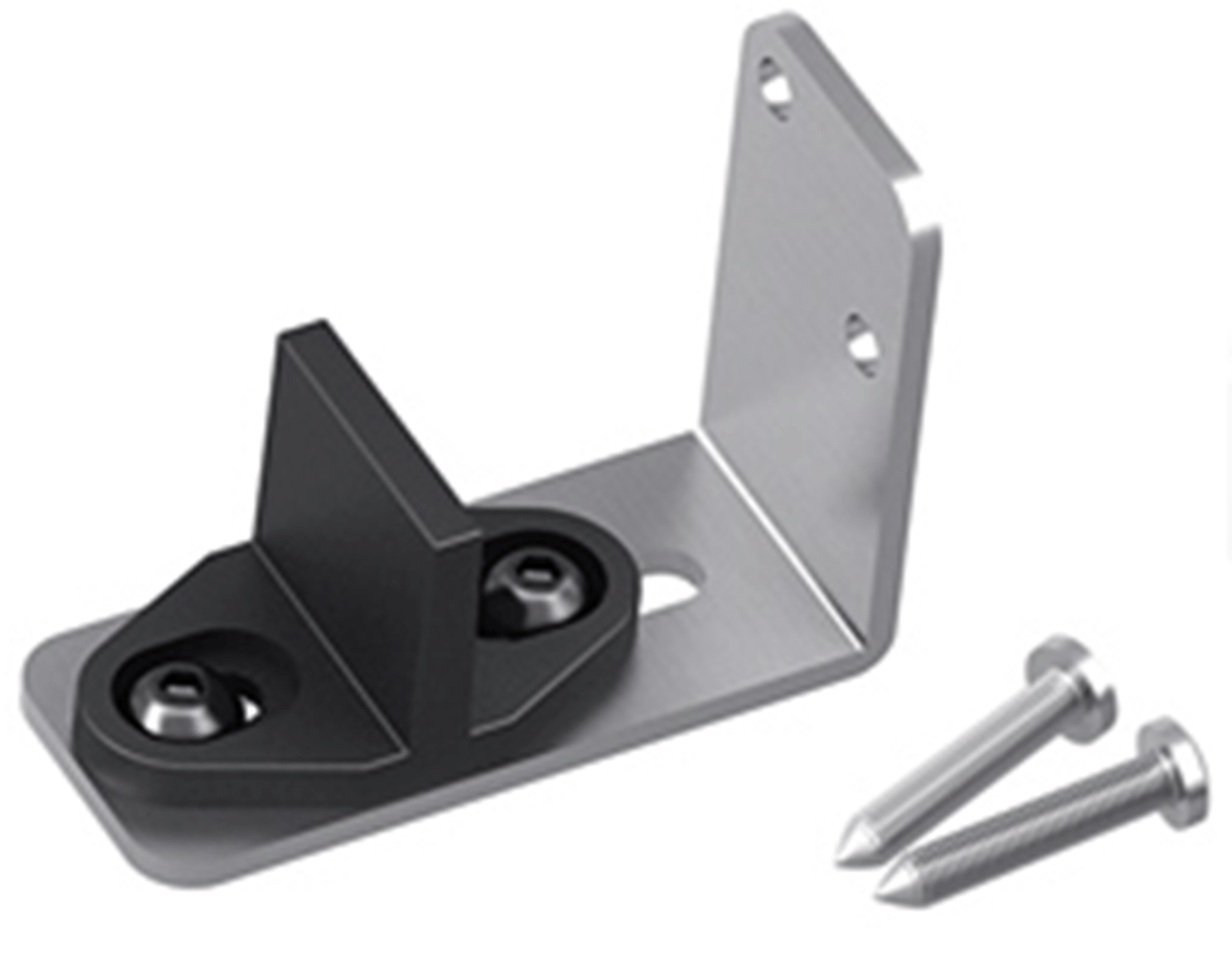

T Guide

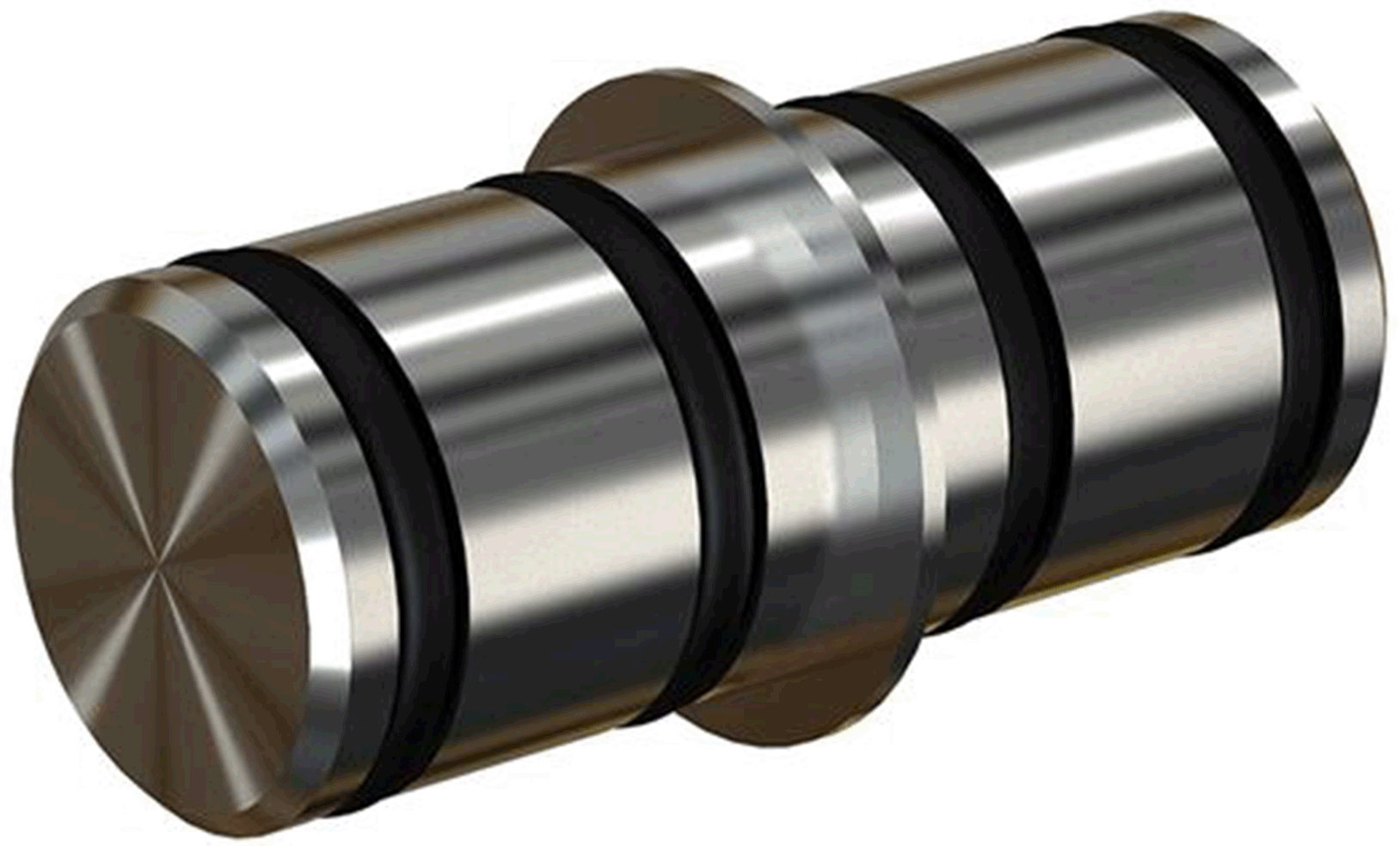

Rail Connectors
Part Number
Finish
Box Quantity
FU7791951113
Matte Black
1
FU7791953114
Oil Rubbed Bronze
1
FU7791956115
Stainless Steel
1
For Round Rail
Stainless Steel
Part Number: FU7715956107
Stainless Steel
Part Number: FU7715956123
Bypass Door Bracket
Part Number
Finish
Box Quantity
FU7791951101
Matte Black
1
FU7791953103
Oil Rubbed Bronze
1
FU7791956102
Stainless Steel
1
For Flat Rail
Part Number
Finish
Box Quantity
FU7725951104
Matte Black
1
FU7725953106
Oil Rubbed Bronze
1
FU7725956105
Stainless Steel
1
